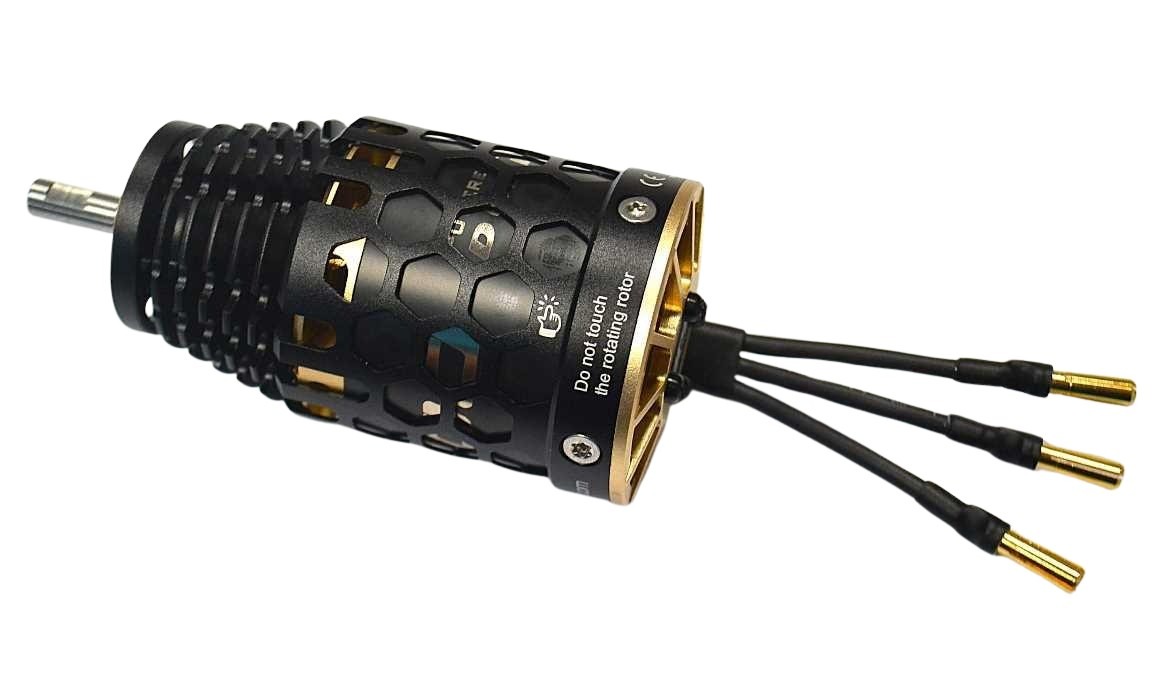

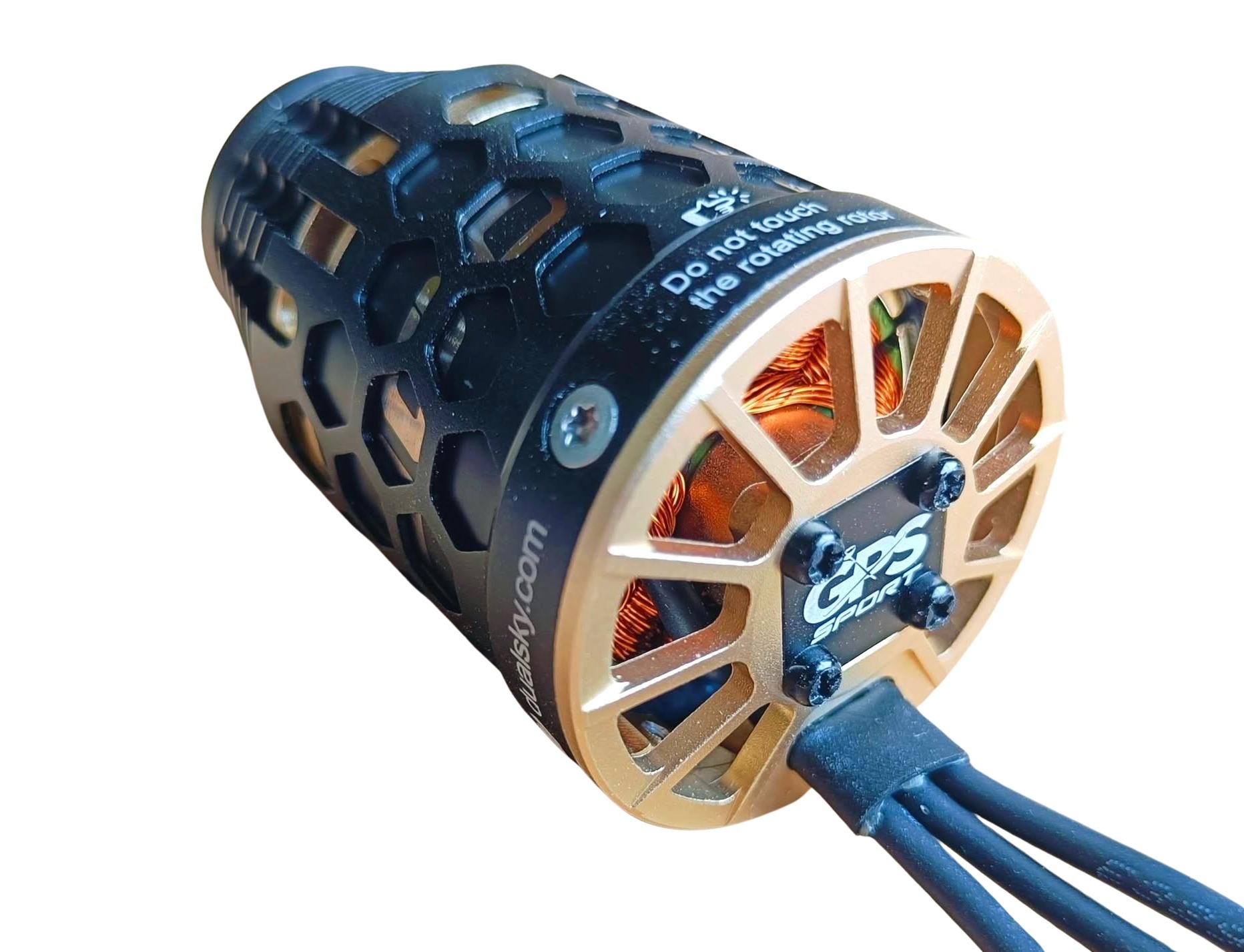

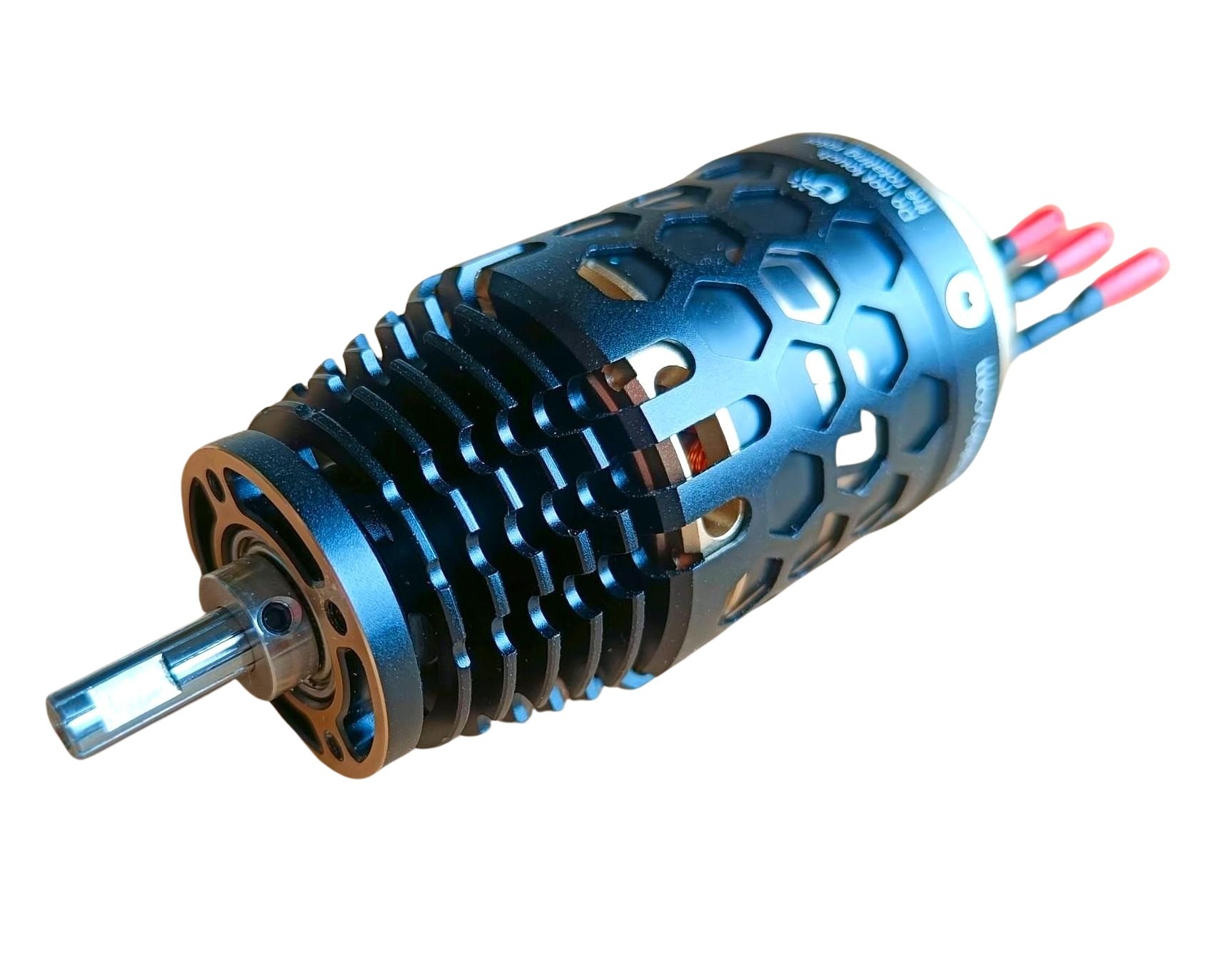

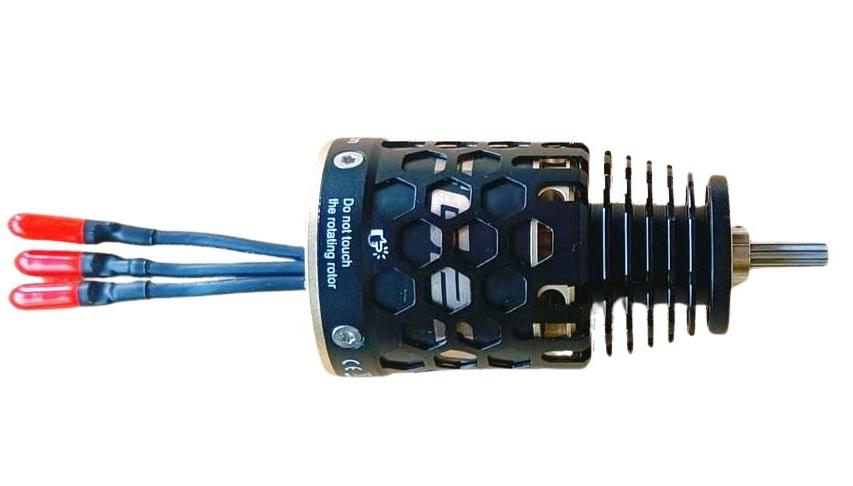

Dualsky EG 2000-14 440 RPM/V 320g Cased Outrunner
Description
The Dualsky EG 2000-14 is a high quality cased outrunner with a KV of 440 RPM/V and a peak power of 1824W. It is ideal for models weighing 2.5 Kg to 6 Kg. Designed for GPS Sport and other large gliders on 6S - 8S LiPo batteries.Interesting tests on Samba's motor page.
| Dualsky EG2000-14 Specifications | ||
|---|---|---|
| Motor name | Dualsky EG2000-14 Cased Outrunner | |
| Motor weight | 320 g | 11.29 oz |
| Motor diameter | 46.8 mm | 1.84 in |
| Motor length | 79.2 mm | 3.12 in |
| Lead length | 50 cm | 19.69 in |
| Shaft diameter | 6.0 mm | 0.24 in |
| Front diameter | 32.0 mm | 1.26 in |
| Measured Rm | 29.1 mR | |
| Measured Kv | 440 RPM/V | |
| Measured Io | 1.28 A @ 20 V | |
| Max efficiency (20 V) | 92 % @ 30 A | |
| Operating efficency (20 V) | 87 % @ 76 A | |
| Motor Km | 127 Nm/W^.5 X1000 | |
| Motor Km/Kg | 398 Nm/(W^.5 Kg) | |
| Recommended battery | 6S - 8S LiPo | |
| Rec max LiPo capacity | 6 Ah | |
| Input connector | GC4.0 | |
| 6S LiPo Performance | ||
| Recommended prop | 15x10, 16x8 | |
| Input power | 1520 W on 16x8 prop | |
| Current | 76 A on 16x8 prop | |
| Estimated rate of climb | 11 m/s for 6000 g glider | |
