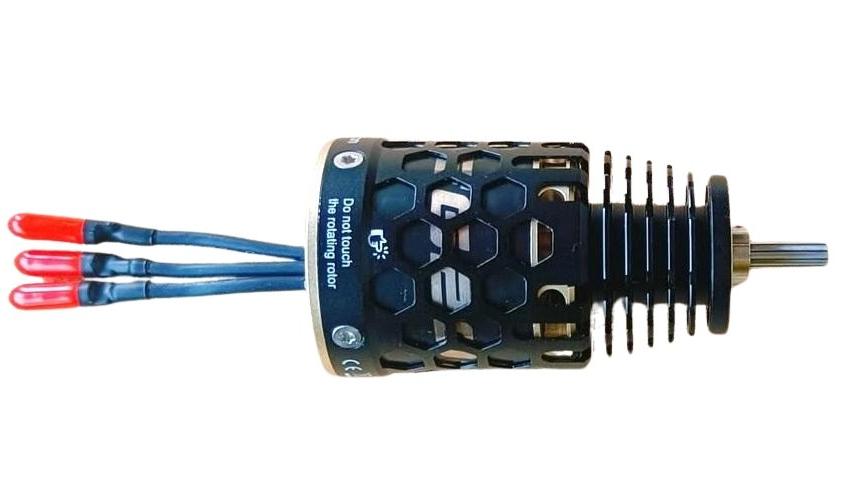

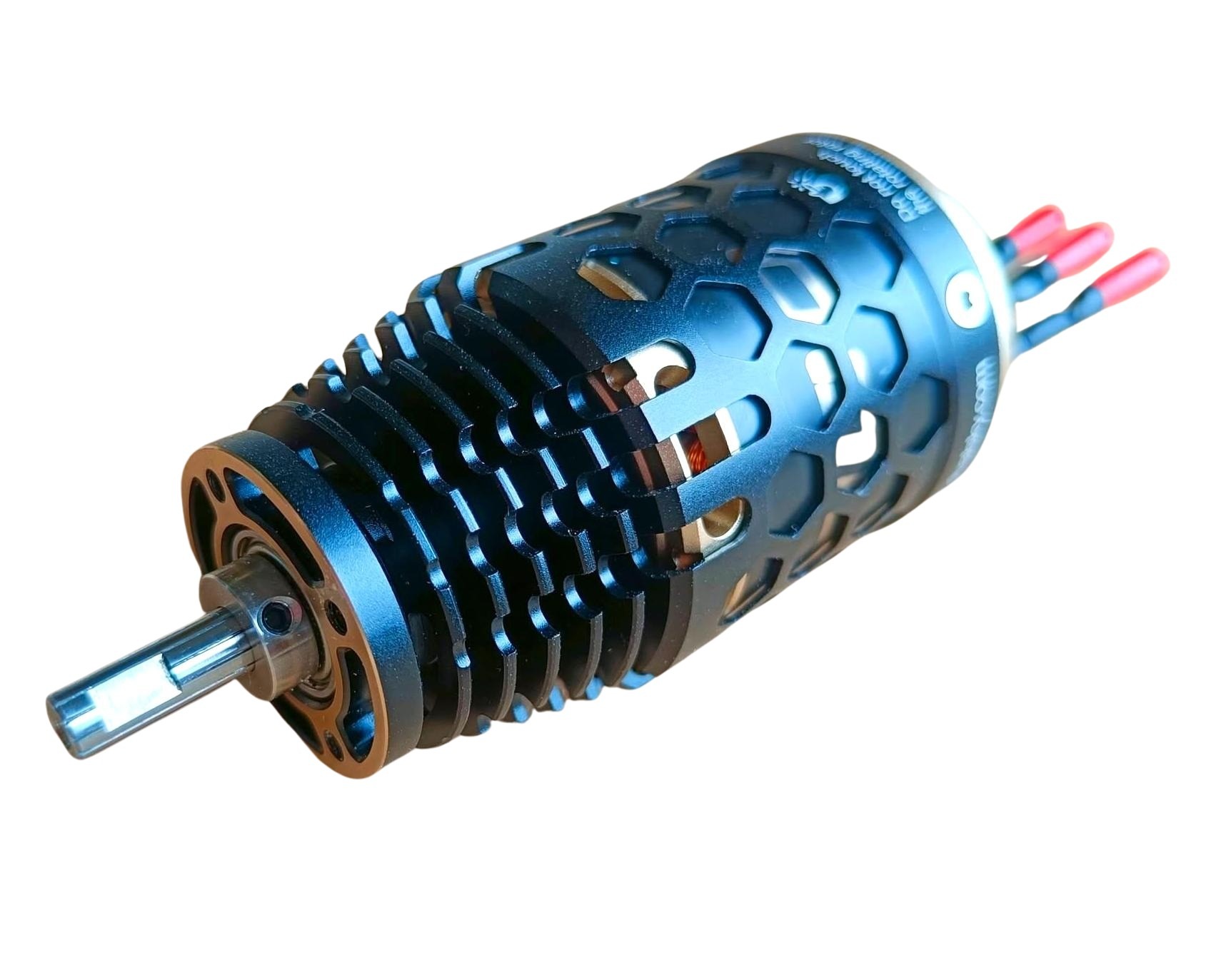

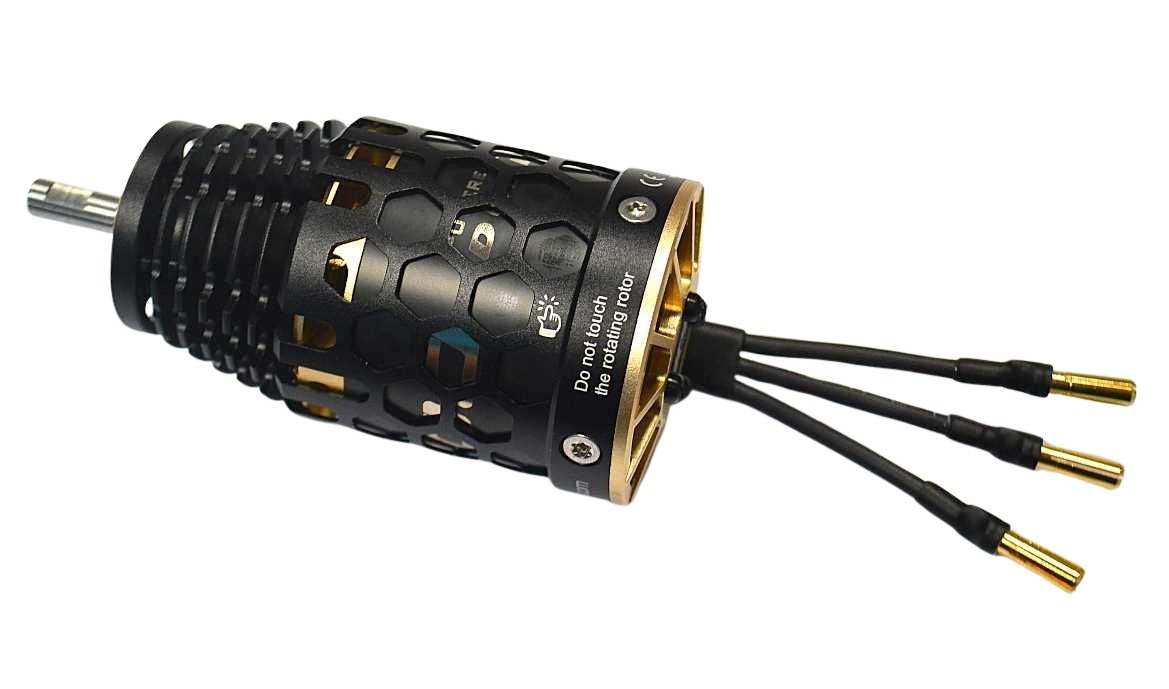

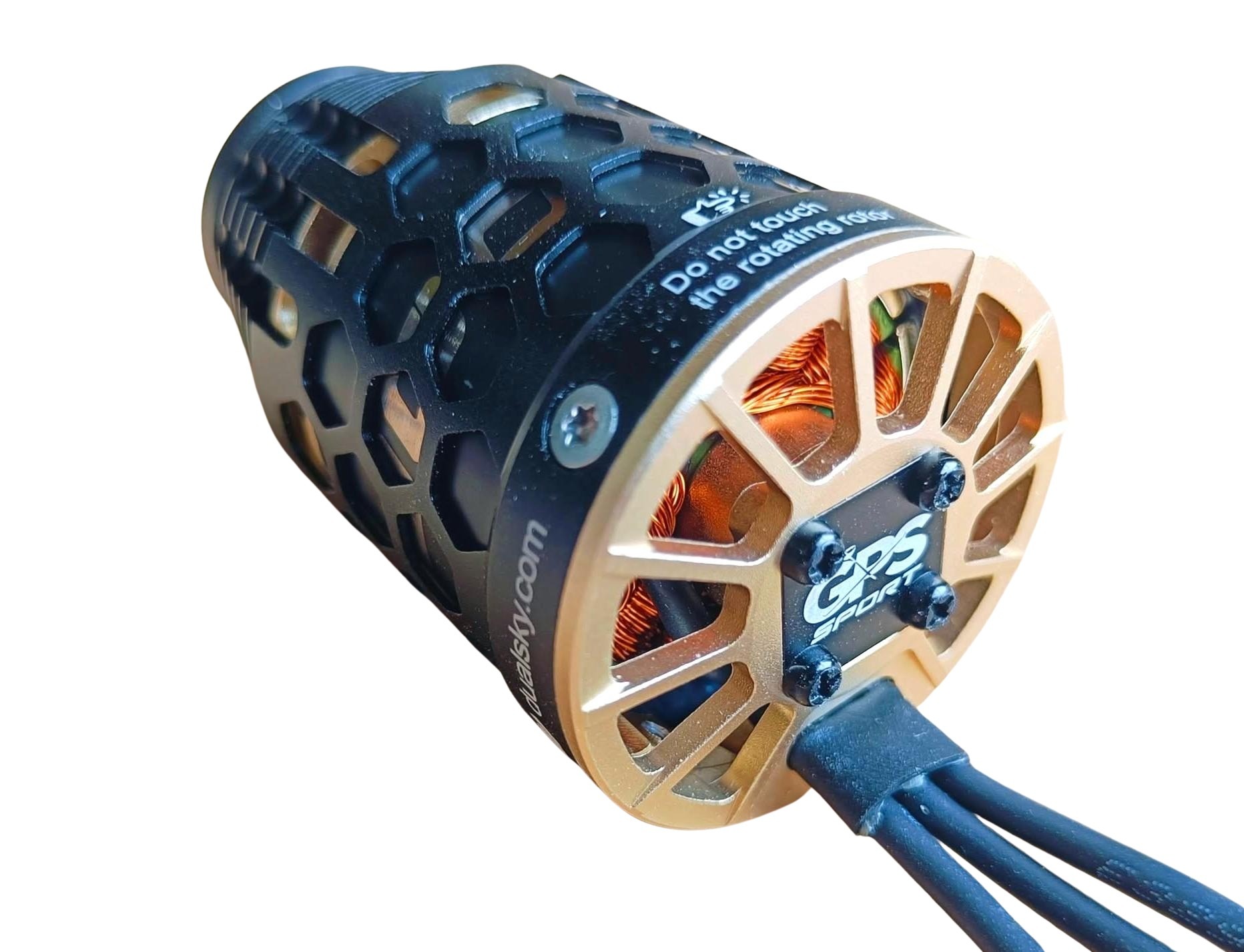

Dualsky EG2000-12 520 RPM/V 320g Cased Outrunner

The Dualsky EG 2000-12 is a high quality cased outrunner with a KV of 520 RPM/V and a peak power of 2040W. It is ideal for models weighing 2.5 Kg to 6 Kg.Designed for GPS Sport and other large gliders on 6S LiPo batteries.Interesting tests on Samba's motor page.

Dualsky EG2000-12 Specifications
Motor name	Dualsky EG2000-12 Cased Outrunner
Motor weight	320 g	11.29 oz
Motor diameter	46.8 mm	1.84 in
Motor length	79.2 mm	3.12 in
Lead length	50 cm	19.69 in
Shaft diameter	6.0 mm	0.24 in
Front diameter	32.0 mm	1.26 in
Measured Rm	22.5 mR
Measured Kv	520 RPM/V
Measured Io	1.58 A @ 20 V
Max efficiency (20 V)	92 % @ 38 A
Operating efficency (20 V)	89 % @ 85 A
Motor Km	122 Nm/W^.5 X1000
Motor Km/Kg	383 Nm/(W^.5 Kg)
Recommended battery	6S - 7S LiPo
Rec max LiPo capacity	6 Ah
Input connector	GC4.0
6S LiPo Performance
Recommended prop	14x8, 14x10, 15x8
Input power	1700 W on 15x8 prop
Current	85 A on 15x8 prop
Estimated rate of climb	12 m/s for 6000 g glider
