Xflow F3L 2m Glider with ballast

Xflow – Born from CompetitionThe Xflow is the new high-performance competition F3L RES glider from the manufacturers of the Encanto. The Xflow has been developed from several seasons of competition flying, extensive testing and direct comparison with other leading models across a wide range of conditions.Rather than replacing the Encanto, the Xflow builds on its proven design, with development focused on improving handling, towing performance and the range of usable setups.The main development objectives were:

• More precise and stable thermalling, particularly in small or weak lift
• Higher tow release altitudes
• A wider setup range for both calm and windy conditions

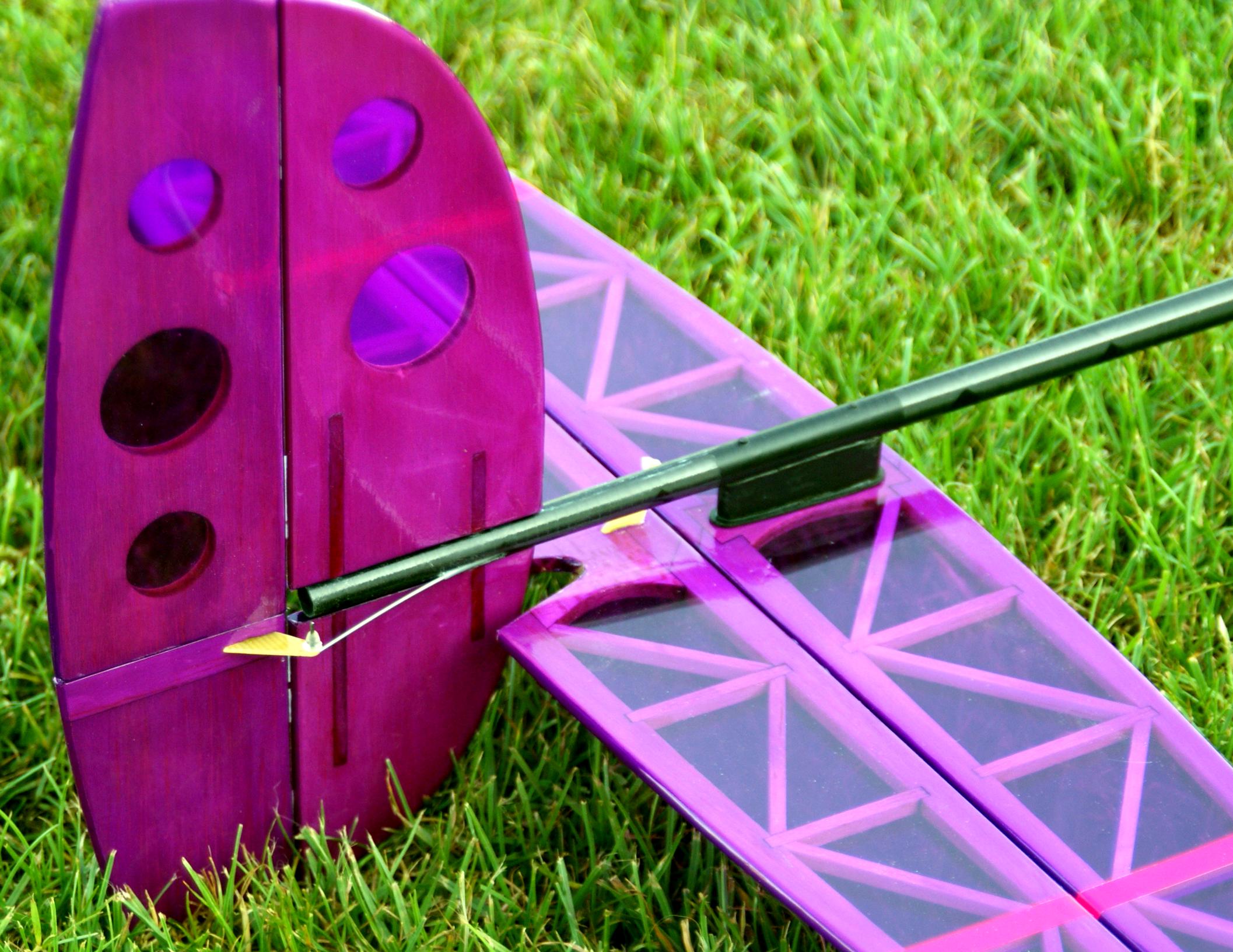

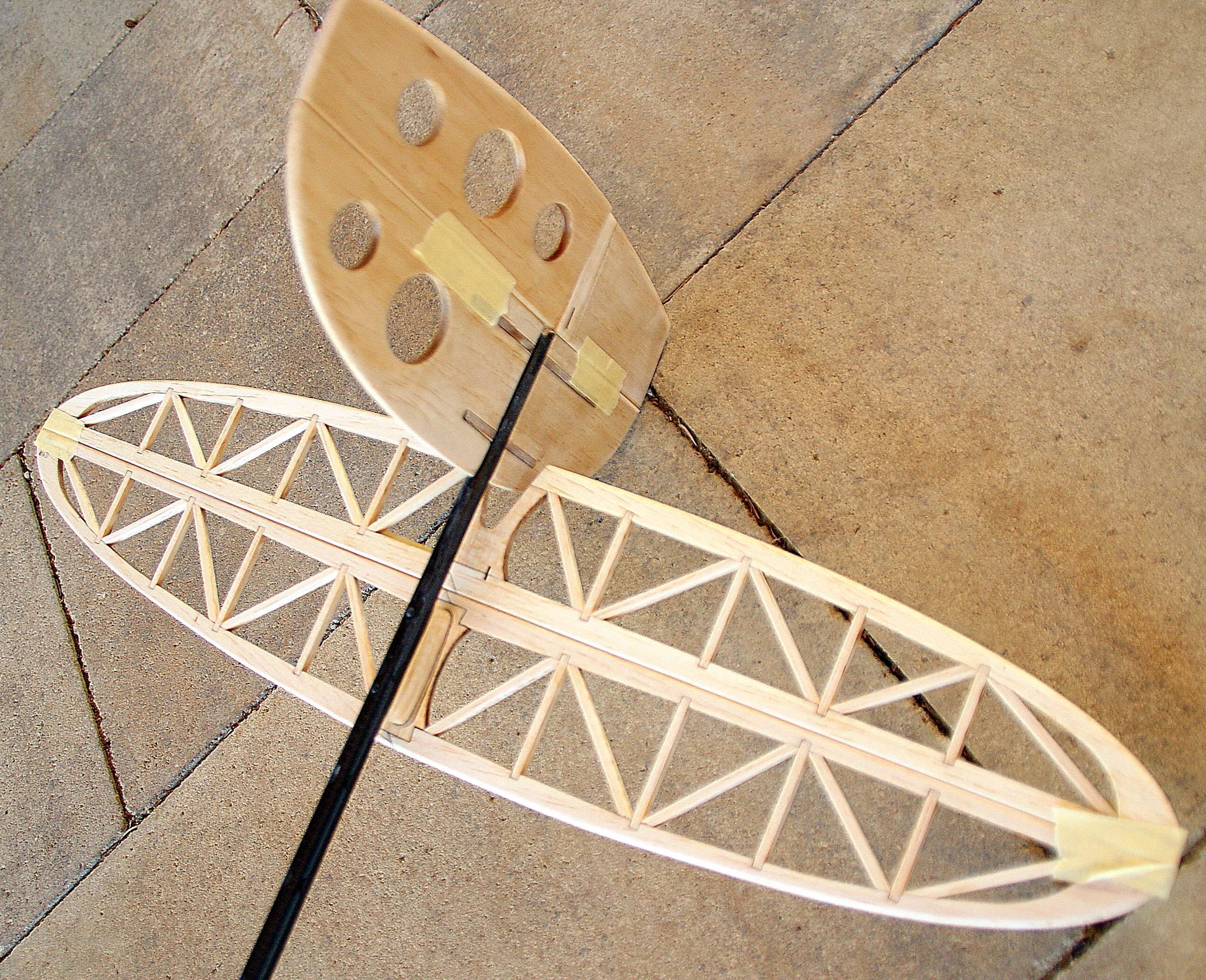

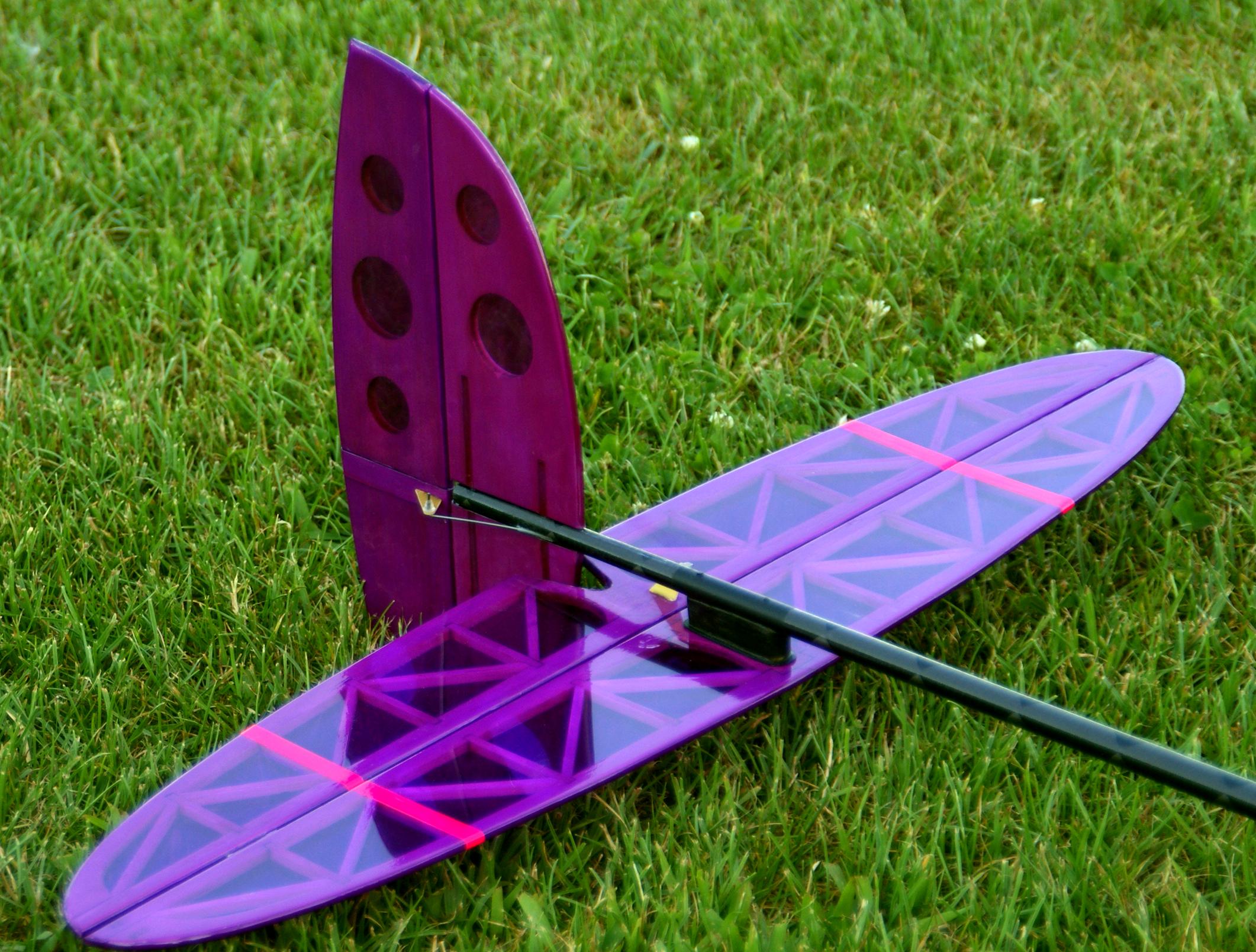

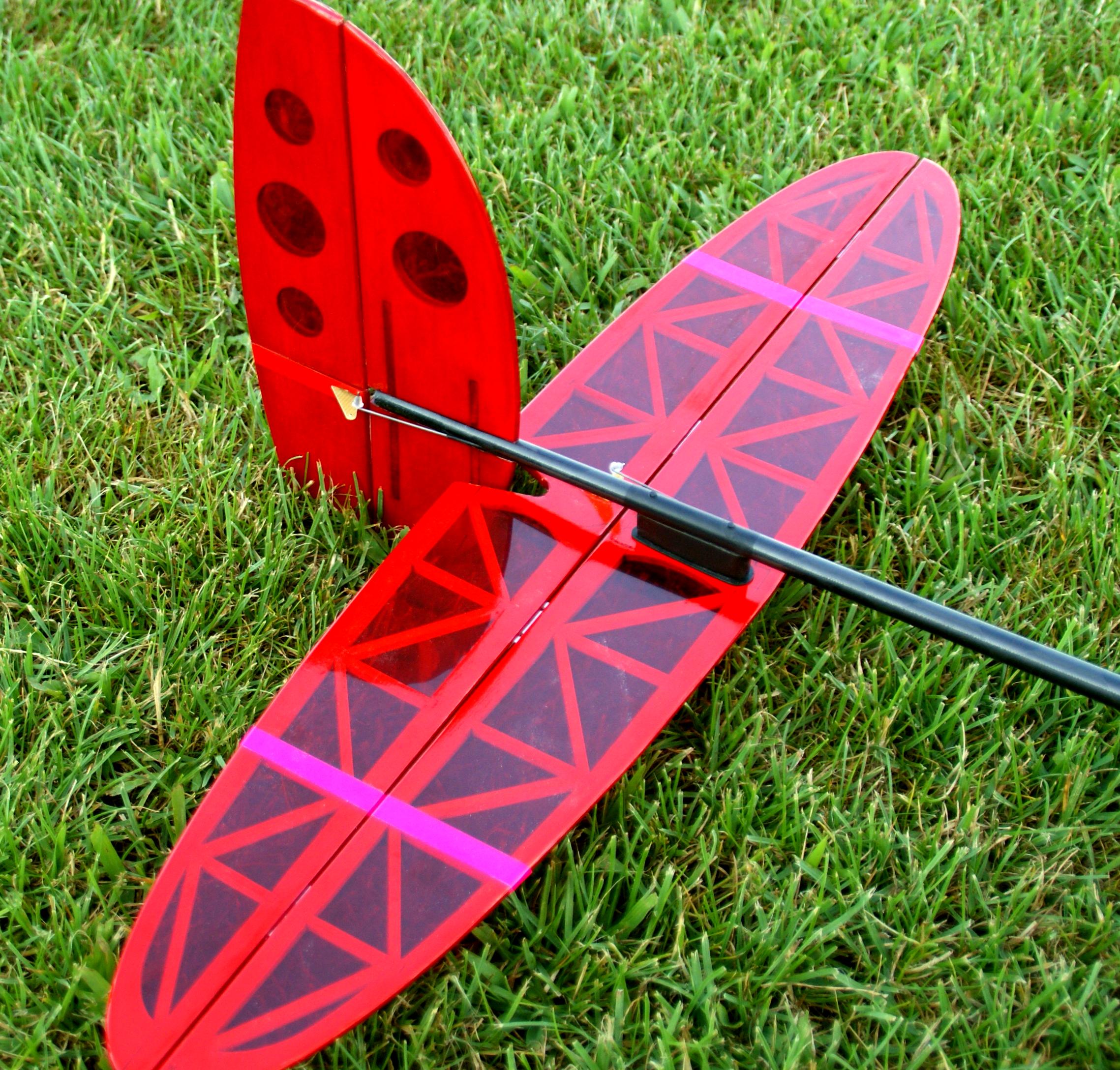

The Encanto's proven wing, aerofoil, planform and wing area have been retained. The principal changes are concentrated around the tail.A redesigned, more effective rudder and revised horizontal stabiliser position give the Xflow improved control and handling. It turns naturally in tight thermals, tracks accurately while circling and retains energy well during downwind transitions.Moving the horizontal stabiliser into cleaner airflow also increases control authority and reduces interference from the wing wake.Tow Performance
The Xflow has been designed to remain stable and accurately aligned during the tow, right through to release. This allows the pilot to make effective use of the tow and achieve consistently high release altitudes, increasing the opportunity to find lift from the start of the flight.Landing

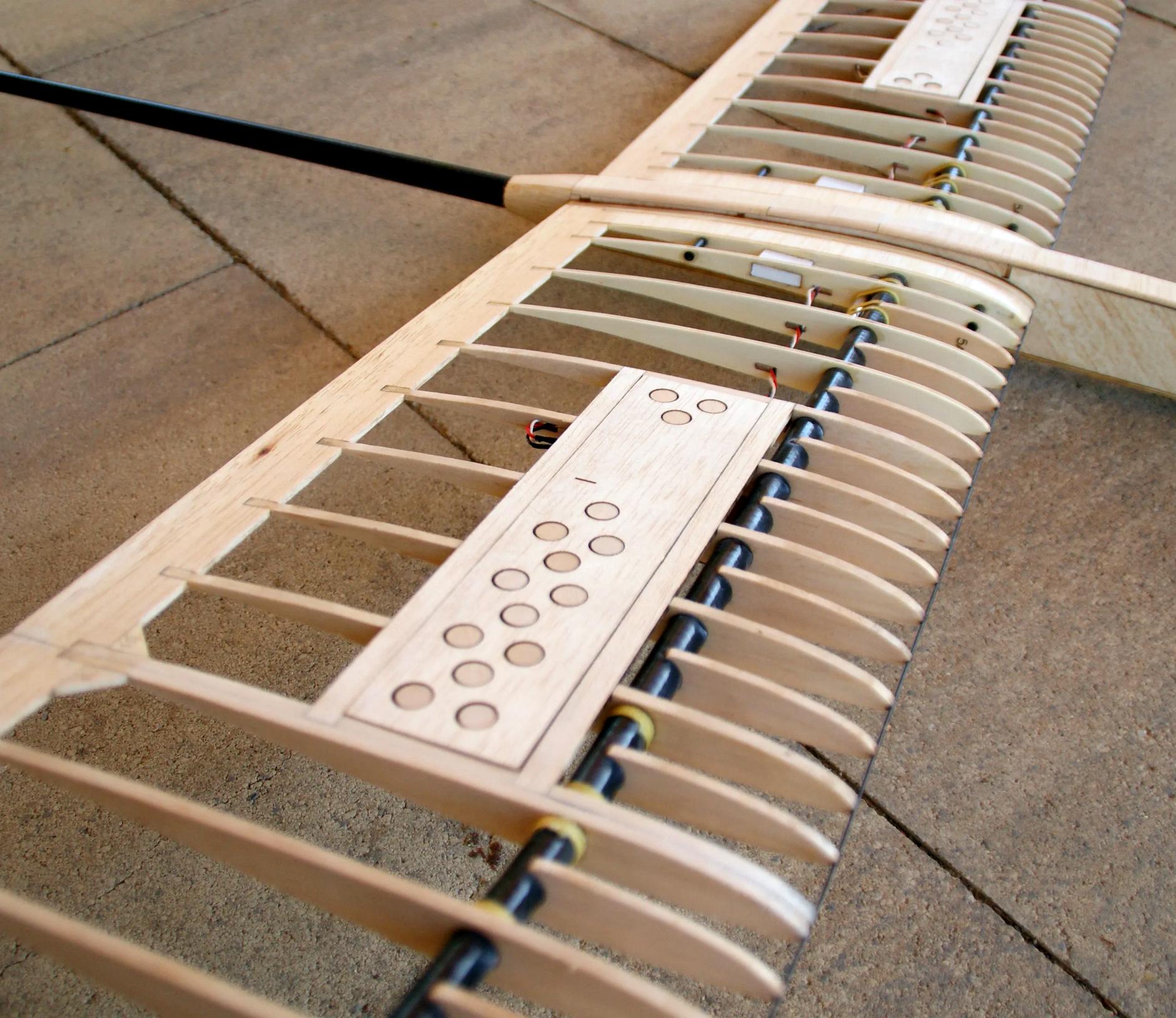

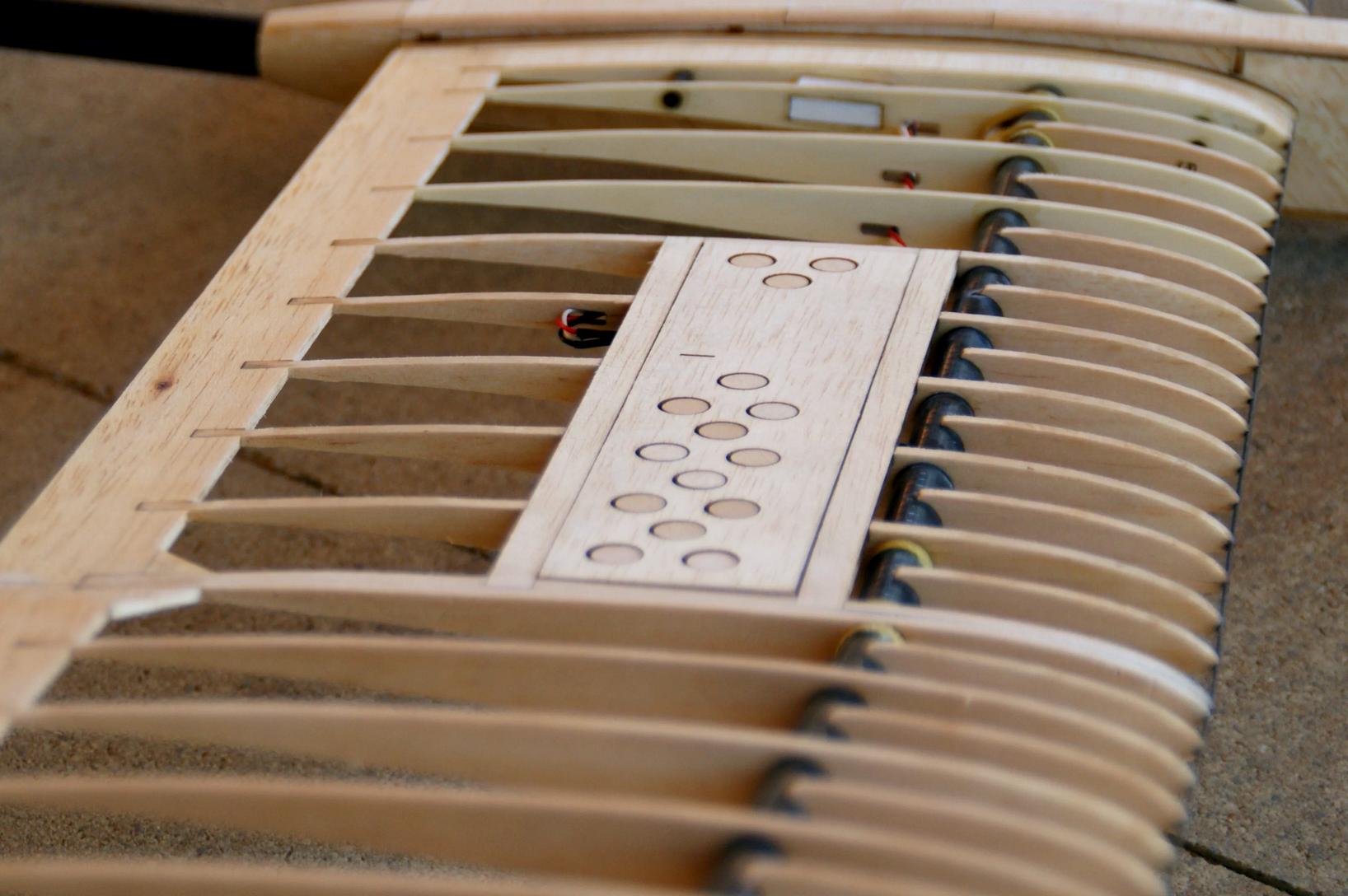

The perforated airbrakes provide progressive, controllable deceleration with relatively little increase in sink rate. Combined with the Xflow's ability to fly at a high angle of attack in a Harrier-style approach, this gives very slow and stable landing characteristics and allows precise spot landings, even in more demanding conditions.The Xflow is available with either a Standard wing designed for most flying conditions or a Camber wing optimised for light conditions:Xflow Standard
Lower-camber wing aerofoils give a more versatile glider capable of excelling in stronger winds and faster, more dynamic flying while retaining good stability and predictable handling. Recommended centre of gravity: 100–102 mmXflow Camber
Higher-camber wing aerofoils are optimised for calm conditions and weak lift, with high sensitivity and excellent tight-circling performance. Recommended centre of gravity: 105–107 mmPerformance Without Compromise

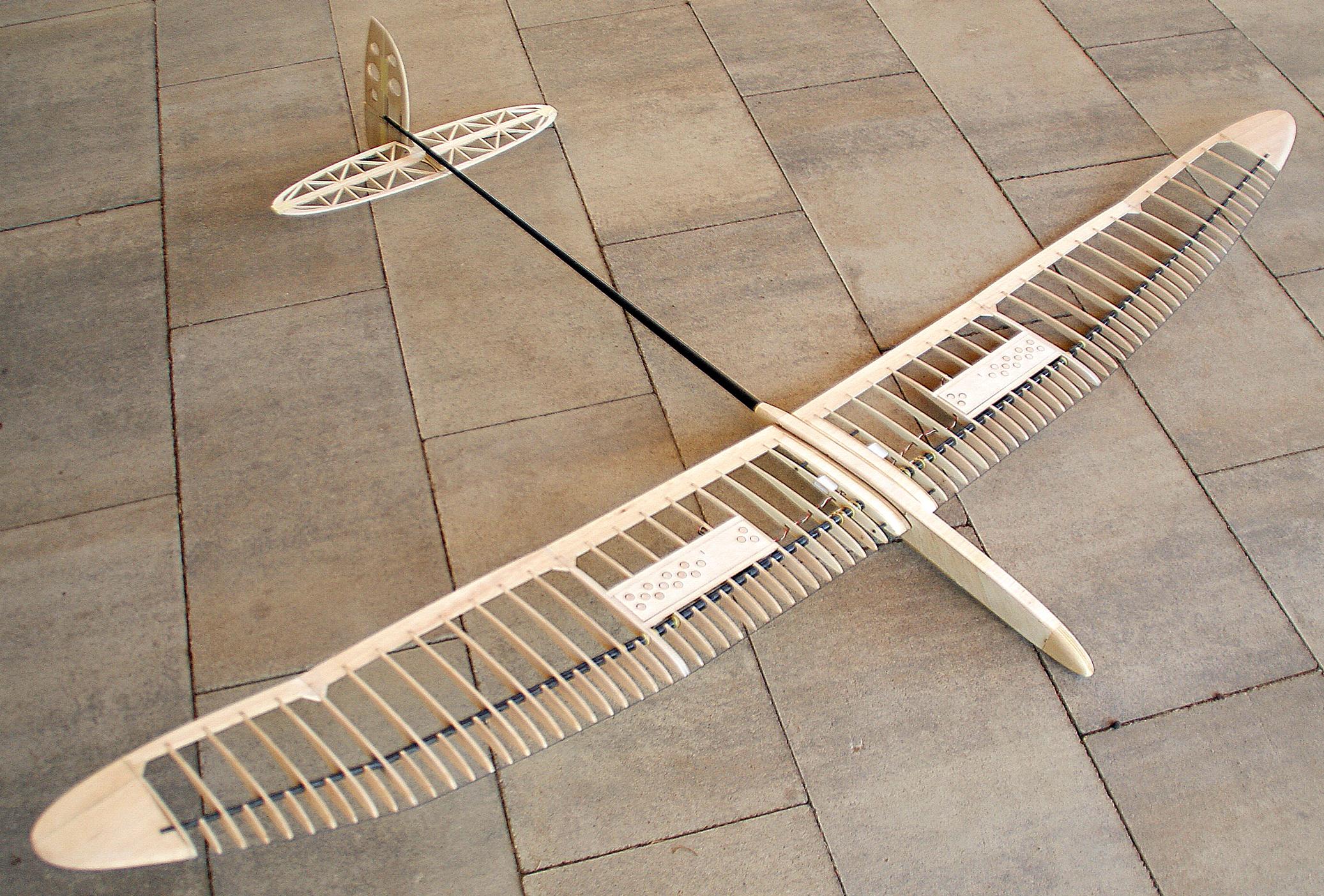

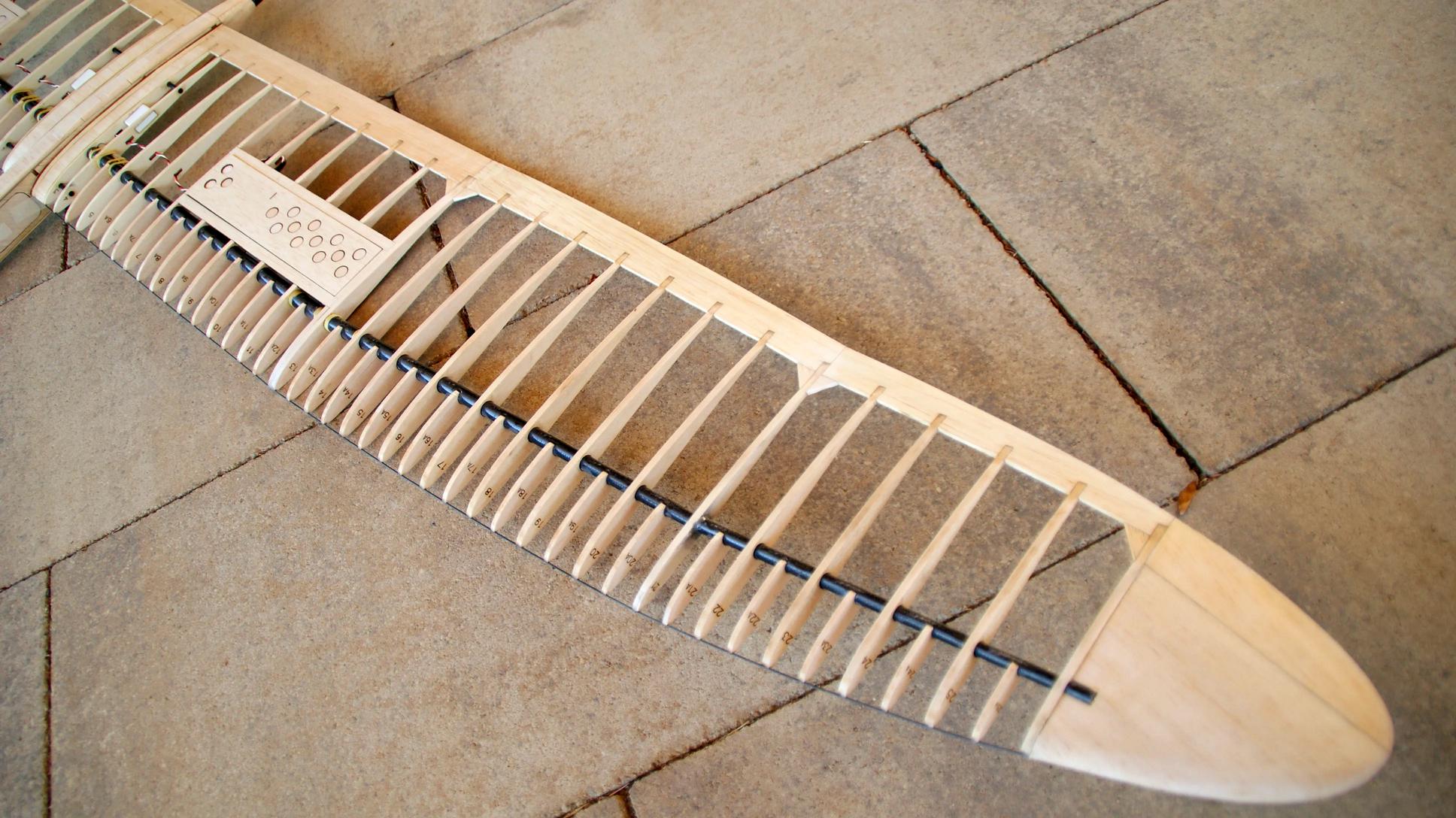

With the Standard wing, the Xflow has a wide usable speed range, stable and predictable flight characteristics and precise control throughout the flight envelope. With the addition of the Camber wing, it also excels in light lift and low-wind conditions.The Xflow has been developed as a thoroughbred competition model that rewards accurate flying and careful setup, allowing experienced pilots to make full use of changing conditions and concentrate on tactical decisions in the air. However, it is easy to fly and forgiving enough for all modellers to benefit from its excellent performance. HyperFlight are only stocking the Standard version; however, we are also selling a Xflow Camber Wing Kit for modellers requiring both options.Although few build assets are available yet, the wing is identical to the Encanto and the fuselage construction is very similar, so Encanto build logs and construction videos can be used.

Xflow F3L Specifications
Wing span	2.0 m	78 in
Wing area	35.6 dm2	552 sq in
Length	135 cm	53.1 in
Flying weight from	430 g	15.2 oz
Wing loading	12.1 g/dm2	4.0 oz/sq ft
Aspect ratio	11.1
Wing airfoil	JK 9372
Dihedral (EDA)	12.2º
Centre of Gravity	100-107 mm from wing leading edge
Controls	Rudder, elevator, spoilers

Recommended RC
Rudder & elevator servos (2)	KST A08H, KST X08H
Spoiler servos (2)	KST X06H, CHA DS06
Battery	300 - 600 mAh 2S LiPo, Tattu 3S 500 mAh
Receiver	4-5 channel receiver to match your transmitter

Xflow F3L Typical Weights
Total structure	350 g	12.3 oz
Receiver	6 g	0.2 oz
Rudder servo	8 g	0.3 oz
Elevator servo	8 g	0.3 oz
Spoiler servos (2)	10 g	0.4 oz
Battery	30 g	1.1 oz
Noseweight	18 g	0.6 oz
Flying weight from	430 g	15.2 oz
