Vortex 5 DLG

The ground breaking DS Composites Vortex 5 with a four control surface wing DLG is probably the most highly regarded DLG currently available. Many top pilots find the extra controllability of the separate flap and aileron control surfaces gives greater manoeuvrability with less control surface drag in thermal turns and normal flight modes. Also the ability to have crow braking on landing greatly improves control on approach and landing, reducing the likelihood of fumbled catches and resultant damage. Plus the thoroughbred low drag design of the Vortex 5 and excellent surface finish give high launches (up to 80m) and an excellent glide angle. All the models have two piece wings and removable tailplanes and fins to aide transport and storage. We also stock the 4 servo (flaperon) version for those pilots who prefer the simplicity and lighter weight of this configuration.

Like the Vortex 4 the build quality is excellent and the engineering is very impressive. Apart from of course perfectly molded carbon parts the kit comes with a very nicely engineered system for automatic connection of the aileron controls when the wing is attached. This is a different level of convenience and functionality to other DLGs we sell.

Supplied with a complete accessory bag including all the items necessary to complete the model. Two servo trays are included, for KST X08 and MKS DS65K servos.

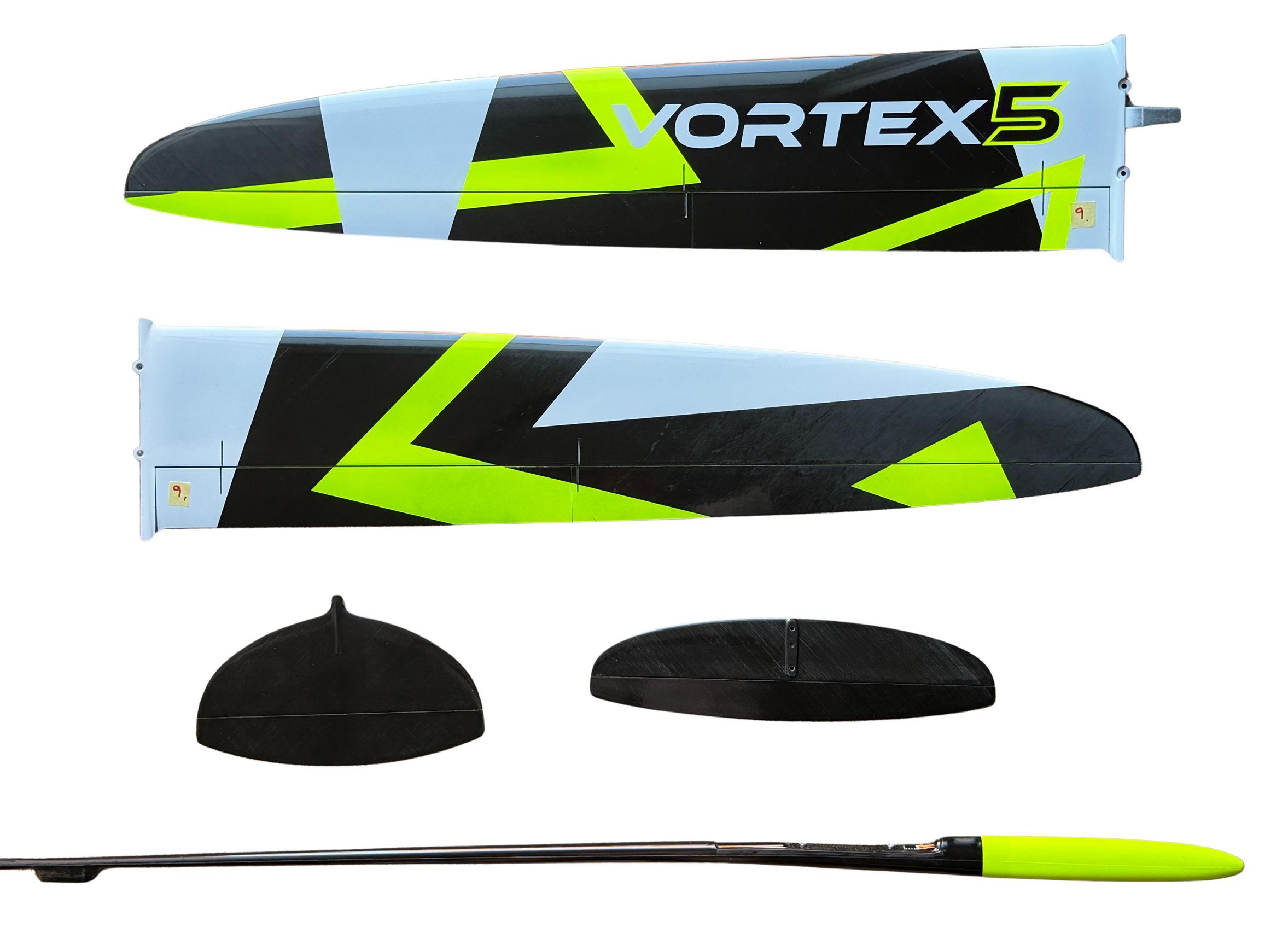

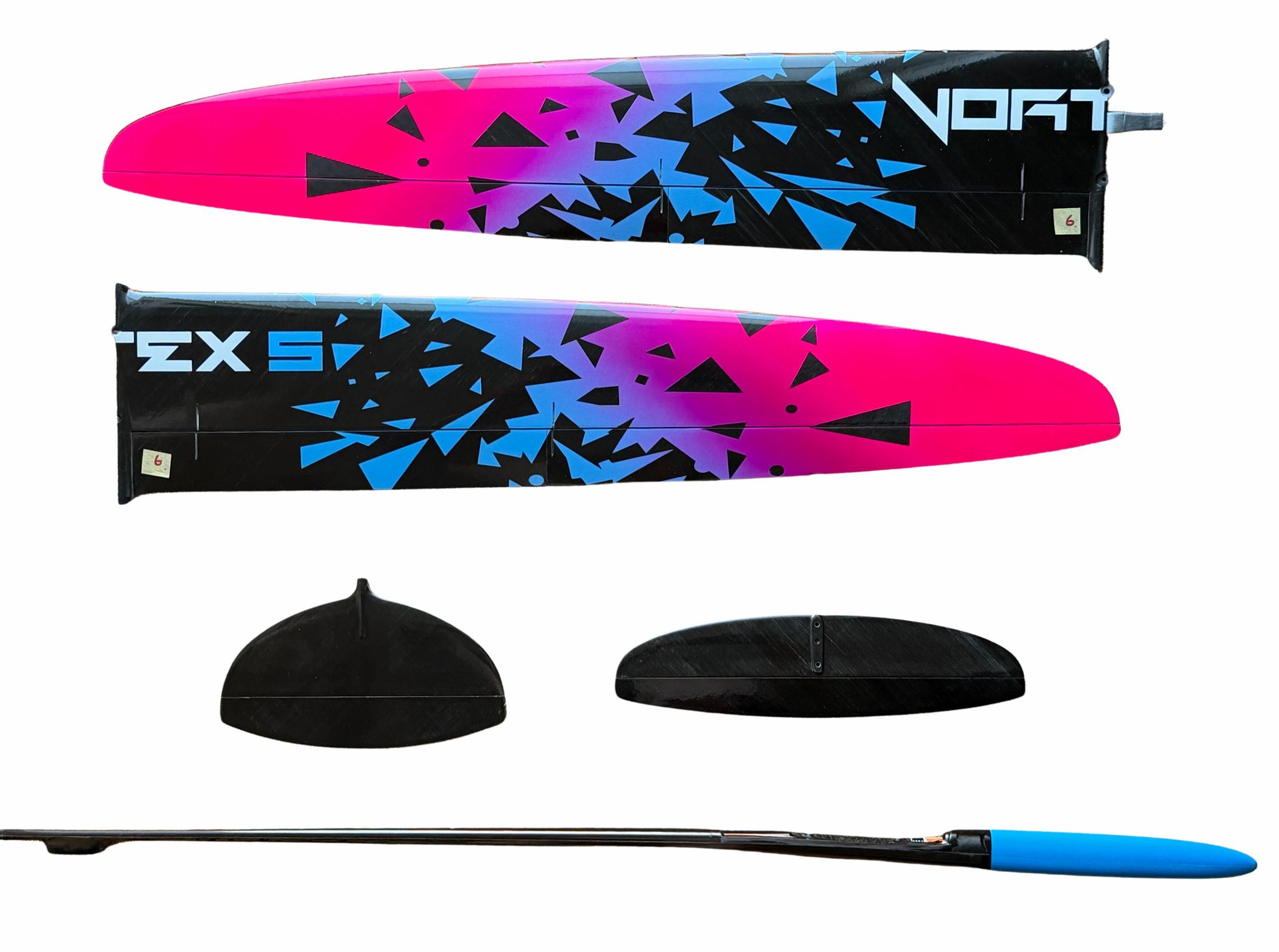

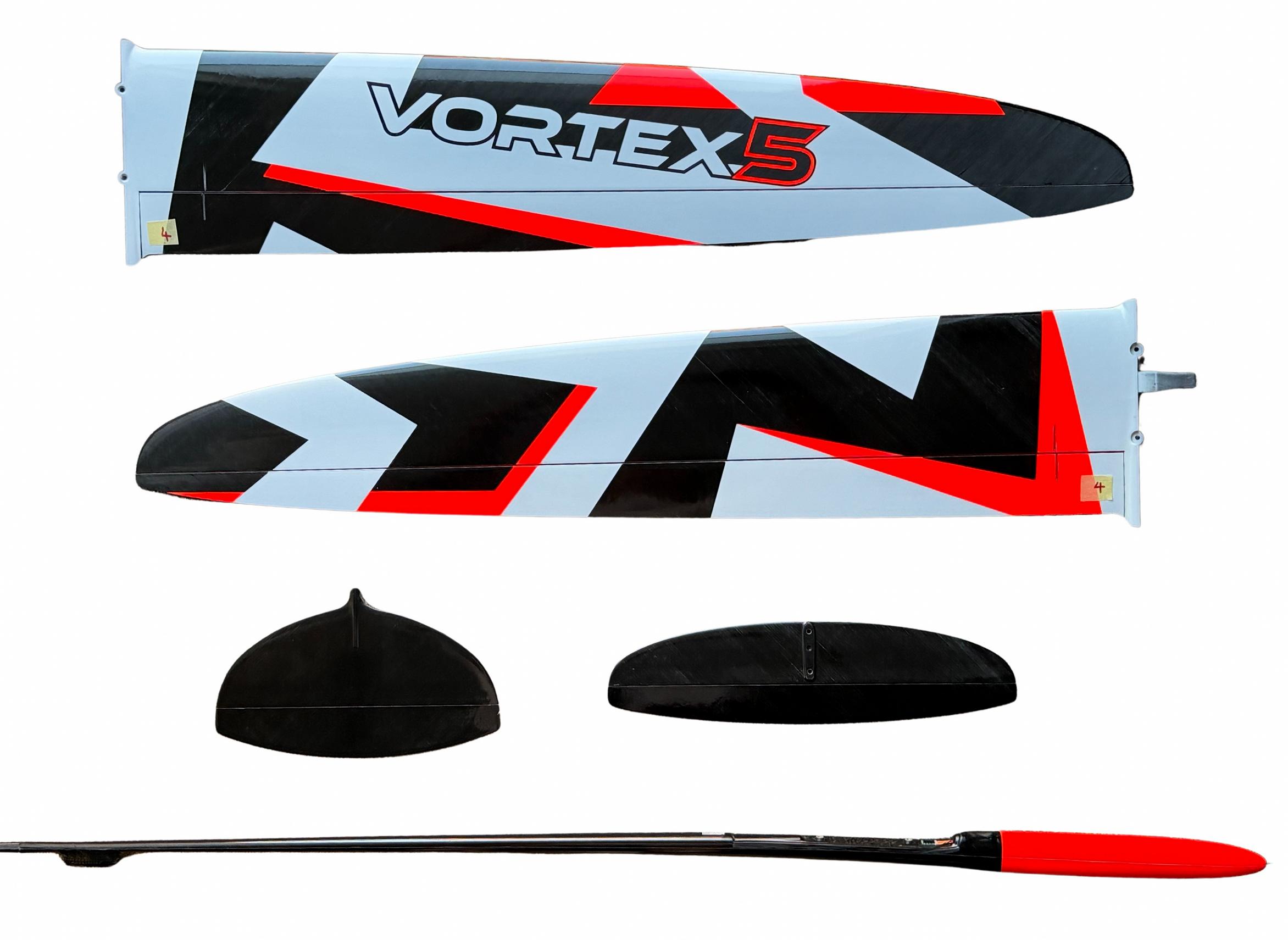

We are stocking the two piece wing version (2pw) with a bottom mounted tailplane, in various layups. The models available also have the updated slightly taller fuselage that accomodate the KST A06 servo.

See RCGroups Vortex5 thread for more info.

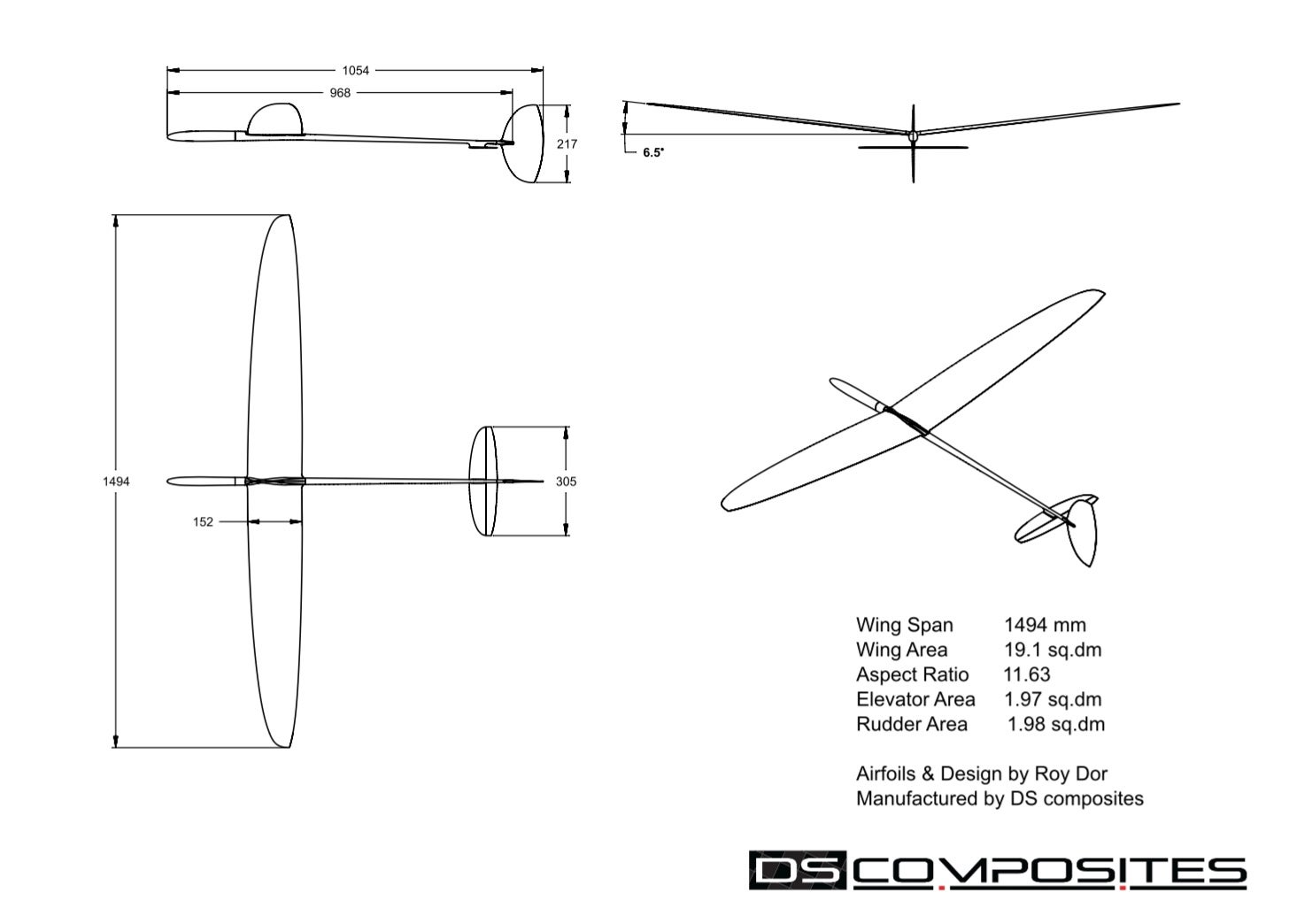

Vortex 5 1.5m DLG Specifications
Wing span	1.5 m	59 in
Wing area	19.1 dm2	300 sq in
Length	105 cm	41.2 in
Flying weight from	235 g	8.3 oz
Wing loading	12.4 g/dm	4.1 oz/sq ft
Aspect ratio	11.7
Wing airfoil	Proprietary
Dihedral angle	6.5º
Centre of Gravity	68-70 mm from wing leading edge
Controls	Rudder, elevator, ailerons, flaps

Recommended RC
Tail servos	KST A06, KST X06, MKS HV70H, MKS HS75H, CHA DS06, CHA LV06, CHA HV06
Flap servos	KST A06, KST X06, KST X08, KST A08, MKS HV70H, MKS HS75, CHA DS06, CHA LV06H, CHA HV06H
Aileron servos	KST A06, KST X06, KST X08, KST A08, MKS HV70H, MKS HS75, CHA DS06, CHA LV06H, CHA HV06H
Receiver	6 channel rx to match your transmitter, max size approx 60mm x 25mm x 12mm eg FrSky GR6, JR RG612BX, Spectrum AR6610T
Power	1S 400-600 mAh LiPo, 2S 300-400 mAh LiPo

Vortex 5 1.5m DLG Typical Weights
Fuselage	41.0 g	1.4 oz
Wings	101.0 g	3.6 oz
Fin	5.5 g	0.2 oz
Tailplane	5.5 g	0.2 oz
Accessories	20.0 g	0.7 oz
Total structure	173.0 g	6.1 oz
Receiver	5.0 g	0.2 oz
Tail servos	12.8 g	0.5 oz
Aileron servos	12.8 g	0.5 oz
Flap servos	12.8 g	0.5 oz
Battery	20.0 g	0.7 oz
Flying weight	236.4 g	8.3 oz
