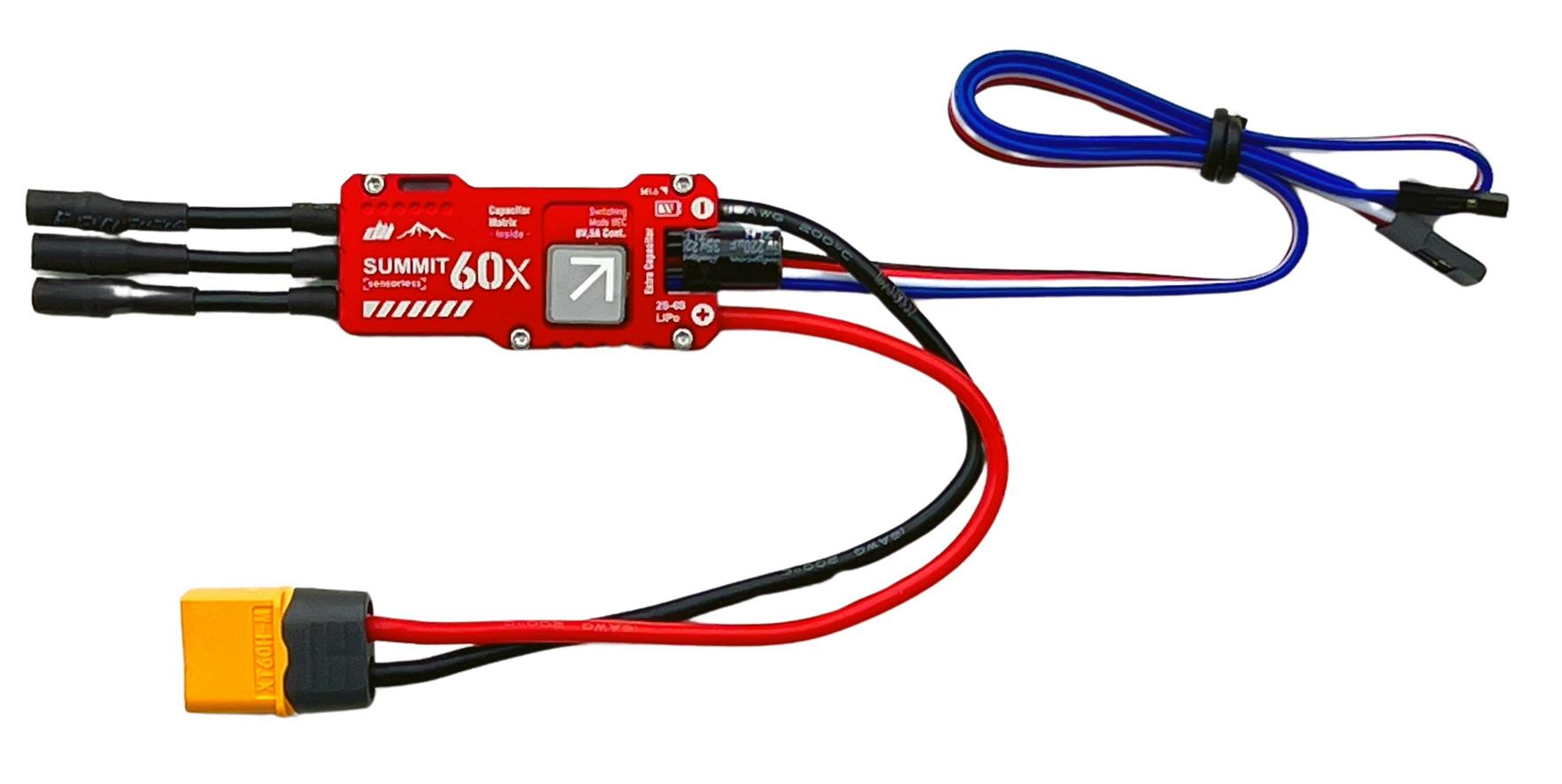

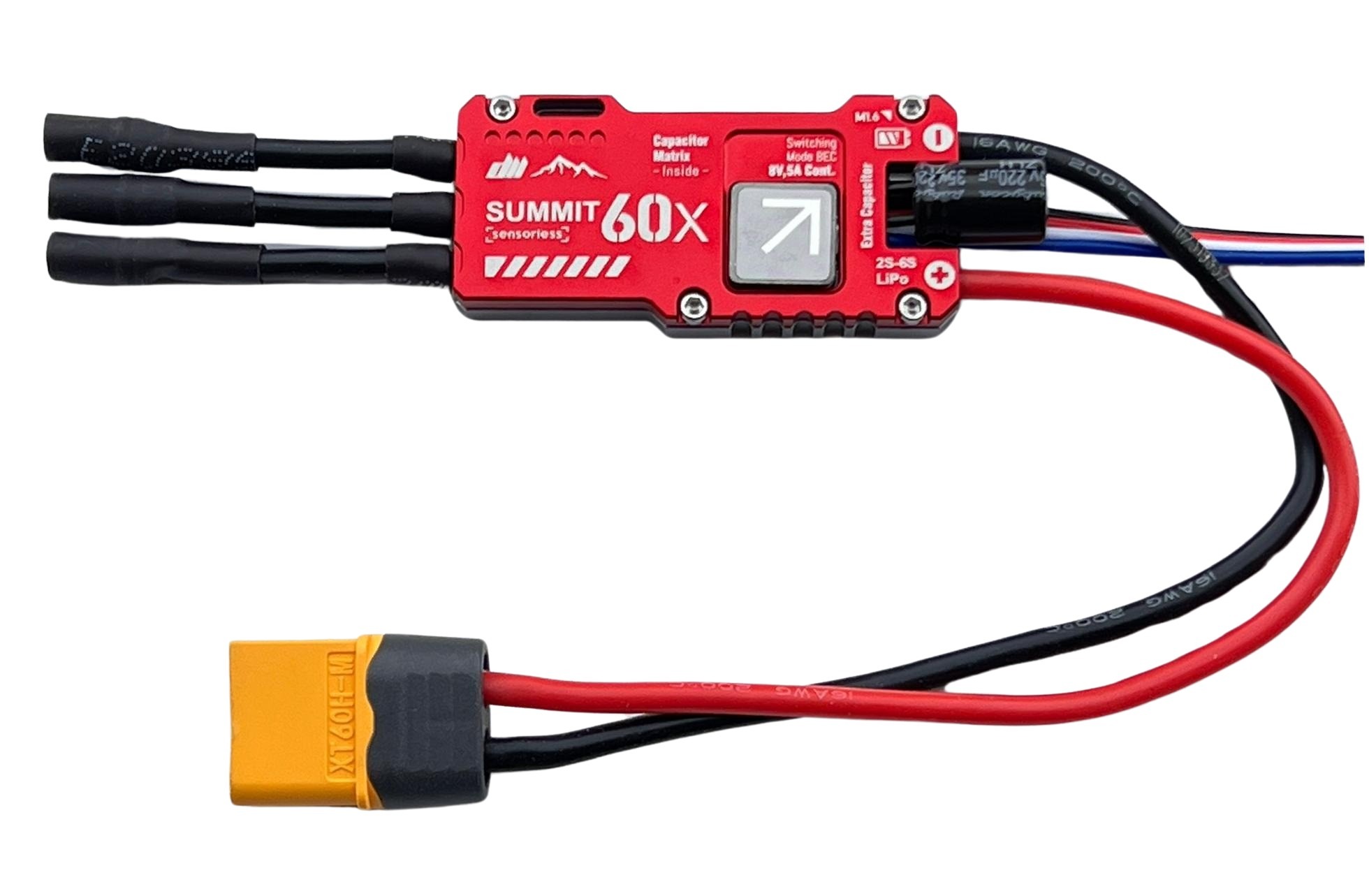

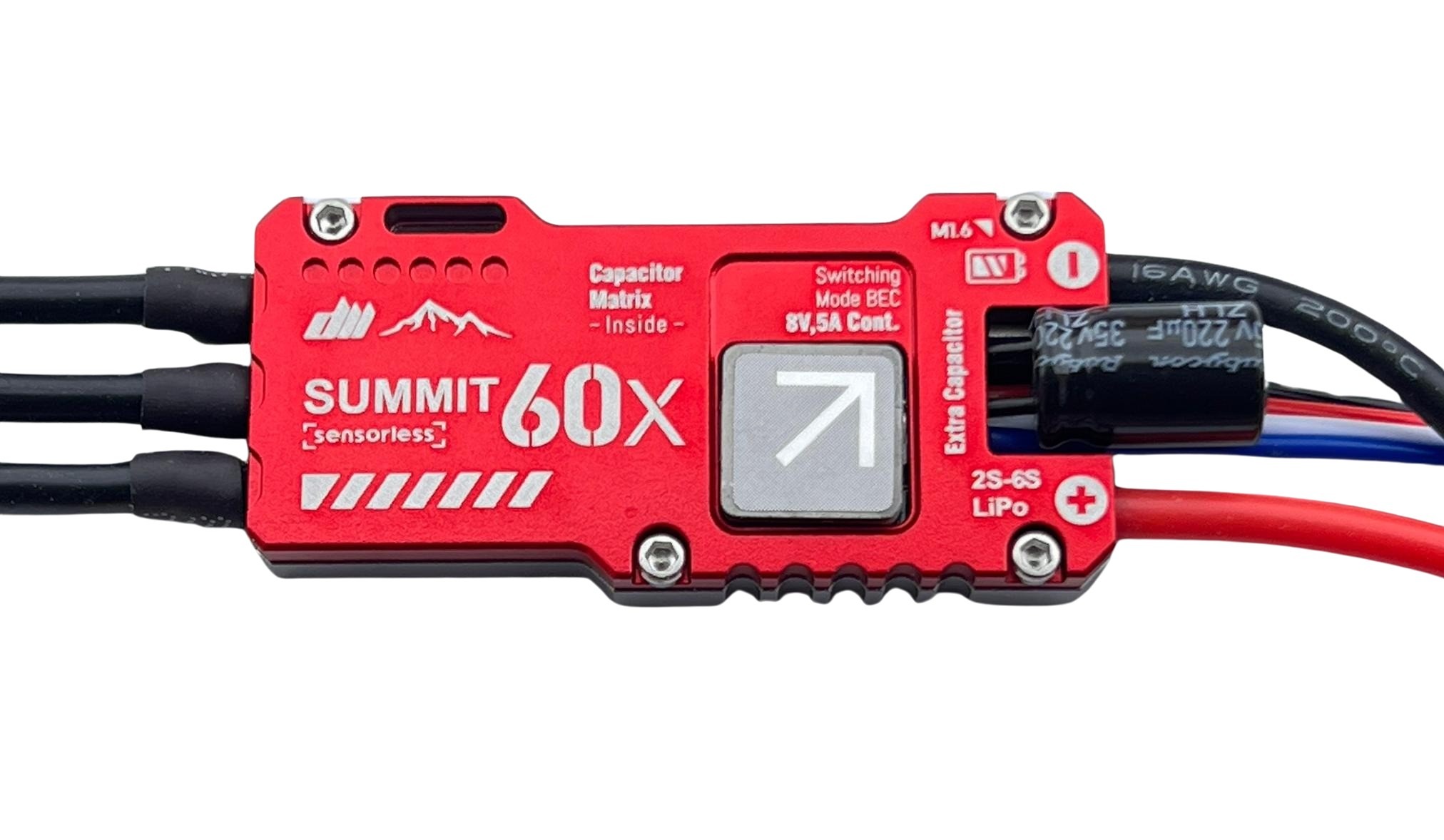

Dualsky SUMMIT 60X 8V SBEC ESC
Description
Temperature - degrees C
Volatage - V

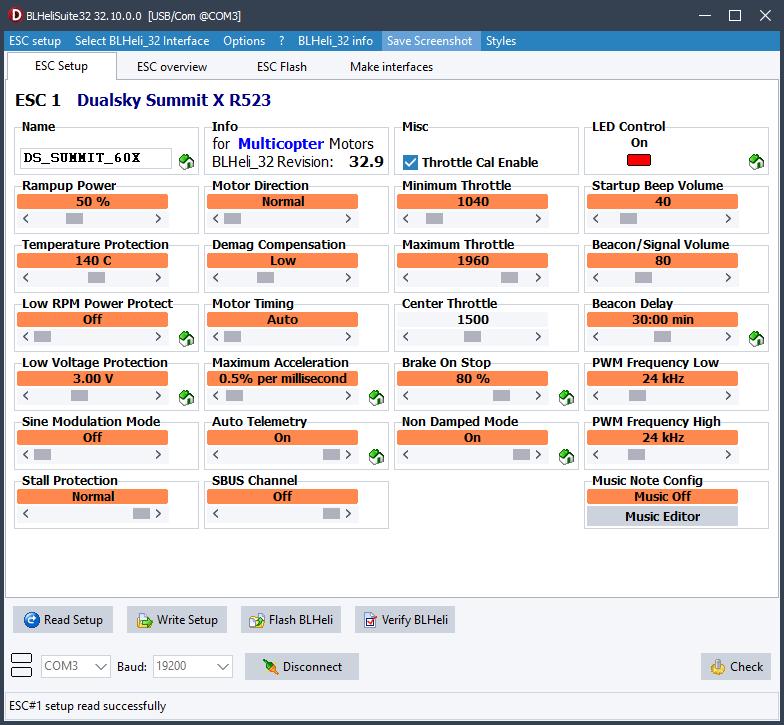

Rotation speed - electrical RPM - divide by motor poles/2 to convert to mechanical RPM.Like our acclaimed HyperFlight ESCs this Dualsky ESC uses BLHeli-32 firmare. This makes it very efficient and thus small. However it also means that a PC and an Aurdino Nano or a BL Heli USB Programming Interface is reqired to program it, if required.Due to current supply issues newer versions of these speed controls may have been loaded with a developement version of the firmware and needs a special version of the the programmer called BLHeliSuite32Test. Please download the .zip file from here, unzip it and run BLHeliSuite32Test.exe to configure the speed control, if required.

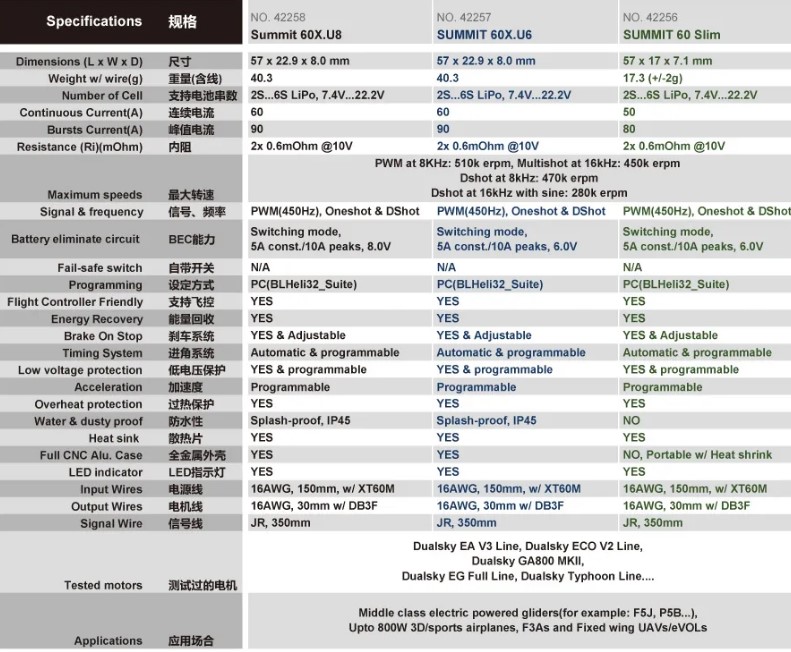

| Dualsky Summit 60XU8 ESC Specification | |
|---|---|
| Continuous current | 60A |
| Burst current | 90A |
| Battery | 2S - 6S LiPo |
| SBEC | 8V @ 5A, 10A peak |
| Weight inc leads and XT60 plug | 40g |
| Firmware | BLHeli-32 |
| Programmable | Yes, with an Arduino or our BLHELI-USBprog interface |
| PCB Size | 50mm * 22mm |

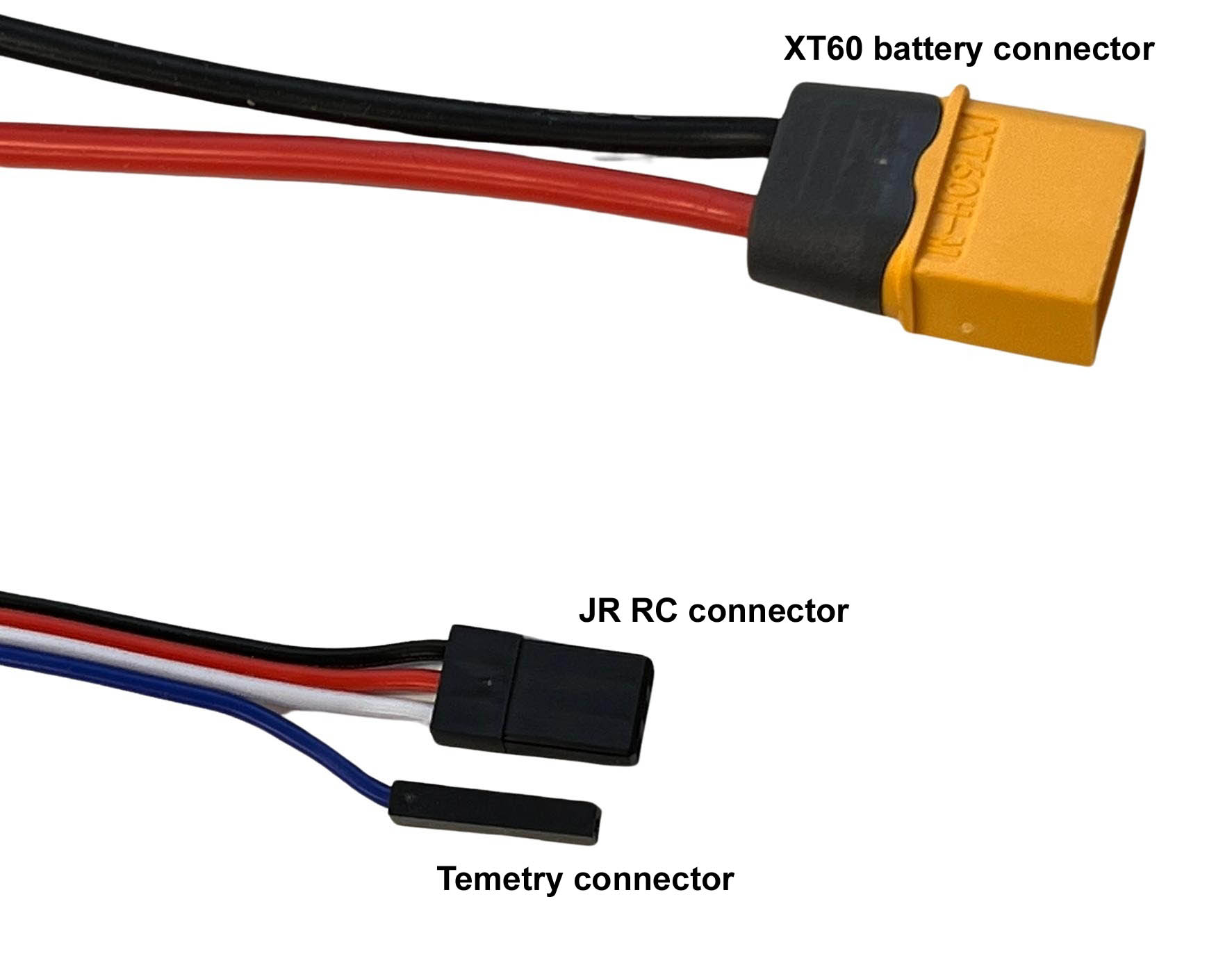

| Battery connector | 15 cm wires, XT60 plug/socket fitted |
| Motor connector | 4 cm wires to 3.5mm sockets |
| RC wire length | 35 cm |

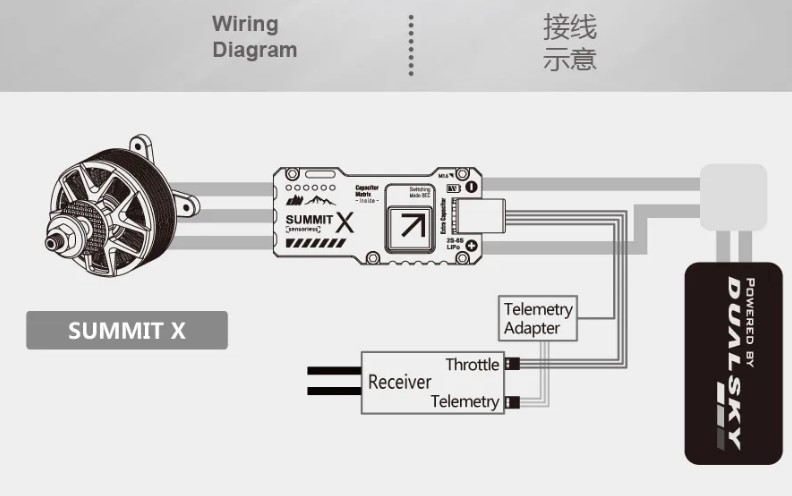

| Telemetry | Yes (but does not include current) |
Reviews 4
Very nicely made ESC. Fairly easy to programme using Heli32 (as suggested I did have to download the test version). In many years of dealing with Neil the service has always been 100%.
Ideal ESC for a windy F5J setup (8V SBEC a must). Fast delivery. Thx.
I used this to replace a YGE 65lvt esc. It is lighter and seems to give more power than the YGE. I had to use a throttle curve as full power comes in very quickly. The brake works well and is preset.
An ESC with the same ESC's drones philosophy.

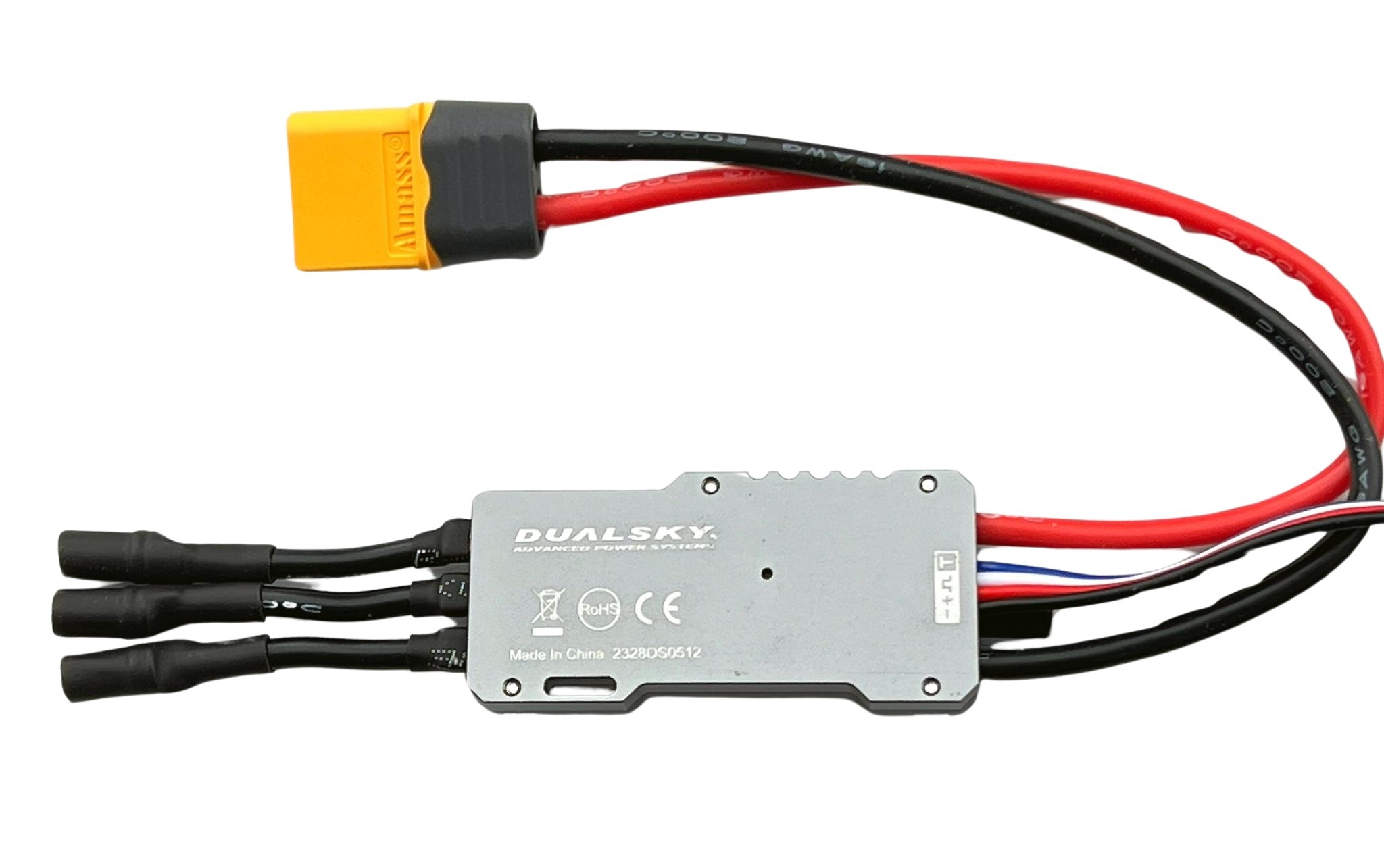

A fantastic option for F5J where you want high BEC voltage. Essentially the same as the slim, but with an aluminium heatsink and 8V BEC.
You can, at your risk, take out the aluminum sink and put a clear heat shrink tube, and you'll got the same weight as the slim with those 8V BEC.
A great product.
Of course Hyperflight continues it's service second to none.
