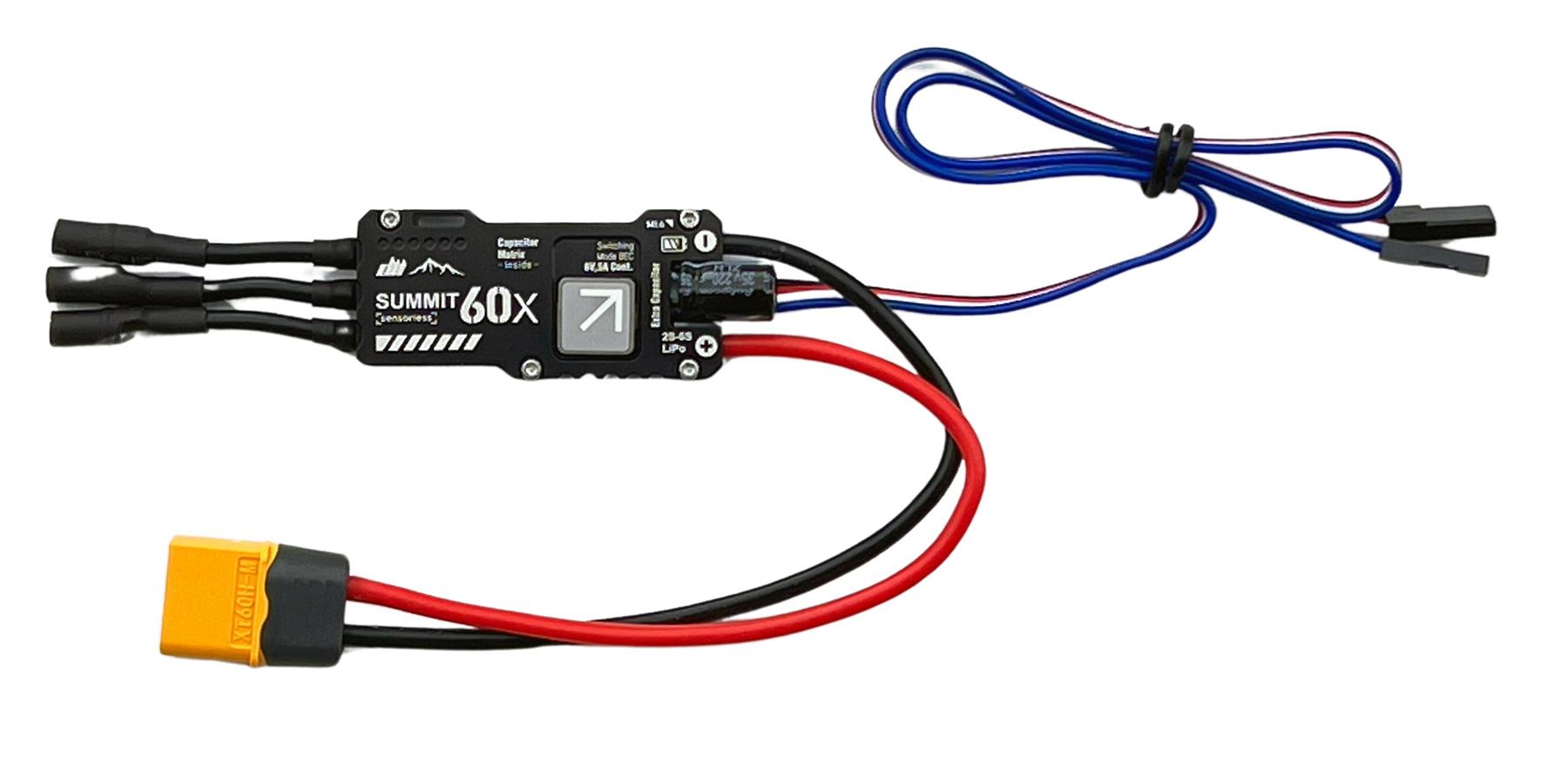

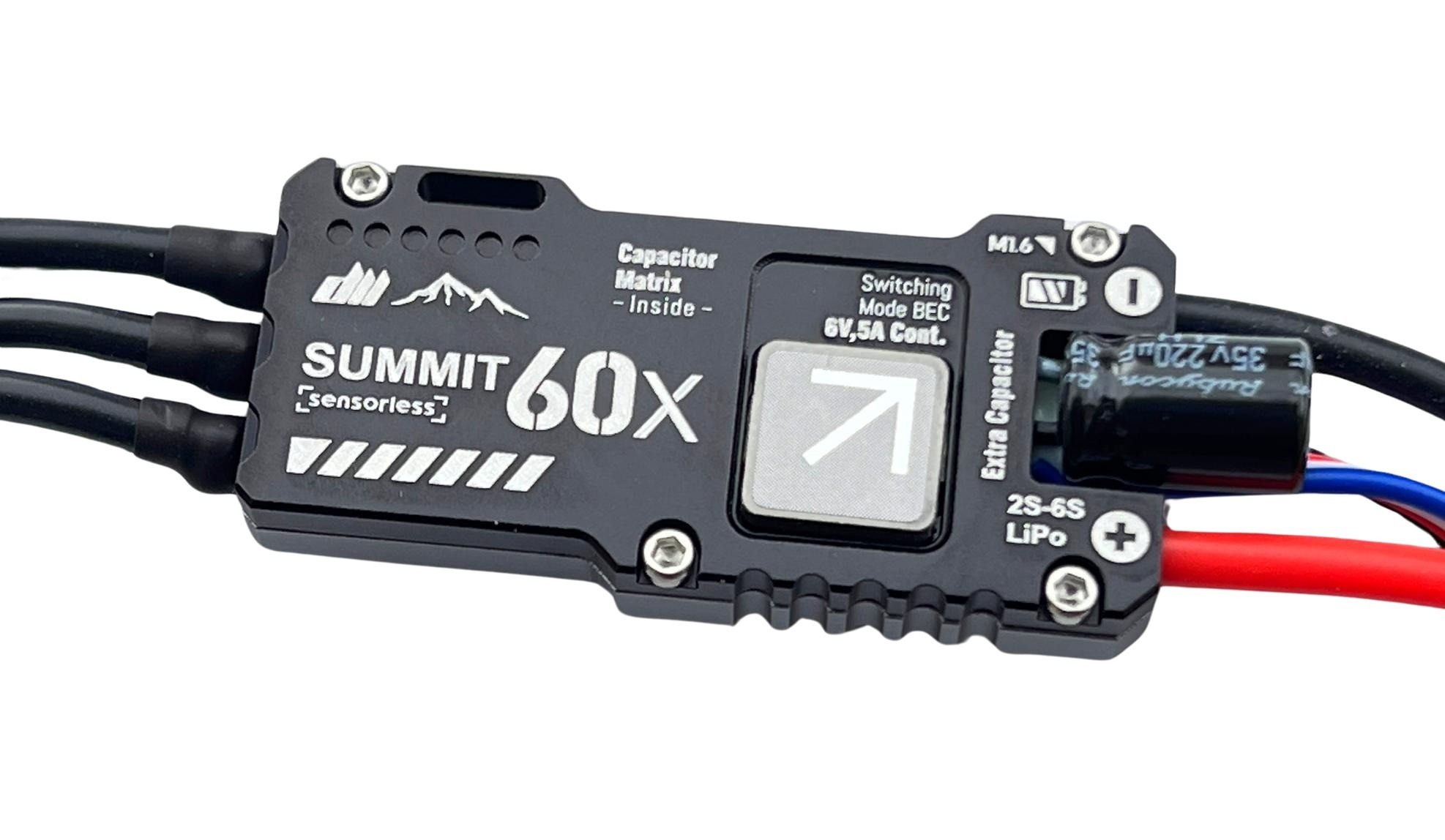

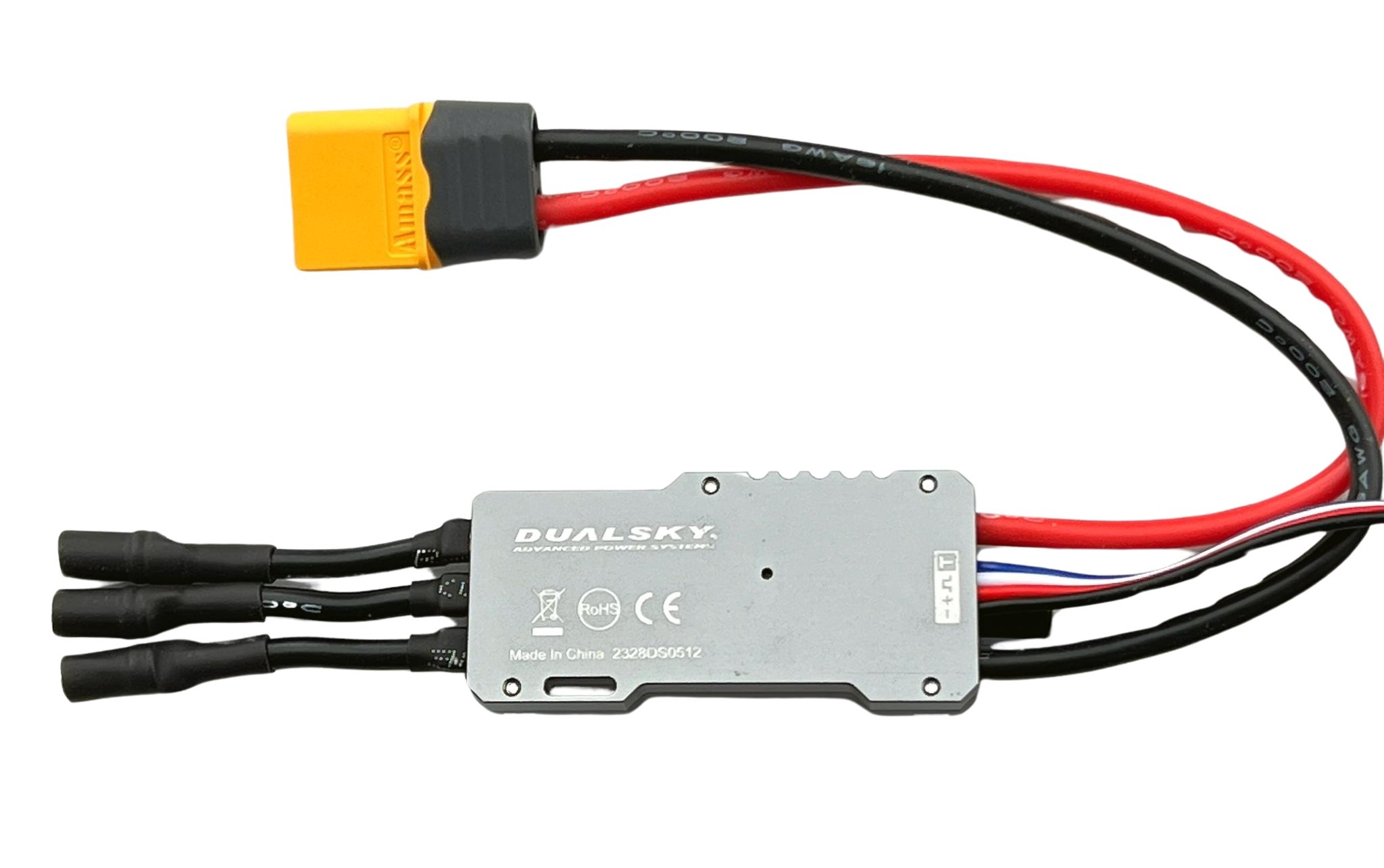

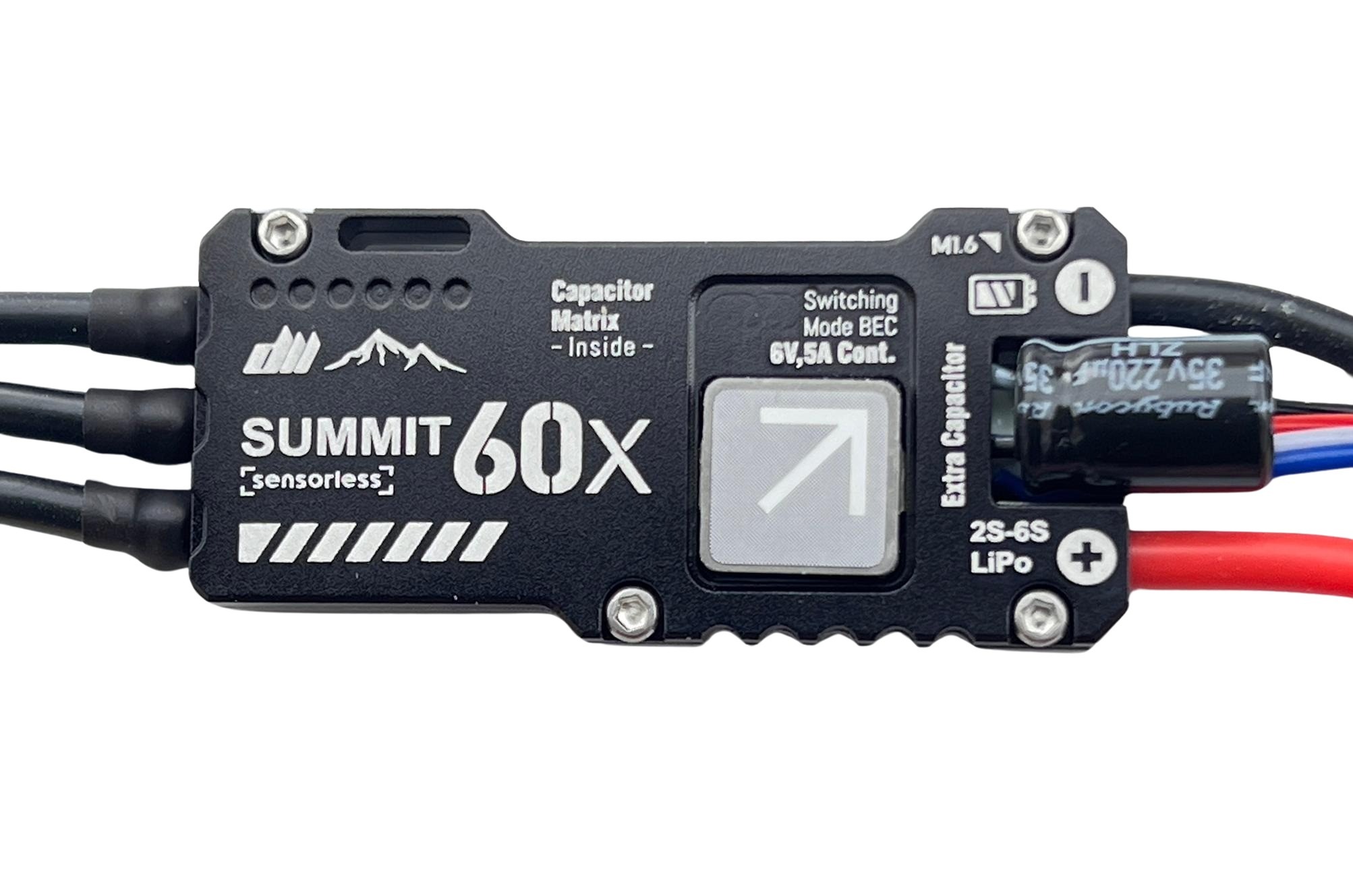

Dualsky SUMMIT 60X 6V SBEC ESC
Description
Temperature - degrees C
Volatage - V

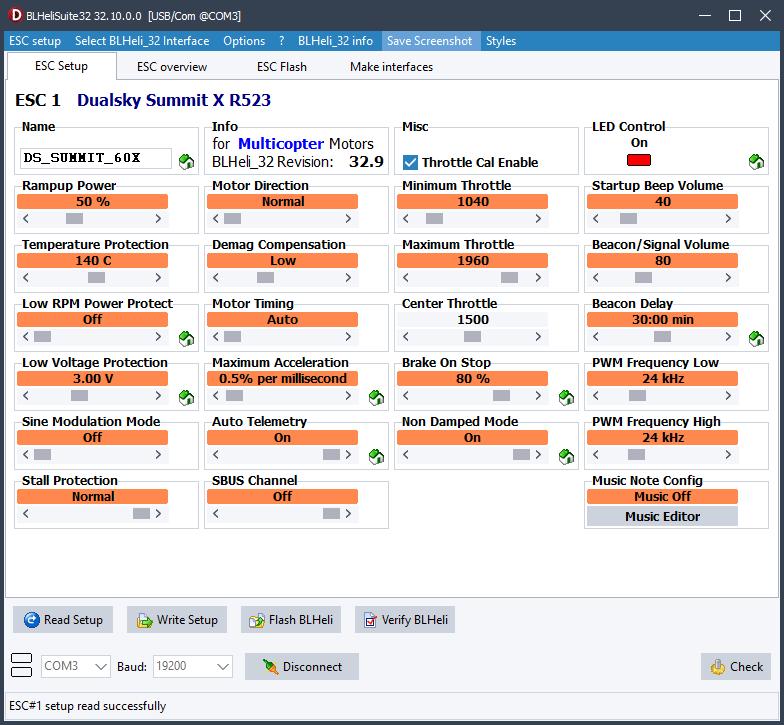

Rotation speed - electrical RPM - divide by motor poles/2 to convert to mechanical RPM.Like our acclaimed HyperFlight ESCs this Dualsky ESC uses BLHeli-32 firmare. This makes it very efficient and thus small. However it also means that a PC and an Aurdino Nano or a BL Heli USB Programming Interface is reqired to program it, if required.Due to current supply issues newer versions of these speed controls may have been loaded with a developement version of the firmware and needs a special version of the the programmer called BLHeliSuite32Test. Please download the .zip file from here, unzip it and run BLHeliSuite32Test.exe to configure the speed control, if required.

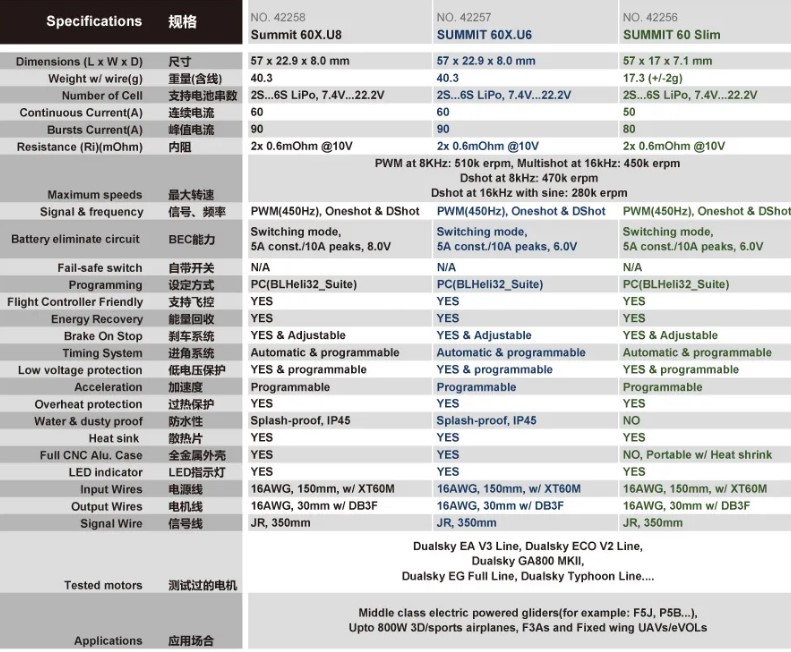

| Dualsky Summit 60XU6 ESC Specification | |
|---|---|
| Continuous current | 60A |
| Burst current | 90A |
| Battery | 2S - 6S LiPo |
| SBEC | 6V @ 5A, 10A peak |
| Weight inc leads and XT60 plug | 40g |
| Firmware | BLHeli-32 |
| Programmable | Yes, with an Arduino or our BLHELI-USBprog interface |
| PCB Size | 50mm * 22mm |

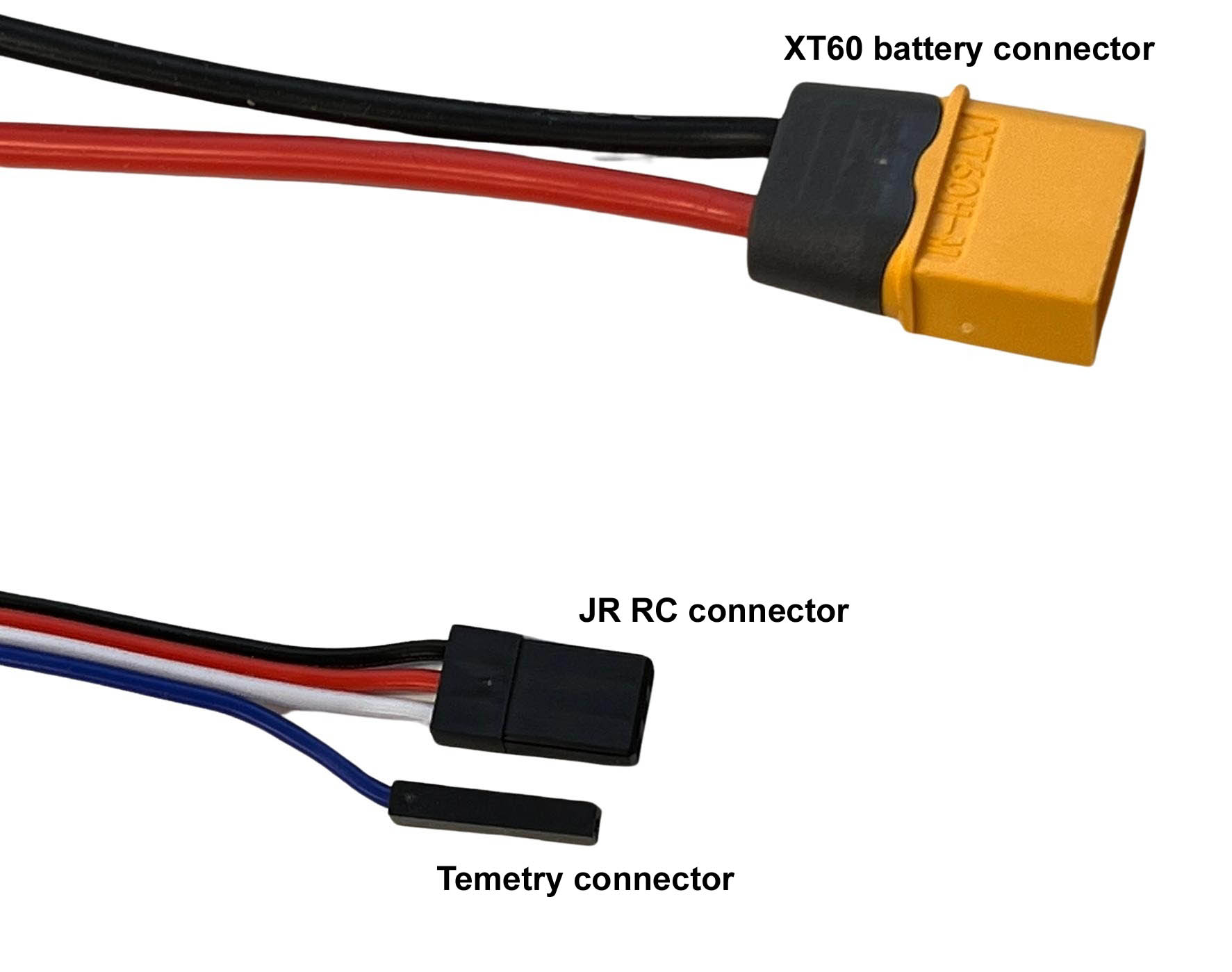

| Battery connector | 15 cm wires, XT60 plug/socket fitted |
| Motor connector | 4 cm wires to 3.5mm sockets |
| RC wire length | 35 cm |

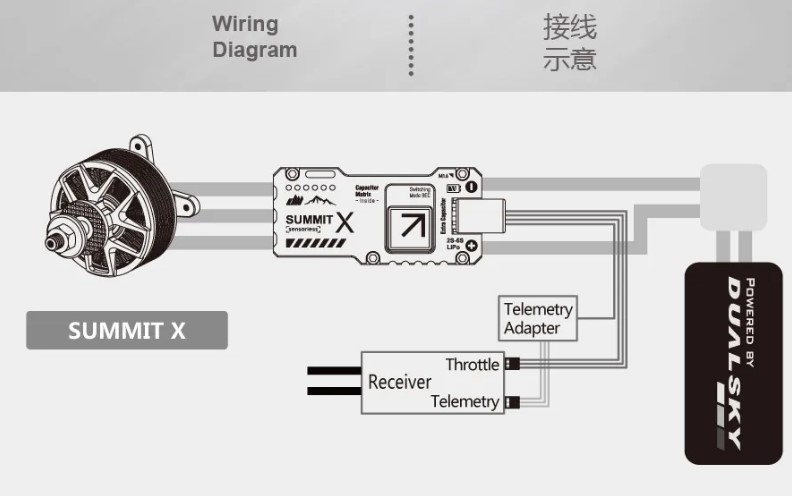

| Telemetry | Yes (but does not include current) |
Reviews 5
Great little ESC dose the job nice and small for my Bird of Time with a Tenshoch GDM1510B Planetary Gear 4.75:1.
I’m using the Dualsky Summit 60X ESC in two of my F5J gliders. I’ve now flown two competitions and several practice sessions and I can say the ESC performs great and as advertised without any issues.
The ESC is compact and robust, perfect for a slim fuselage.
I made a few small changes to the setup using BLHeli32suite to suit my motor/gearbox combo, primarily easing the start-up and brake to reduce any potential stressing of the gearbox. Changes were simple to make and worked as expected.
All in all a great ESC with a powerful BEC at a reasonable price. Recommended.
Previously used Sunrise ICE as a cheap and efficient ESC but the build quality and size/weight of the Dualsky upon first impressions is better. Remains to be actually flown.
Purchased this ESC to replace a faulty unit from another manufacturer and so far it is working perfectly.
