M2 Aluminium Pushrod Ends for 3mm Rods (2)
Description

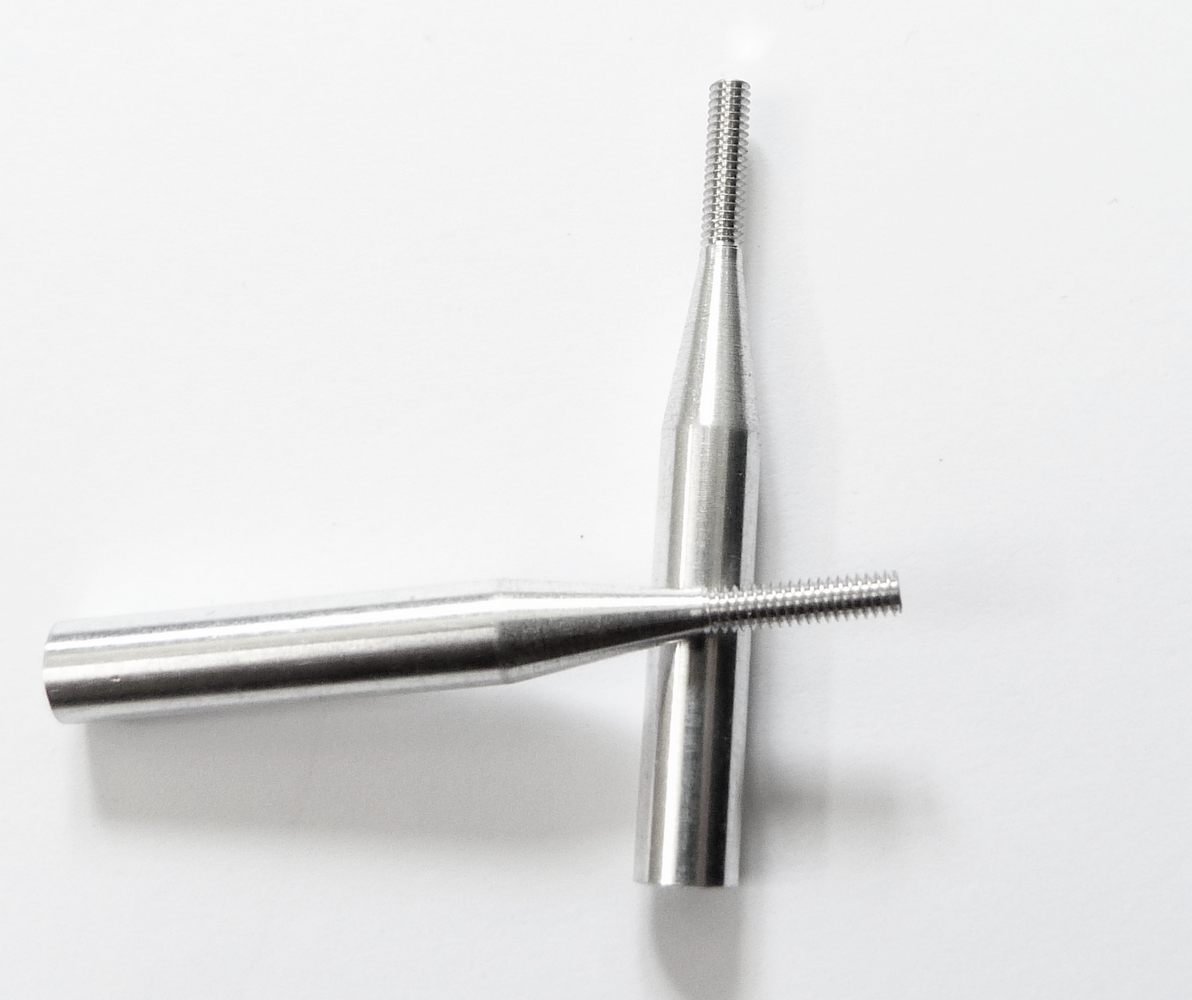

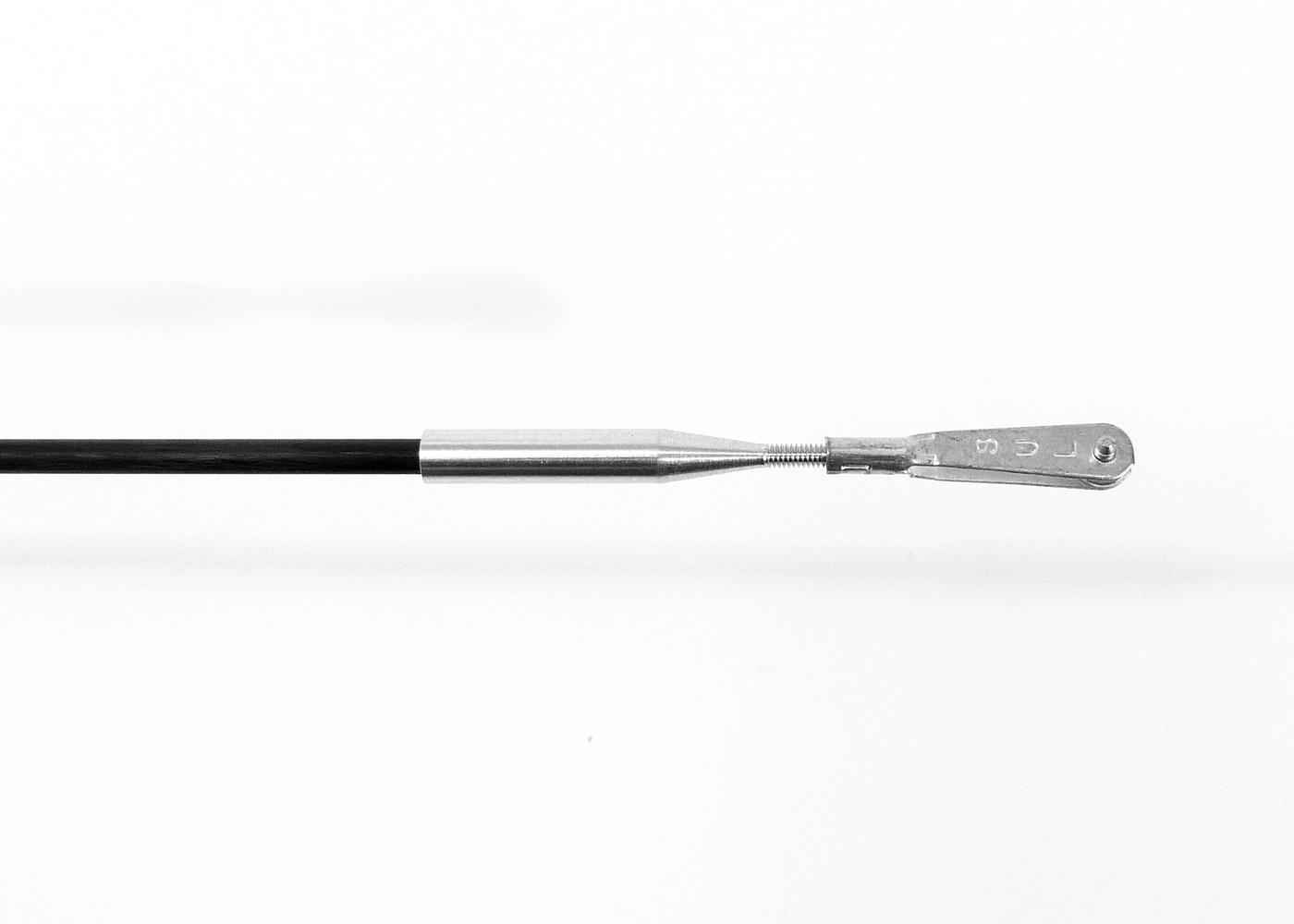

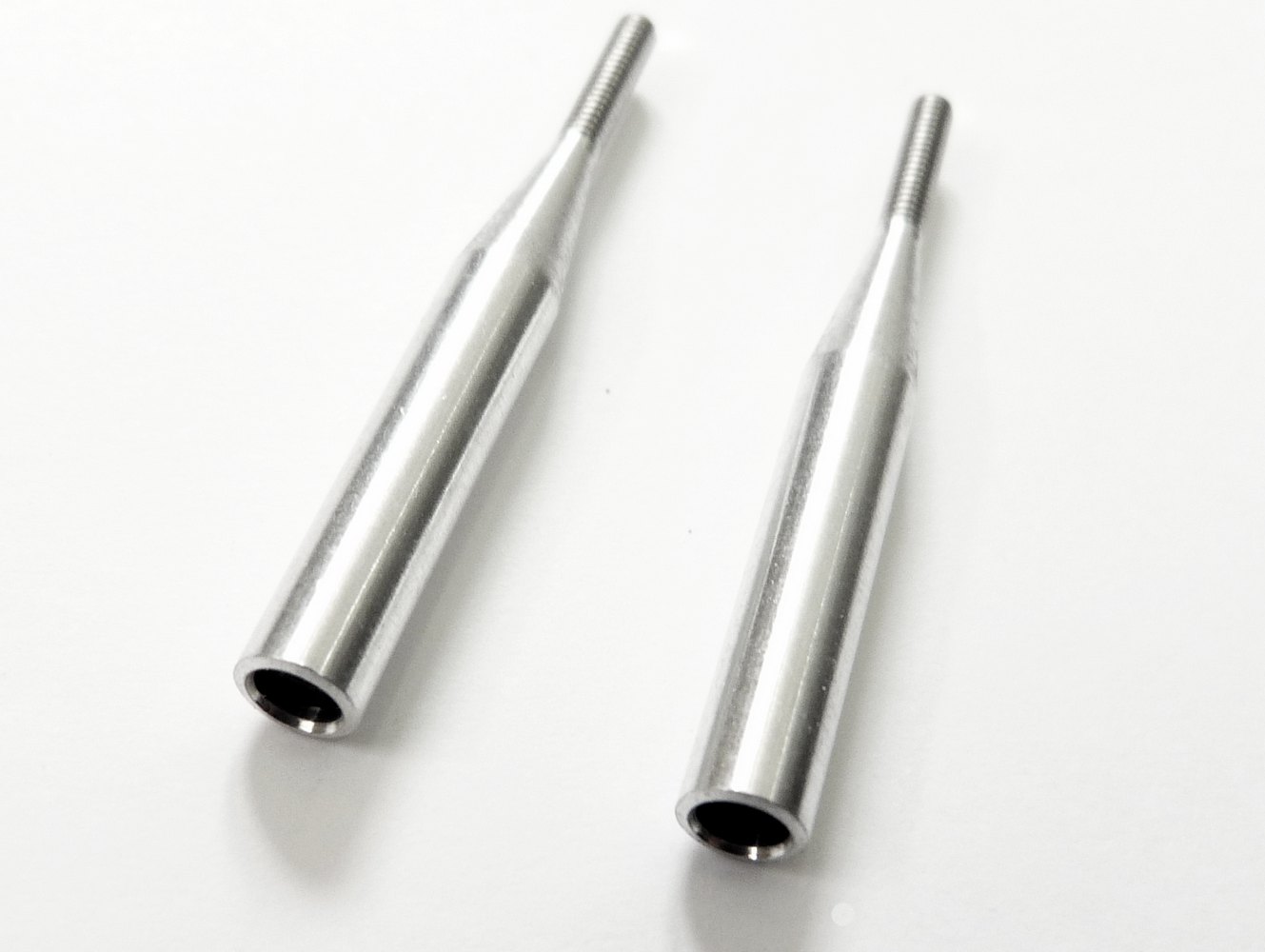

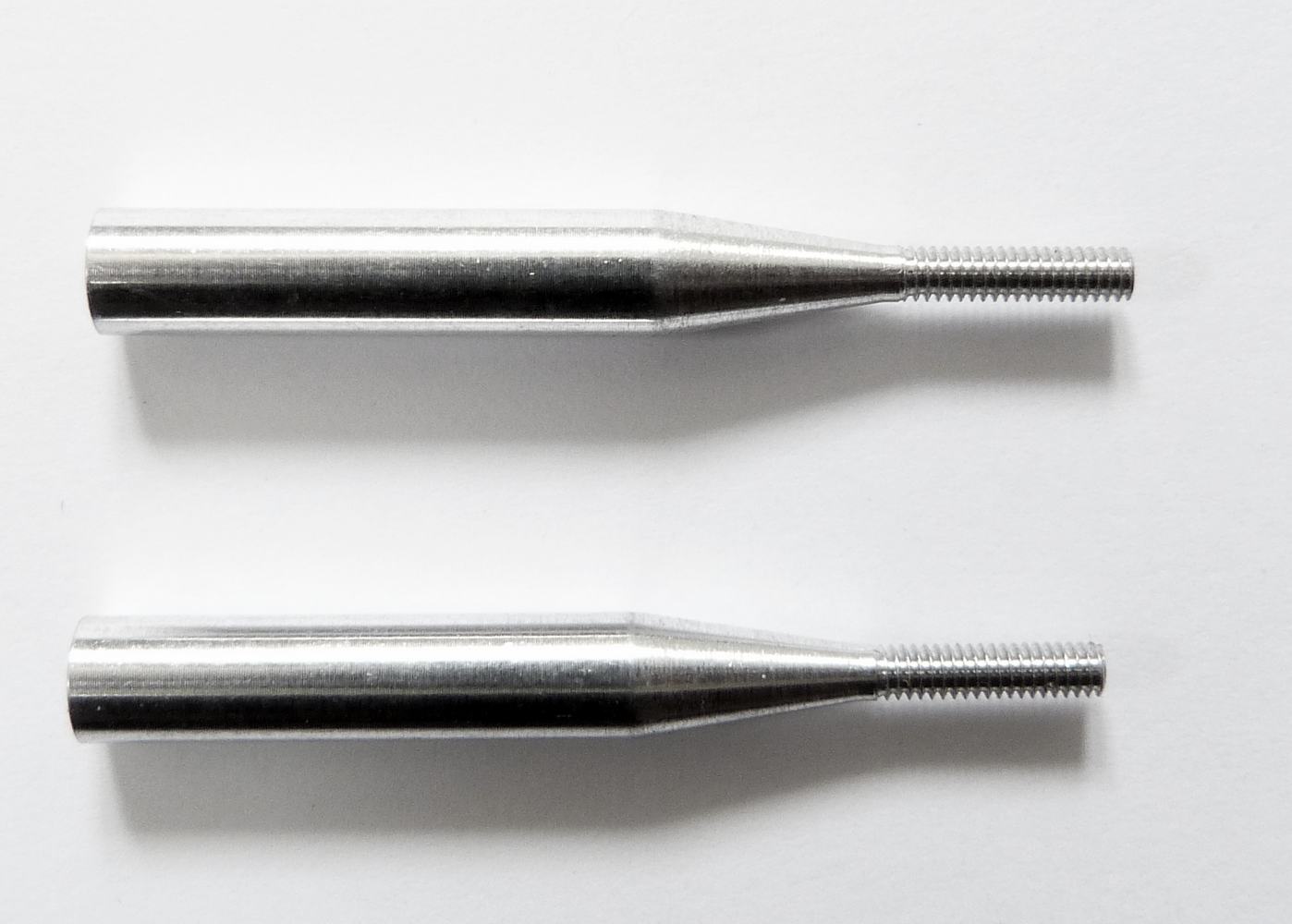

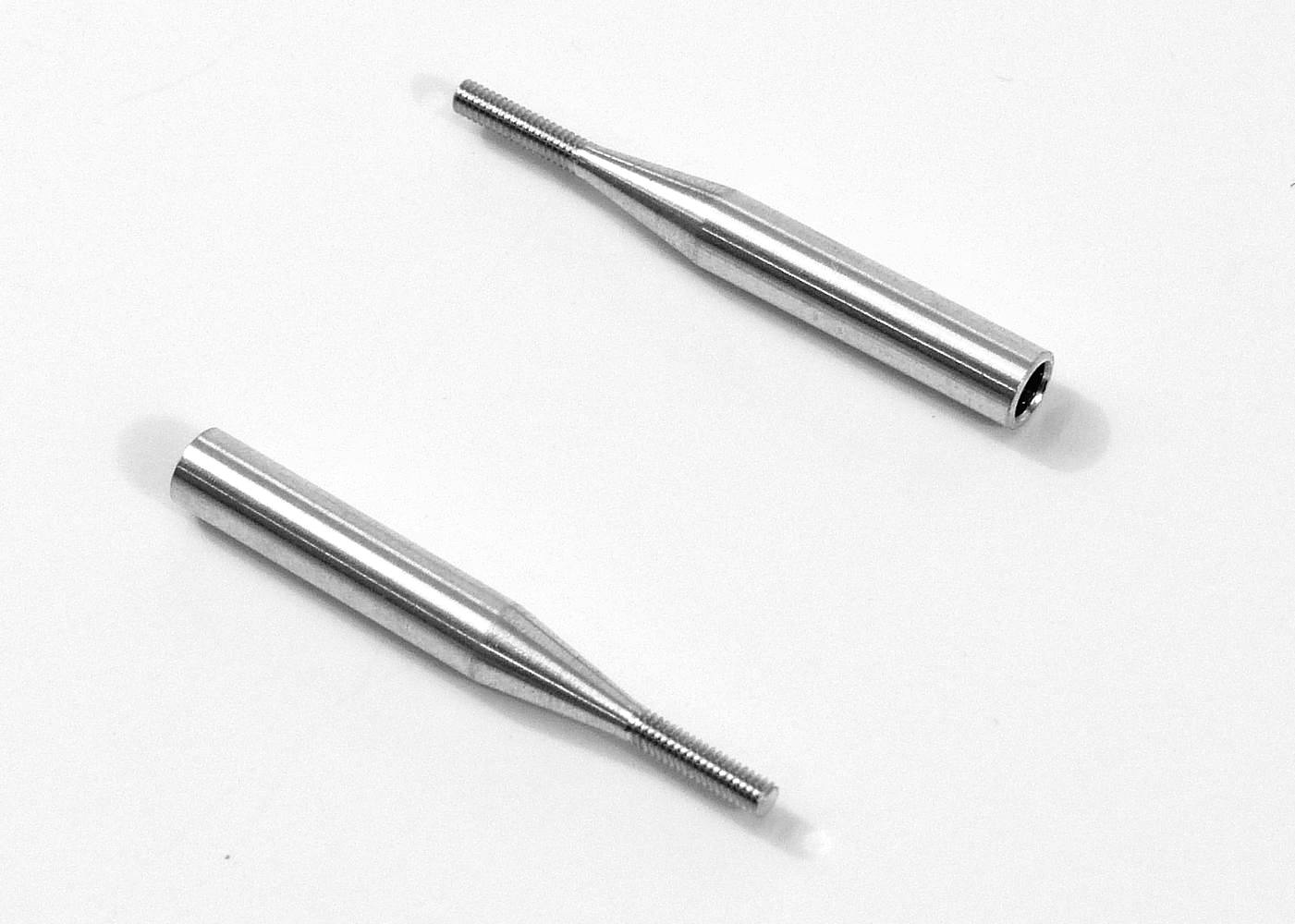

A pair of high quality aluminium pushrod ends with M2 threads cut at one end and a tube to take a 3mm carbon rod (or other material). Note two aluminium pushrod ends only are supplied, carbon rods and clevises must be purchased separately. Suitable for 3 mm carbon tubes or rods. Glue using epoxy or thick CA. Degrease before gluing.
| 3mm Long Pushrod End Specification | |
|---|---|
| Pushrod hole size | 3.05 mm |
| Pushrod tube length | 19 mm |
| Threaded portion length | 9.0 mm |
| Overall length | 36.4 mm |
| Thread size | M2 |
| Weight (each) | 0.72 g |
Reviews 3
Mark Ford
United Kingdom
Excellent
Couldn’t fault this company,excellent service and product
Mark Ford
United Kingdom
Excellent
Couldn’t fault this company,excellent service and product
Pete W
United Kingdom
Great Quality & Service
Great solution for making carbon push rods. I epoxy these to the end of a carbon rod. Finally coating the carbon rod and aluminium end with epoxy and heat shrink the assembly before the epoxy sets. This makes a strong end set up that will stand most if not all stresses.
