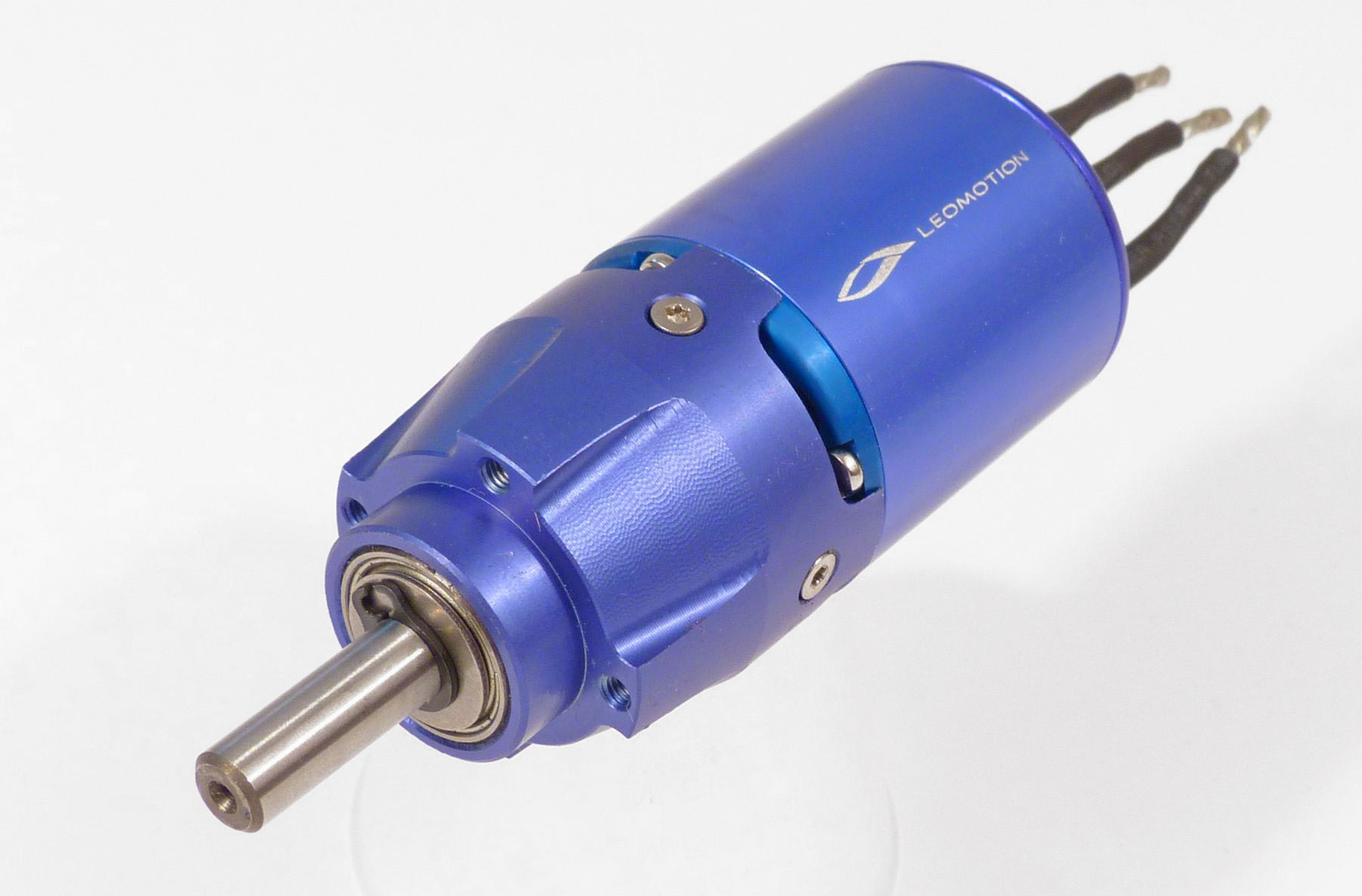

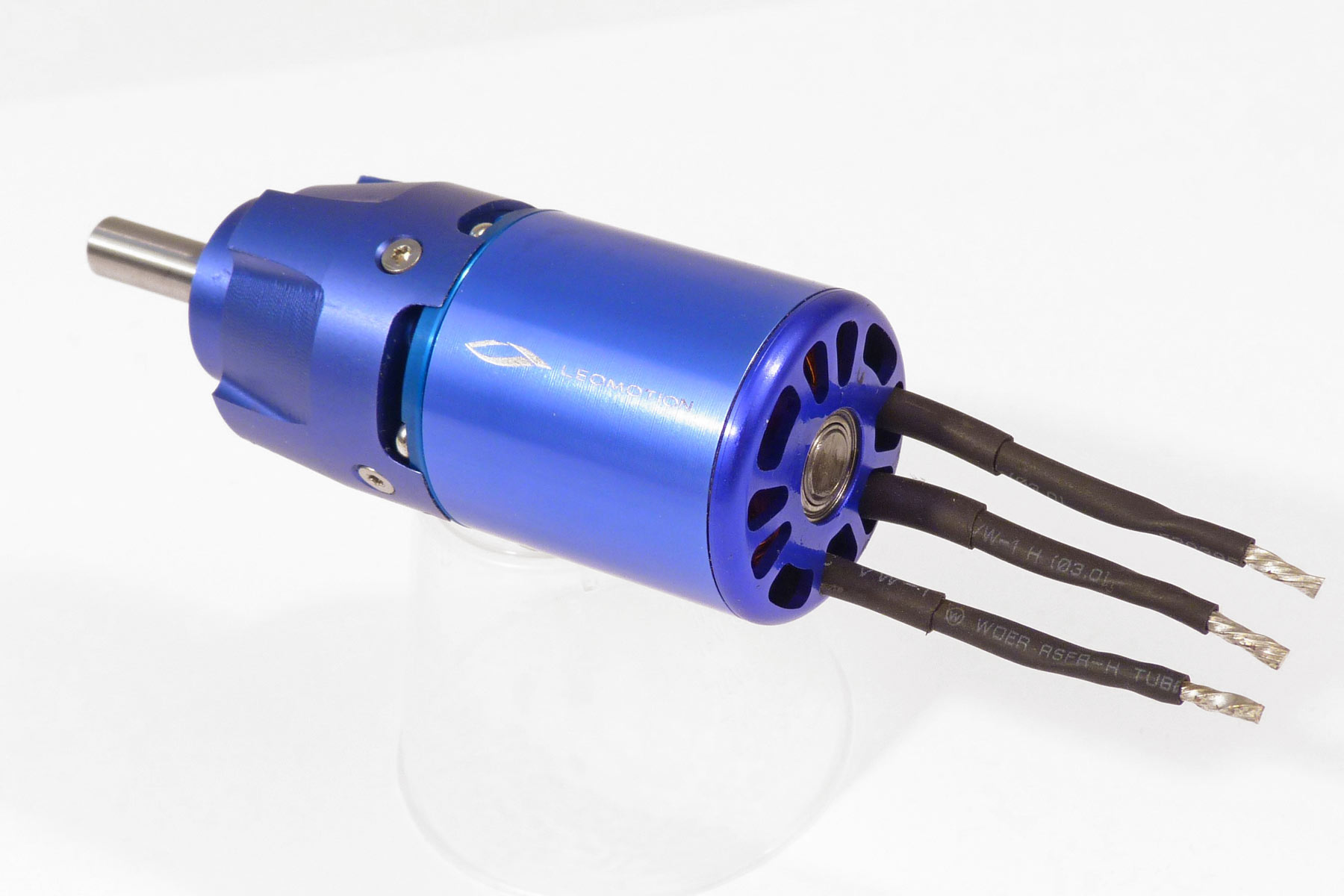

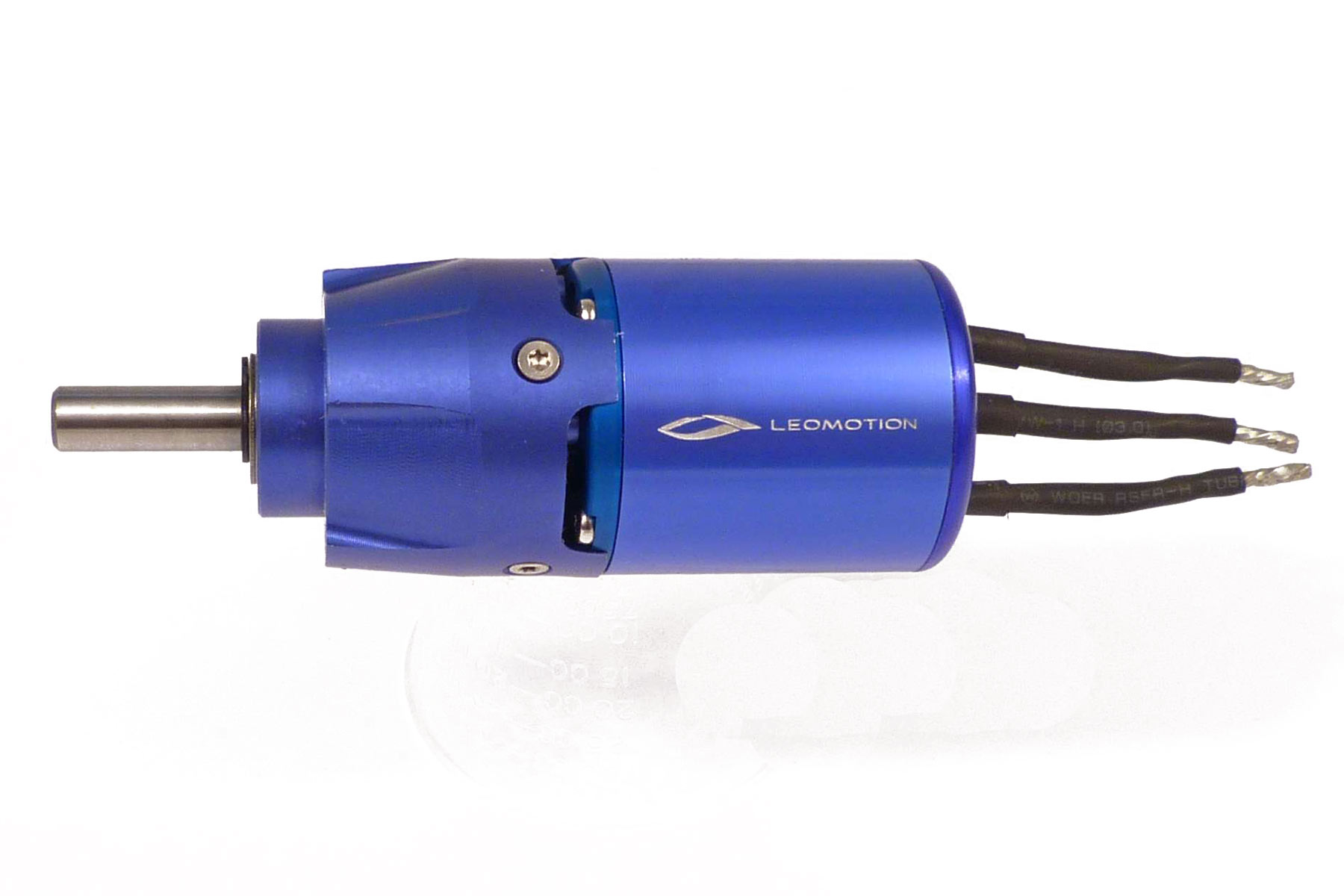

| Leomotion L3013-6000 F5J 6.7:1 Specifications | ||
|---|---|---|
| Motor name / GB name | Leomotion L3013 6.7 | geared inrunner |
| Motor+GB weight | 137 g | 4.83 oz |
| Motor diameter | 30.0 mm | 1.18 in |
| Motor length | 31.0 mm | 1.22 in |
| Lead length | 4.0 cm | 1.57 in |
| Shaft diameter | 6.0 mm | 0.24 in |
| Mounting info | 4 M2.5 holes on a 23 mm diameter circle | |
| Manufacturers Rm | 7 mR | |
| Manufacturers Kv | 6050 RPM/V | |
| Manufacturers Geared Kv | 896 RPM/V | |
| Est Io | 2.8 A @ 10 V | |
| Max efficiency (10 V) | 91 % @ 63 A | |
| Operating efficiency (10 V) | 91 % @ 95 A | |
| Motor+gearbox Km | 127 Nm/W^.5 X1000 | |
| Motor+gearbox Km/Kg | 930 Nm/(W^.5 Kg) | |
| Recommended battery | 2S or 3S LiPo | |
| Rec max LiPo capacity | 2 Ah | |
| Supplied accessories | 4 mounting screws | |
| 3S LiPo Performance | ||
| Recommended prop | 13x8; 13x7; 12x10 | |
| Input power | 690 W on 13x8 prop | |
| Current | 69 A on 13x8 prop | |
| Rate of climb | 12 m/s for 1600 g glider | |
| Gearbox | ||
| Gearbox diameter | 27.0 mm | 1.06 in |
| Gearbox length | 32.0 mm | 1.26 in |
| Motor+GB length | 63.0 mm | 2.48 in |
| Gearbox Ratio | 6.7 | |
| Planet bearings | Ball raced | |
| Estimated GB efficiency | 95 % | |
Review by: Matti
Good for F5JGood quality motor. Only negative thing is the missing flat area for locking the prop in order to prevent it slip.
