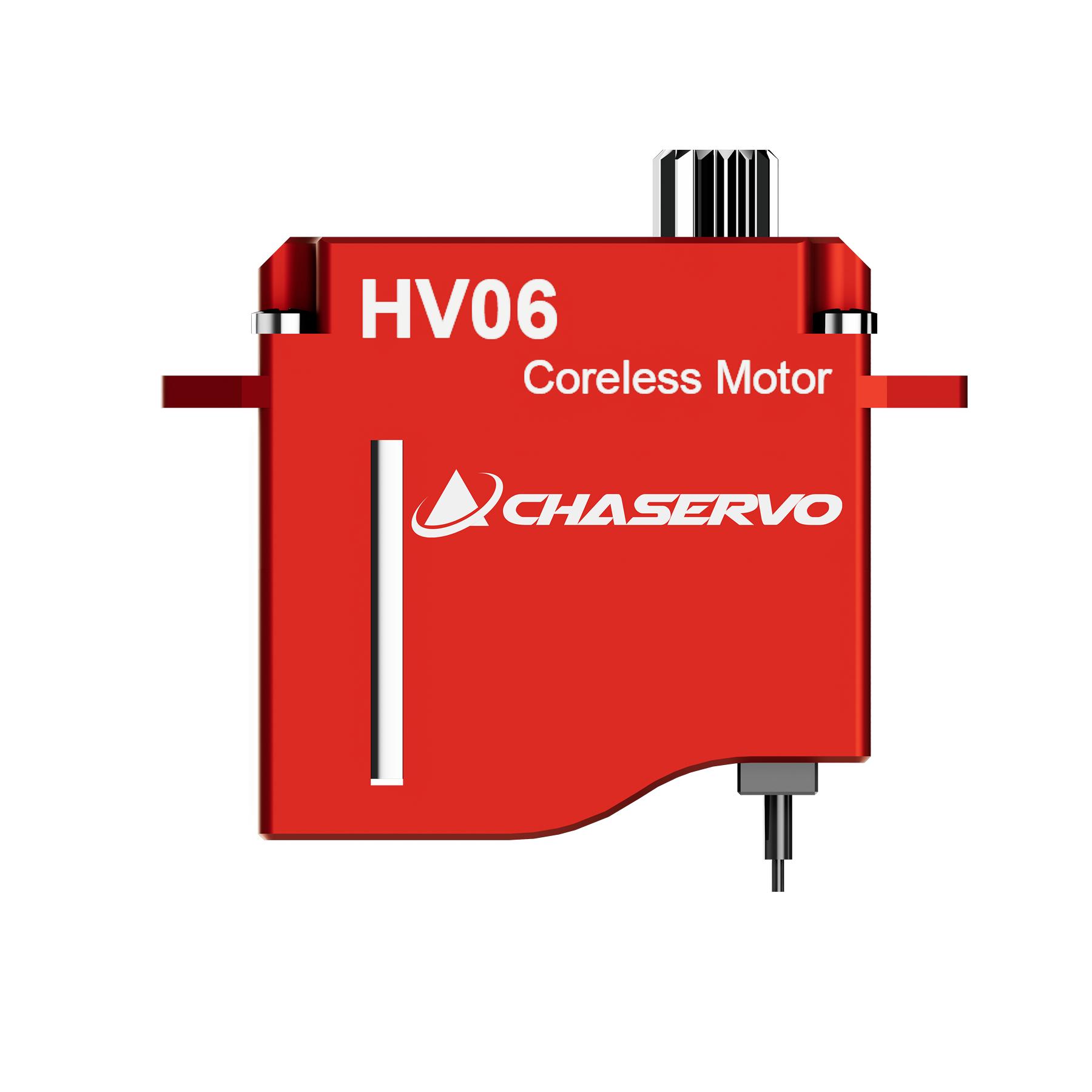

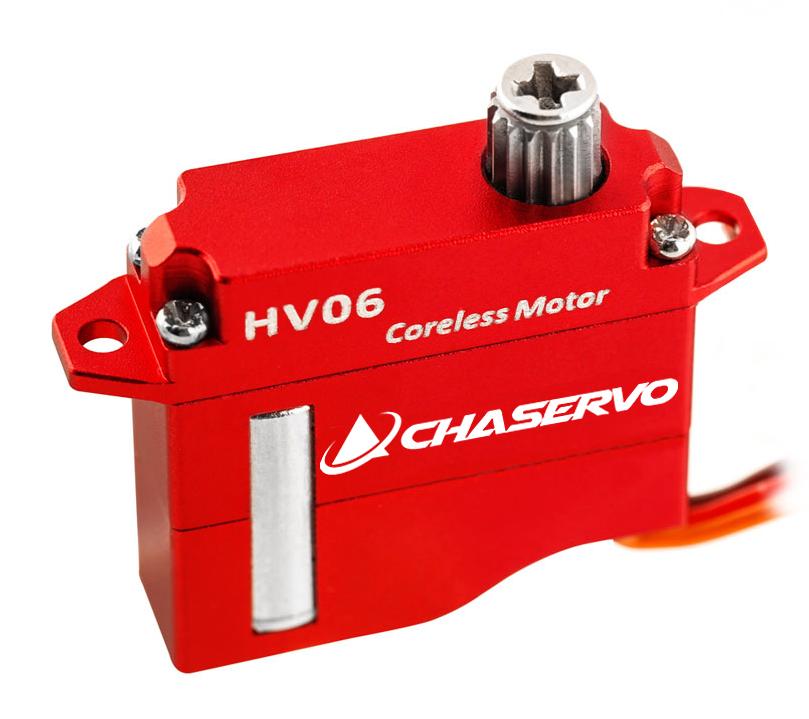

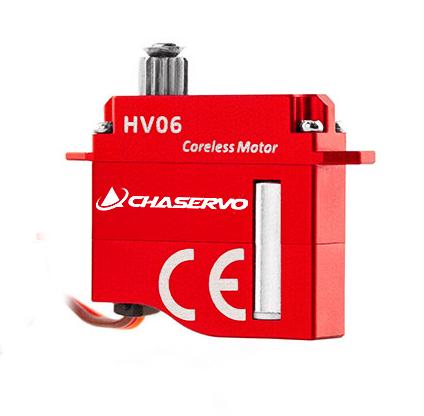

The new CHA HV06 is a very high spec 6mm thin servo that is ideal for gliders and small high performance models.This version of the HV06 servo has normal mounting lugs (also called mounting tabs) and is for high voltage setups.The LV06, LV06H, LV06N is the low voltage series and the HV06, HV06H, HV06N is the high voltage series.

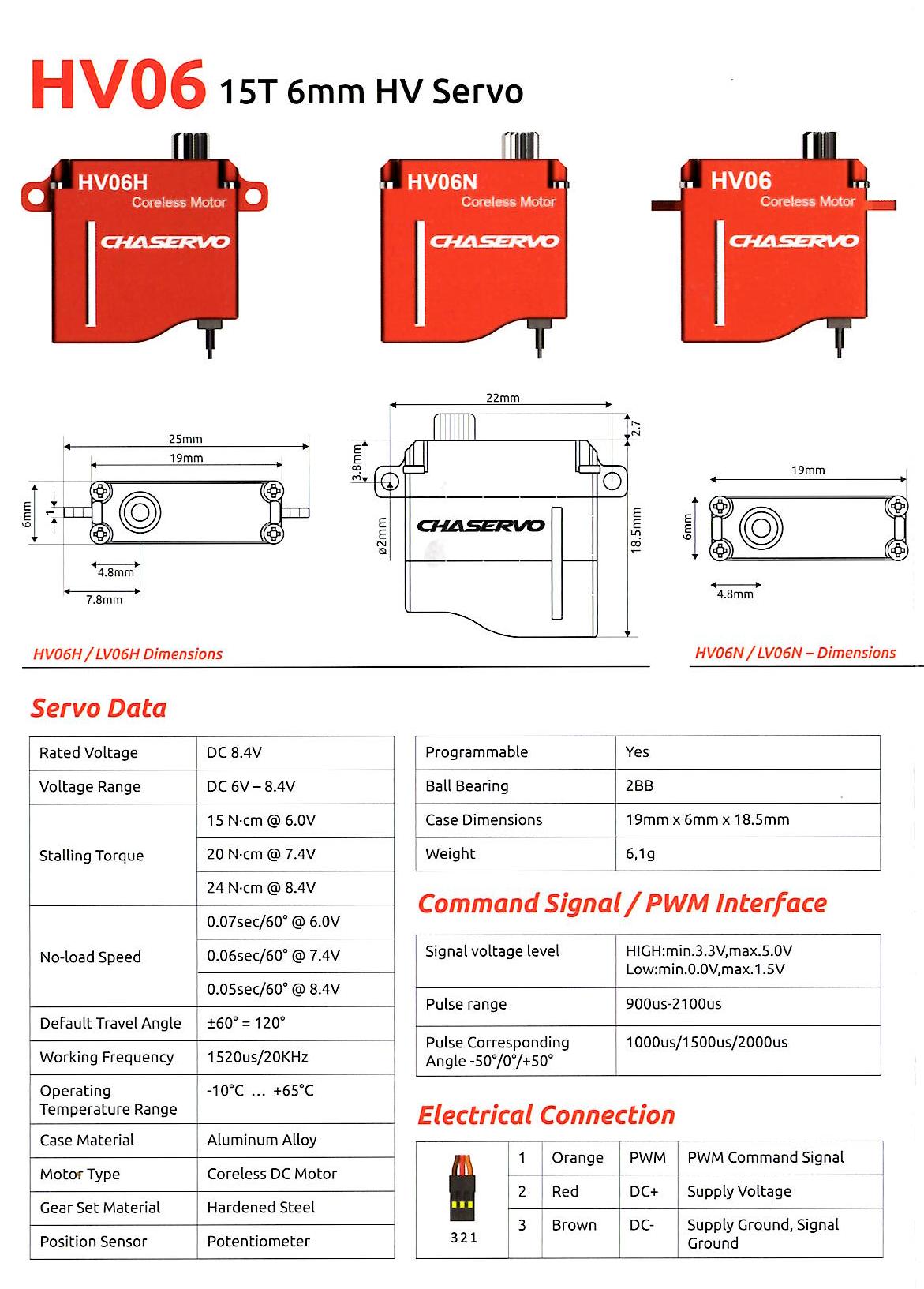

CHA HV06 Servo Specifications

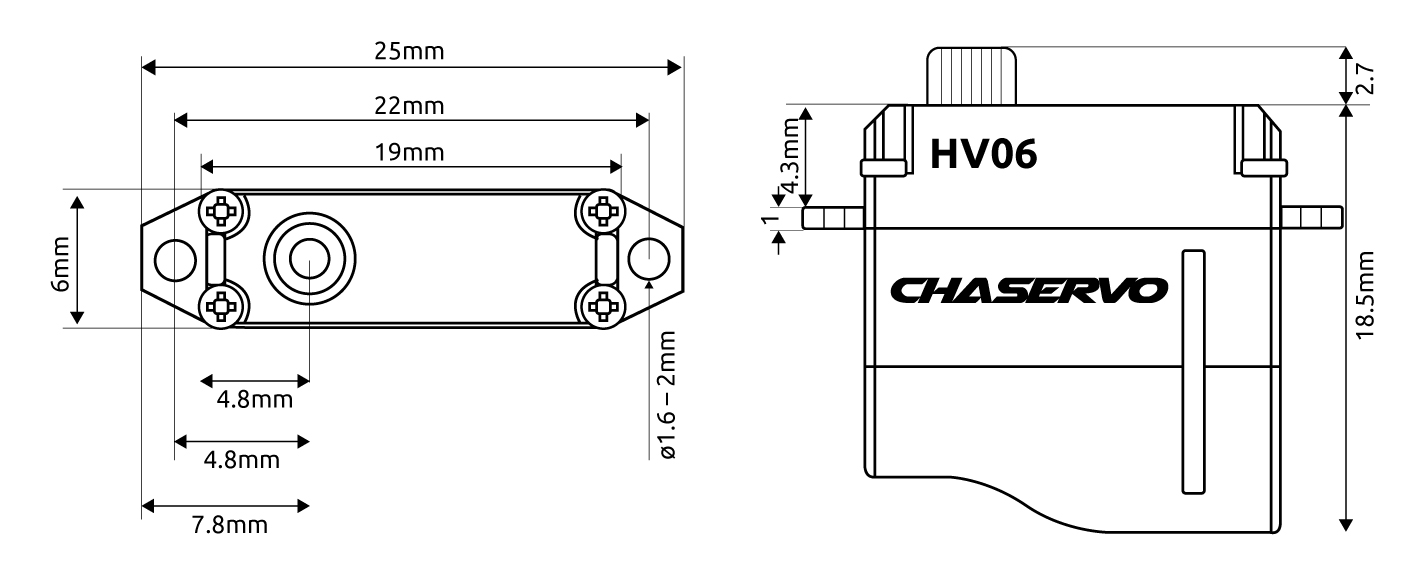

Body dimensions
19.0 mm wide x 6.0 mm thick x 18.5 mm high
0.75" wide x 0.24" thick x 0.73" high
Max dimensions
25.0 mm wide x 6.0 mm thick x 22.7 mm high
0.98" wide x 0.24" thick x 0.89" high
Stall torque (6V)
1.5 Kg.cm
21 oz.in
Stall torque (7.4V)
2 Kg.cm
28 oz.in
Stall torque (8.4V)
2.4 Kg.cm
33 oz.in
Weight
5.8 g
0.20 oz
Lead length
14 cm
5.5 in
Operating speed (6V)
0.07 sec/60°
Operating speed (7.4V)
0.06 sec/60°
Operating speed (8.4V)
0.05 sec/60°
Operating voltage
6V to 8.4V
Operating temperature
-10 to 65 °C
Bearings
2 Ball bearings
Gear material
Hardened Steel
Case material
Aluminum Alloy
Motor type
Coreless DC motor
Working frequency
2000 Hz
Dead band/resolution
1 µs
Pulse width for ± 60º
(L) 920 µs - (0°) 1520 µs- (R) 2120 µs
Digital
Yes
Programmable
No
Position feedback
Potentiometer

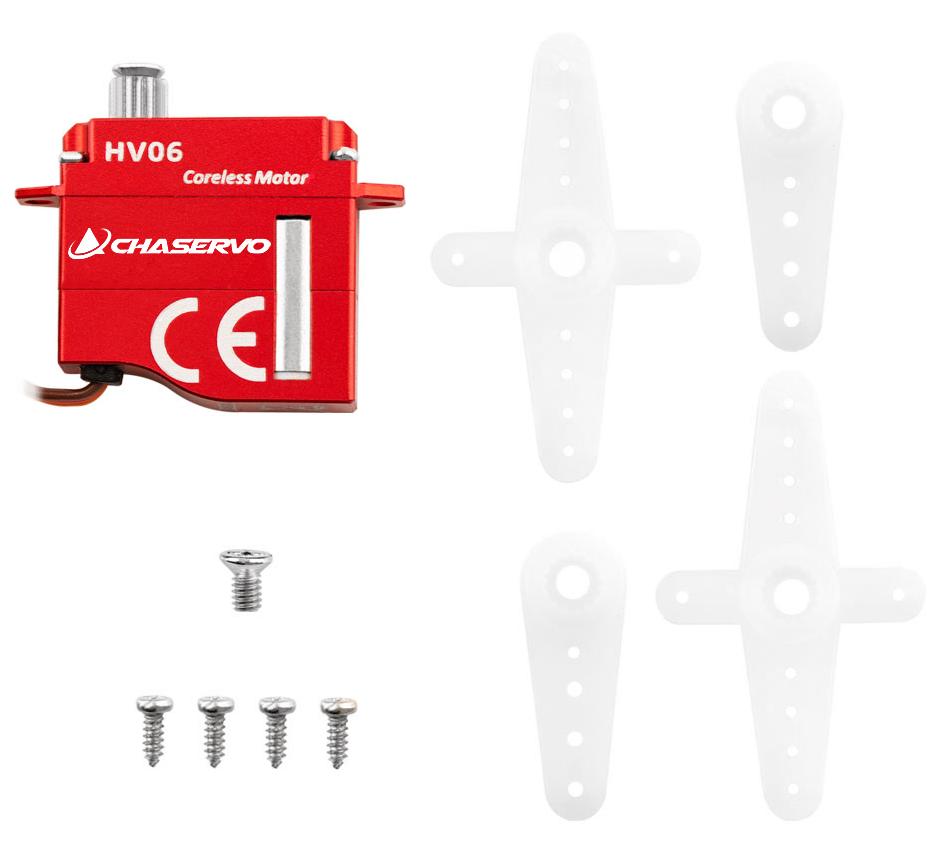

Supplied accessories
2 double sided arms , 2 single sided arms, 2 arm mounting screws, 4 servo mounting screws.
