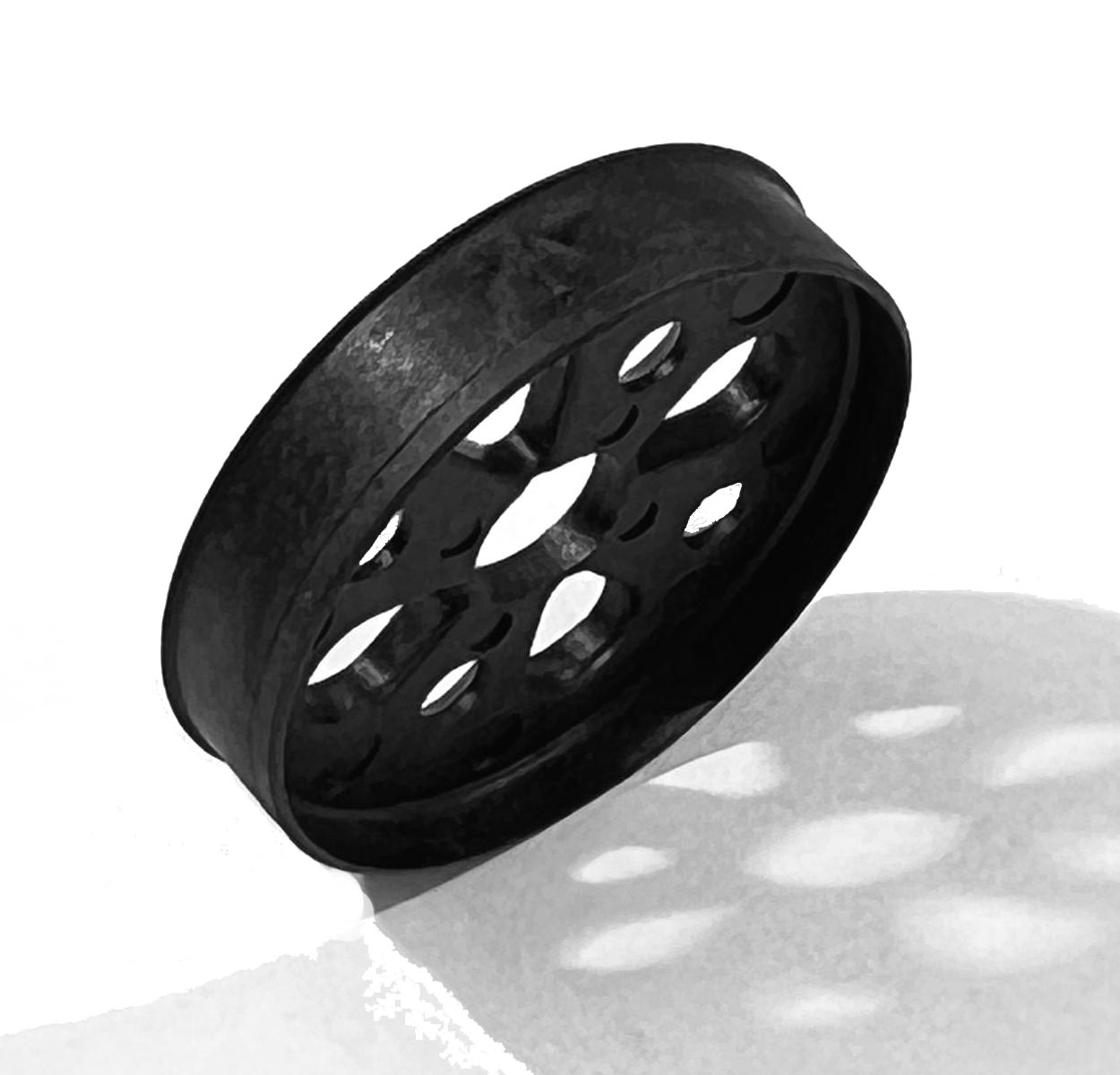

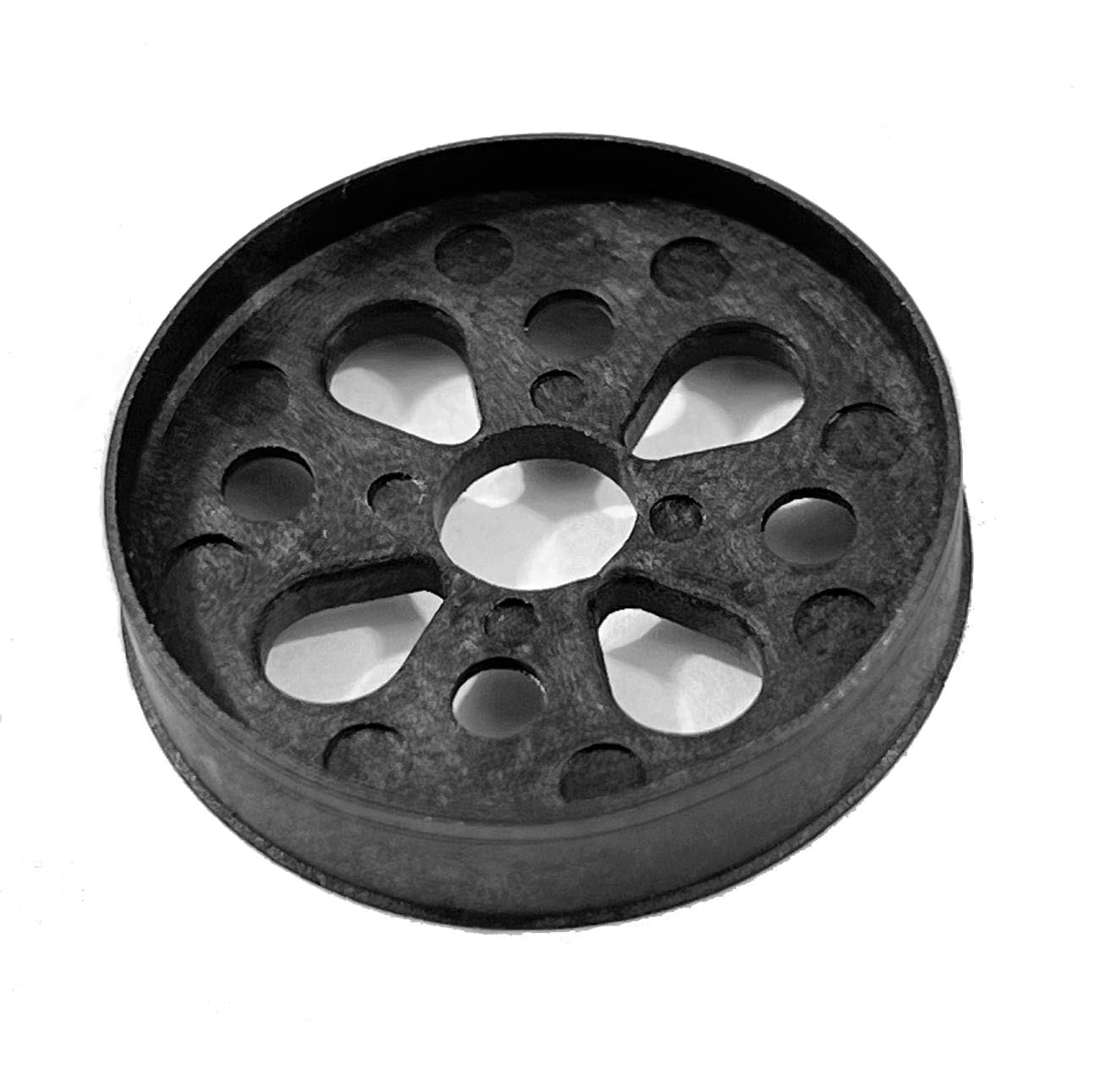

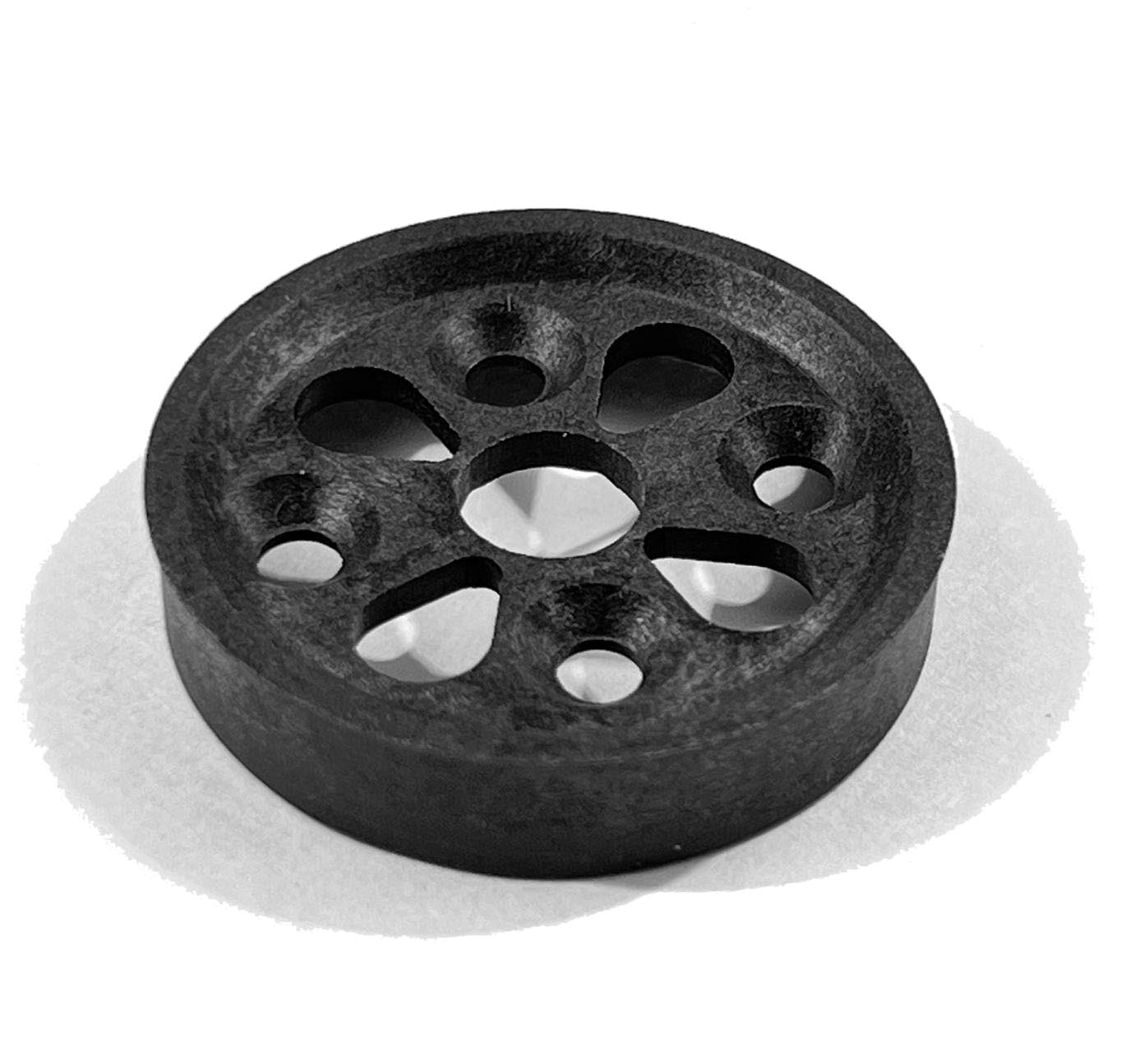

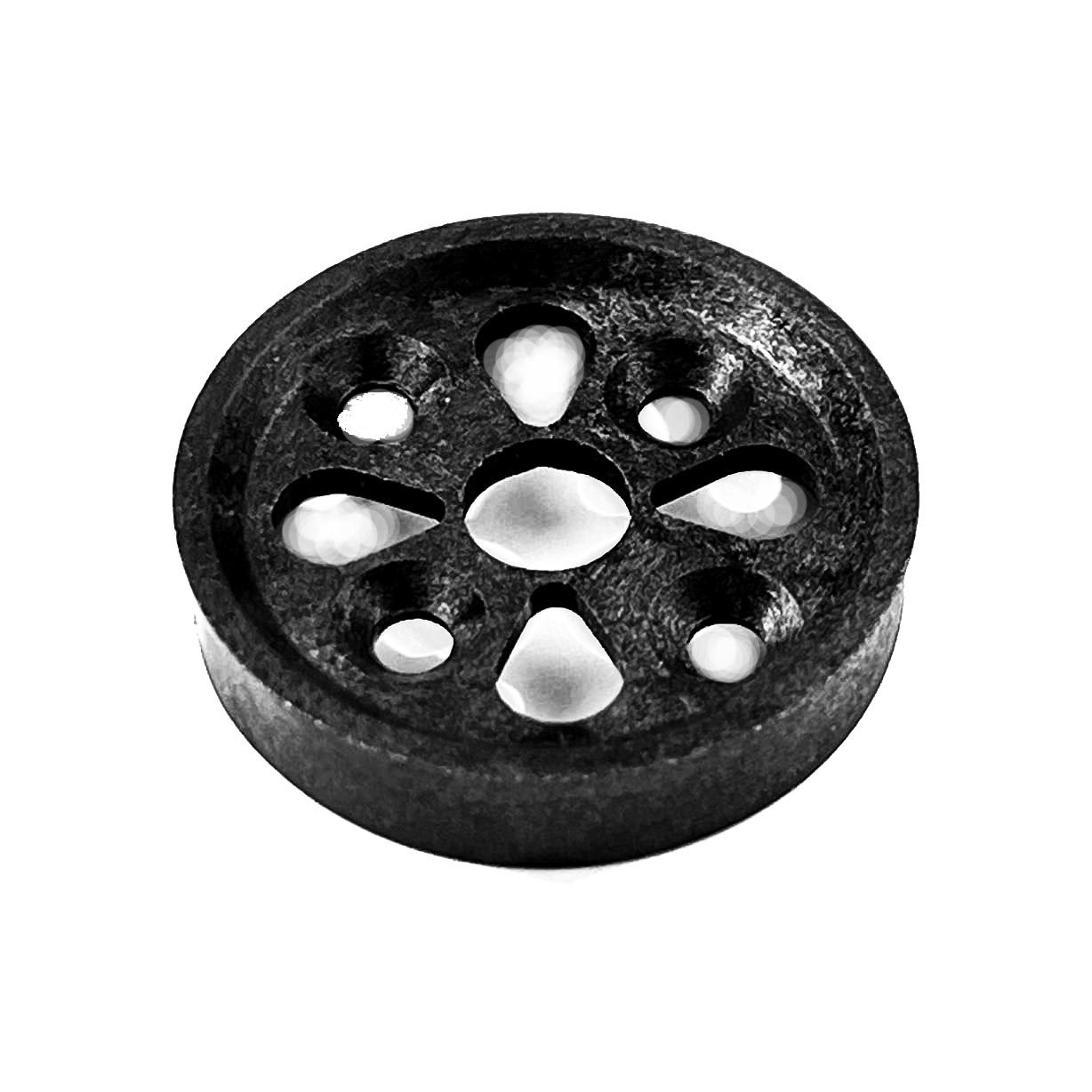

A hard plastic firewall to fit 32.3 mm outside diameter F5J electric glider fuselages. This is usually also the spinner diameter. The motor mounting holes have been pre-drilled for XPower F29xx and F34xx series of motors. However this mounting hole pattern is very common and these firewalls will work with many other motors also.
Note the 31.5 mm dimension on these firewalls is the fuselage front
inside diameter i.e. the outside size less 2*fuse wall thickness
| XPower F29xx and F34xx Plastic Firewall Specifications |
|---|
| Fuselage outside/spinner diameter |
32.3 mm |
| Fuselage inside diameter |
31.5 mm |
| Predrilled holes |
2 holes on 16 mm & 2 on 19 mm diameter |
| Weight |
2.0 g |
