The new

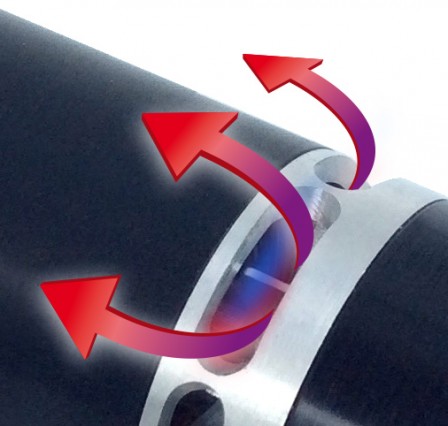

Powerline Micro 1020 Turbo is optimised for 3S LiPo power of F5J models weighing up to 1800g. Max current 38A on a 3S LiPo with a max capacity 1300 mAh. This new version has forced cooling allowing even higher power for a given weight of powertrain.
Powerline Micro 1020 Turbo Weights |
Suitable for gliders weighing |
1300-1800 g max |
Max power |
380W |
Max current |
38A |
Motor/gearbox weight |
91 g |
Length |
68 mm |
Diameter |
22 mm |
Mounting pitch circle diameter |
17 mm |
Shaft diameter |
5 mm |
Gearbox ratio |
6.75:1 |
Recommended ESC |
YGE 65 LVT |
Recommended propeller |
GM 16x8, RF 16x8, RF 16x8.5 |
Recommended battery |
3s Lipo up to 1300 mAh |
Powerline Micro 1020 Turbo Weights |
Powerline Micro 1020 Turbo |
91 g |
Propeller RF 16 x 8.5 |
12 g |
Spinner RF 30 mm |
13 g |
Lipo 3s 1000 40C |
98 g |
ESC YGE 60 |
38 g |
Plugs and screws |
5 g |
Total weight |
257 g |
