MKS HV6130 Servo - 8.1Kg.cm 0.10s 22.5g 10mm

Product Code: MKS-HV6130
 (15 reviews)

Price: $85.57

More than 10 in stock
Add to basket to see shipping cost
Quantity

Description

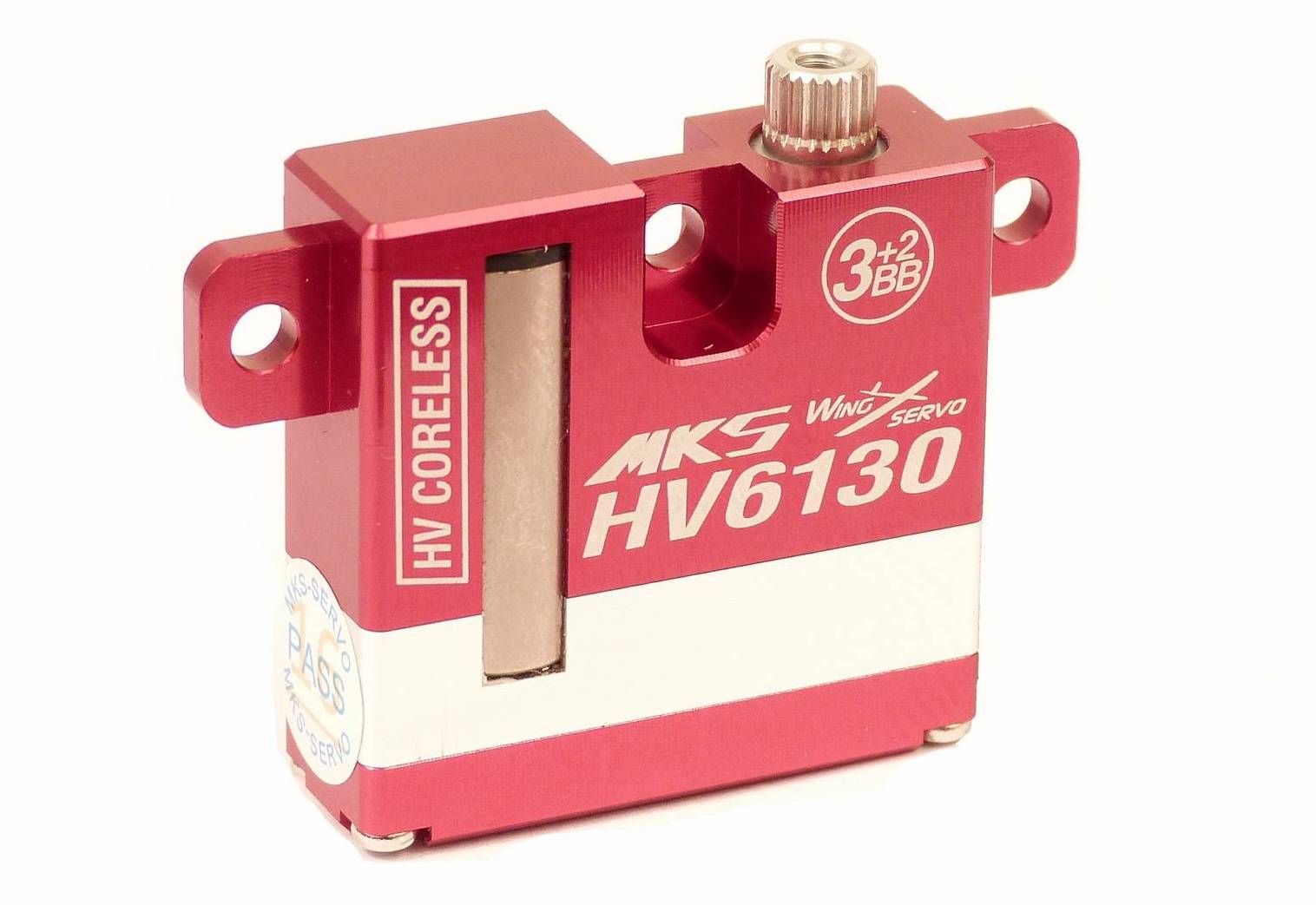

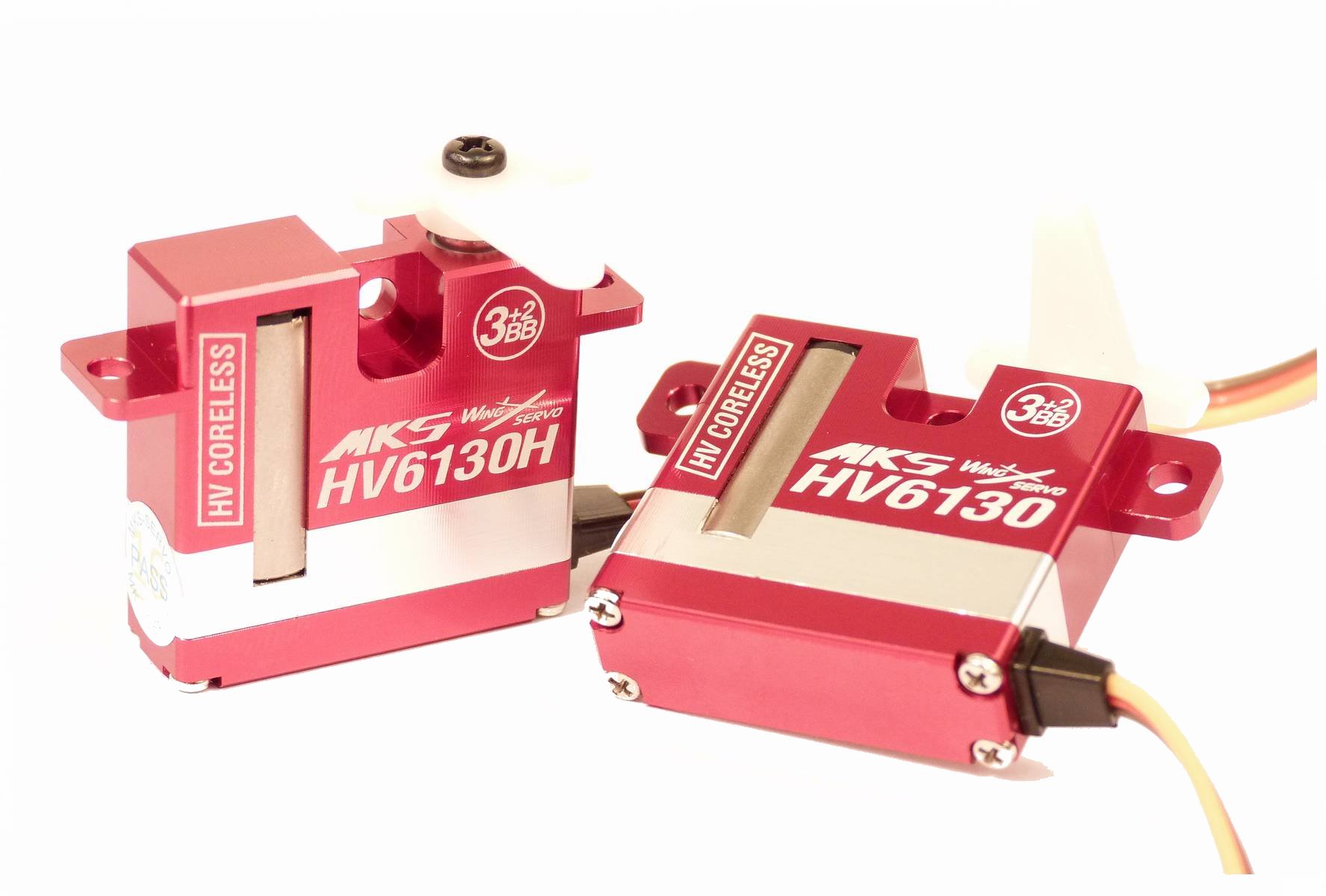

The MKS HV6130 Wing Servo is one of the best wing servos in this class. The HV6130 has 8.1 Kg.cm of torque, absolutely no free play (zero slop) and works on 1S and 2S LiPo as well as 4.8V - 6V NiMH batteries. The aluminium casing and especially the third mounting point between the output shaft bearing and the motor housing creates a very rigid mechanism, minimising compliance. The Bulit-In Safe System ensures that if the motor shorts out for any reason the driver isolates the motor, allowing the plane to land safely without excess current drain.

The MKS HV6130 is a low-medium-high voltage servo to replace the acclaimed MKS DS6125 Glider and MKS DS6125 Mini servos. It is specially optimised for glider fliers, with outstanding torque, precision, and a very low dead band. On a 2S LiPo battery it has higher torque and speed than the DS6125 Mini, DS6125 Glider and most other 23g wing servos. It is a very high torque 10 mm thin servo suitable for many glider, jet, heli and other applications. It has more torque and a better geartrain than all other high voltage servos of this size and price range.

At only 10 mm thick this superb wing-servo can easily fit in thin wings, and with an excellent 8.1 kg.cm torque and a blistering 0.10s/60° speed it is excellent for flaps, ailerons and other control surfaces on many high performance F3B, F3F, F3J, DS gliders, and F5J electric gliders, jets, ducted fans and fast sport slopers.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

Check out this excellent RCGroups HV6130 installation tip.

(C) 2017 Neil Stainton.



MKS HV6130 Servo Specifications

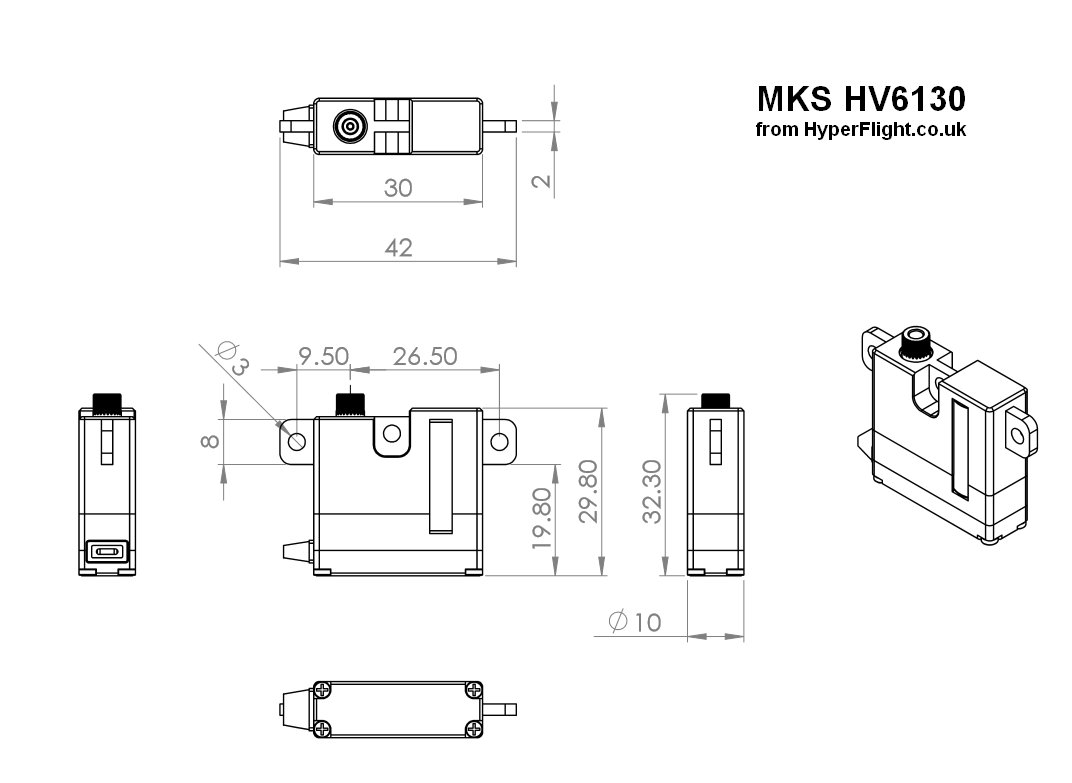

Body dimensions 30.0 mm wide x 10.0 mm thick x 29.8 mm high 1.18" wide x 0.39" thick x 1.17" high
Max dimensions 42.0 mm wide x 10.0 mm thick x 32.3 mm high 1.65" wide x 0.39" thick x 1.27" high
Stall torque (6V) 6 Kg.cm 83 oz.in
Stall torque (7.4V) 7.6 Kg.cm 106 oz.in
Stall torque (8.2V) 8.1 Kg.cm 112 oz.in
Weight 22.5 g 0.79 oz
Lead length 18 cm 7.1 in
Operating speed (6V) 0.14 sec/60°
Operating speed (7.4V) 0.11 sec/60°
Operating speed (8.2V) 0.1 sec/60°
Operating voltage 6V to 8.2V
Operating temperature -10 to 50 °C
Bearings 3 ball bearings + 3 jewel bearings
Gear material Chrome-titanium alloy
Case material All Aluminium Alloy CNC Case
Motor type Coreless DC motor
Working frequency 333 Hz
Dead band/resolution 1 µs
Pulse width for ± 60º µs
Digital Yes
Programmable No
Position feedback Direct drive potentiometer

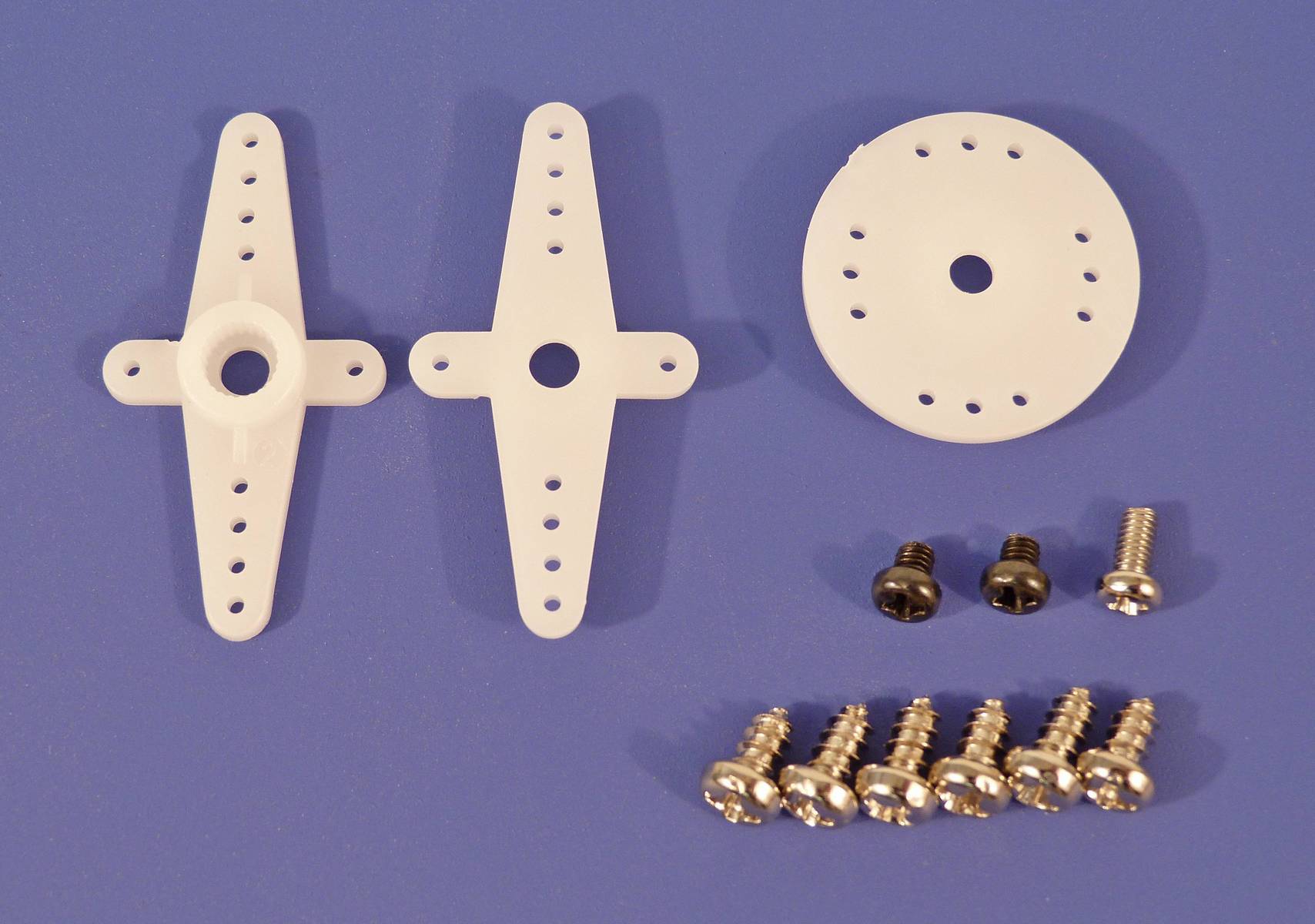

Supplied accessories 3 plastic output arms, 2 arm retaining screws, 6 mounting screws
Optional accessories MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms, Replacement Gear Set for MKS HV6130






Reviews 15


 Review by:

Mks hv 6130 servo

Excellent powerful digital servo with no slop in gears. Deserves 5 stars if this purchase had not been made necessary to replace one i own that developed an intermittant fault. Still very highly recommended.


 Review by:

Ottimo prodotto


 Review by:

Super servos and super service


 Review by:

Excellent and reliable servos. Great customer experience


 Review by:

Superb

Came across MKS servos putting together my Maxa Pro and used 6 HV6100"s and was staggered at accurate centering and absolutely no slop in the gear chain. Putting together a 5 metre model so ordered the more powerful HV 6130's. All the servos I have are simply superb.
As always thanks for a service second to none. Thanks Neil


 Review by:

Excellent servos

I have 7 of these driving the wing surfaces and rudder of my Baudis Skywalker and they are excellent, powerful servos. They were fairly noisy with my Futaba set up, but since moving to Jeti they've quietened down.

I've had them in a year now and, even after a few knocks and bumps they're performing flawlessly.


Comment by:

MKS HV6130 Wing Servo

Nice strong servo that gives many hours of use with no slop backed by Hyperflights excellent service will give the winning edge


 Review by:

Brought four of these servos for my Shinto.
When setting the model, the servos very precise, accurate and robust.


 Review by:

MKS HV6130 Wing Servo

I replaced two MKS 6125 Wing servos in my Baudis Skywalker with the 6130's after I stripped a gear. The 6130's are more precise than the 6125's which are already excellent servos.


 Review by:

first of all thanks to hyperflight for courtesy and availability. you are the nr 1. the mks 6130 servos are at the top.


 Review by:

Wow fantastic quality flap servo, very precise and robust. Worth the extra weight. Very noisy! Great service from Hyperflight as usual


 Review by:

MKS HV6130 Servo quality and delivery.

Quality product with great advise and service, delivered quickly and fitted in minutes during a flying event.


 Review by:

F5J

Purchased 2 of these for my F5J model, to run the flaps and they are excellent servos. Very noisy, like the HV6100's but perform brilliantly.

Neil was a great help, when purchasing these. Thanks Neil.


 Review by:

top servo

top servo for my high speed acrobatic swift.
top assistance


 Review by:

fantastic, just for my 4,5 m wings ASW glider
