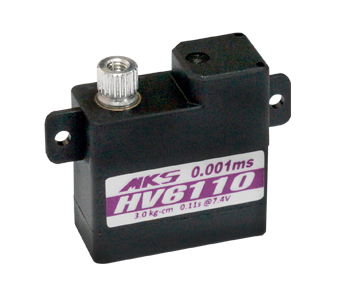

MKS HV6110 Servo - 3.4Kg.cm 0.10s 9.8g 10mm

MKS-HV6110
Product Code: MKS-HV6110
 (34 reviews)

Price: $47.11

More than 10 in stock
Add to basket to see shipping cost
Quantity

Description

The MKS HV6110 is a high voltage version of the acclaimed DS6100 with lugs suitable for mounting as a wing servo. It is specially optimised for glider fliers, with excellent torque and precision, and a very low deadband. On a 2S LiPo battery it has higher torque and speed than the DS6100. It is a very high torque thin 10g servo suitable for many wing and fuselage applications. It has more torque and a better geartrain than all other high voltage servos of this size and price range.

At only 10mm thick this superb wing-servo can easily fit in thin wings, but with a low height of 23.5mm it can also fit in DLG and other small fuselages. With good 3.4 kg.cm torque and a blistering 0.10s/60° speed it is excellent for flaps, ailerons, elevator and rudder on many high performance gliders, DLGs, electric gliders, and faster sport slopers.



MKS HV6110 Servo Specifications
Body dimensions 22.5 mm wide x 10.0 mm thick x 23.5 mm high 0.89" wide x 0.39" thick x 0.93" high
Max dimensions 31.0 mm wide x 10.0 mm thick x 24.6 mm high 1.22" wide x 0.39" thick x 0.97" high
Stall torque (6V) 2.6 Kg.cm 36 oz.in
Stall torque (7.4V) 3 Kg.cm 42 oz.in
Stall torque (8.2V) 3.4 Kg.cm 47 oz.in
Weight 9.84 g 0.35 oz
Lead length 18 cm 7.1 in
Operating speed (6V) 0.14 sec/60°
Operating speed (7.4V) 0.11 sec/60°
Operating speed (8.2V) 0.1 sec/60°
Operating voltage 6V to 8.2V
Operating temperature -10 to 50 °C
Bearings 2 jewel bearings + 1 bronze bush
Gear material Aluminium-magnesium alloy
Case material Nylon
Motor type Coreless DC motor
Working frequency 333 Hz
Dead band/resolution 1 µs
Pulse width for ± 60º µs
Digital Yes
Programmable No
Position feedback Direct drive potentiometer
Supplied accessories 2 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories Frame with bearing for the MKS HV6110, Integrated Drive System/Mono for MKS HV6110, MKS Plastic Servo Output Arms, MKS Heavy Duty Plastic, MKS Short Metal Servo Output, MKS Long Metal Servo Output Arms, Replacement



Reviews 34


 Review by:

Hv 6110

Super small servos good for the wings and other small environments that require good servos.thanks Neil fast post


 Review by:

Great servo.

Great servo, small and powerful for most people's F5J needs.
A discount voucher that ran out last year was reinstated, so great service from Neil, and even better value for money.


 Review by:

MKS HV6110 servo

MKS HV6110 servo
my go-to wing servo-faultless.
Great service from Neil as always


 Review by:

Small but fast and powerful

Super little servo. Chosen for the combination of size, power, weight, and precision. Ticks all the boxes.


 Review by:

MKS HV6110 Servo

Certainly is my go to F5j flap servo.


 Review by:

Super Servo

Using these for F5J Ailerons. Very accurate Servo with almost no play in the gear-train. Recommended.


 Review by:

Great service

Why would I purchase elsewhere


 Review by:

Great servos

I have so many of these servos installed in models, all function perfectly. Great service as usual from Neil S.


 Review by:

Neil -best service Ive had in years -Ill be dealing with you again -thanks again


 Review by:

Happy customer

Excellent product, excellentt service again. Thank you.


 Review by:

MKS 6110

Very good servos , I used it for F5J ,
Perfect service from Neil


 Review by:

MKS as a Glider Tail Servo

Accurate fast servo. Thin enough for mounting in fin of most gliders. Received next day by paying extra and guaranteeing arriving two days before Christmas. Excellent service from Neil. Thankyou


 Review by:

Produit conforme à la description


Comment by:

MKS 6110 SERVO

Fabby servo and with the MKS Servo frame with bearing makes for easy installation.
First Class service from Neil and the Team at Hyperflight


 Review by:

Recent purchase

The servos I ordered were received in double quick time. Excellent service as always.


 Review by:

Delivered in under 24 hrs. Great service.


 Review by:

Great little servo's with great service from Neil.


 Review by:

Very good


 Review by:

Small, light, fast, quiet, precise ... feels like a servo that can be trusted. Competitive pricing, fast delivery and excellent service from Hyperflight


 Review by:

Excellent servo that I use on the aileron of most F5J gliders as well on the flap of the lighter el nino.


 Review by:

6110 servo

Received on time and exactly what I needed, a great servo and I use these on my explorer 4.0


 Review by:

ottimi servocomandi, sono installati su tutti i miei F5J, mai avuto problemi, silenziosi e precisi


 Review by:

Verá good


 Review by:

MKS HV6110

Best in size.


 Review by:

Still great

This MKS (6110) servo is still an excellent product: HV, powerful, fast, and lightweight.


 Review by:

Stuf

All i got from Hyperflight is exactly as described, and Neil is easy to discus with and answer questions as well.


 Review by:

not very satisfied

I purchased couple of this during years. Last order was only 2 pieces MKS HV6110 Servos and 2 MKS HV6100 Servos.
MKS HV6110, one of them started when I was doing my settings rotating in only one direction all the time, not sure what is wrong, electronics looks intact, potentiometer is working fine(measured by multimeter), probably uC inside is dead.
I was satisfied at the beginning with MKS quality, not it looks like they have problem.
I am now afraid not to happen something inside my F5J planes during flight. I will reconsider next servos.


 Review by:

MKS HV6110 + LDS frame

I use the MKS HV6110 with LDS frame as the new standard for my thermal sniffers.
By setting the Jeti-receivers particular servo Y2 and Y3 gain to 125% for flap (butterfly) via the "jetibox", the servo movement allows for parallel servo-horn with LDS-rod in full down-flap position as well as allowing approx. 135degree travel to neutral position with net result a rock-solid-reliable very stiff lightweight setup.


 Review by:

MKS HV 6110 Servo

Very good service from Hyperflight. Fit for purpose small glider wing servo


 Review by:

MKS 6110 HV

Great Servos! Nice centering and torque, no slop in gear. My new standart for f3j and f5j!
Perfect service from Neil!


 Review by:

fast delivery

high quality servo.
4 days after ordering it was delivered to Germany


 Review by:

MKS 6110 hHV Servos

I can't help but be impressed by the products and service provided by Neil and his team.
I live in Western Australia ( i know lucky me) but the one thing missing is a good hobby shop catering for the gliding enthusiast.
I am so glad i discovered Hyperflight as the service and product range is brilliant. My latest purchase arrived in good time and i just love these servos.
In the words of Arnie.......I'll be back


 Review by:

MKS 6110 Servos

Safely received six of these servos here in Australia. Wonderful product and wonderful service from Neil.
Shipping and handling was prompt, with excellent packaging of the servos, apart from a delay through customs at the Sydney end but I can live with that to ensure that I get what I need at an economic price.
Many thanks to Hyperflight UK.


 Review by:

Hv6110 servo

These are the gold standard for sub 10 gram wing servos. Great centering and torque make these a bargin for the price !
