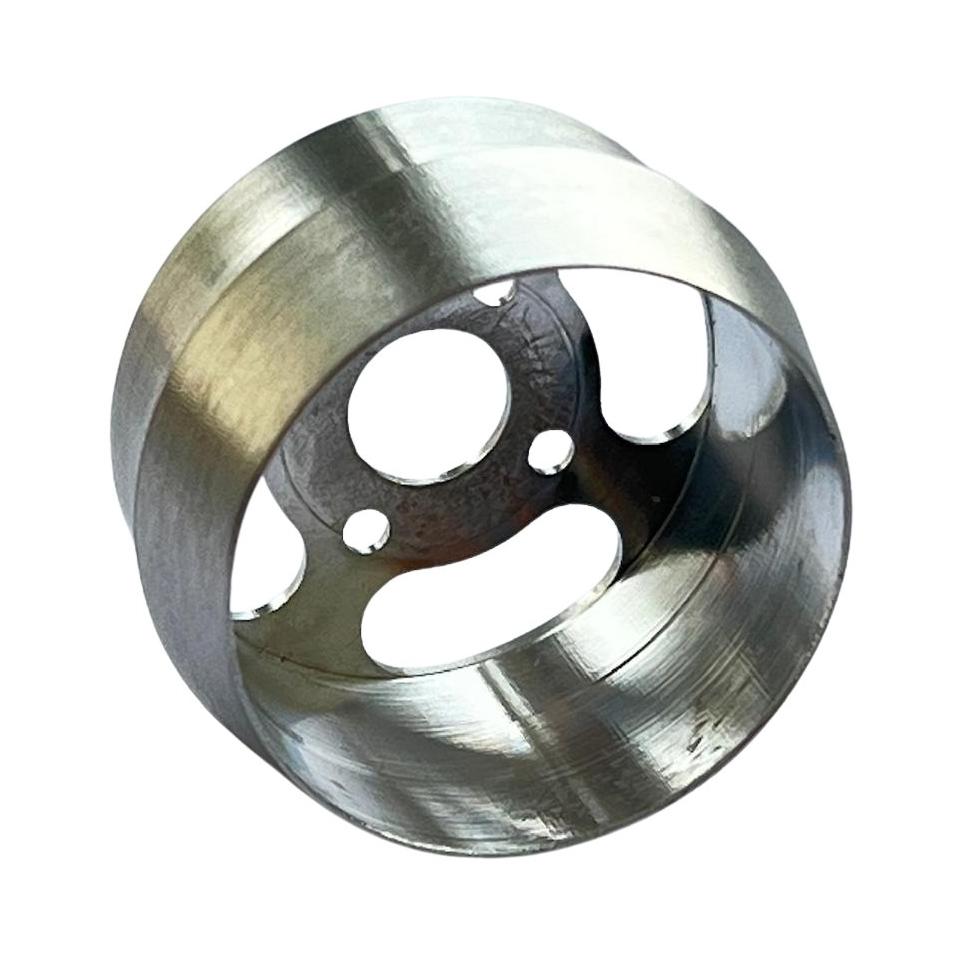

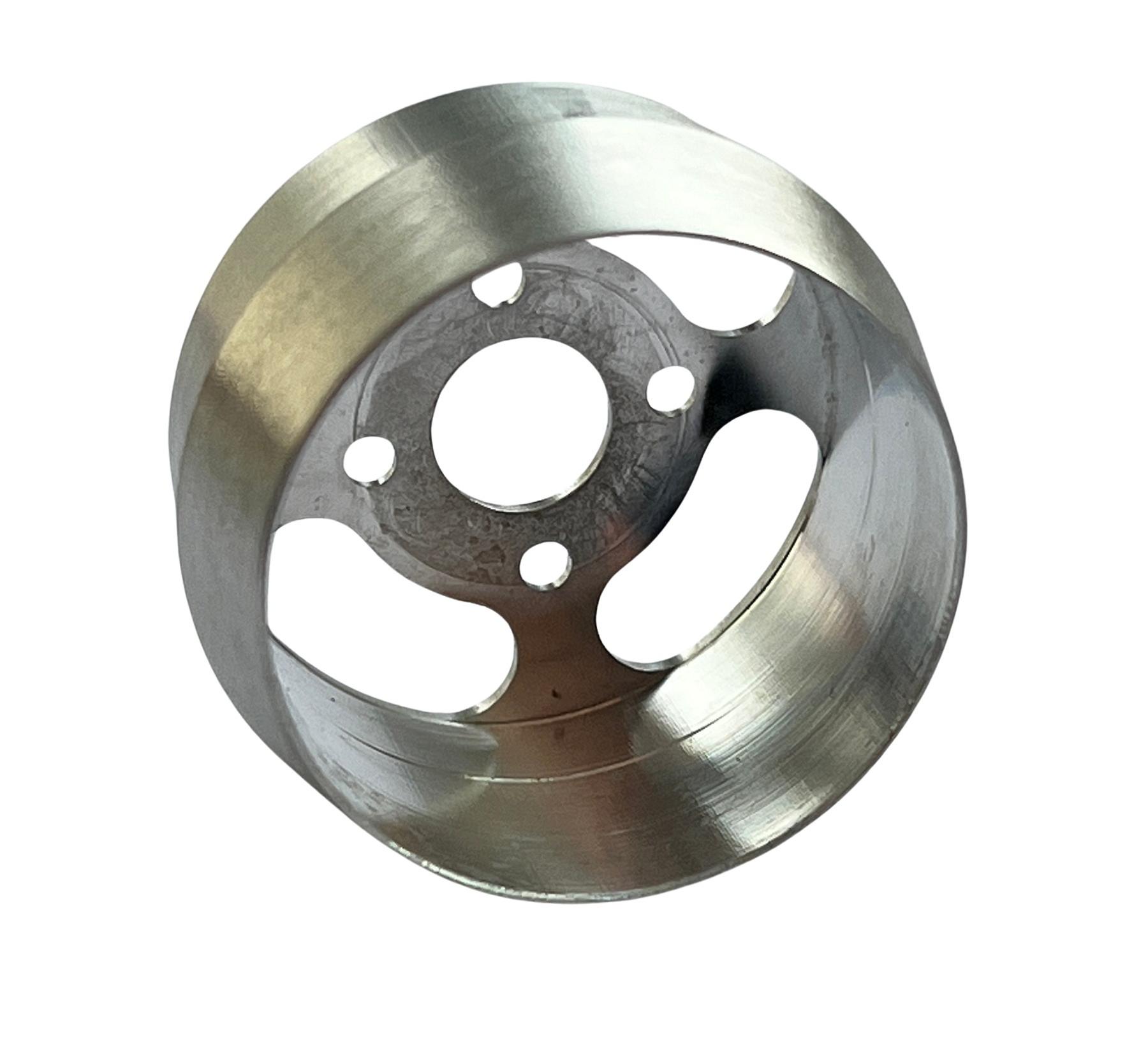

This CNC aluminium motor mount simplifies mounting 1806 sized motors to RES and similar 1.5 m - 2 m electric gliders. It will work for some electric DLGs / F5K models but wil be a bit large for most.
The mount is recessed to allow the outrunner motor to be fitted within the firewall, and the front aligns with VM25 mm and CN 25 mm spinners.

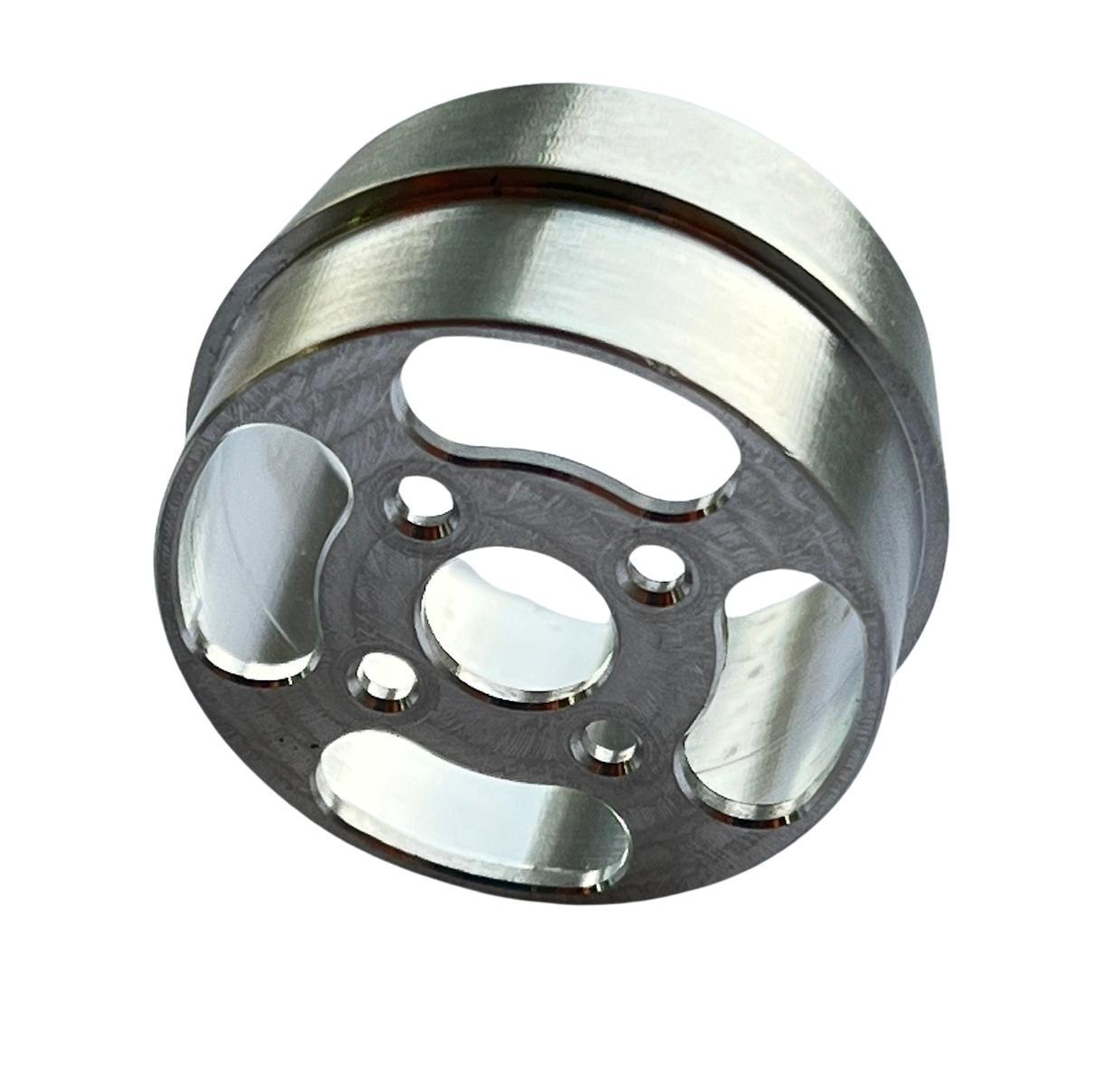

The mount has 4 M2 holes on a 12 mm diameter circle.
1806 CNC Motor Mount |
Fuselage outside diameter |
29 mm |
Fuselage internal diameter |
27 mm |
Mount Internal diameter |
25 mm |
Depth from front to front of rear face |
15 mm |
Predrilled holes |
4 holes on a 12 mm circle |
Motor mounting hole diameter |
2 mm |
Weight |
4.3 g |
These mounts are:
- Easy to install.
- Very strong.
- Superb machining.
- They look great!
To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend
this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.
