Aerobtec Altis Terminal

Product Code: ALTIS-TERMINAL
Description

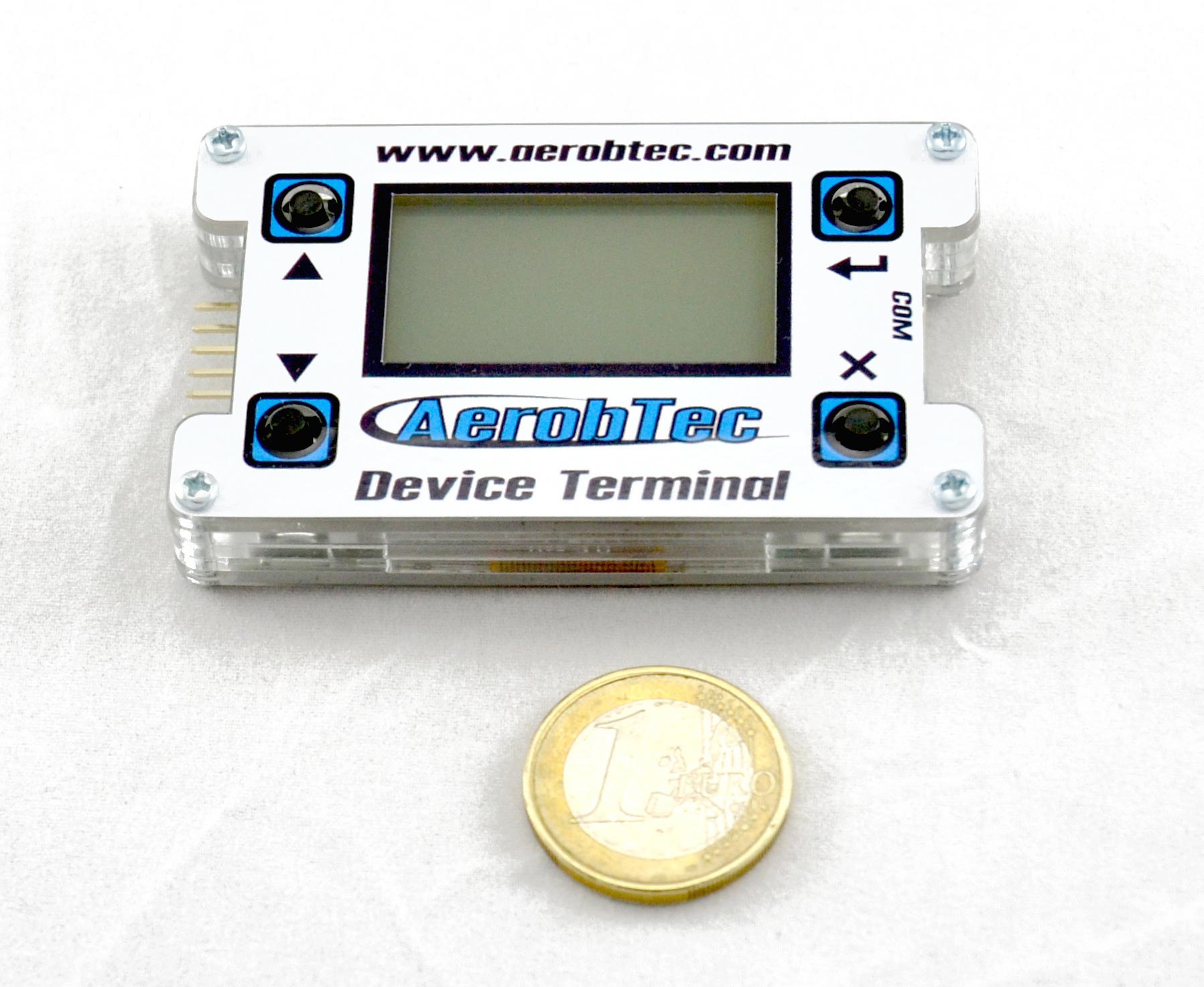

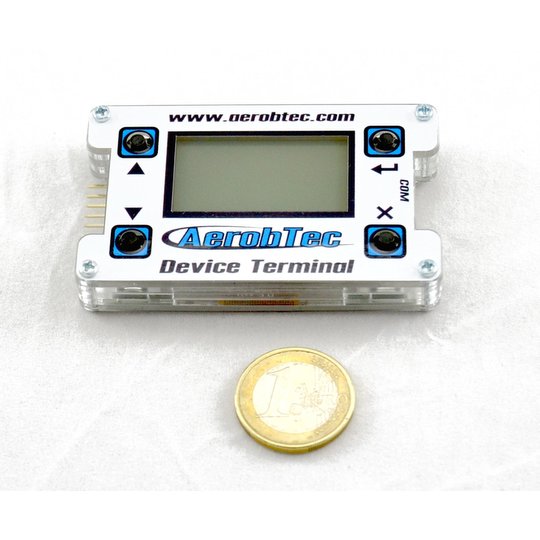

Aerobtec Altis Terminal

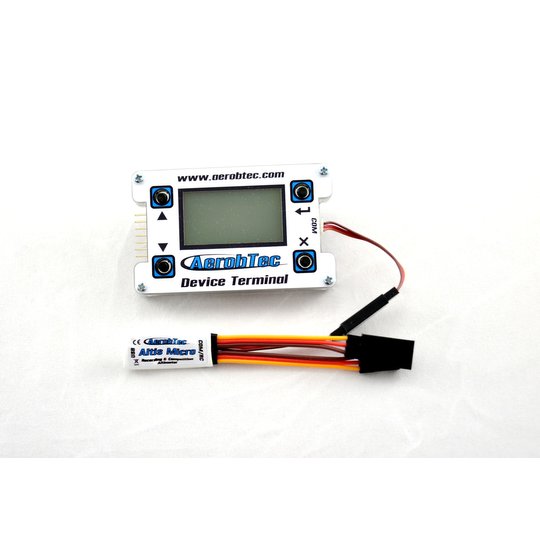

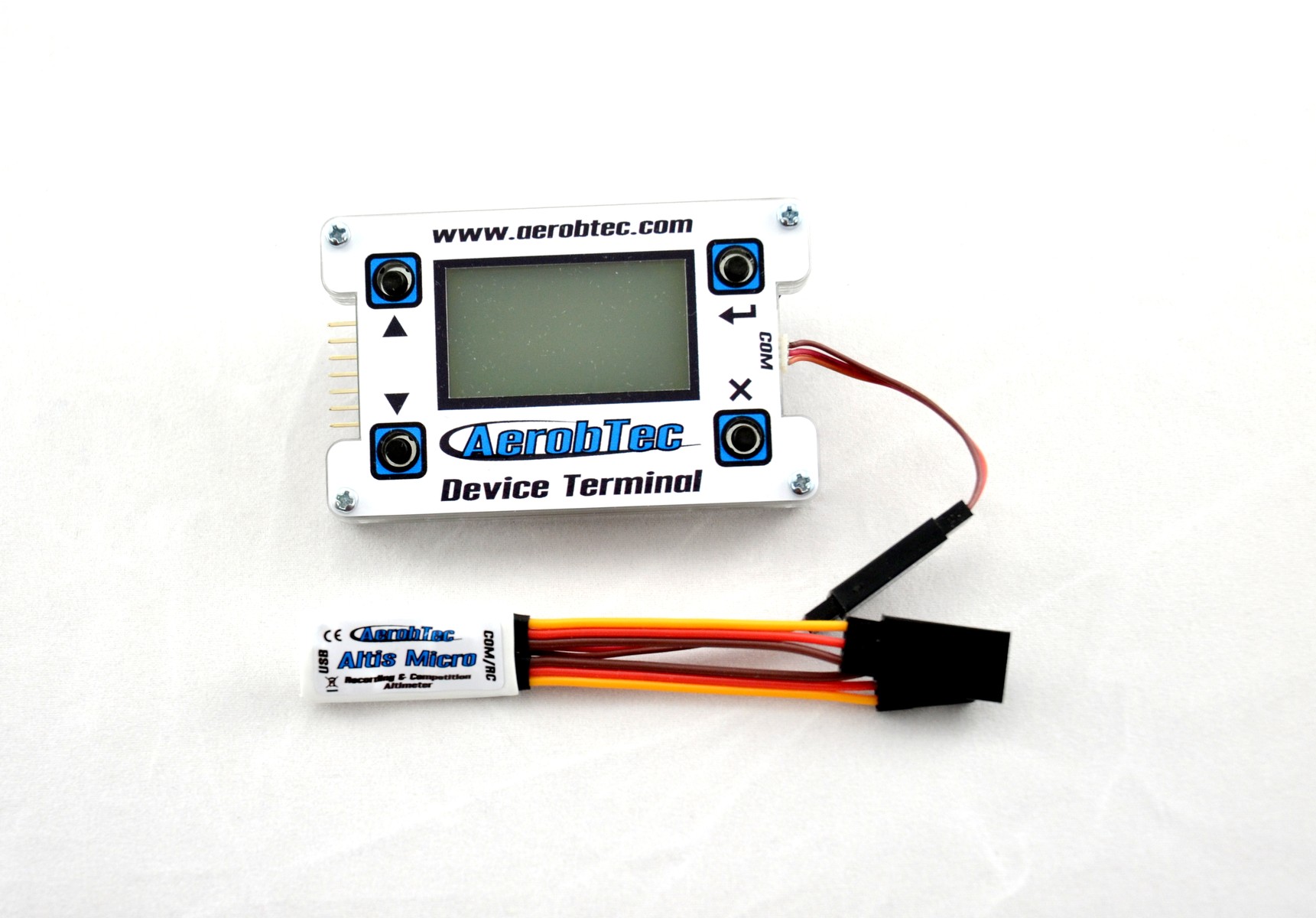

The Aerobtec Altis Device Terminal is can be used as a display for the new Altis Micro.
It also works as a battery tester, a PWM display and tester (to check out receivers) and a servo tester.
It both generates and measures PWM servo pulse trains.

  • Measure Li-Poly Batteries
  • Measure voltages
  • Display PWM input from RC receiver
  • Display RPM with additional RPM probe
  • Servo tester with advanced functionalities


Aerobtec Altis Terminal Specifications
Dimensions 71 x 45 x 10 mm
Weight 38g
Operating temperature 0ºC - 50ºC
Power supply range 4.0V - 8.4V, from USB adapter or from aircraft fuselage (via Altis Micro), from measured Li-poly battery or from RC In connector
Input voltage range Cell 1 : 8.4V, Cell 2 - Cell 6 : 0V - 30V
Servo tester Output 50Hz / 1.5ms or 550Hz / 0.75ms
Graphical display 128x64 pixels
Firmware Upgradeable via PC
Optional accessories Aerobtec Altis Micro

Aerobtec Altis Terminal

 (add a review)
Price: $48.64
2 in stock
Quantity:   Add to basket
