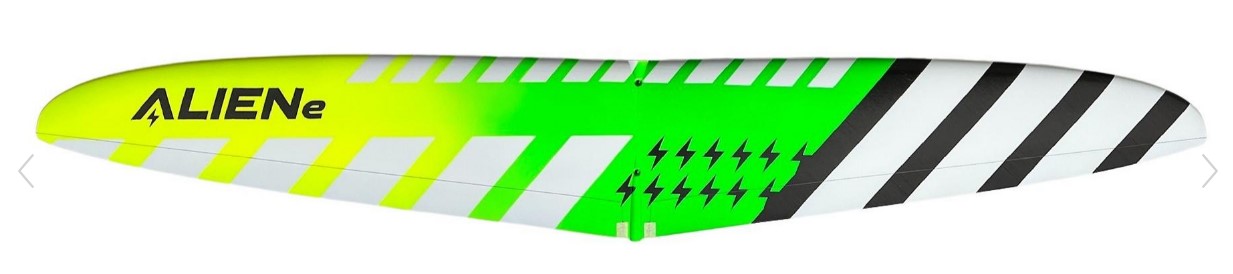

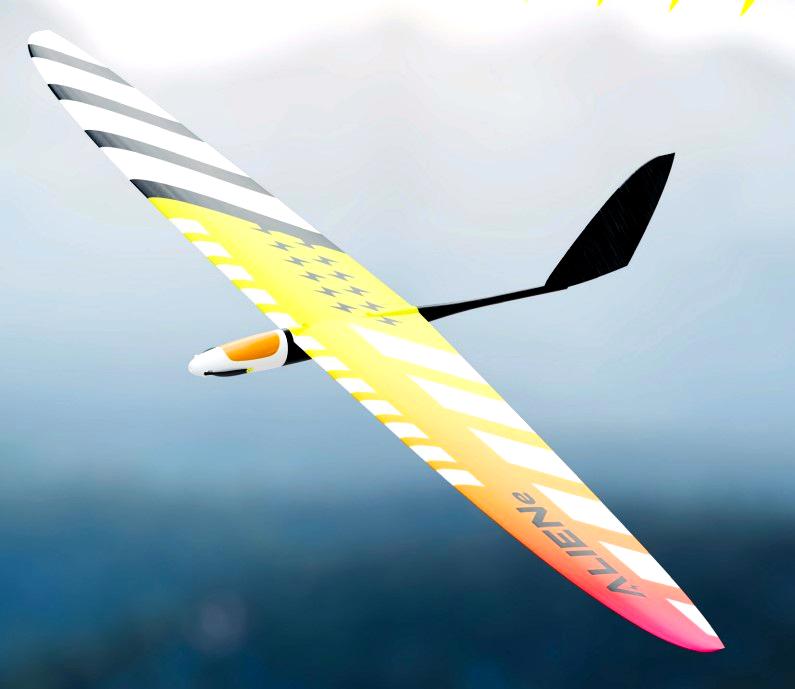

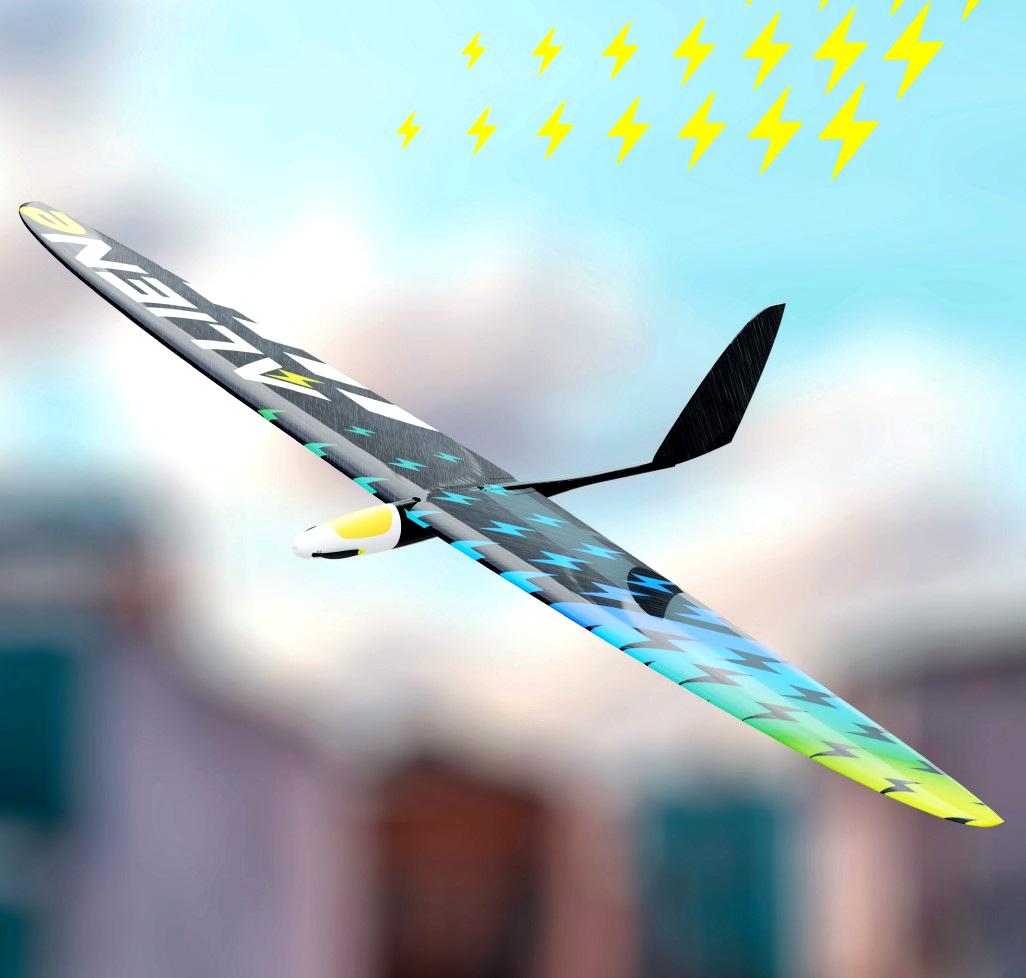

Alien Electric 1.2m

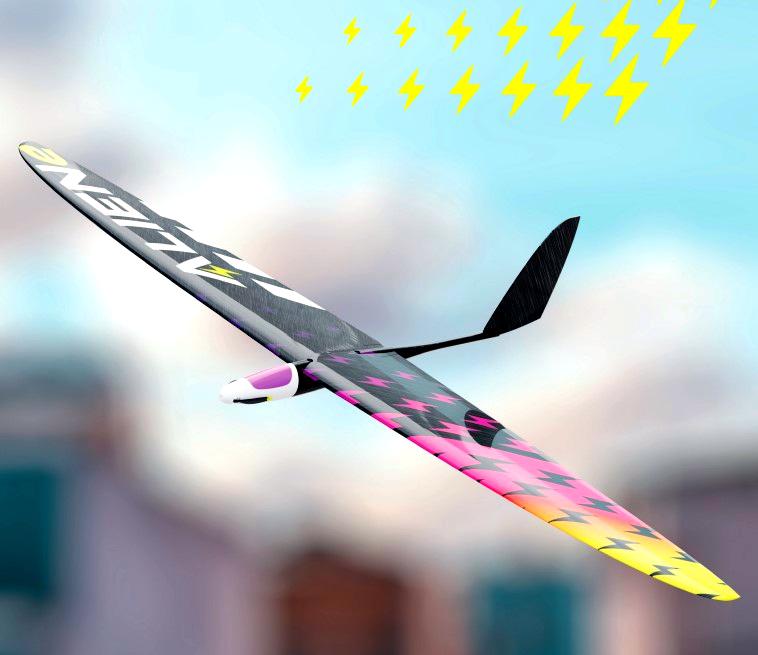

The Alien Electric is an exciting flying wing design from Anton Ovcharenko of OA Composites, with aerodynamic design by Christophe Bourdon. The Alien stems from Anton and Christophe's wish to create model that is:

• FUN to fly, with a great speed range, fun aerobatic manoeuvrability, and yet able to thermal soar too.
• Can be flown from the slope, or discus launched from the flat.
• Quick to build and assemble at the slope.
• Easy to transport.
• Tough enough to cope with rough slopes and high winds.
• Can be ballasted for even more high speed fun.
• Can be used as a DS trainer to learn to dynamic soar.

The Alien is very pre-fabricated and should only take a few hours to complete. The accessories include all control linkages and some very nice 3D printed servo mounts for the elevon servos. Also included is a 3D printed ballast tube to take a ballast slug approx 19 mm diameter by up to approx 50 mm length.

Please download the Alien Assembly Guide (20 Mb) for important construction information.

BELOW INFO IS FOR THE SLOPE SOARER VERSION. TO BE UPDATED

Alien Specifications
Wing span	1.20 m	47 in
Wing area	17.1 dm2	265 sq in
Length	62 cm	24 in
Flying weight from	250 g	8.8 oz
Wing loading	15 g/dm2	4.8 oz/sq ft
Aspect ratio	8.4
Wing airfoil	6% proprietary
Dihedral	2.5º
Centre of Gravity	29.5-30.5 mm from wing leading edge
Controls	Elevons, rudder

Recommended R/C-nano gear only
Rudder servo	KST X06, MKS HV70H, CHA DS06
Aileron servos	KST X08H, MKS HV70, MKS HS75, CHA DS06
Receiver	Small 4 chanel rx to suit your tx
Battery (60x18x8mm)	1S 380-660mAh LiPo, Ytong 1S 380 mAh, FullyMax LiPo 1S 660mAh, Tatu 1S 600 mAh

Alien Typical Weights
Wing	109 g	3.8 oz
Fuselage	27 g	1.0 oz
Fin	5 g	0.2 oz
Nosecone	6 g	0.2 oz
Accessories	15 g	0.5 oz
Total structure	162 g	5.7 oz
Receiver	6 g	0.2 oz
Elevon servos	16 g	0.6 oz
Rudder servo	6 g	0.2 oz
Battery	20 g	0.7 oz
Nose weight	40 g	1.4 oz
Flying weight	250 g	8.8 oz
