1.34mm ID Etched PTFE (16 AWG Bondable PTFE) Pushrod Outer Tube

Product Code: PTFE-TUBE-16L

(6 reviews)

Price: $2.58

Description

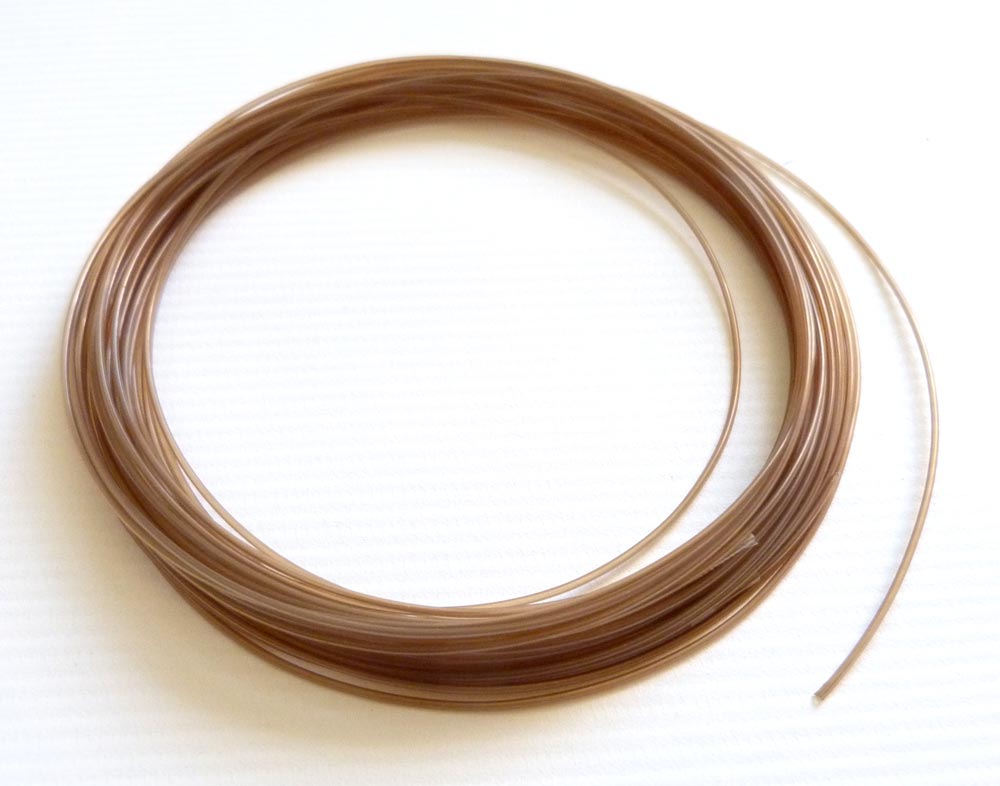

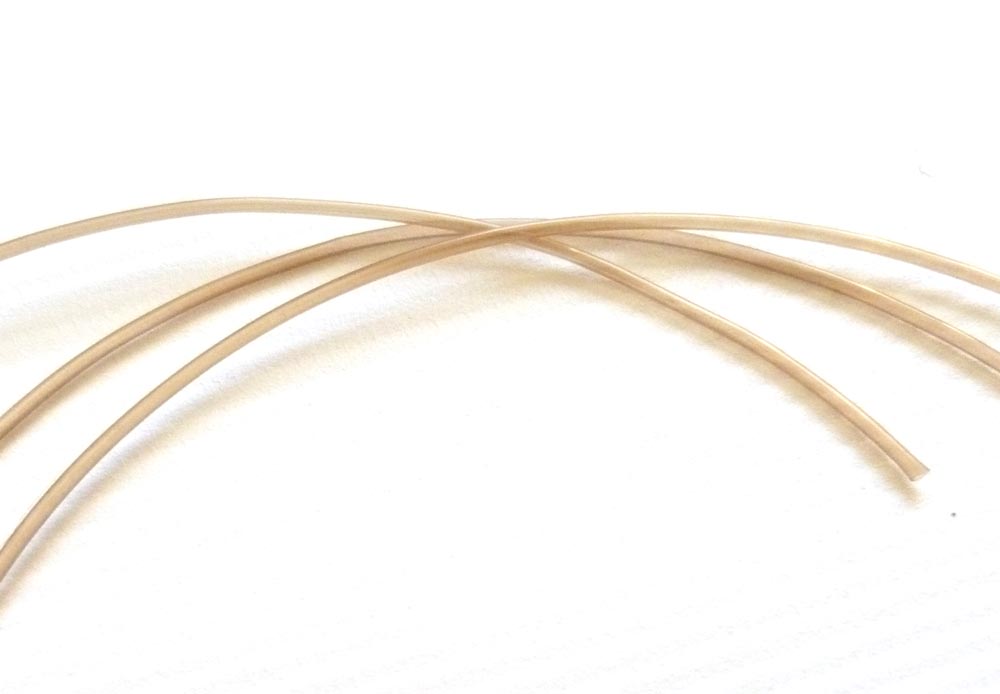

Low friction 1.34 mm ID PTFE tube suitable for pushrod outers on discus launched glider and other small models. Also suitable for a large range of engineering and industrial uses.

This tubing is specially etched on the outside, making it easily bondable using many adhesives, thin CA being probably the best. Provides the lightest, easiest, most friction-free pushrod installations possible.

Can be stretched to 2 times the original length to reduce the weight per meter, and tune the inside diameter to be a perfect fit for the inner pushrod. Sold by the meter. Enter a quantity of 3 for a 3m roll.

16L Etched PTFE Tube Specification
Inside diameter	1.34 mm	0.053 in
Wall thickness	0.16 mm	0.006 in
Outside diameter	1.7 mm	0.067 in
Suggested inner	1mm Carbon Rod	18 SWG or thinner Piano or SS wire
US size	16 AWG L type (Lightweight)
Weight per m	1.7 g per meter TBA

Maximum 30m per order please. For more please consider purchasing a complete roll.

Reviews 6

17/06/2024 15:49

Review by: Gavin

Free flight materials

I bought this etched PTFE tube and some small rectangular carbon sections in 1.5m lengths for free flight use. It all arrived safely in it's "pizza box" a couple of days later. It's top quality and very economical in the longer lengths and with combined postage.

07/03/2023 15:32

Review by: Anonymous

Super fast service!

The pushrod tube was great, as advertised. I have made several orders, and they all arrived next day. Thanks, excellent products and service!

27/07/2019 21:14

Review by: Nick

Excellent thanks.

Excellent, if not a little magical. Easy to use and magically stretches.

30/05/2019 00:54

Review by: KP

Stretchable Pushrod Tubing

A1 service and shipping, goods arrived well packaged in a sturdy cardboard container. High quality product, specs as described. Recommendable.

14/08/2018 13:31

Review by: Oleg Golovidov

Great tubing, works well as the sheath for pushrods, attached with thin CA and magnets inside long fuselages (do not forget to purchase a 0.8mm steel wire also to use for magnets during gluing). Used with the 1.0mm carbon rods, makes awesome light pushrods for light 4m F5J planes.
Neil's service is second to none. Shipped on the same day (Friday, late afternoon!) and Royal Mail dispatched it to the USA within a couple days. Amazing that you can get a shipment from UK to the USA for not a lot more money and time than within the USA.

20/09/2016 11:30

Review by: Ian

Great service again from Hyper flight.
High quality products supplied, extremely satisfied.
