Powerline Turbo 10XX & Reisenauer 5:1 Motor Mount - 32mm

Product Code: PNC-COMBO-32

(6 reviews)

Price: $29.98 save 10%

Description

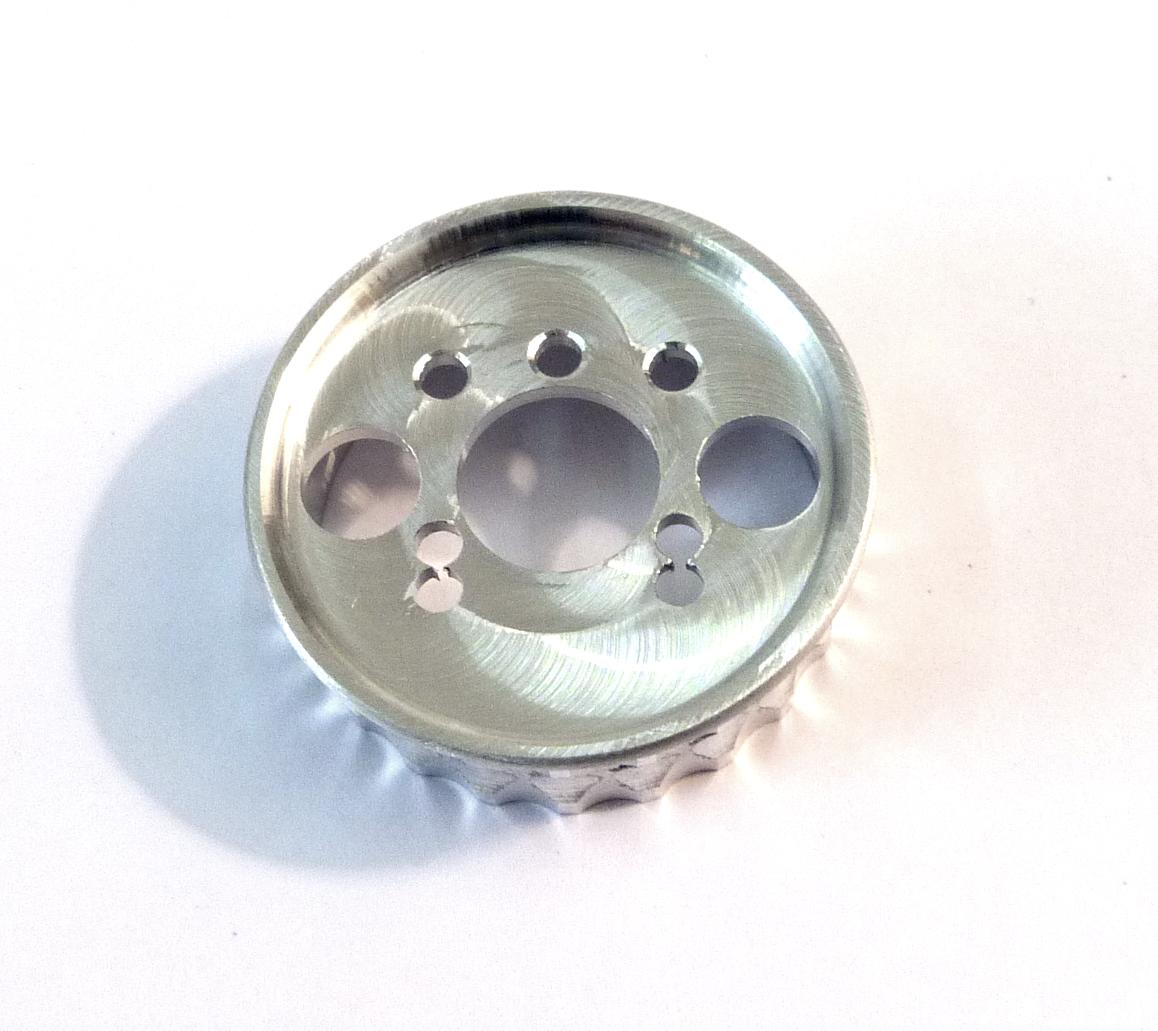

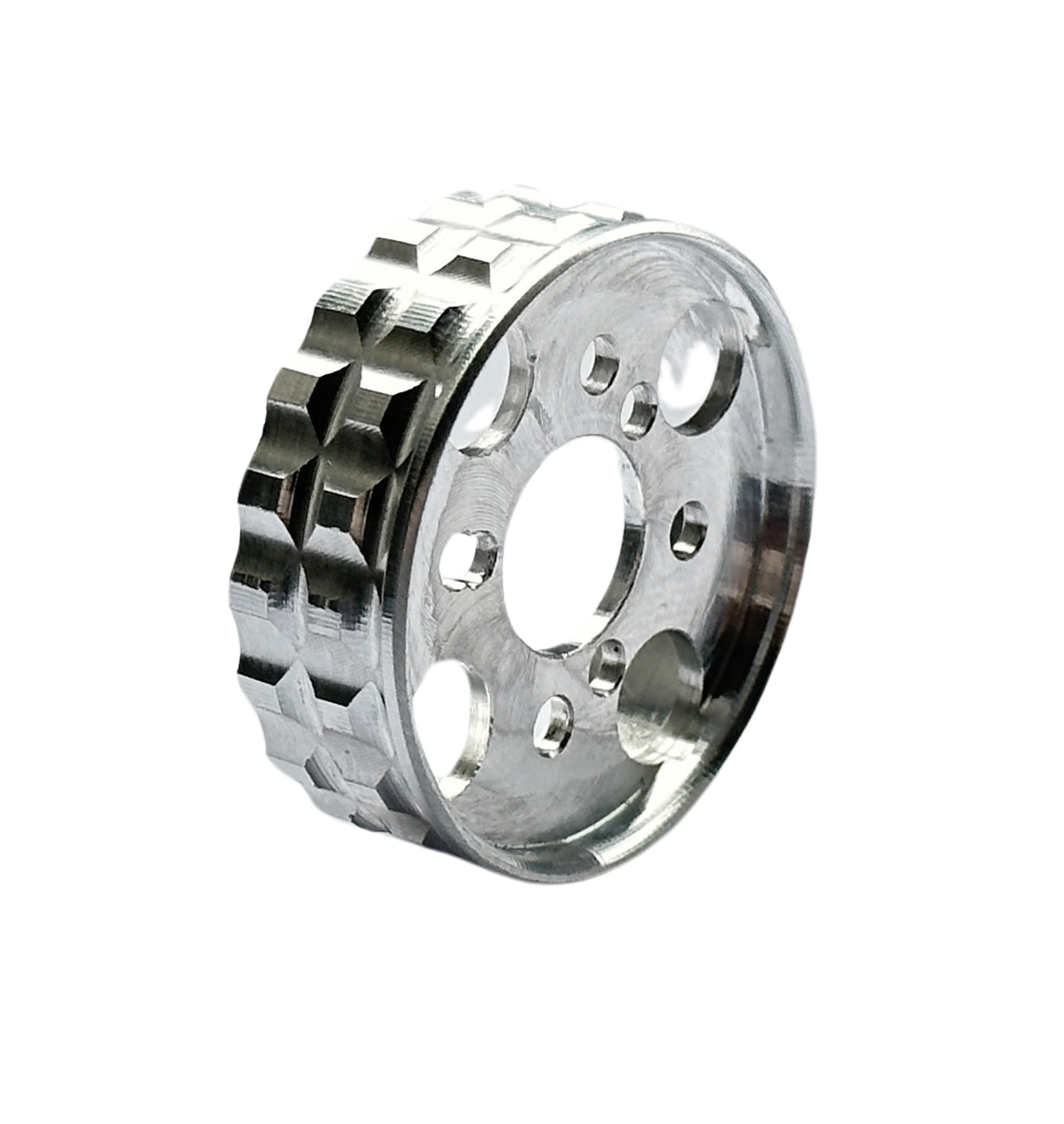

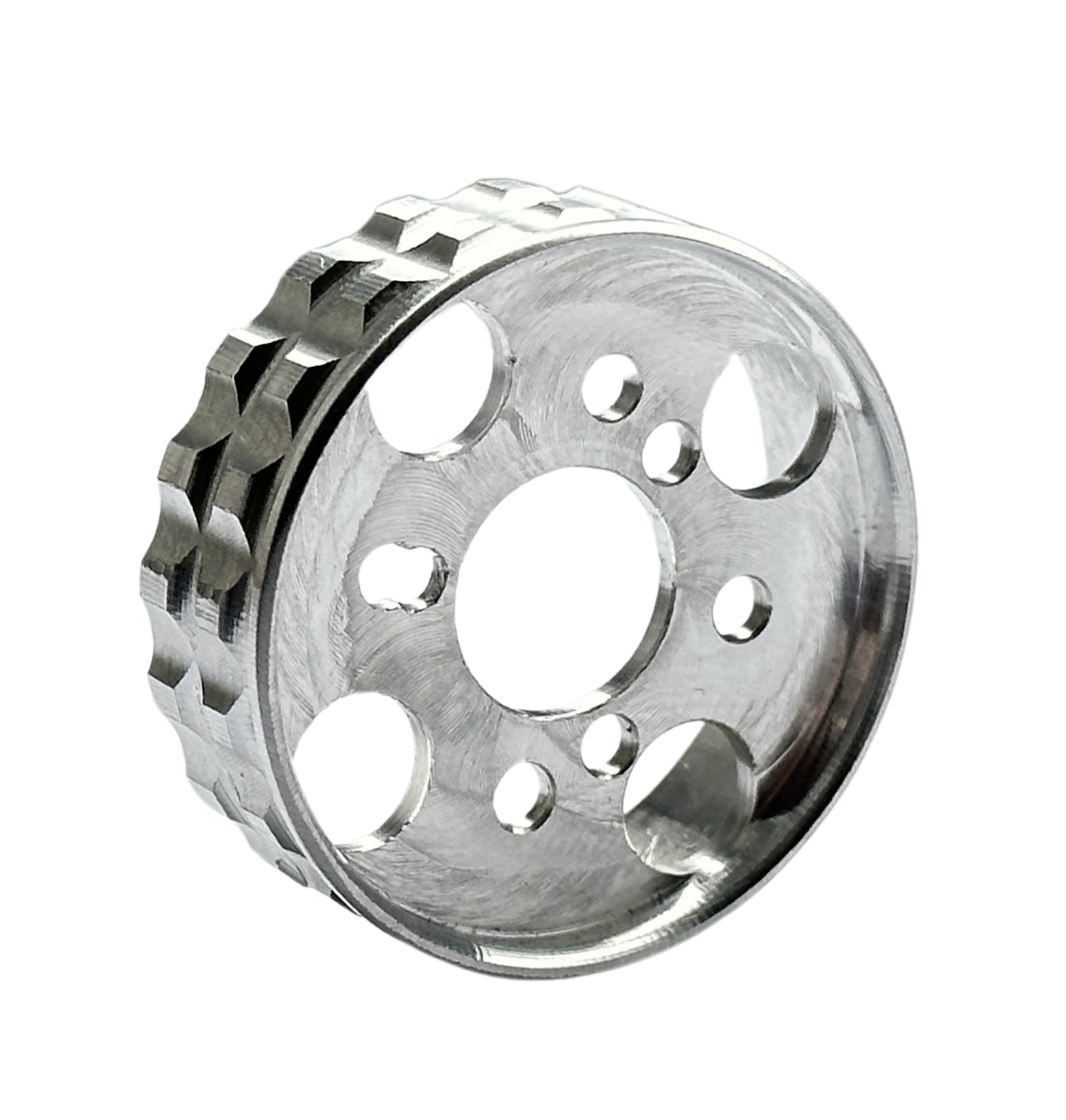

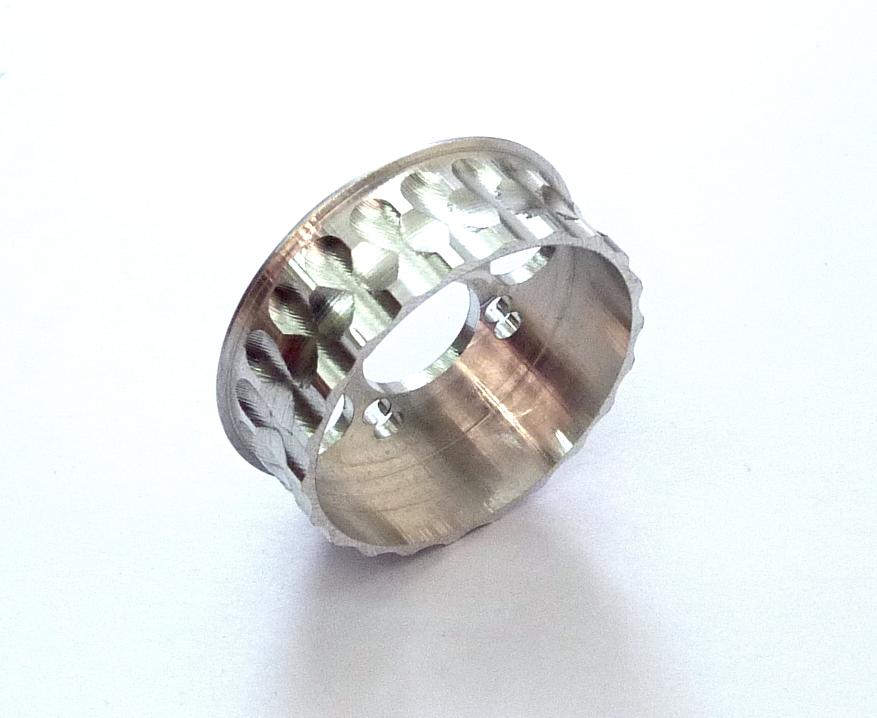

The PNC Innovations 32 mm Powerline 1010, 1015, 1020, 1025 & Reisenauer 5:1 Motor Mount is a beautifully CNC machined motor mount for securely attaching Powerline 1010, Powerline 1015, Powerline 1025 old and new Turbo motors and Reisenauer 5:1 gearbox motors and to the front of 32 mm diameter fuselages, like the Supra Pro, the Maxa, and most top performing F5J fuselages. This firewall also fits some Maxon 4.4:1 gearboxes with 3 mounting holes on a 14 mm diameter.

Easy to install.
Very strong.
Superb machining.
They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.

Powerline Turbo 10XX & Reisenauer 5:1 Motor Mount
Fuselage outside diameter	32 mm
Fuselage internal diameter	30 mm
Predrilled Powerline holes	4 holes on a 17.5 mm circle
Predrilled Reisenauer holes	3 holes on a 14 mm circle
Motor mounting hole diameter	2.5 mm
Weight	3.5g

Reviews 6

09/02/2021 11:44

Review by: Steinyyyy

Good product

A must for the glider :-)
Good service from Hyperflight :-)

05/02/2021 11:08

Comment by: Oliver

Size is o/d 32mm exactly.

For Shinto El J. I have one with a nose to cut off. To use with 1025 powerline motor. And perfect fit for 32mm hyperspinner.

07/01/2020 11:02

Review by: Peter Vanlanduyt

Perfect fit for poly tec 480-32xs

It fits perfectly in the nose of my simitri, powered by a poly-tec 480-32xs with 3 mounting holes.

19/02/2017 19:01

Review by: Henri pedersen

Perfect in my pike perfect spot on:-)

25/10/2016 16:41

Review by: Lou Fox

CNC milled powerline motor mount

The CNC aluminum motor mount for the powerline motor is the way to go to mount your motor. It features open space for cooling the motor as well as precise centering of the motor.
With past motor mounts that you have to glue in, a hard landing can dislodge them. With this motor mount the probability of that happening is nil. You can land a little harder in ALES and F5J to get those better landing scores.

12/06/2016 15:12

Review by: SMSoerensen

perfect machinery.
