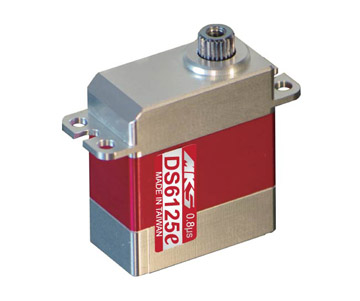

MKS DS6125E Servo - 3.3Kg.cm 0.05s 21.0g 12mm

Product Code: MKS-DS6125E
 (2 reviews)

Price: $88.29

1 in stock
Add to basket to see shipping cost
Quantity

Description

The MKS DS6125E servo is a high speed, high precision servo especially optimsed for glider V tails, normal tail surfaces, and 3D helicopters. Its robust geartrain, strong alloy case and excellent feedback system, interfaced to brilliant firmware driving the FET output staged amplifier combine to make this the tail servo of choice. Idea for competition modellers, ensuring the very best elevator control enabling very accurate high speed flight.

At 12mm thick this superb servo can easily fit in its intended models, and with its incredible 0.053 second speed and useful 3.3kg.cm torque the DS6125e is appropriate for F3F, F3B, F3J, F5J and other high speed gliders.

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.



MKS DS6125E Servo Specifications

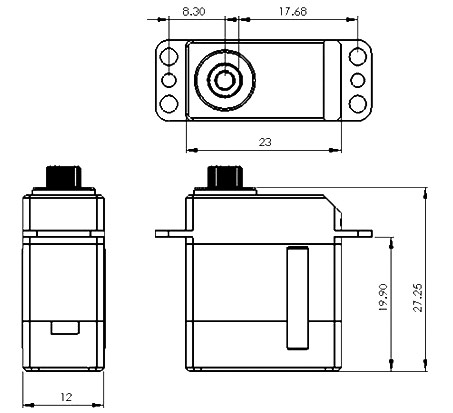

Body dimensions 23.0 mm wide x 12.0 mm thick x 27.3 mm high 0.91" wide x 0.47" thick x 1.07" high
Max dimensions 32.0 mm wide x 12.0 mm thick x 32.5 mm high 1.26" wide x 0.47" thick x 1.28" high
Stall torque (4.8V) 2.58 Kg.cm 36 oz.in
Stall torque (5V) 2.7 Kg.cm 37 oz.in
Stall torque (6V) 3.25 Kg.cm 45 oz.in
Weight 21 g 0.74 oz
Lead length 15 cm 5.9 in
Operating speed (4.8V) 0.066 sec/60°
Operating speed (5V) 0.063 sec/60°
Operating speed (6V) 0.053 sec/60°
Operating voltage 4.8V to 6V
Operating temperature -10 to 50 °C
Bearings 2 Ball bearings
Gear material Metal Alloy Gear
Case material CNC machined 6061 aluminium
Motor type High-end Japanese coreless Motor
Working frequency 333 Hz
Dead band/resolution 0.8 µs
Pulse width for ± 60º µs
Digital Yes
Programmable No
Position feedback Direct drive potentiometer
Supplied accessories 2 substantial plastic output arms, 1 output disc, 2 output arm retaining screws, 6 mounting screws
Optional accessories MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms

Reviews 2


 Review by:

MKS DS6125e

Servos arrive in good condition without the hassle of custom. This is the replacement servo as the previous one keep oscilating when the power was turn on after one year week end flight in Pike Precision. Hope this one will last longer.


 Review by:

They are beautiful strong and fit them into F3F ELDORADO from Jaro Muller.
