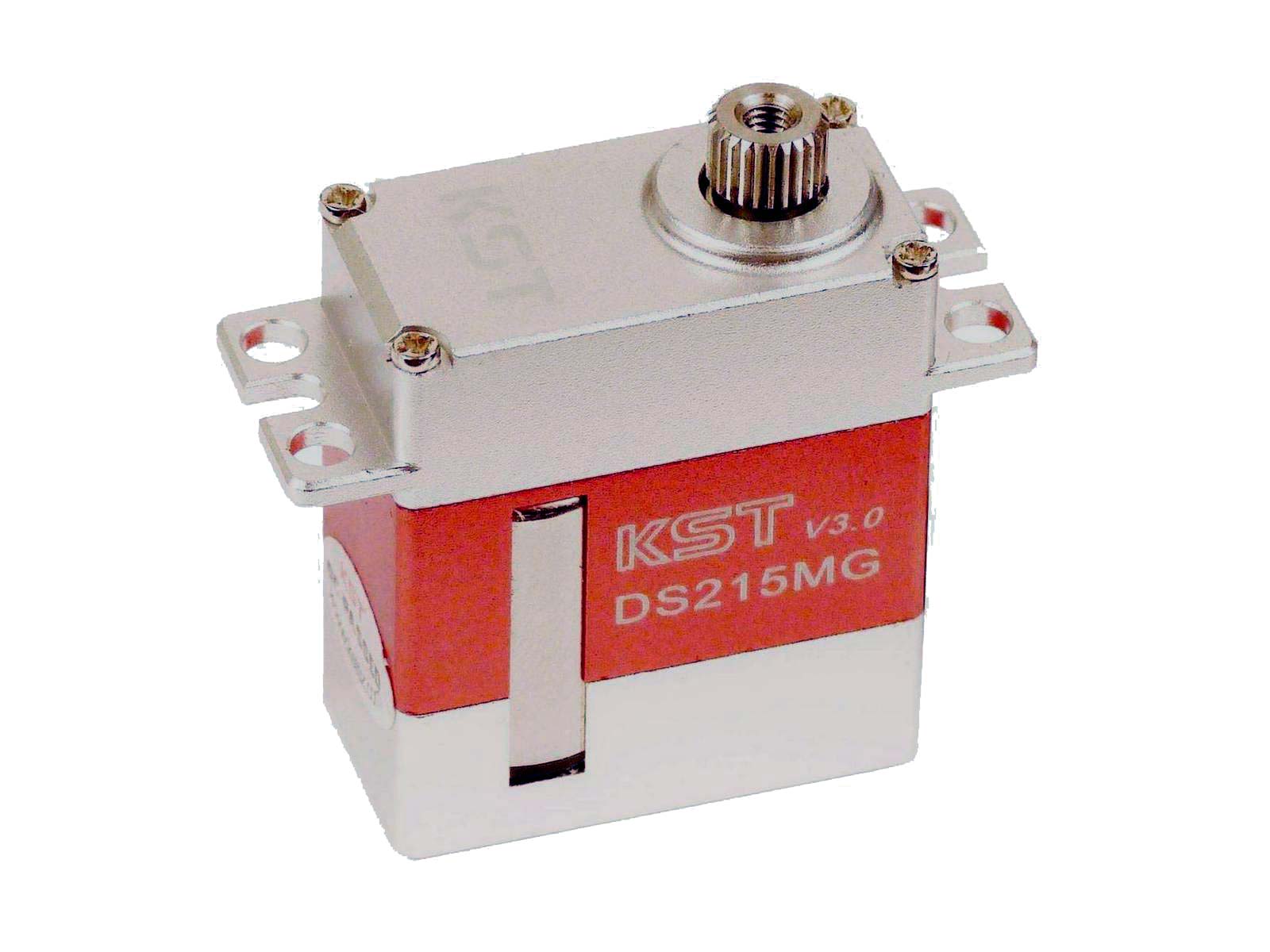

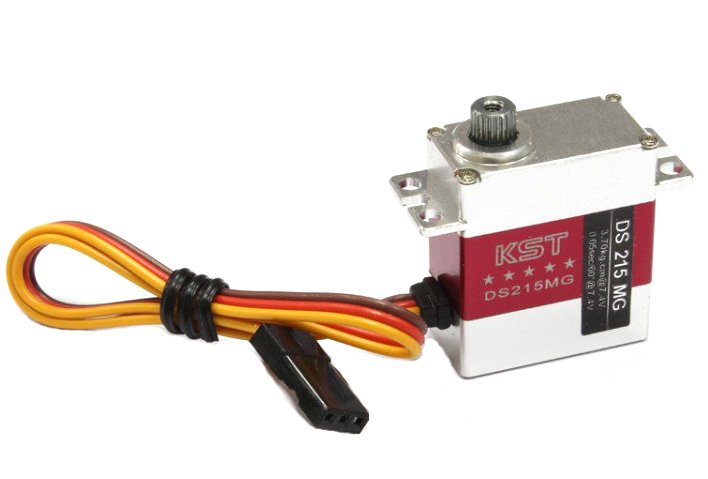

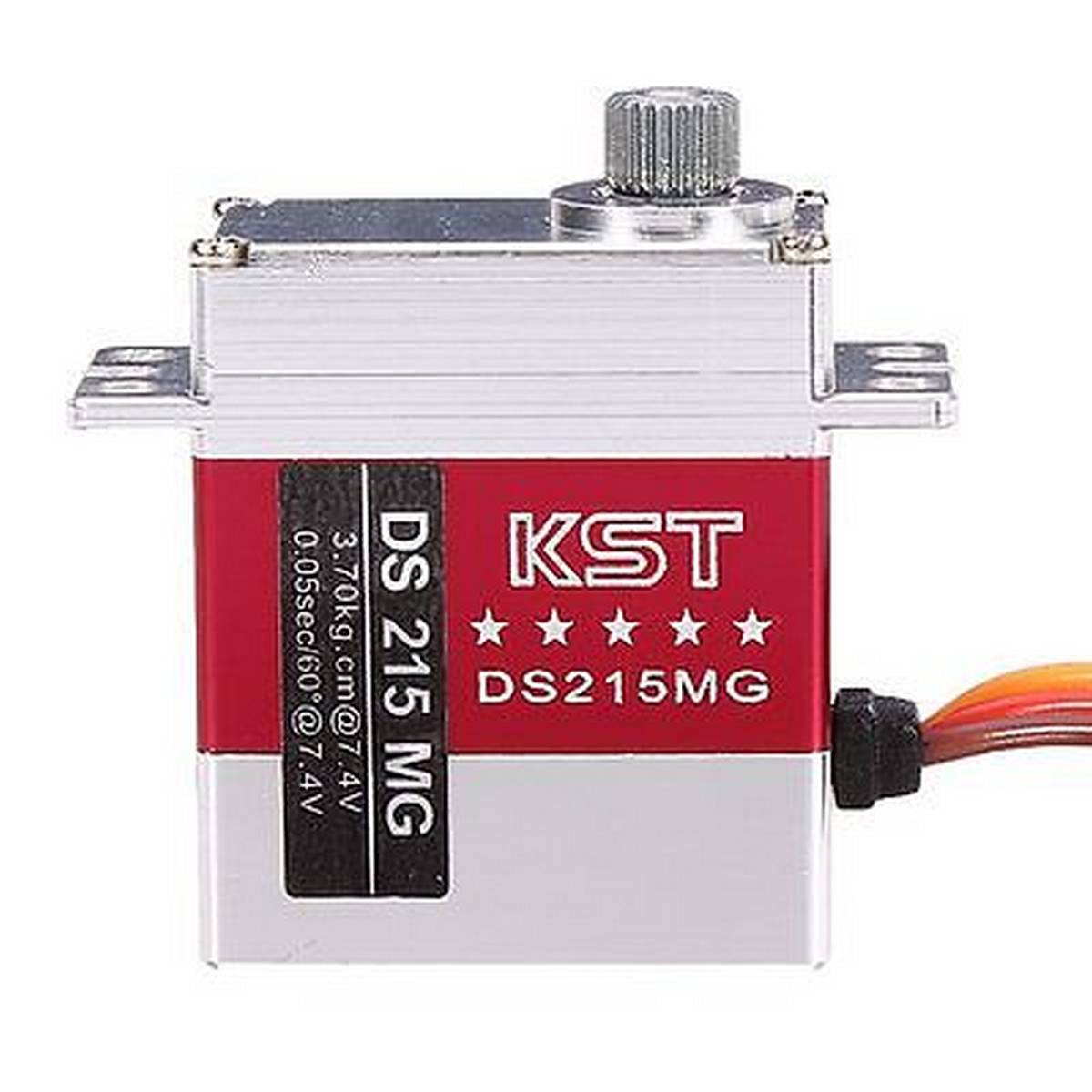

KST DS215MG Servo - 3.7Kg.cm 0.05s 20.0g 12mm

Product Code: KST-DS215MG

(8 reviews)

Price: $39.24

Description

The KST DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque, and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and market leading speed.

Weighing only 19.5 g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS215MG HV is designed for use with a 2S LiFe or 2S LiPo battery. Do not use on a 5V supply. It is the high voltage replacement of the acclaimed KST DS115MG servo.

KST DS215MG Servo Specifications
Body dimensions	23.0 mm wide x 12.0 mm thick x 27.5 mm high	0.91" wide x 0.47" thick x 1.08" high
Max dimensions	32.0 mm wide x 12.0 mm thick x 32.0 mm high	1.26" wide x 0.47" thick x 1.26" high
Stall torque (6V)	3.1 Kg.cm	43 oz.in
Stall torque (7.4V)	3.7 Kg.cm	51 oz.in
Stall torque (8.4V)	3.7 Kg.cm	51 oz.in
Weight	20 g	0.71 oz
Lead length	20 cm	7.9 in
Operating speed (6V)	0.06 sec/60°
Operating speed (7.4V)	0.05 sec/60°
Operating speed (8.4V)	0.05 sec/60°
Operating voltage	6V to 8.4V
Operating temperature	-10 to 60 °C
Bearings	2 Ball bearings
Gear material	Aluminium alloy / copper-bronze alloy
Case material	CNC machined 6061 aluminium
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	µs
Pulse width for ± 60º	800-2200 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	3 plastic output arms, 1 arm retaining screw, 2 mounting screws
Optional accessories	KST Plastic Servo Arm Set

Note the servo packaging gives a lower voltage range of 6V to 7.4V. This is a printing error and the manufacturer has confirmed the servos are fine operating from unregulated 2S LiPo battery.
