KST 25T-6C Metal Servo Output Arm - Also fits Blue Bird Servos

Product Code: KST-25T-6C

(2 reviews)

Price: $5.97

Description

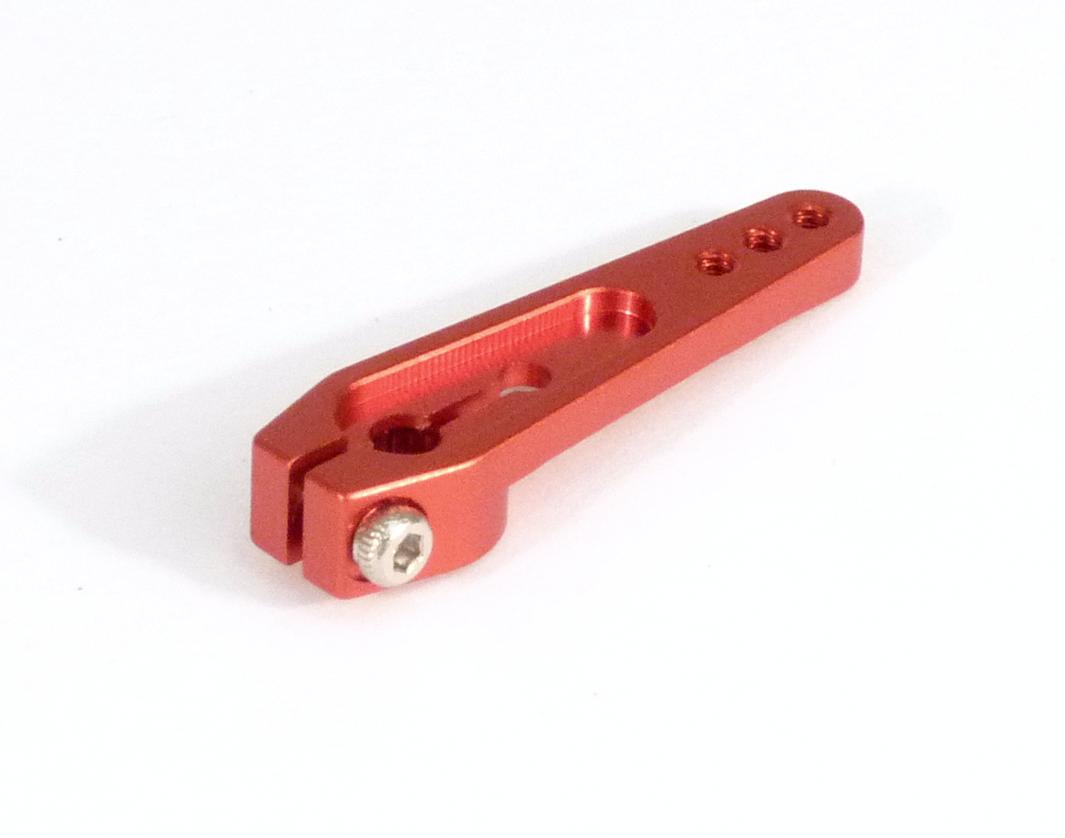

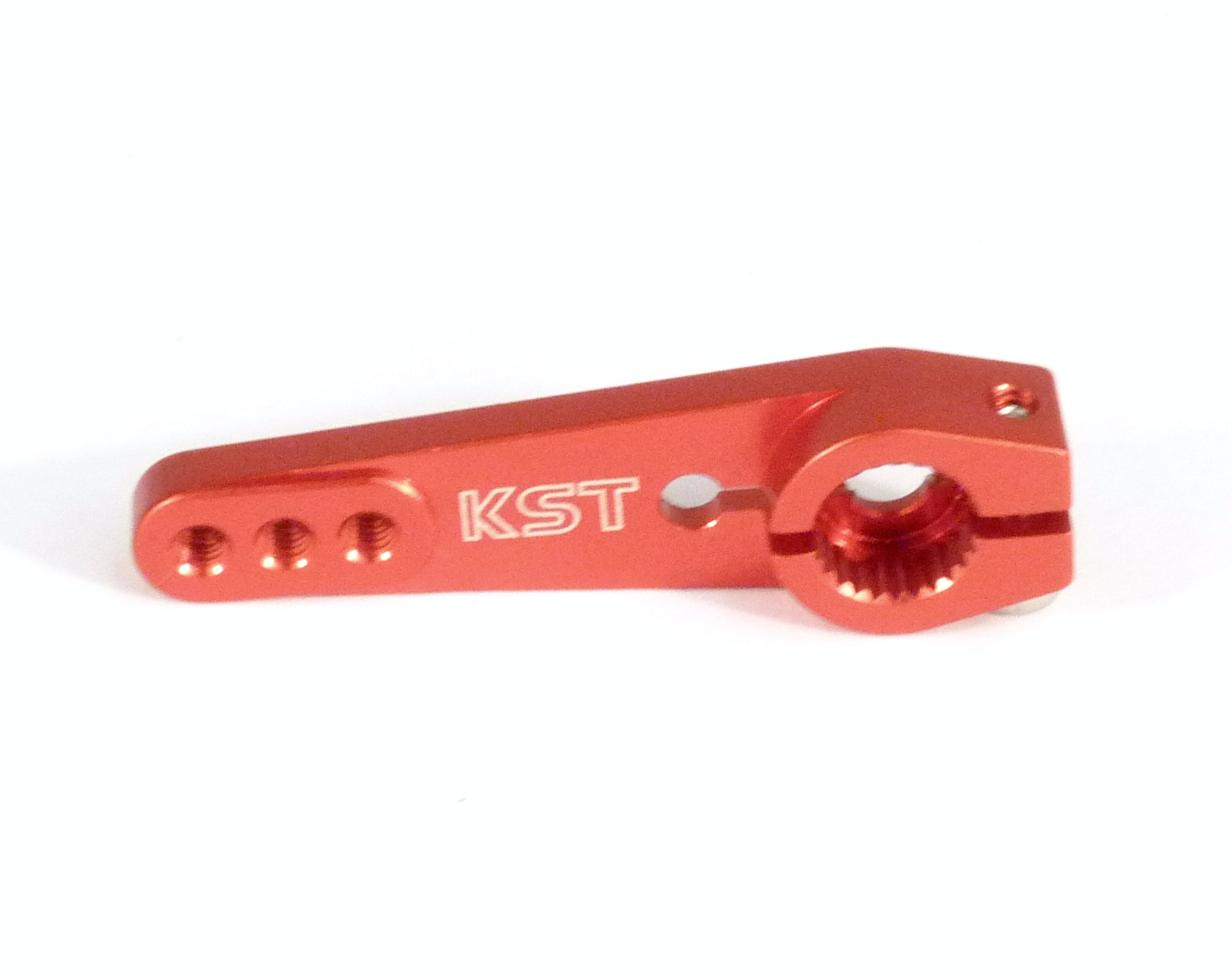

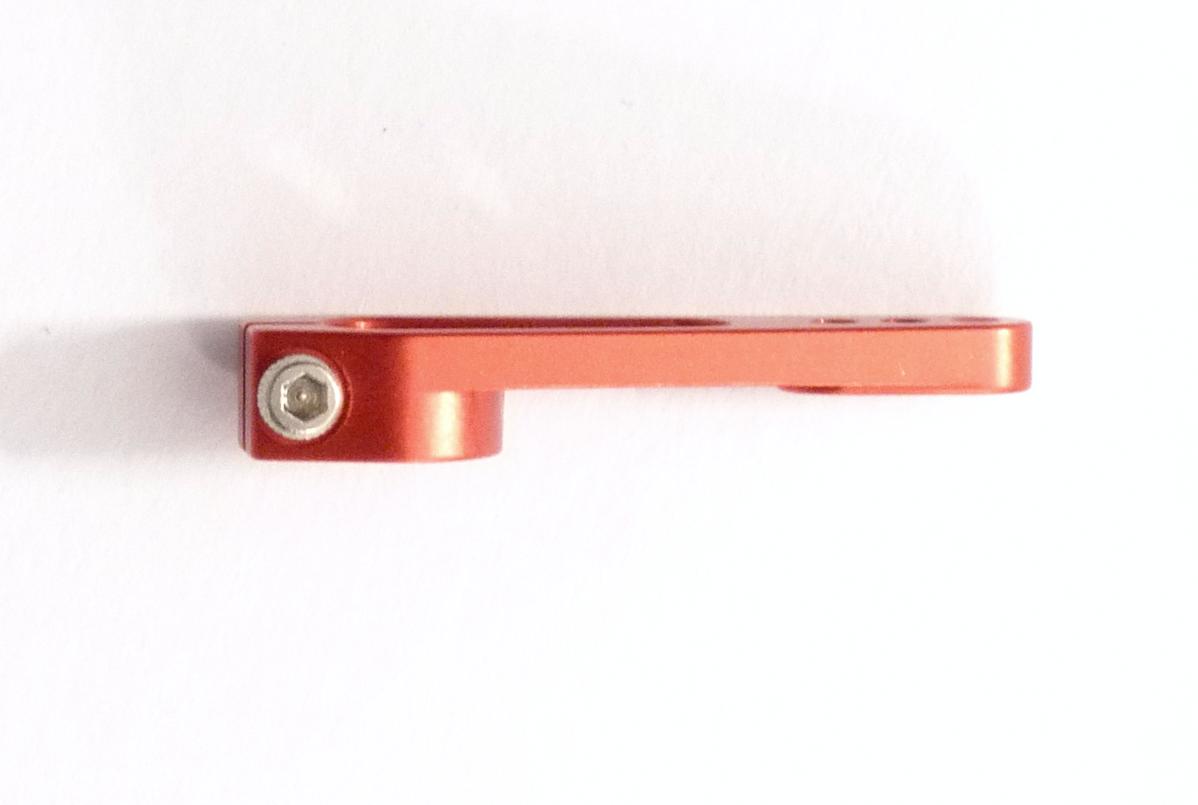

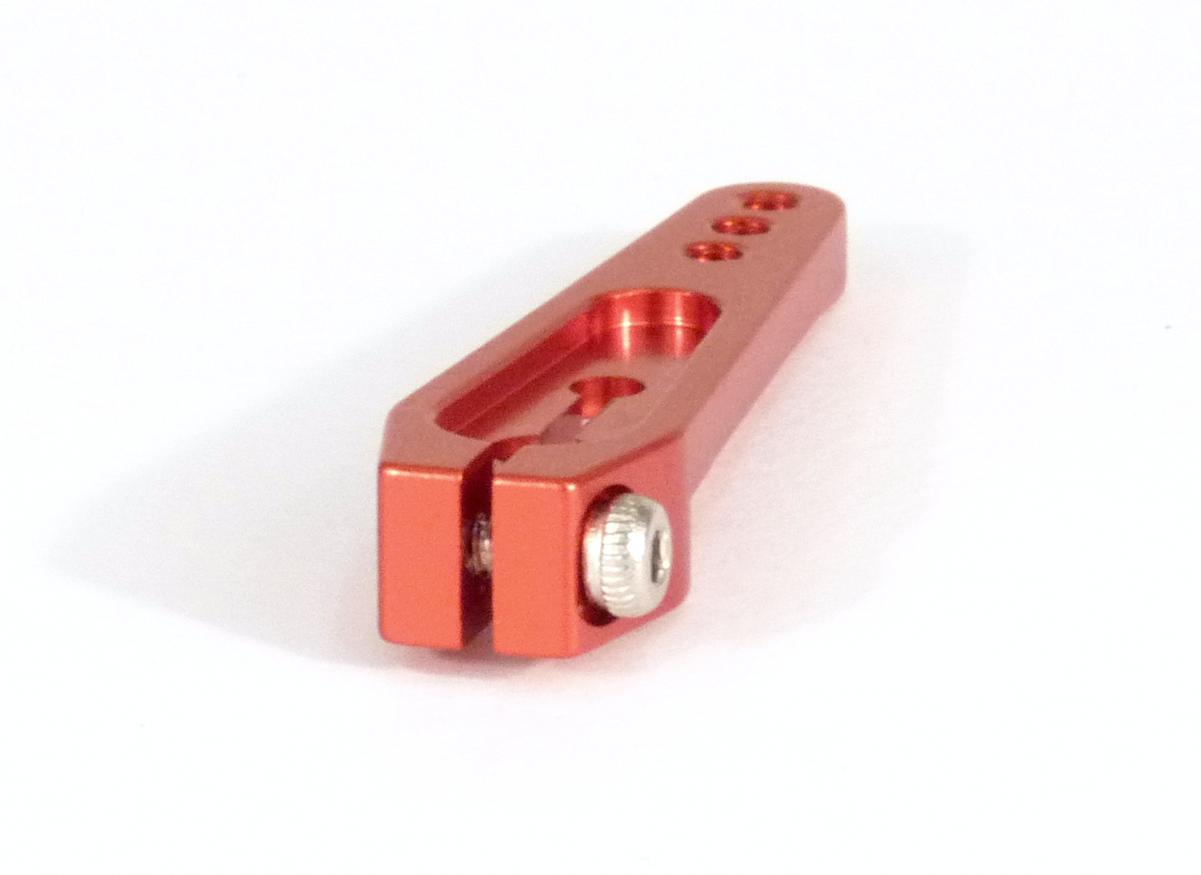

One strong aluminium servo output arm (horn) that fits KST servos with a 6 mm output spline. This is used on KST servos 15 mm thick and larger. Does not fit the KST X08 or X10 servos.

Contains one substantial metal output arm only. The distance from the servo output shaft axis to the holes ranges from 18.5 mm to 24.5 mm. The holes are threaded for M2 screws.

Clamped in place using a hex end screw. Allen key not supplied.

Same spline size as used on Futaba servos. Also fits most Blue Bird servos apart from the tiny BMS-101 and A10 series and larger MKS servos that also use a Futaba compatible output spline.

Reviews 2

03/05/2023 16:03

Review by: John Turnbull

Very pleased with servo arms. Better in all ways compared to plastic arms especially to avoid the problem of over tight splines on some makes of servo and of course usual excellent service from Hyperflight.

31/08/2019 14:20

Review by: GABRIELE RIMONDI

Good item, better thank the oroginal plastic arm. And a good price
