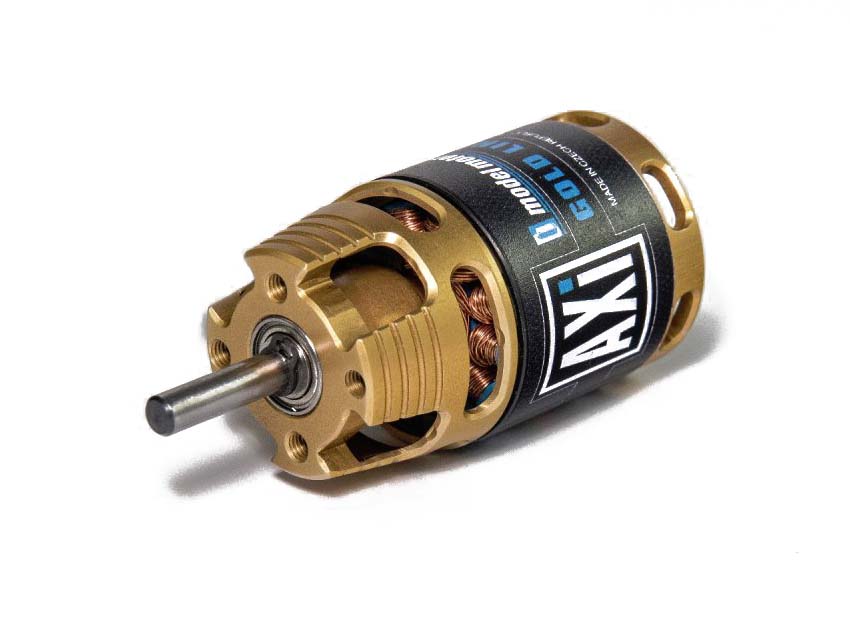

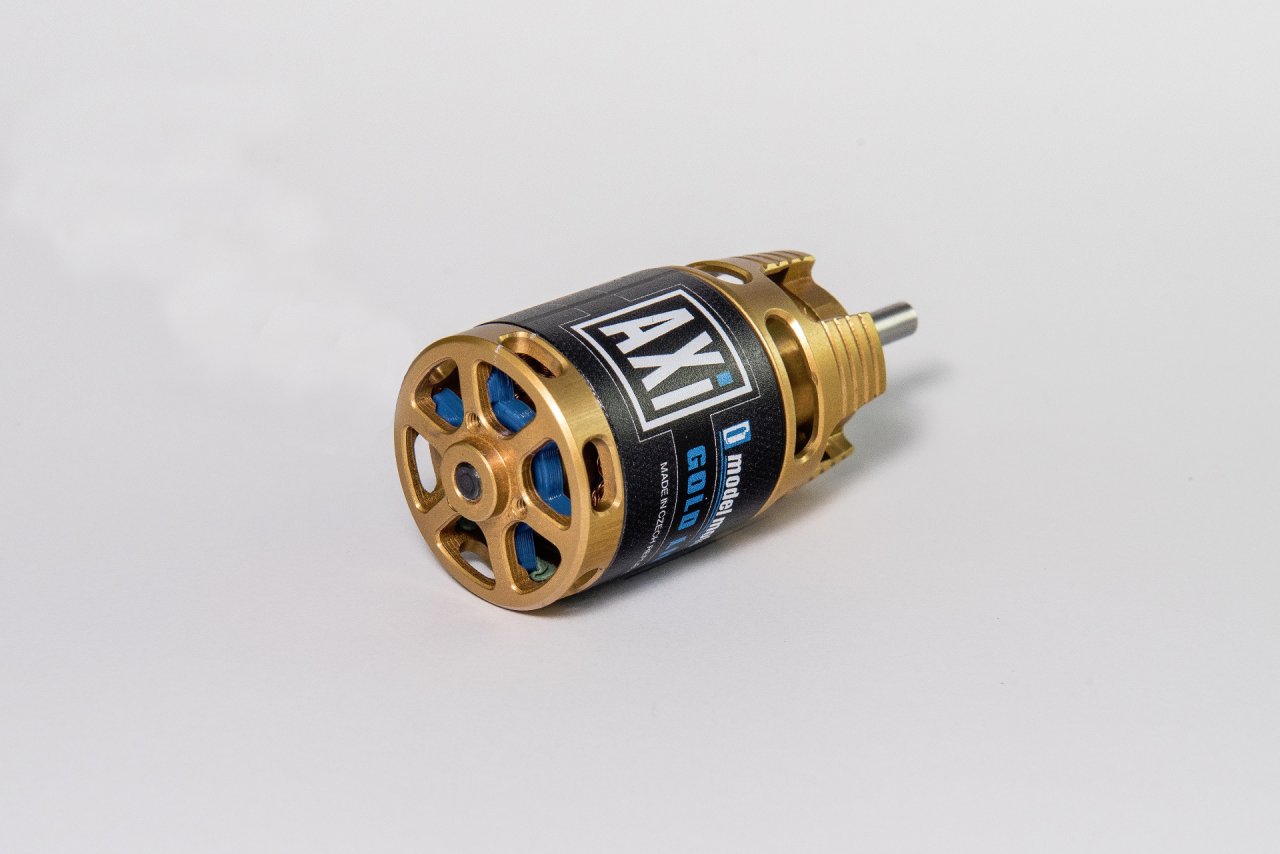

Axi 2220/20 V2 Long 720 RPM/V 91g Outrunner

Product Code: AXI2220-20V2L
 (1 review)

Price: $82.41

1 in stock
Add to basket to see shipping cost
Quantity

Description

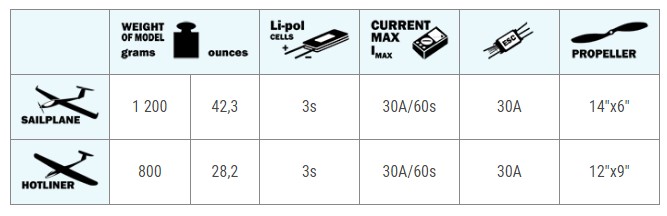

The high quality and performance of AXI 2220 V2 motors meant that they were a perfect base for development of the new AXI 2220/20 GOLD LINE. New small and powerfull motor AXI 2220/20 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 900g and for light sailplanes up to 1200g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

AXI 2220/20 GOLD LINE TECHNICAL SPECIFICATION
No. of cells 2-3s Li-Poly
Kv 720 RPM/V
Max. efficiency 87%
Max. efficiency current 18 - 24 A (>75%)
No load current 0,7 A
Current capacity 20 A/60 s
Internal Resistance 111,6 mohm

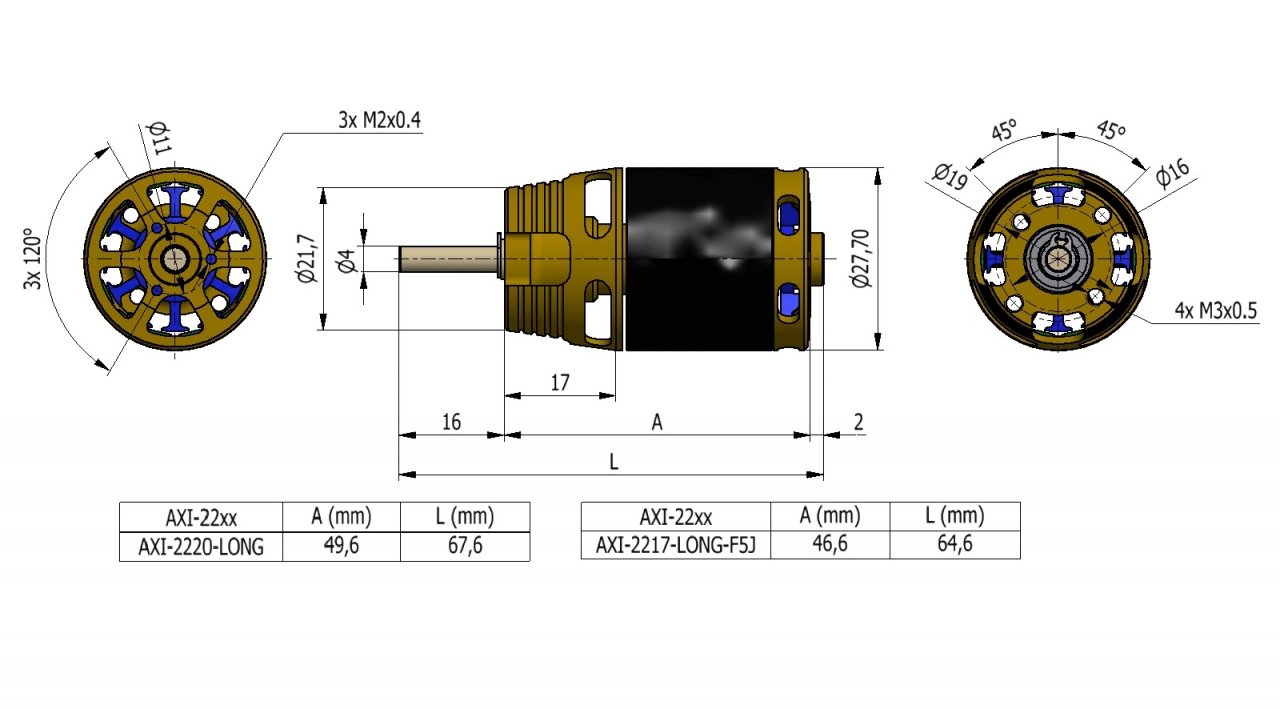

Dimensions (Ø x L) 27,7 x 51,6 mm
Shaft diameter 4 mm
Weight 91 g
Max. Power 300W

Reviews 1


 Review by:

Fair price for a well made motor, despatched and delivered promptly, fits straight on to a standard 4 hole front mounting, wires not shown in the sales photo but they are quite long and robust, just need to be soldered to your preferred connectors. 30W ESC is recommended but I used a 40.This motor gives the impression that it would turn a bigger prop than the 14x6 recommended, but the performance is adequate, taking a Gruner to cut off height in about 20 secs with little noise. I like it and would recommend it.
