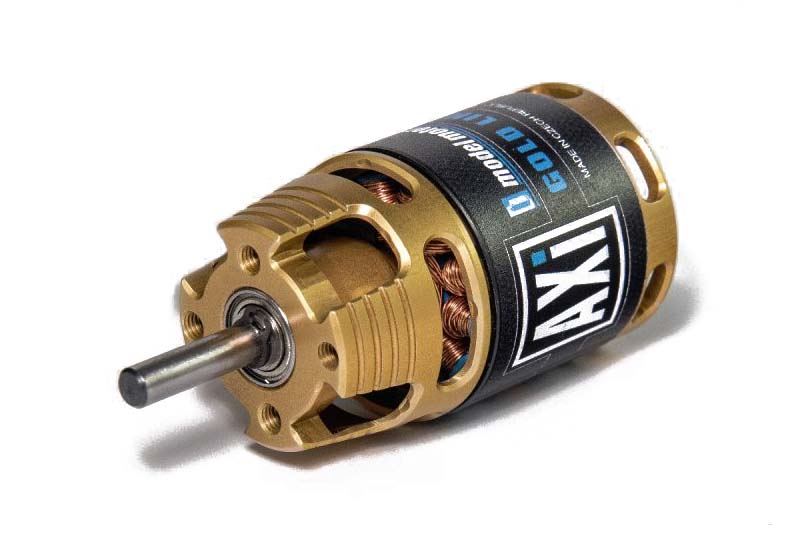

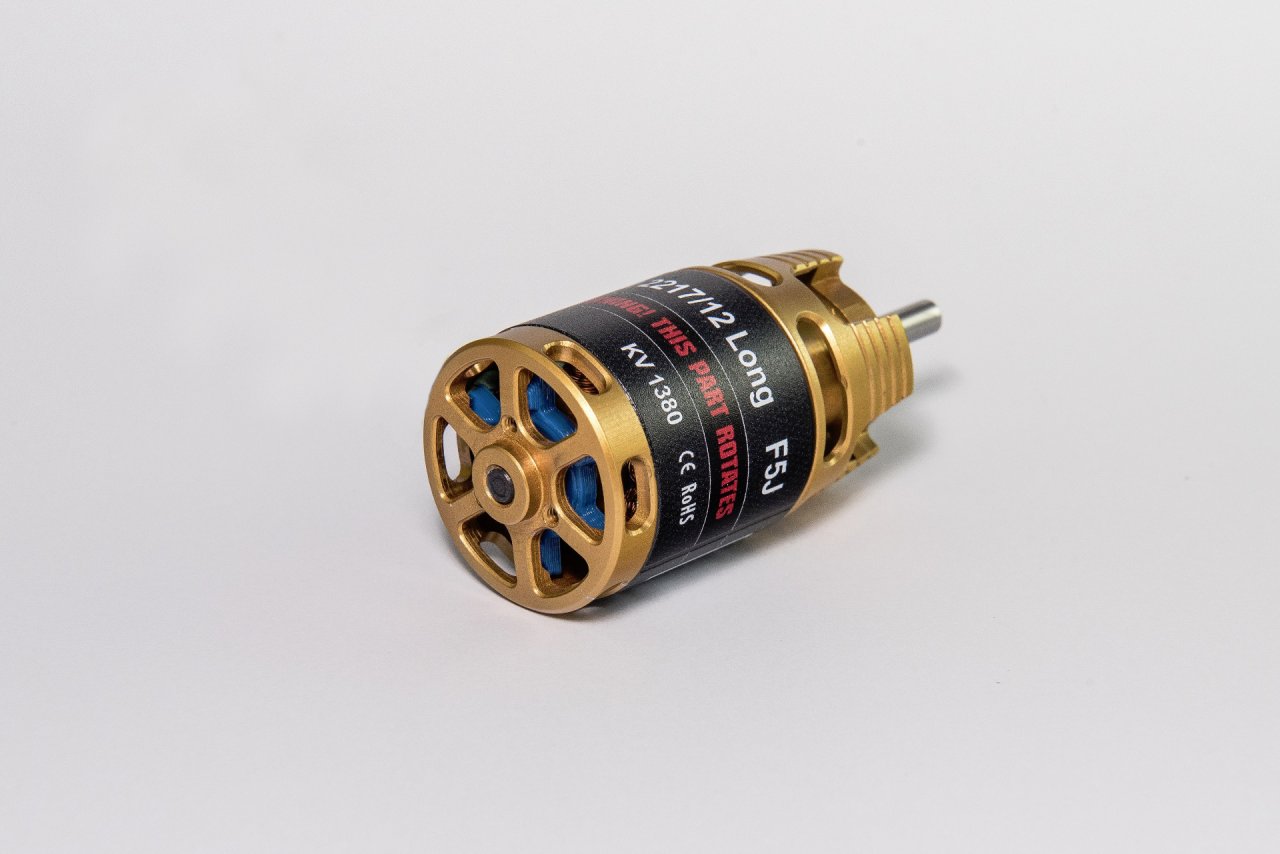

Axi 2217/20 V2 Long F5J 840 RPM/V 84g Outrunner

Product Code: AXI2217-20V2L-F5J
 (1 review)

Price: $80.12

2 in stock
Add to basket to see shipping cost
Quantity

Description

The high quality and performance of AXI 2217 V2 motors meant that they were a perfect base for development of the new AXI 2217/20 GOLD LINE. New small and powerfull motor AXI 2217/12 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 1000g and for light sailplanes up to 1200g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. Delivered without prop. holder and Radial mount set!

The Axi 2217/20 V2 Long F5J is the same as the Axi 2217/20 V2 Long motor but with a 4 mm shaft instead of a 3.17 mm shaft to better withstand F5J dork landings.

Axi 2217/20 V2 Long F5J TECHNICAL SPECIFICATION
No. of cells 2-4s Li-Poly
Kv 840 RPM/V
Max. efficiency 84%
Max. efficiency current 8 - 14 A (>75%)
No load current 0,4 A
Current capacity 20 A/60 s
Internal Resistance 185 mohm

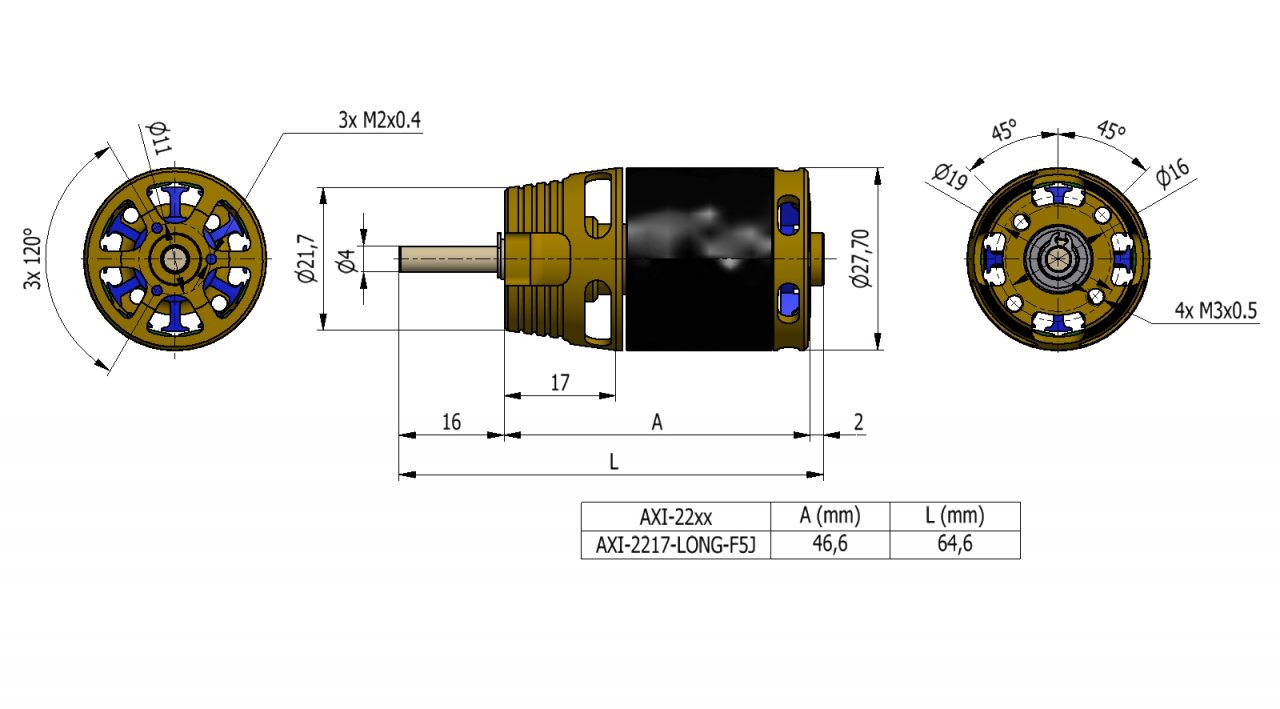

Dimensions (Ø x L) 27,7 x 64,6 mm
Shaft diameter 4 mm
Weight 84 g
Max. Power 270 W

Reviews 1


 Review by:

Good F5J motor

Good motor for F5J or fun flying up to 2kg sailplane. Needs 32mm nose or widening up fast as motor wires comes out in front of motor. been using it in Pike Prestige 32mm nose for over a year. can be used with 4S up to 40A if you limit motor time to 30sec. Some test results here: http://www.jojoen.no/div/2020testingmotor.pdf
