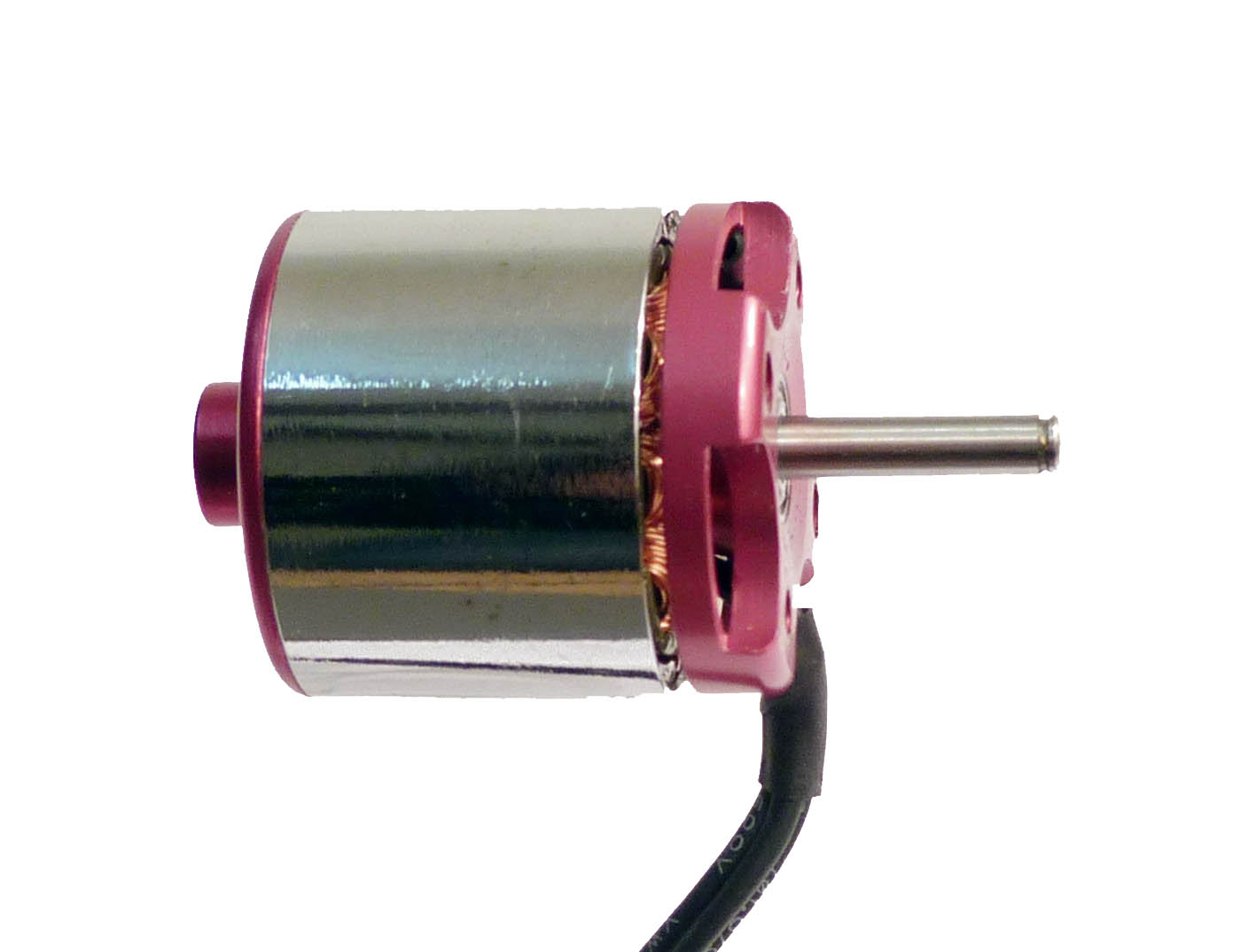

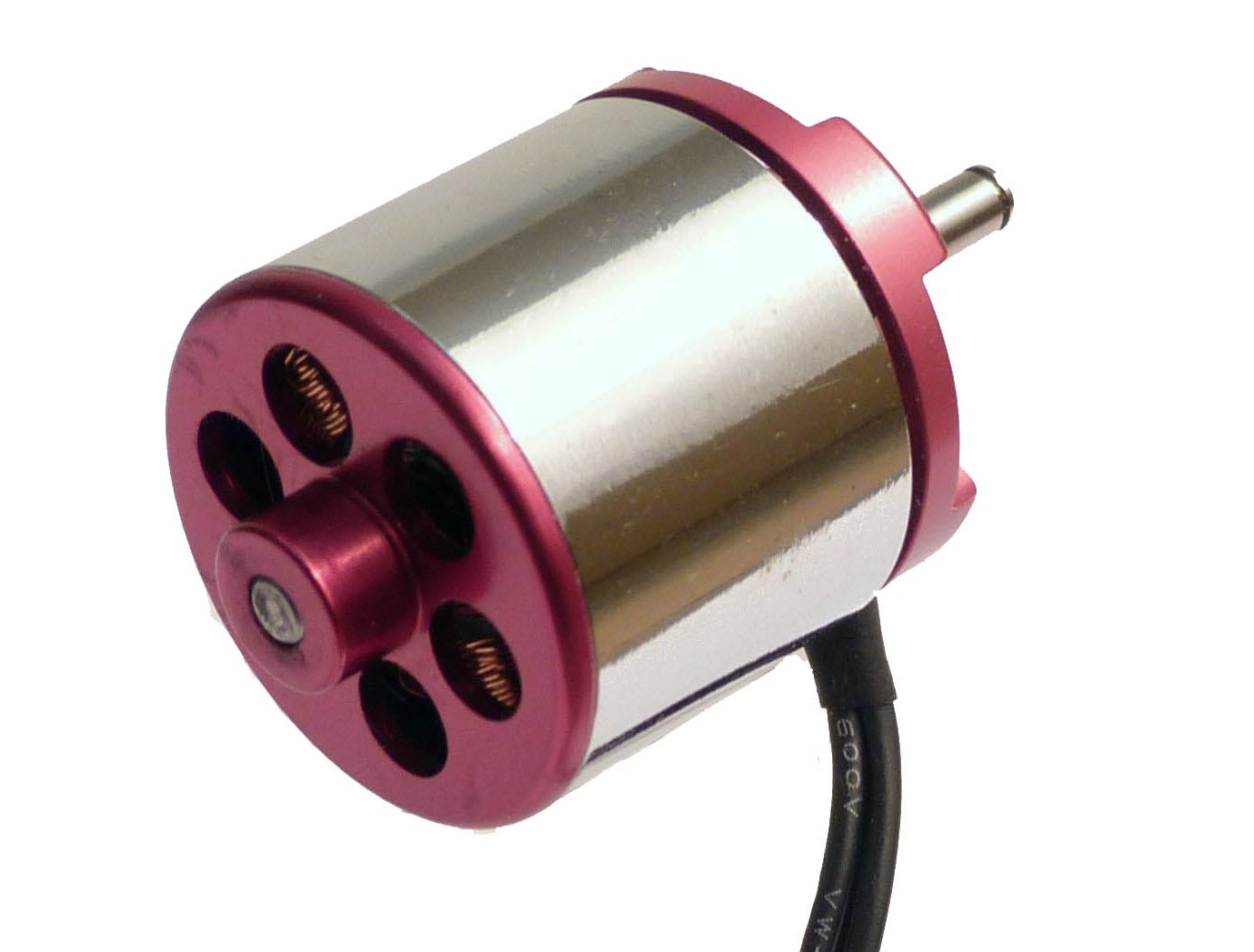

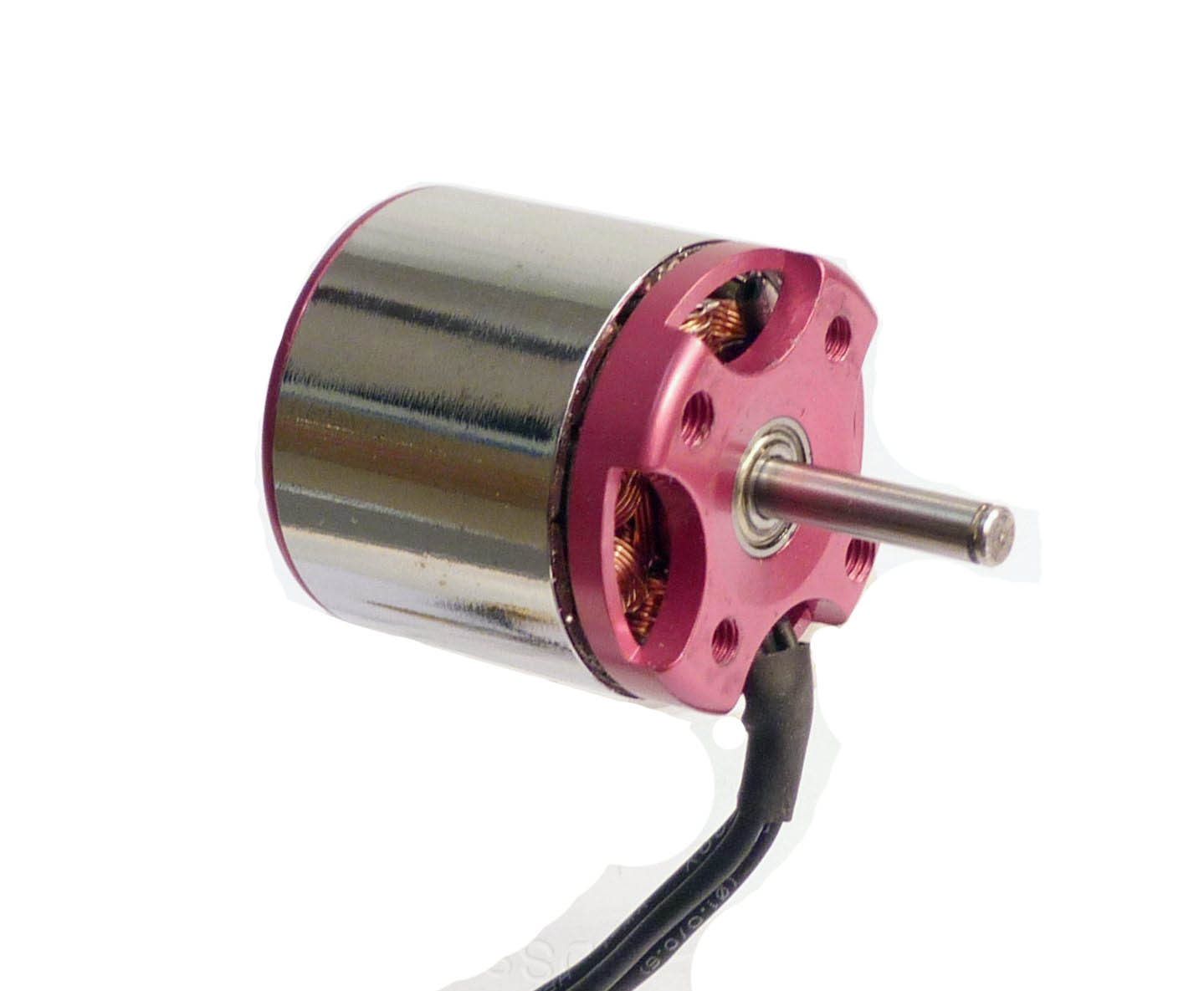

AEORC MM1914-1100 / ADH300L Specifications | ||
---|---|---|
Motor name | ADH300L | Outrunner |
Motor+GB weight | 39 g | 1.38 oz |
Motor diameter | 23.0 mm | 0.91 in |
Motor length | 27.0 mm | 1.06 in |
Lead length | 6.0 cm | 2.36 in |
Shaft diameter | 3.0 mm | 0.12 in |
Mounting info | 2 M2.5 holes on 16.3 mm & 2 M3 holes on 18 mm diameter circle | |
Measured Rm | 161 mR | |
Specified Kv | 1100 RPM/V | |
Measured Kv | 1280 RPM/V | |
Measured Io | 0.7 A @ 10 V | |

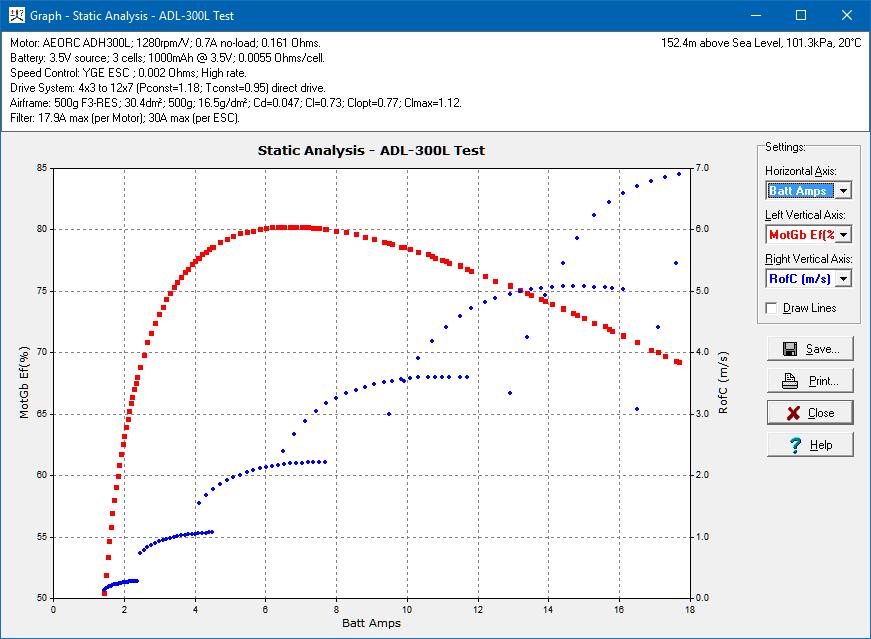

Max efficiency (10 V) | 80 % @ 7 A | |
Operating efficiency (10 V) | 75 % @ 13 A | |
Outrunner Motor Km | 19 Nm/W^.5 X1000 | |
Outrunner Motor Km/Kg | 477 Nm/(W^.5 Kg) | |
Recommended battery | 2S or 3S LiPo | |
Rec max LiPo capacity | 1 Ah | |

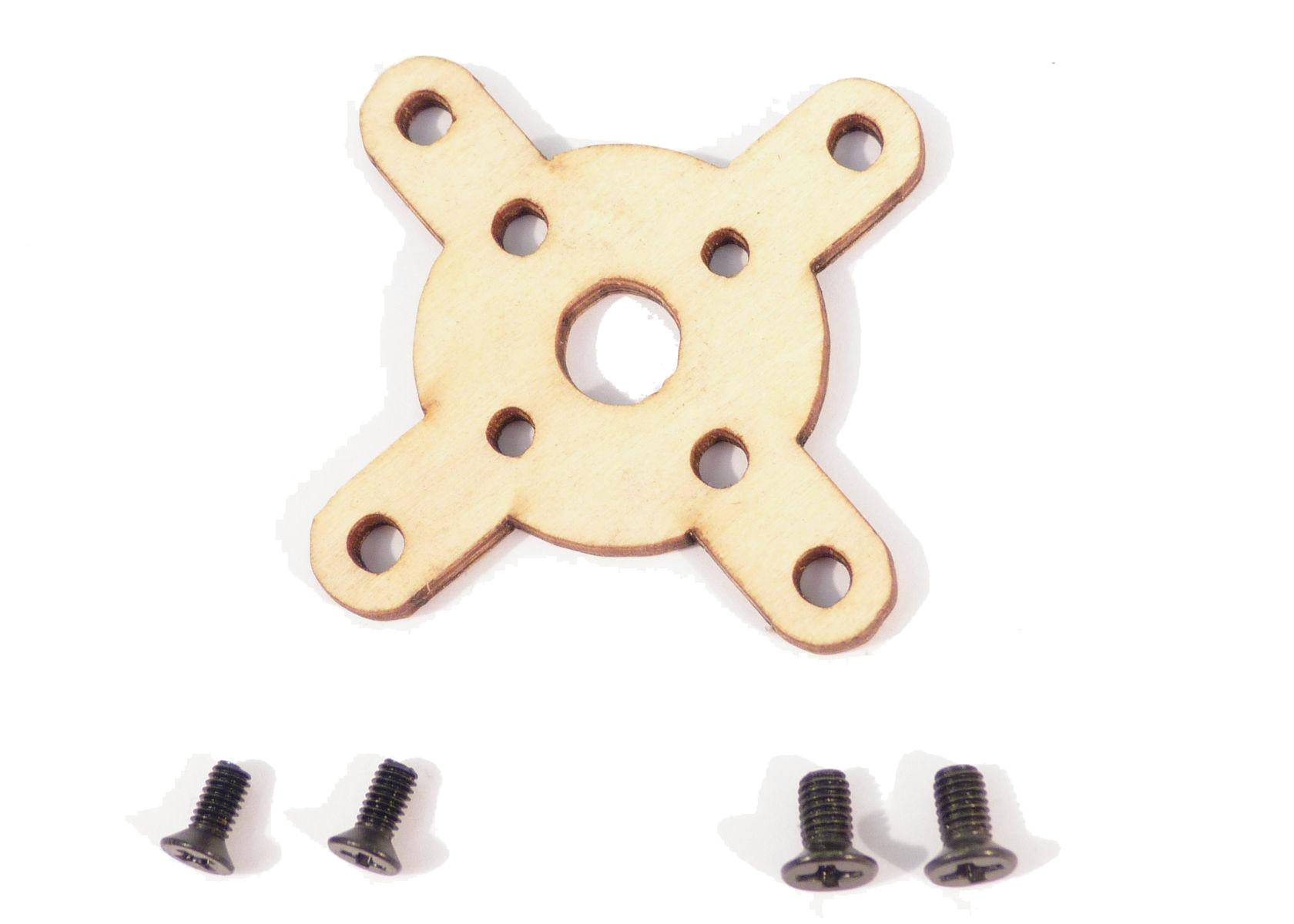

Supplied accessories | 4 mounting screws, plywood motor mount | |
Mounting | On the same side as the prop shaft. | |

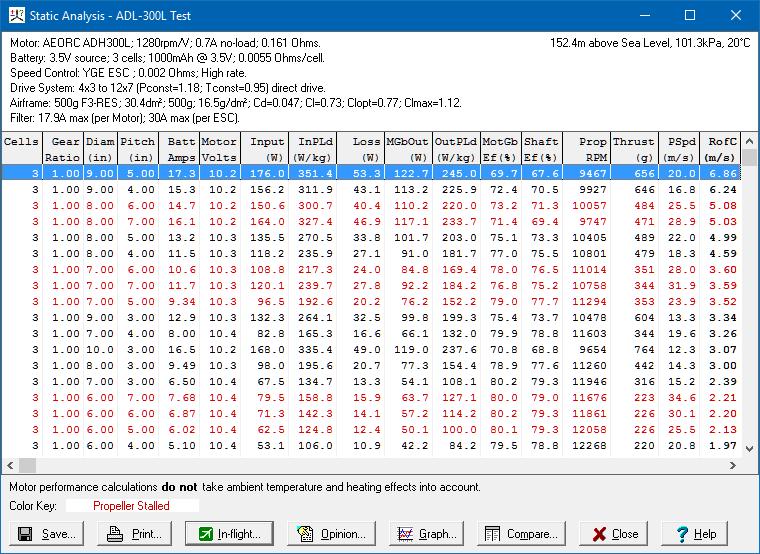

2S LiPo Performance | ||
Recommended prop | 10x6; 9x6, 9x5, 8x5 | |
Input power | 100 W on 10x6 prop | |
Current | 14 A on 11x7 prop | |
Rate of climb | 5 m/s for 500 g glider | |
3S LiPo Performance | ||
Recommended prop | 8x5; 8x4;7x5; 7x4 | |
Input power | 150 W on 8x5 prop | |
Current | 14 A on 8x5 prop | |
Rate of climb | 6 m/s for 500 g glider |
Review by: Tony Truelove
ADH300L MOTORAll good smooth runner no problems very quick delivery as is normal for hyper flight.
Review by: Martin
Excellent service came within a few days of ordering together with a Fresh RES glider. Tested the motor on the bench, no problems very smooth running. Highly recommended
Review by: John Sidsaff
Excellent quality product at a reasonable price
Review by: Ian Sant
Fits my Andreas ElectroI'm now only third one of these little motors. I had an intermittent problem with my Andreas Electro which led to a couple of hard landings. The first one broke the motor shaft and the second bent the shaft of the replacement. The problem was finally traced to a faulty battery connection in my tx which has now been rectified. The Andreas was a very good flyer with this little motor before this happened but it shows that you have to take care that your landings are good and protect that motor shaft!
Review by: David King
Came by return of post. Waiting for first flight in 2m RES but looks promising.
Review by: Bob Goodenough
Excellent motorVery good value motor. Small but powerful. ESC needs to be set to correct timing.
Review by: Tom Shaw
Decent motorSmooth motor, but wrong mounting holes completely for the res dart even though its recommended.
Review by: Jeff Williams
Not there yet!I've tried two of these and cannot get them to run properly - one of them burnt out. Having tried to eliminate problems with other gear, ESC etc. I suspect that, as I tried to test them in a jig mounted in a cast iron vice, the vice has interfered with the magnets in the rotor. I won't do that again and I've tried to order another one but they're out of stock. Still hoping to get my Circle Dancer flying before winter!
Review by: David
Good motor, easy transactionVery nice site, easy ordering process and fast delivery. And a good little motor too, excellent product.
Review by: Anonymous
Small problemHad a problem with the motor I received, it would not turn. At closer examination I found there was glue between the windings and the bell. Once I got it apart and cleaned it was go to go.
Review by: John Clogan
Little gemThis is a powerful little motor. Ideal for F5RES gliders where space is tight.
It feels quite stiff to turn but goes well when powered up.
Review by: Bill
Good as gold, as per usual.
Comment by: Mike Jones
FreshQuick delivery service.
The kit is well made and the plan is excellent.
The online instructions were a bit lacking in parts.
Would help if the parts were numbered.
The quality of the wood is excellent.
Comment by: Terry.
Brilliant serviceI ordered an ADH300L motor on Friday afternoon at 16:23 it was despatched at 16:28 and I received it on Saturday morning before 10:00. Brilliant service again from Hyperflight and the Post Office. Many Thanks. Terry.
Review by: Anonymous
PuritoVery disappointed on a number of accounts.
1) No plan
2) Parts are not numbered.
3) English instructions revert back to German half way through.
A friend who bought the Peres has a much better kit which is also around £70 cheaper
Service from Hyperflight excellent as always.
Comment by: Kelvin
Usual good service looks to be just the job to fit in the tight space in fuselage.
Review by: Hutton Oddy
Great motor, fantastic servicePut one of these in my home built Allegro Lite (480g RTF). Great performance using a 9x5 GM prop. Was impressed enough to buy another one for the next eRes model I build.
..and as usual, the service from Niel's shop was perfect. 2 weeks from his farm to mine on the other side of the world.
Review by: John Cuthbert
I purchased this item to use in 2 metre competition gliders and they are perfect for this application. Although a cheap and cheerful motor they are as good if not better than motors costing three times as much. Particularly like their small diameter which fit perfectly in the narrow fuselage often used these days.
Comment by: Graeme
ADH 300lordered motor and hyperspinner 15/04/2020, recieved today 1/06/2020, thankyou Neil for you prompt service as allways, cannot help if the transport system is in dissaray, thankyou, magnet strength feels great
Review by: John Clogan
Tiny motorThis tiny brushless motor seems to be very solid. It can turn an 6x4" prop with some gusto.
Will say more once it is in a plane (PicaRES).
Review by: W.A. Broer
Good productNeeded a small brushless motor and read about your company. Ordered it and received a good product and an adequate delivery.
Review by: Stephen Machin
Excellent little motor which gives plenty of thrust on 2 cells mines in an O/ D lite weight 2 meter glider with a narrow front fuselage where your standard 28mm outrunner wouldn't have fitted.
I inadvertently ran it with 3 cells on a 10x6 and it still works !!
Review by: Joe Pierson
ADH300L Front Mount Brushless MotorFantastic fast shipping , and the motor is excellent!!! All the way! Thank you!
Joe
Review by: Marc Humphries
Impressed with this little motorBought this for an own design glider that used Hyperflight's Sapphire pod and boom.
It arrived in good time, and I was surprised how small and light it was. You never get a feel for these things even though the photos and specs give you the info!
Fitted without fuss and with the offset spinner and carbon 11 x 6 blades it really looked the part.
I had problems when using a Castle Creations ESC. It would not start consistently and would rattle / stop at anything above idle. This ESC did not offer any timing options, so I swapped for an EnErG and this sorted the problem. With the 11 x 6 it pulls around 95 - 100W on a 2S LiPo and pulls my little 1.5M span 440 gram glider up at around 70 degrees.
Only had three flights so far - hence only 4* at the moment - but so far very happy with performance and quality.
Review by: John Gallant
Failed after a few usesI bought one of these to go in a Horesji Geronimo - turns out it was a bit underpowered with a 3S battery and a 9x6 prop but it worked OK. But after about 5 flights (maybe 10 minutes running time) it failed, with one lead now open circuit.
I reckon this is unrelated, but while inspecting the motor I also found that the spacing between rotor and stator varies from about 0.6 mm down to about 0.2 mm - a less serious version of David Still's fouling.
Review by: Paul
so far so goodI have not run them even less mounted them but they have strong magnets, much stronger than normally found in a motor of this size and they appear better made than some. We will see how they go when I have them in a plane.
Review by: Anonymous
RES Dart and this motorPurchased an E RES Dart, and this motor. Looking forward to flying. The kit is very ingenious but the fun is translating the german building instructions as the english translation available is little better than Google Translate. Having said that, I have found Hyperflight service exceptional, speedy and friendly. Thankyou.
Review by: Joe Pierson
ADH300L Front Mount Brushless MotorFantastic service! Very fast you guys are great! The motor
is also excellent!
Joe
Review by: David Still
Second ones fineI ordered one of these with a RES olution kit after installing it I couldn't get it to work it just jittered the odd time it did go it sounded very rough and on inspection the bell housing doesn't appear to be on straight, I emailed but heard nothing back so ordered a second witch runs fine with no issues so far.The first will be sent back for a refund.
HyperFlight Comment
Customer now contacted. Refund offered.
