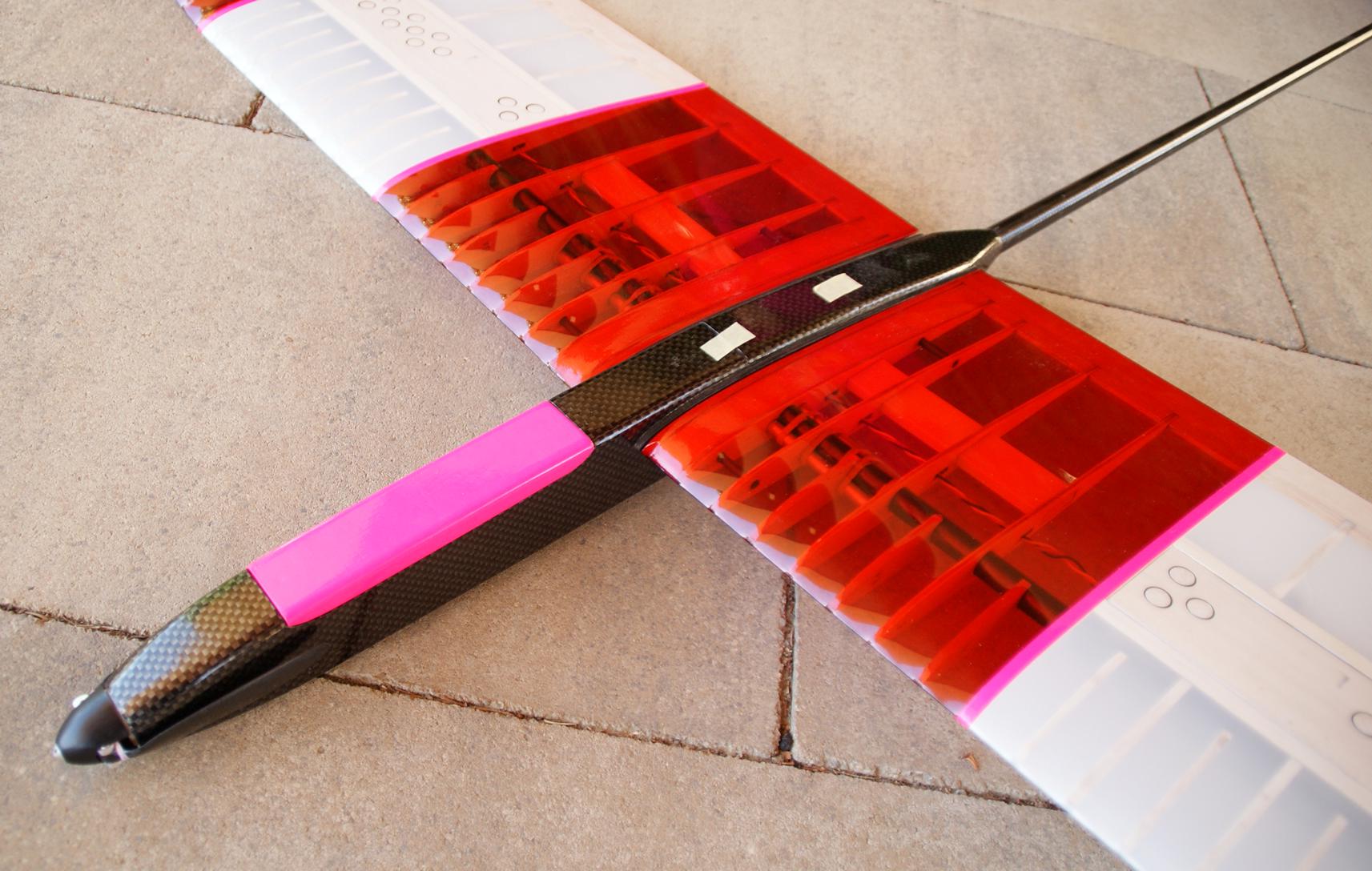

Xflow F5L 2m Electric with ballast

Xflow-E – Born from CompetitionThe Xflow is the new high-performance competition F5L RES electric glider from the manufacturers of the Encanto. The Xflow-E has been developed from several seasons of competition flying, extensive testing and direct comparison with other leading models across a wide range of conditions.Rather than replacing the Encanto, the Xflow-E builds on its proven design, with development focused on improving the handling, the powertrain and the range of usable setups.The main development objectives were:

• More precise and stable thermalling, particularly in small or weak lift
• Higher tow release altitudes
• A wider setup range for both calm and windy conditions

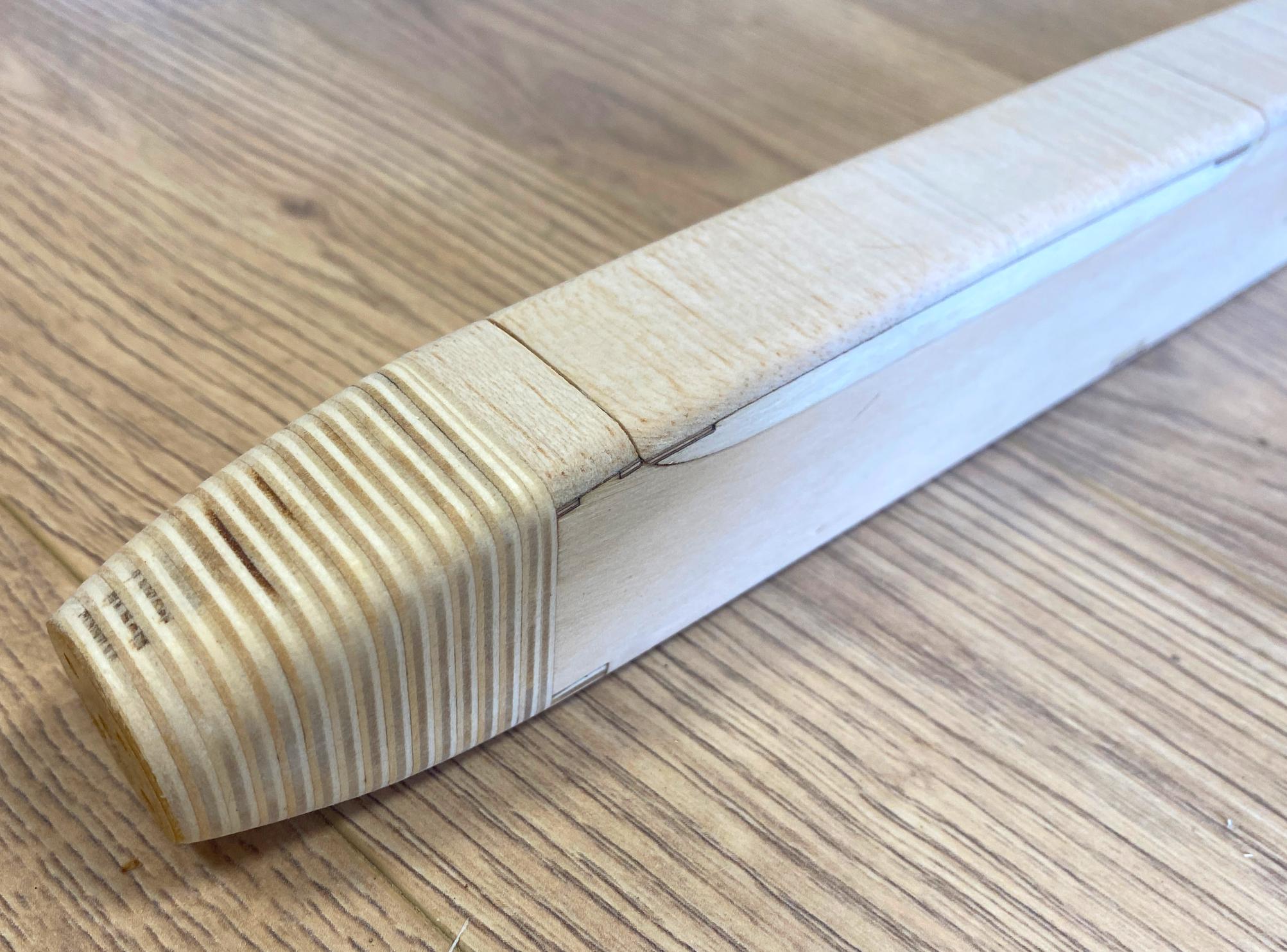

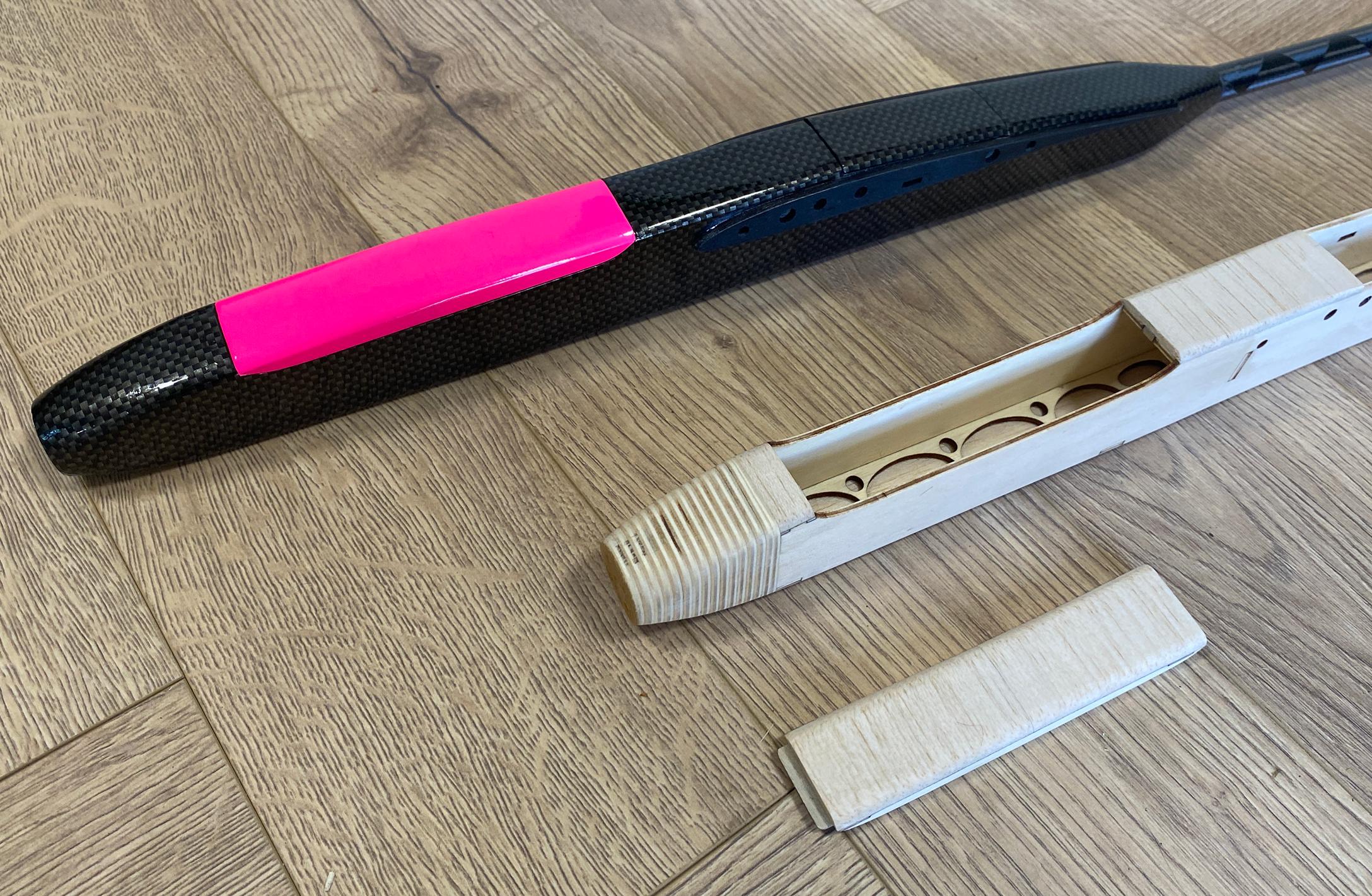

• Narrower, lower drag electric fuselage

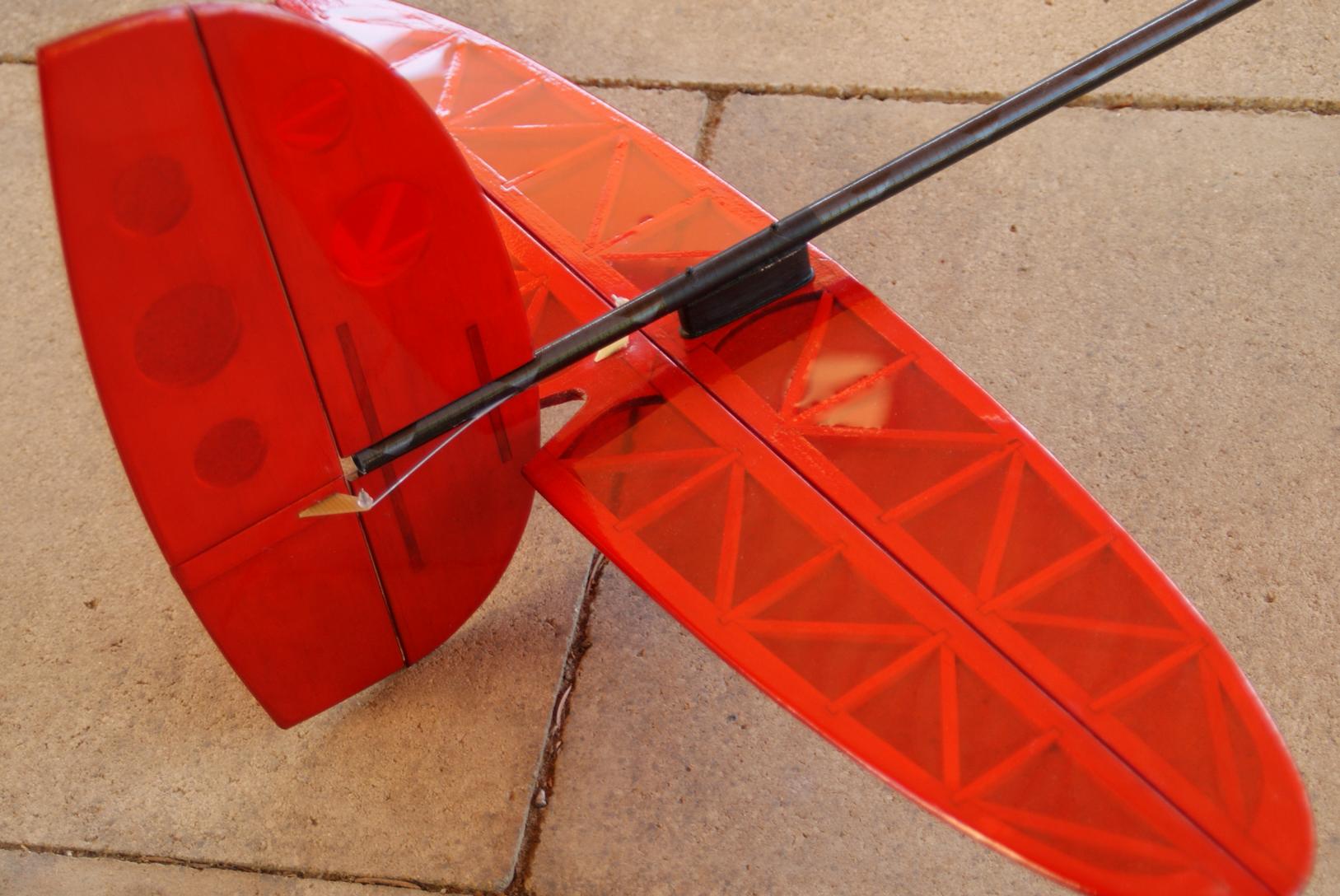

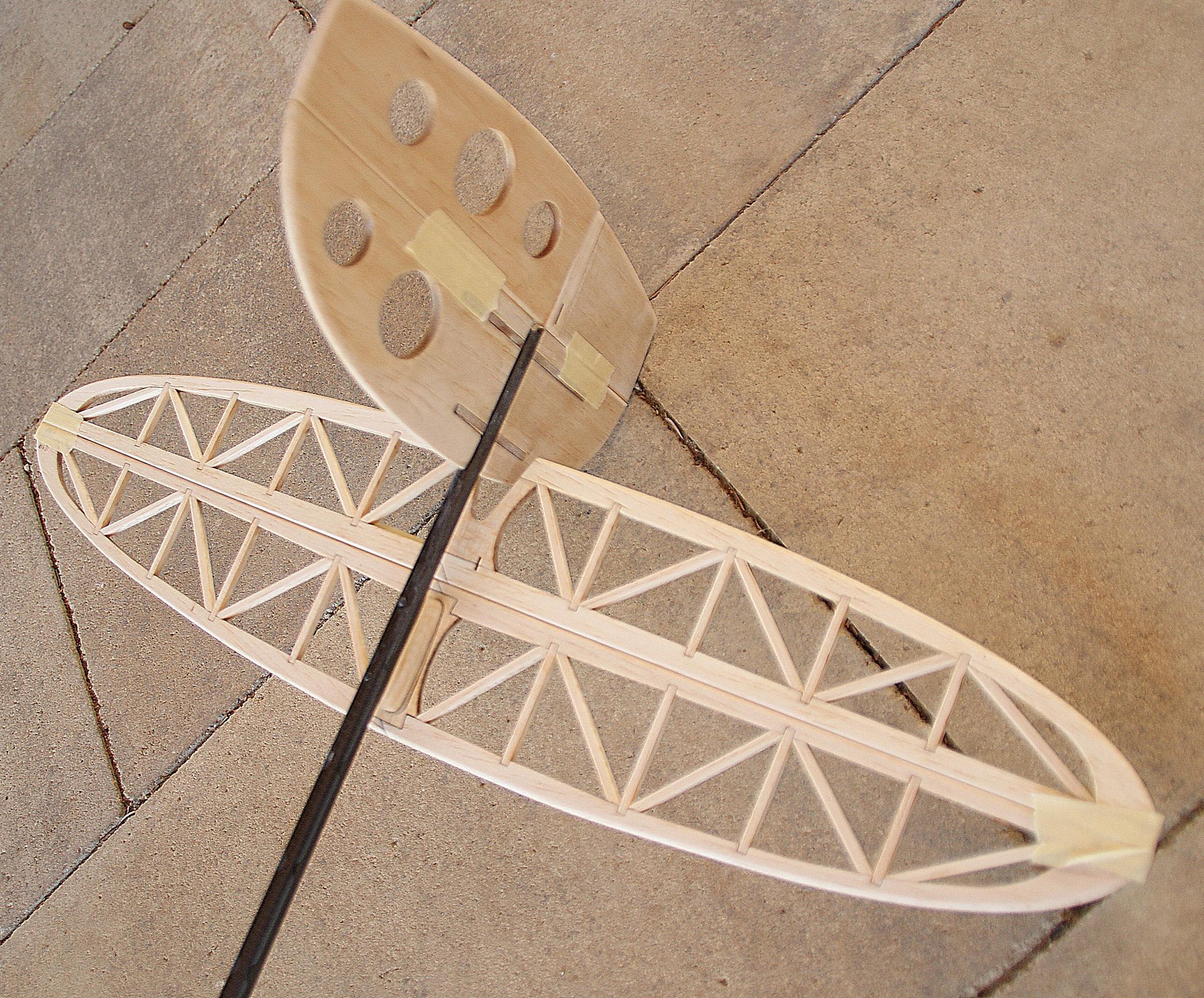

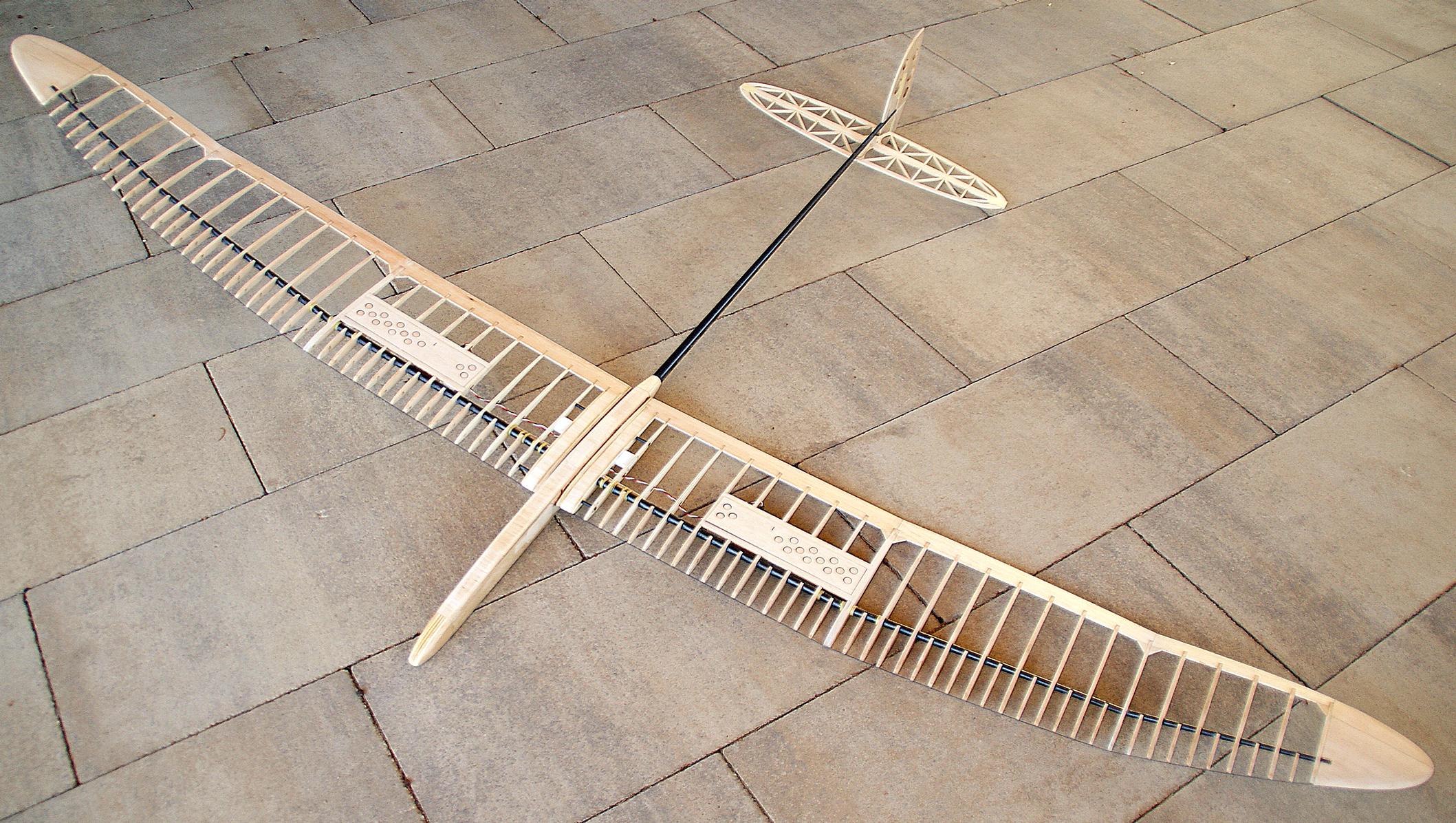

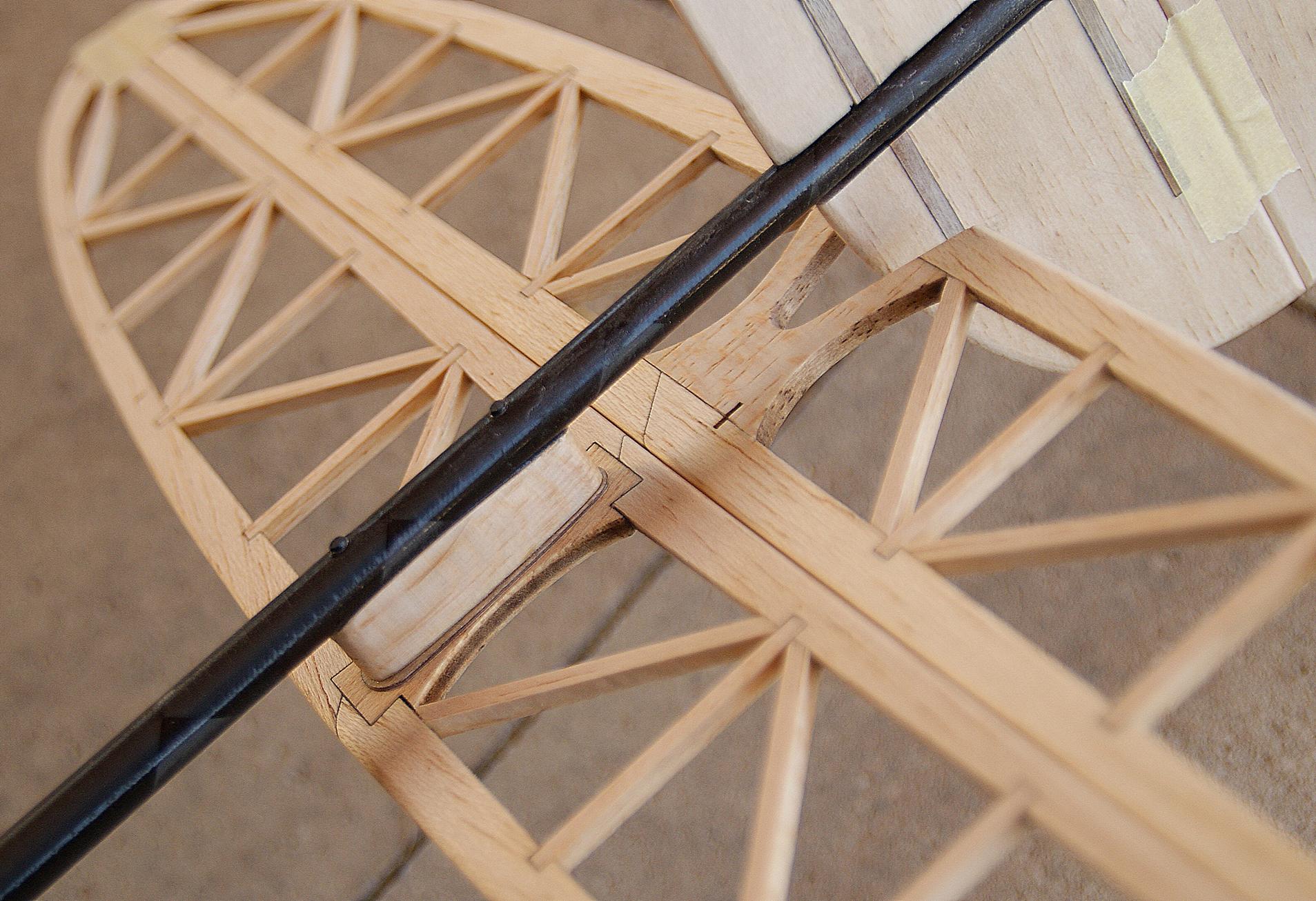

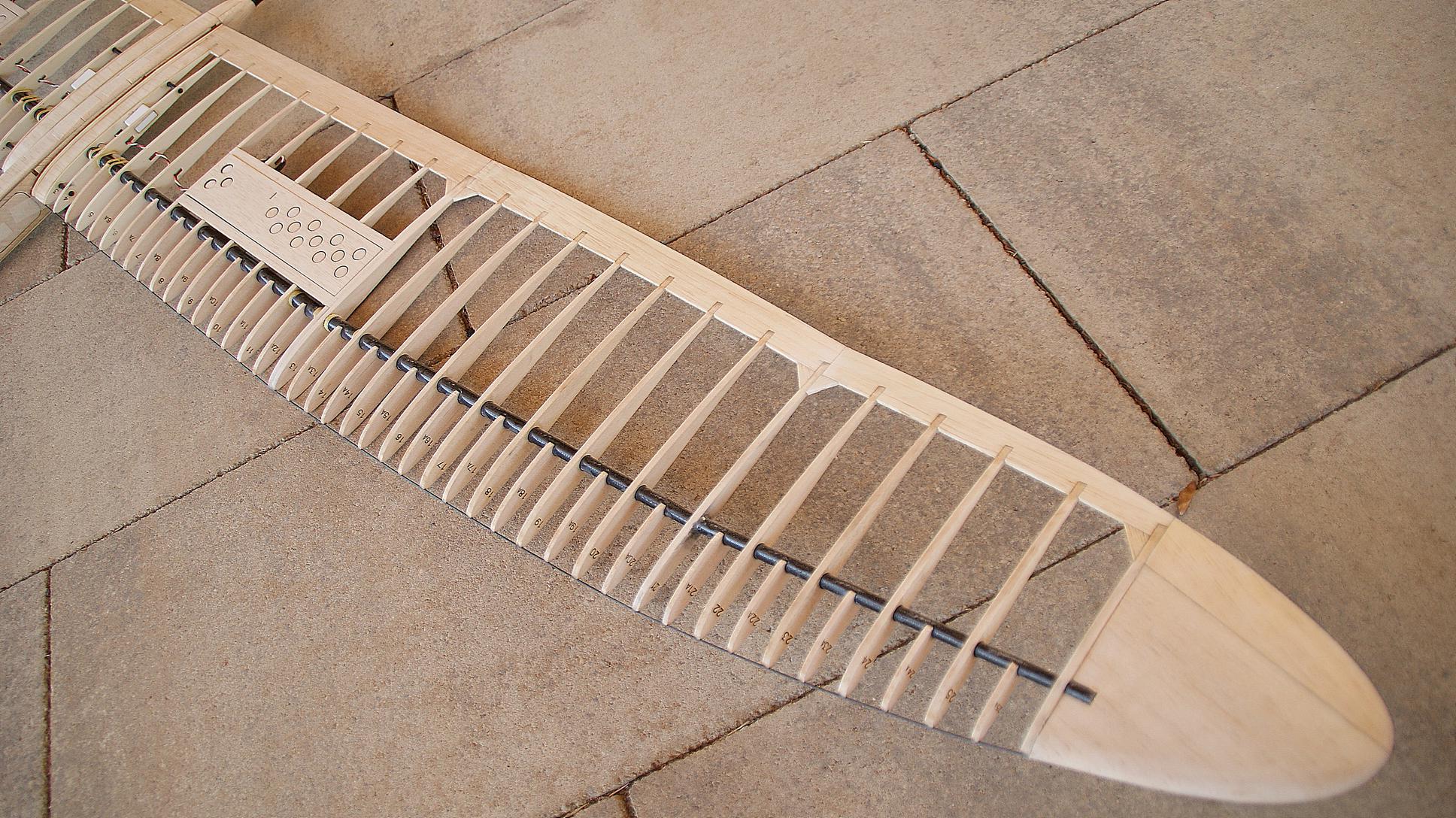

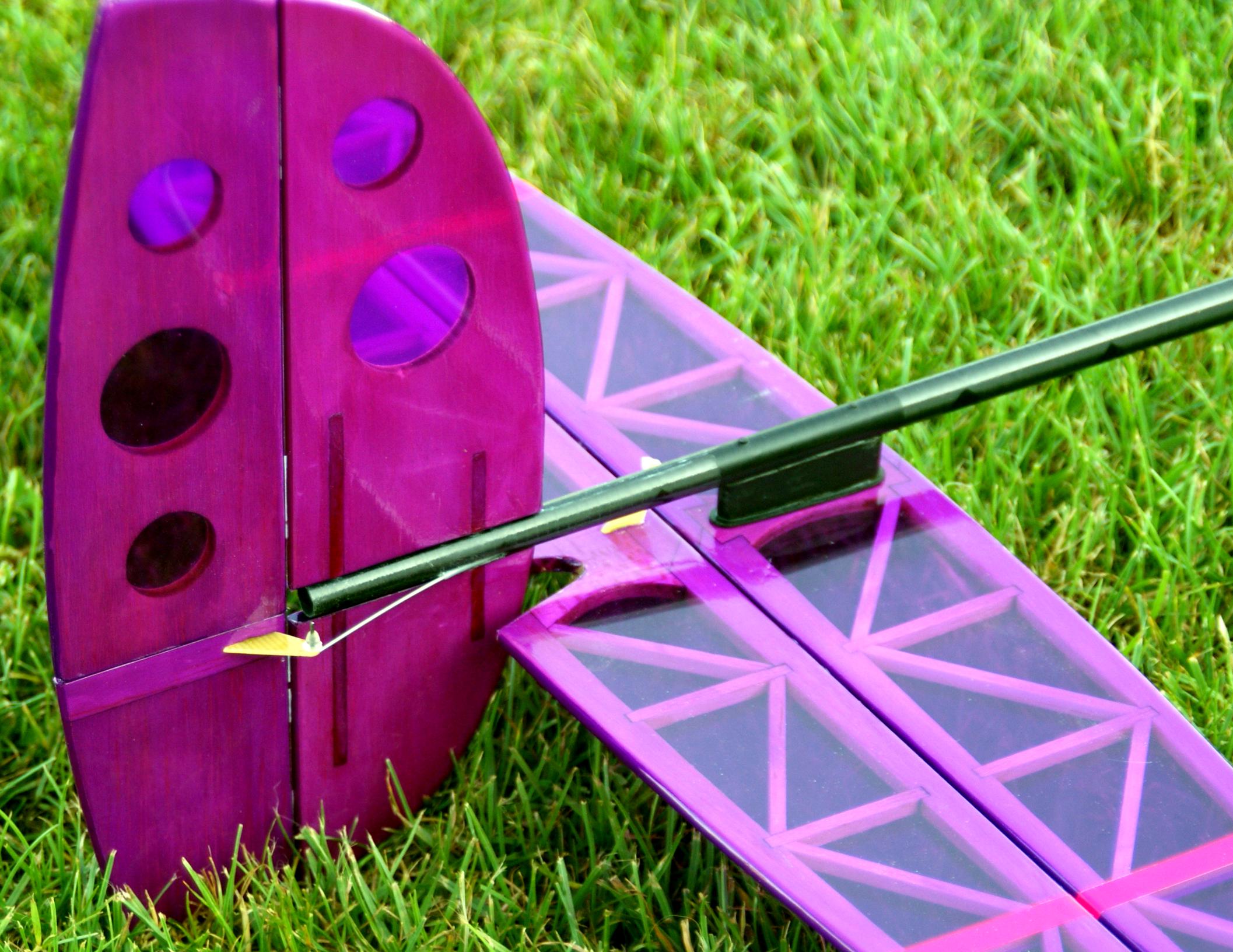

The Encanto's proven wing, aerofoil, planform and wing area have been retained. The principal changes are concentrated around the tail.A redesigned, more effective rudder and revised horizontal stabiliser position give the Xflow improved control and handling. It turns naturally in tight thermals, tracks accurately while circling and retains energy well during downwind transitions.Moving the horizontal stabiliser into cleaner airflow also increases control authority and reduces interference from the wing wake.Landing

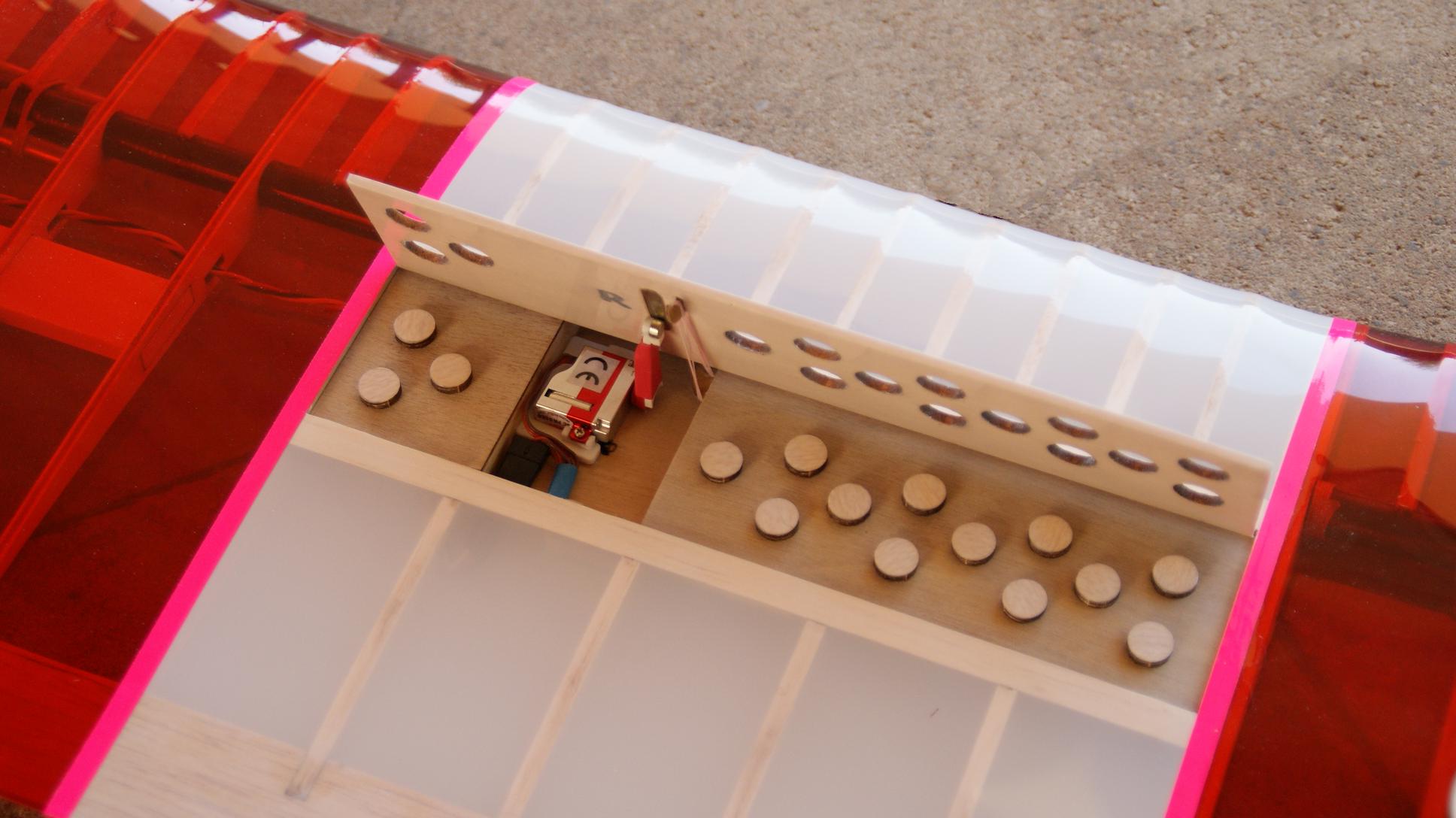

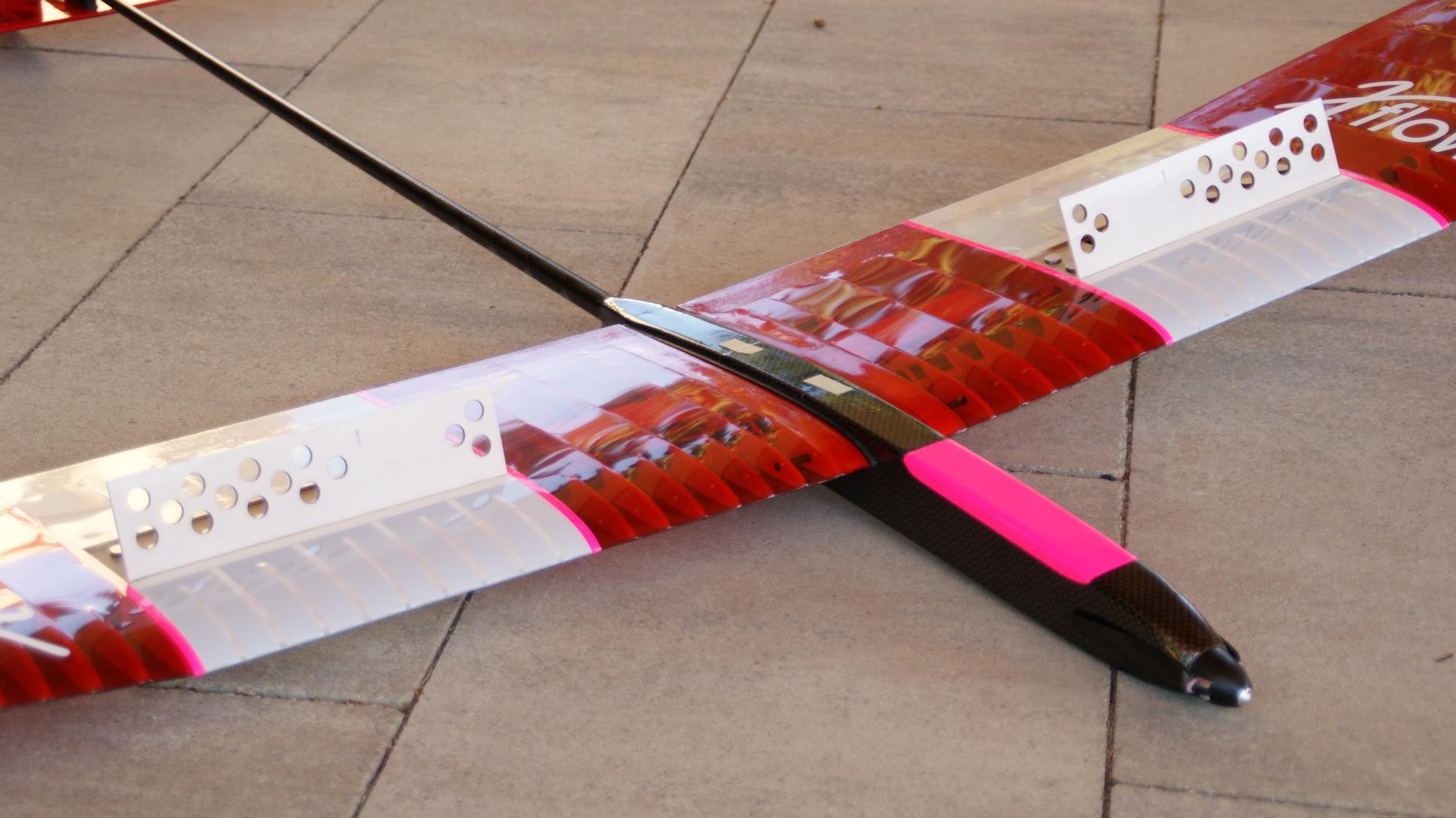

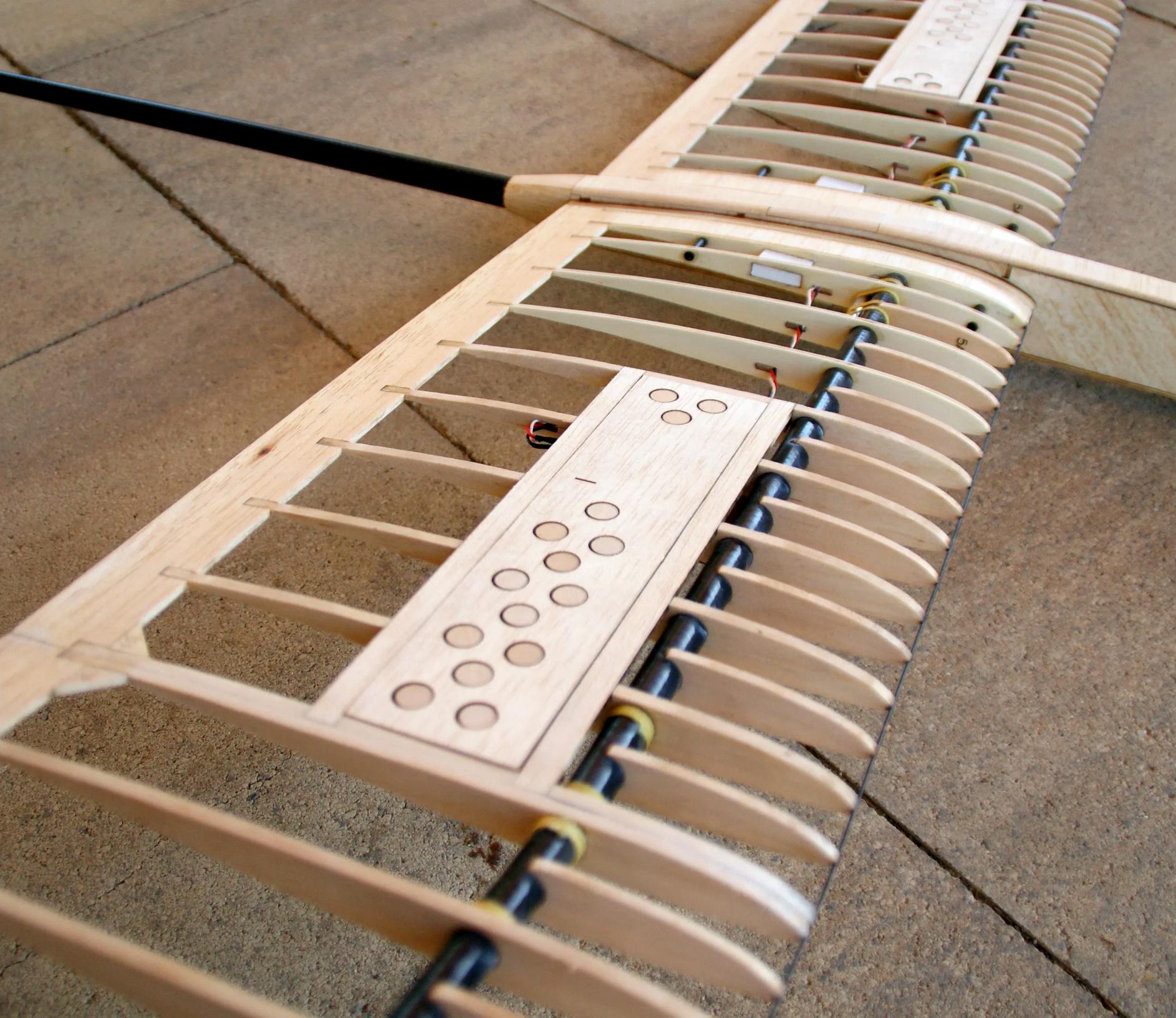

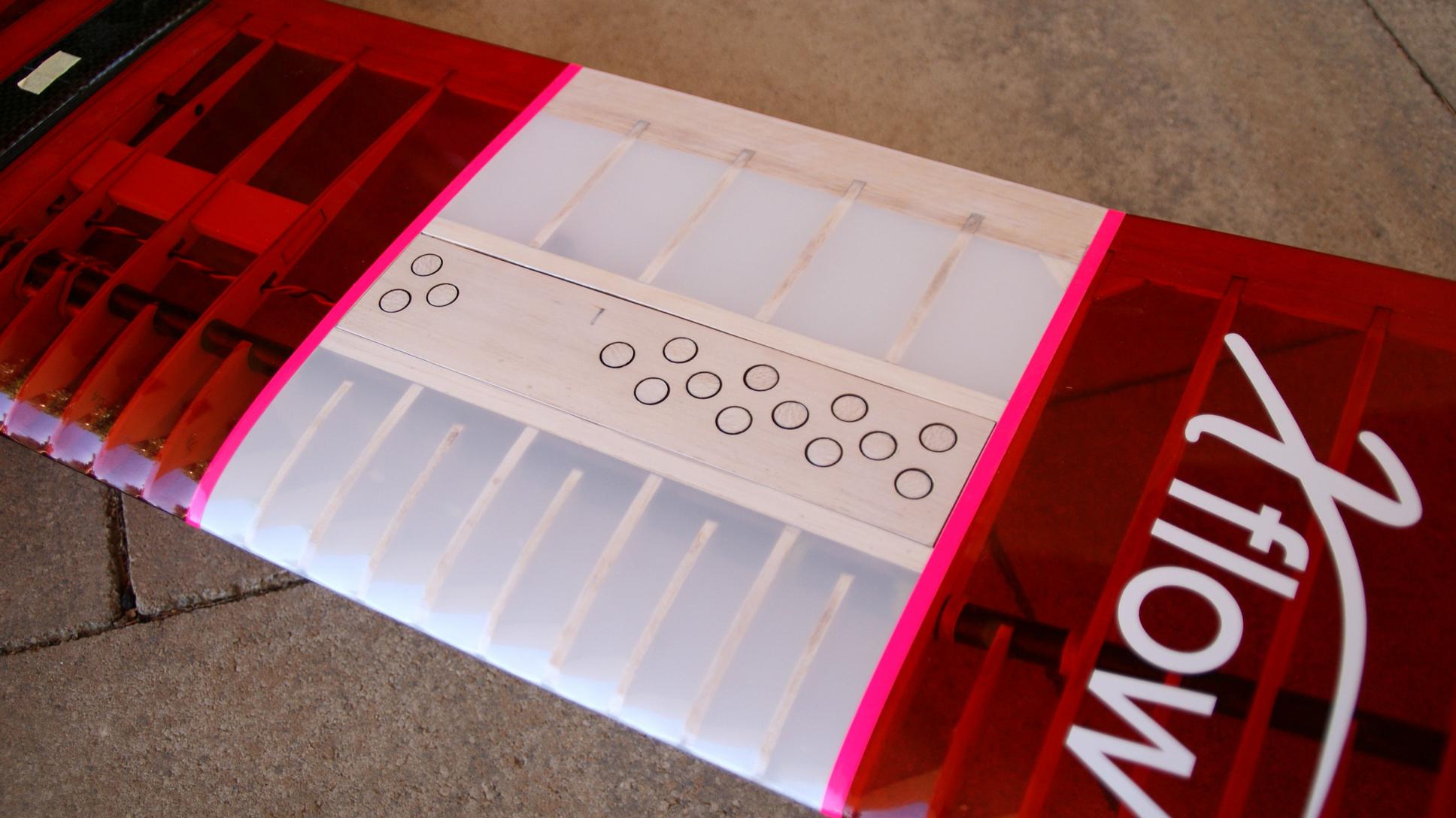

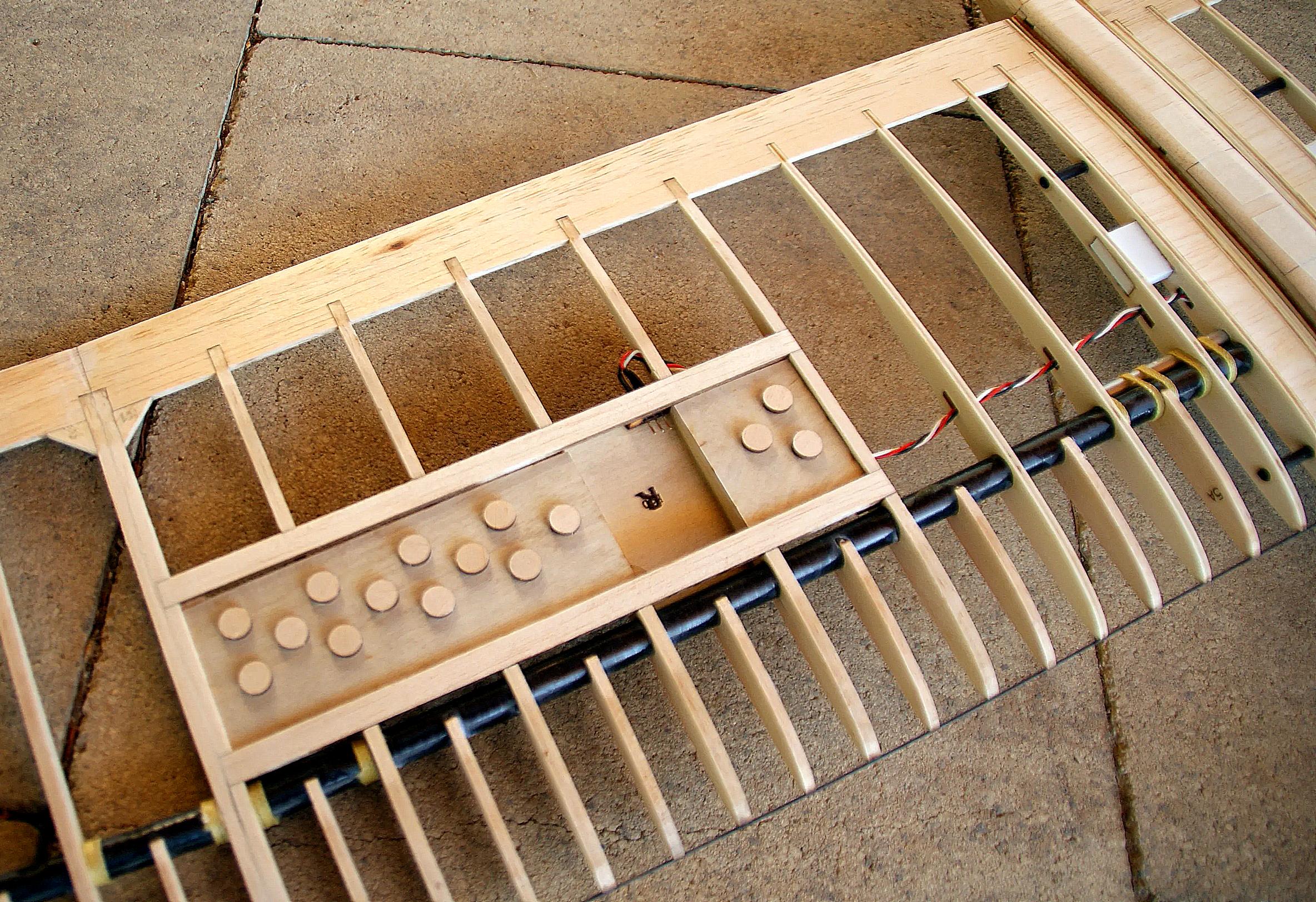

The perforated airbrakes provide progressive, controllable deceleration with relatively little increase in sink rate. Combined with the Xflow's ability to fly at a high angle of attack in a Harrier-style approach, this gives very slow and stable landing characteristics and allows precise spot landings, even in more demanding conditions.The Xflow-E is available with either a Standard wing designed for most flying conditions, or with a Camber wing optimised for light conditions:Xflow-E Standard
Lower-camber wing aerofoils give a more versatile glider capable of excelling in stronger winds and faster, more dynamic flying while retaining good stability and predictable handling. Recommended centre of gravity: 100–102 mmXflow-E Camber
Higher-camber wing aerofoils are optimised for calm conditions and weak lift, with high sensitivity and excellent tight-circling performance. Recommended centre of gravity: 105–107 mmPerformance Without Compromise

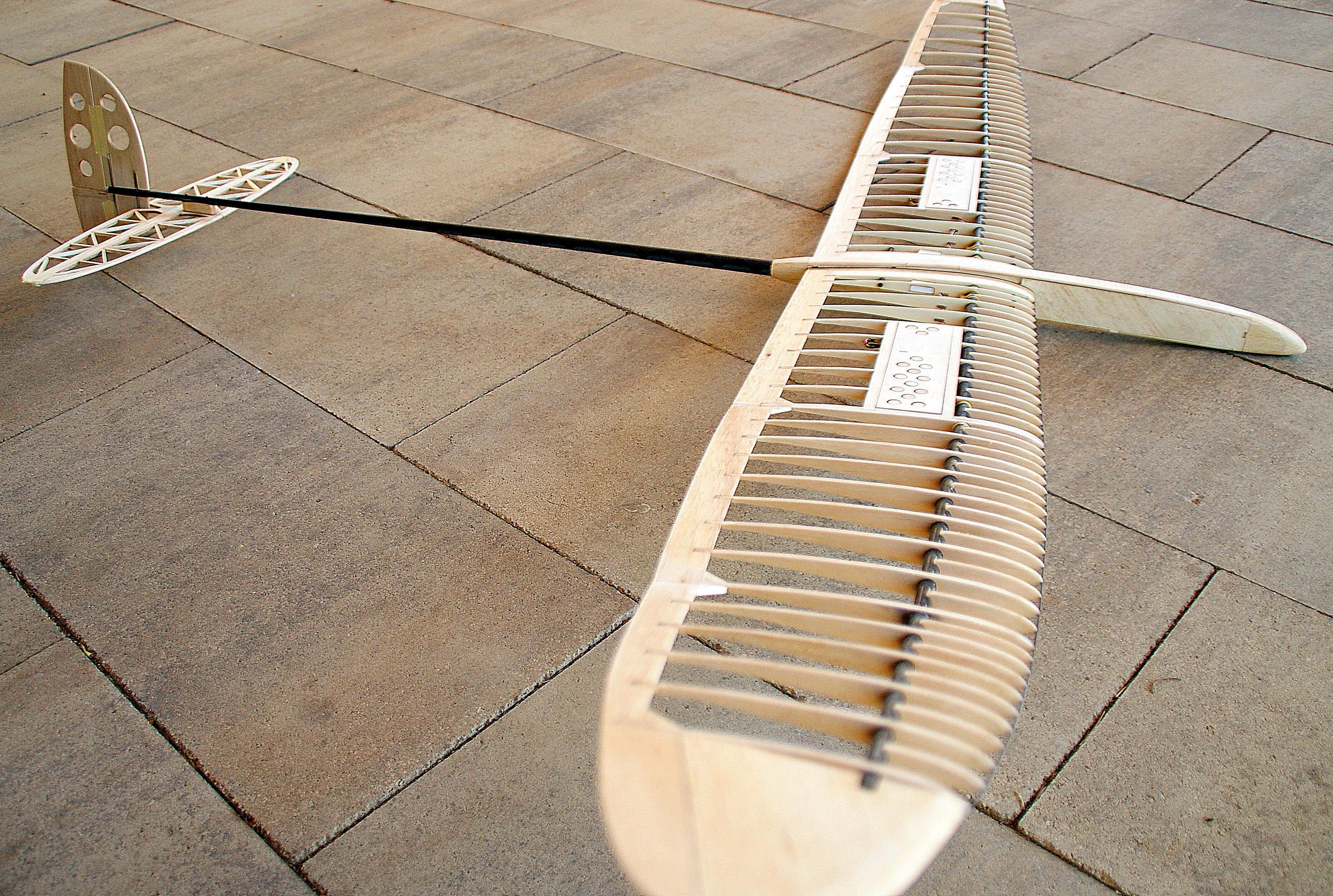

With the Standard wing, the Xflow-E has a wide usable speed range, stable and predictable flight characteristics and precise control throughout the flight envelope. With the addition of the Camber wing, it also excels in light lift and low-wind conditions.The Xflow-E has been developed as a thoroughbred competition model that rewards accurate flying and careful setup, allowing experienced pilots to make full use of changing conditions and concentrate on tactical decisions in the air. However, it is easy to fly and forgiving enough for all modellers to benefit from its excellent performance. HyperFlight are only stocking the Standard version, however we are also selling a Xflow Camber Wing Kit for modeller requiring both options.See this RCGroups thread on the Xflow for more info.Although few build assets are available yet the wing is identical to the Encanto and the fuselage construction is very similar, so Encanto build logs and construction videos can be used.

Xflow F5L Specifications
Wing span	2.0 m	78 in
Wing area	35.6 dm2	552 sq in
Length	135 cm	53.1 in
Flying weight from	475 g	16.8 oz
Wing loading	13.3 g/dm2	4.4 oz/sq ft
Aspect ratio	11.1
Wing airfoil	JK 9372
Dihedral (EDA)	12.2º
Spinner Diameter	25 mm
Centre of Gravity	100-107 mm from wing leading edge
Controls	Rudder, elevator, spoilers, throttle

Recommended RC
Rudder & elevator servos (2)	KST X06, CHA DS06
Spoiler servos (2)	KST X06H, CHA DS06
Receiver	5 channel receiver to match your transmitter

Motor Recommendation 1
Motor	Dualsky XM2527EG-23 1600 RPM/V
Spinner	25mm Dualsky Spinner for 3.17mm shafts
2S Prop blades	CN 9x7, Dualsky 9x6.5,
3S Prop blades	CN 8x6, Dualsky 8x5.5
ESC	Dualsky SUMMIT 30 SLIM 6V SBEC ESC, Dualsky SUMMIT 30 SLIM 8V SBEC ESC
2S Battery	400 - 800 mAh 2S LiPo
3S Battery	300 - 600 mAh 3S LiPo

Motor Recommendation 2
Motor	Dualsky XM2527EG-16 2300 RPM/V
Spinner	CN Models 25mm Spinner for 3.17mm
2S Prop blades	CN 7x4
3S Prop blades	CN 6x4, CN 7x4
ESC	Dualsky SUMMIT 30 SLIM 6V SBEC ESC, Dualsky SUMMIT 30 SLIM 8V SBEC ESC
2S Battery	400 - 800 mAh 2S LiPo
3S Battery	300 - 600 mAh 3S LiPo

Motor Recommendation 3
Motor	Dualsky XM2532EG-16 1550 RPM/V
Spinner	25mm Dualsky Spinner for 4mm shafts
2S Prop blades	CN 9x7, Dualsky 9x6.5, CN 10x6
3S Prop blades	CN 8x6, Dualsky 8.5x6
ESC	Dualsky SUMMIT 30 SLIM 6V SBEC ESC, Dualsky SUMMIT 30 SLIM 8V SBEC ESC
2S Battery	400 - 800 mAh 2S LiPo
3S Battery	300 - 600 mAh 3S LiPo

Xflow F5L Typical Weights
Total structure	350 g	12.3 oz
Receiver	6 g	0.2 oz
Rudder servo	6 g	0.2 oz
Elevator servo	6 g	0.2 oz
Spoiler servos (2)	10 g	0.4 oz
Motor	37 g	1.3 oz
Prop & spinner	9 g	0.3 oz
ESC	12 g	0.4 oz
Battery	39 g	1.4 oz
Flying weight from	475 g	16.8 oz

Manufacurer's recommended equipment:
2 x KST X06, 2 x KST X06H, Engine Dualsky XM2527EG-16 (2300KV), Reg. DS SUMMIT 30Slim.U8, Spinner CCM 25, Propeller CCM 7x4, Tattu 3S 500mAh battery.
Spinner size: 25mm (larger ones will not fit)
