PTK 7306 MG-D Servo - 2.4Kg.cm 0.06s 8.0g 7mm

Seeking a servo that balances power, accuracy, and affordability? The PTK 7306-MG-D hits that sweet spot. Almost the same size as the well-known KST X06 and with even more torque, it comes in at just over half the cost - an attractive choice for pilots wanting top-tier performance without stretching their budget.

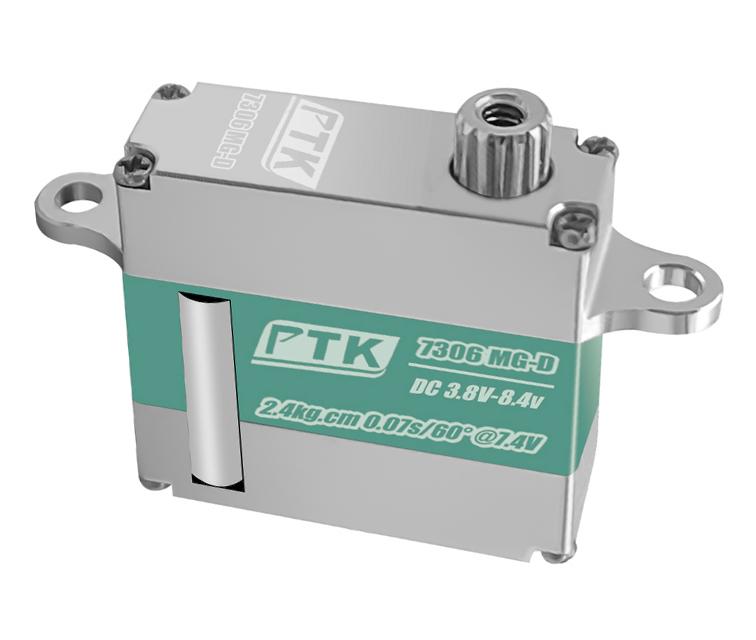

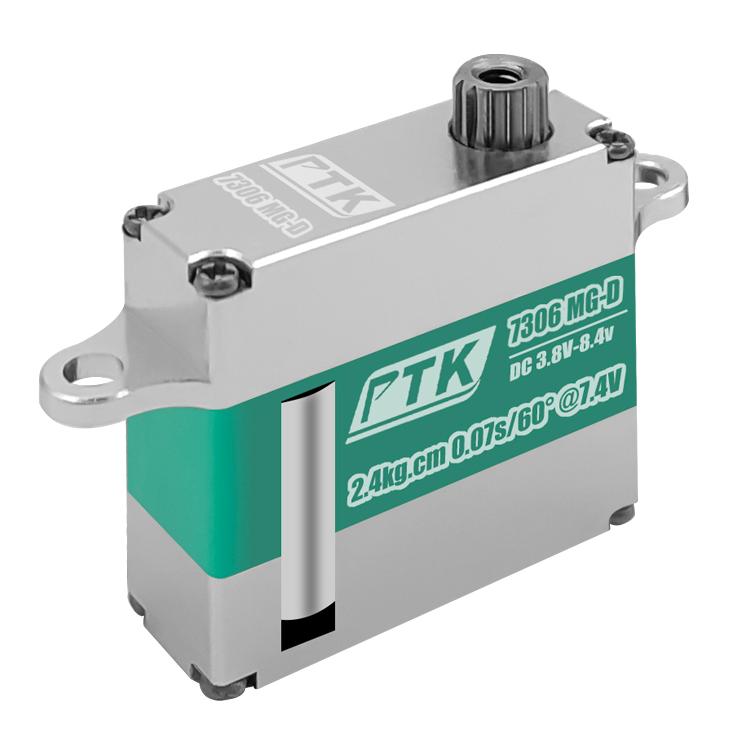

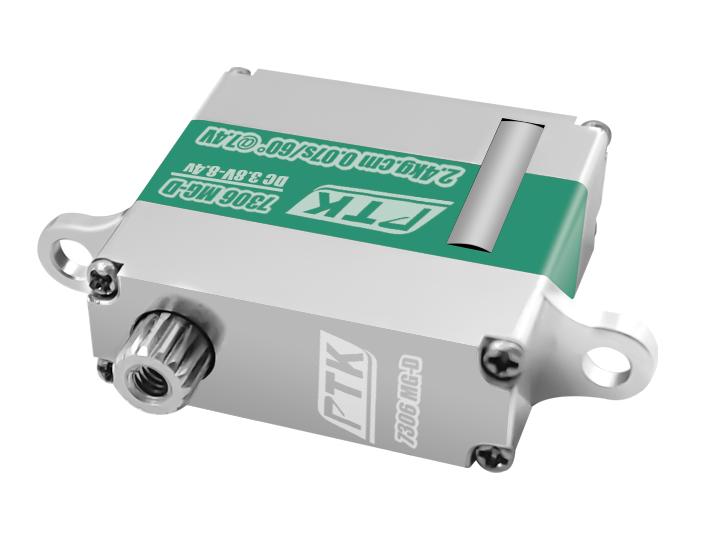

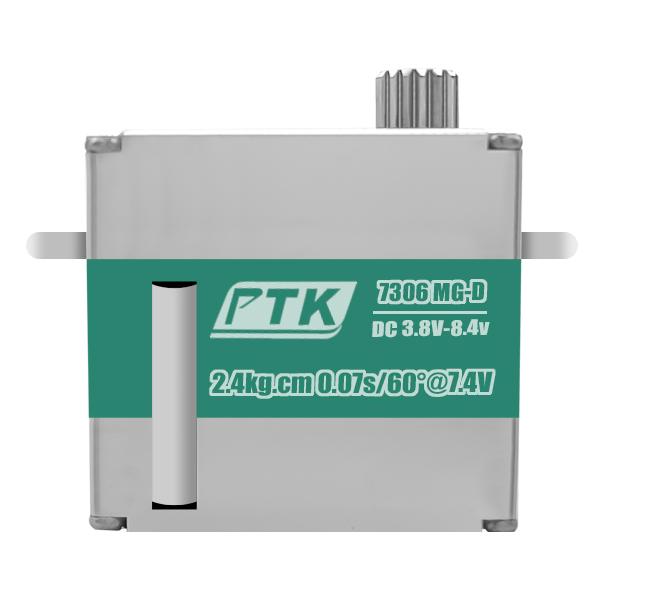

This unit features a coreless motor for quick response, stainless steel gearing for durability, and dual ball bearings for efficiency - all enclosed in a CNC-machined aluminium case. Together, these components provide ultra-smooth handling with almost no backlash, ensuring dependable precision in the air.

A highlight of this servo is its impressive travel capacity: up to 180° with a 500–2500 µs signal range. This broad movement makes it easier to fine-tune linkages and achieve better mechanical leverage in your setup.

With a 15T-4 output spline, the PTK 7306-MG-D works seamlessly with KST X06, KST X08, and CHA DS06 accessories—including the Pulley for KST X08 & X06 Servos - making it an excellent fit for DLGs and other pull-spring control system applications.

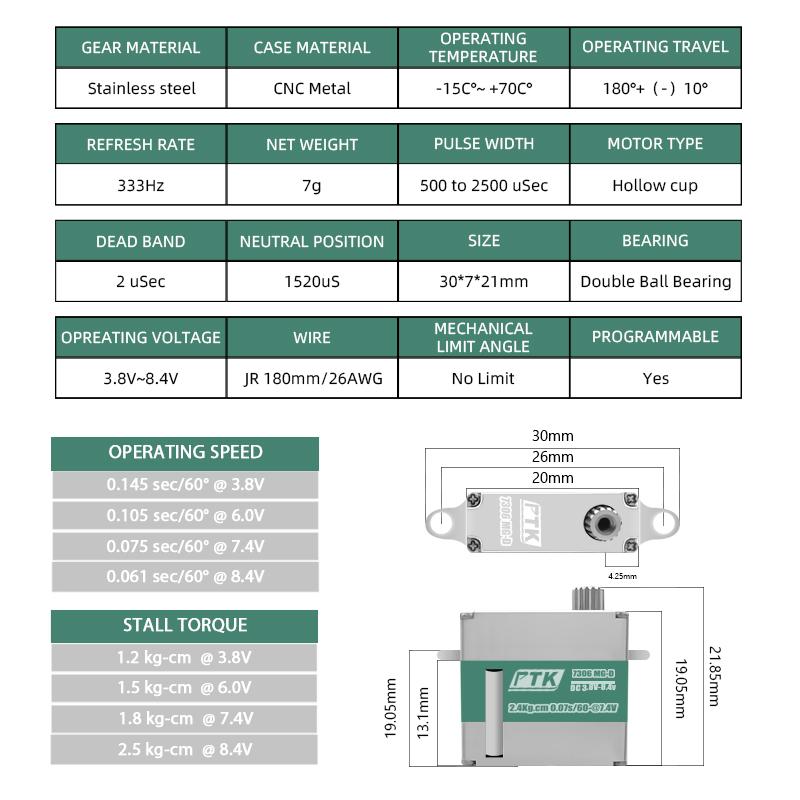

PTK 7306 MG-D Servo Specifications

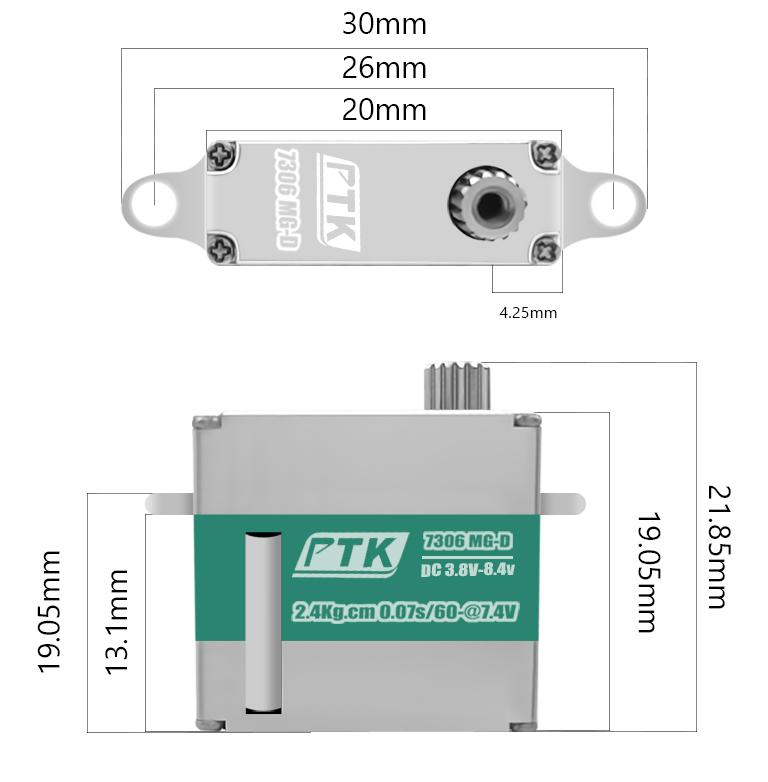

Body dimensions	20.0 mm wide x 7.0 mm thick x 19.0 mm high	0.79" wide x 0.28" thick x 0.75" high
Max dimensions	28.0 mm wide x 7.0 mm thick x 22.0 mm high	1.10" wide x 0.28" thick x 0.87" high
Stall torque (3.8V)	1.2 Kg.cm	17 oz.in
Stall torque (6V)	1.5 Kg.cm	21 oz.in
Stall torque (8.4V)	2.4 Kg.cm	33 oz.in
Weight	8 g	0.28 oz
Lead length	16 cm	6.3 in
Operating speed (3.8V)	0.145 sec/60°
Operating speed (6V)	0.105 sec/60°
Operating speed (8.4V)	0.061 sec/60°
Operating voltage	3.8V to 8.4V
Operating temperature	-15 to +70 °C
Bearings	2 ball bearings
Gear material	Stainless steel
Case material	Aluminium
Motor type	Coreless
Working frequency	333 Hz
Dead band/resolution	3 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

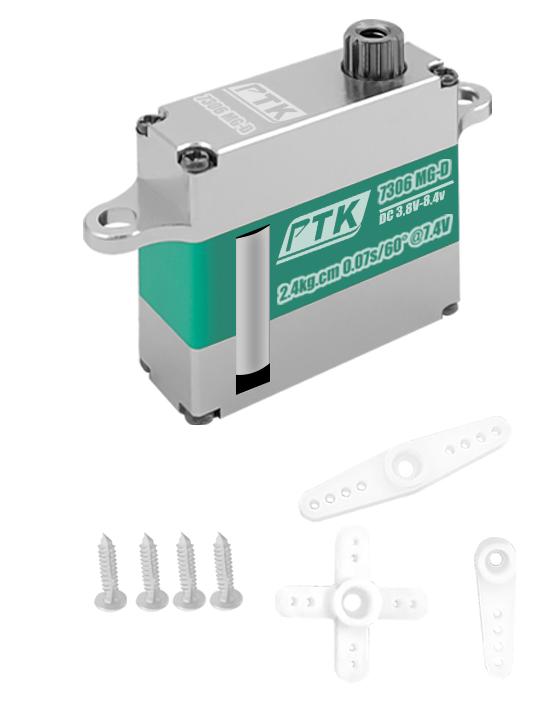

Supplied accessories	3 plastic output arms, 4 mounting screws, 1 arm retaining screw
Optional accessories	KST X06 Arm Set, Aluminium Output Arm for CHA DS06, Pulley For KST X08 & X06
