Electric DLG CNC Motor Mount for CN 25mm Spinners

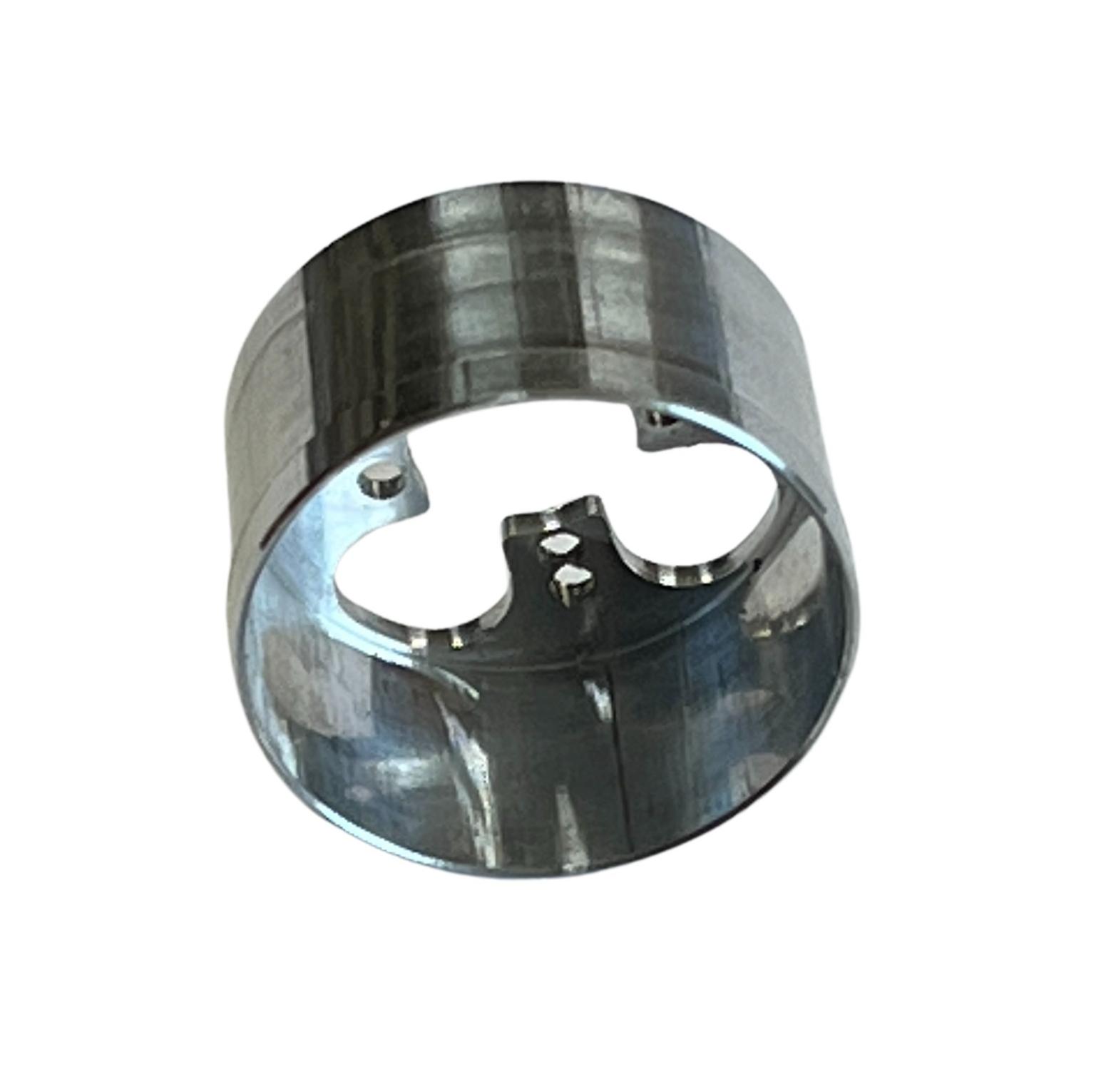

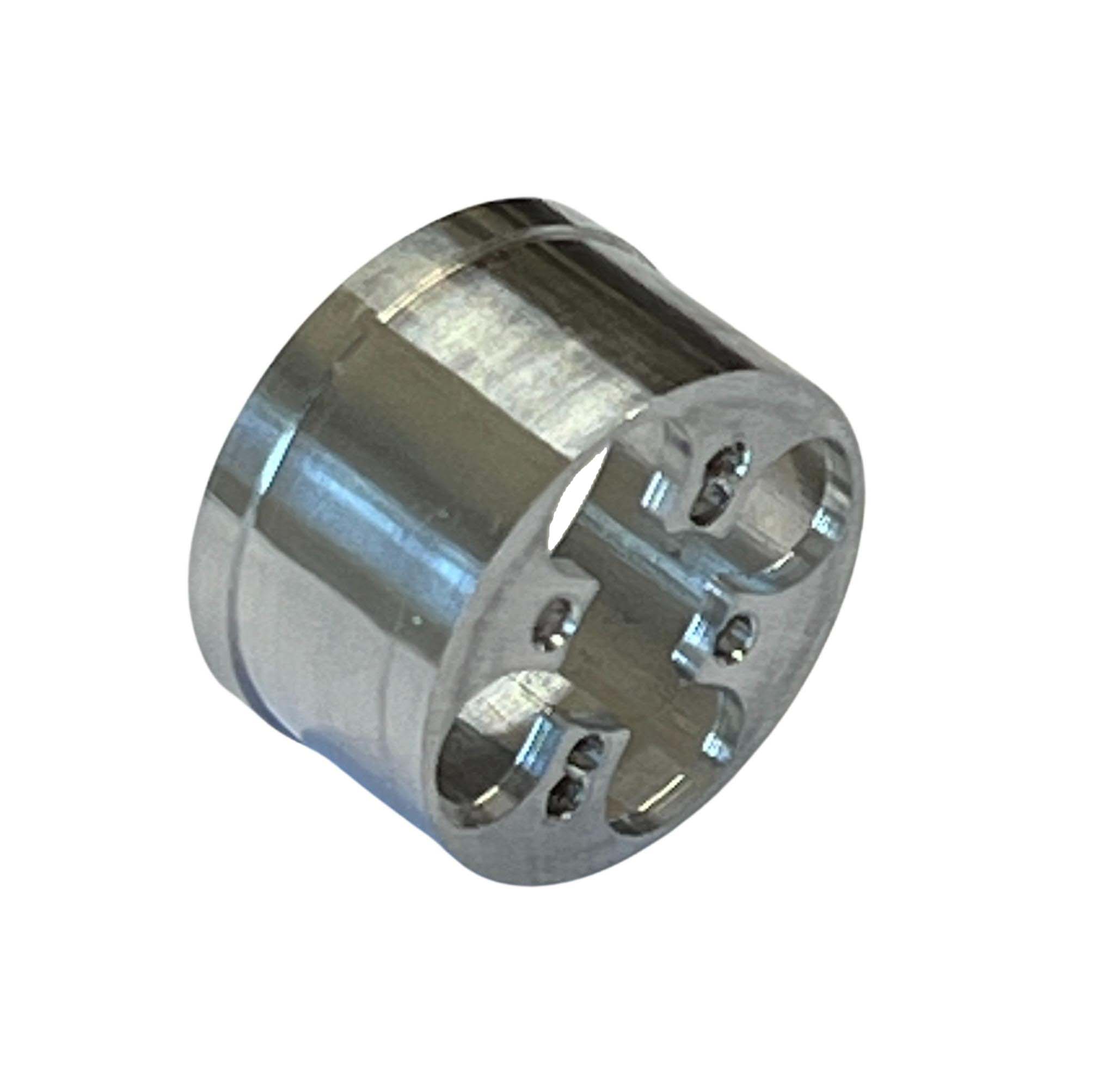

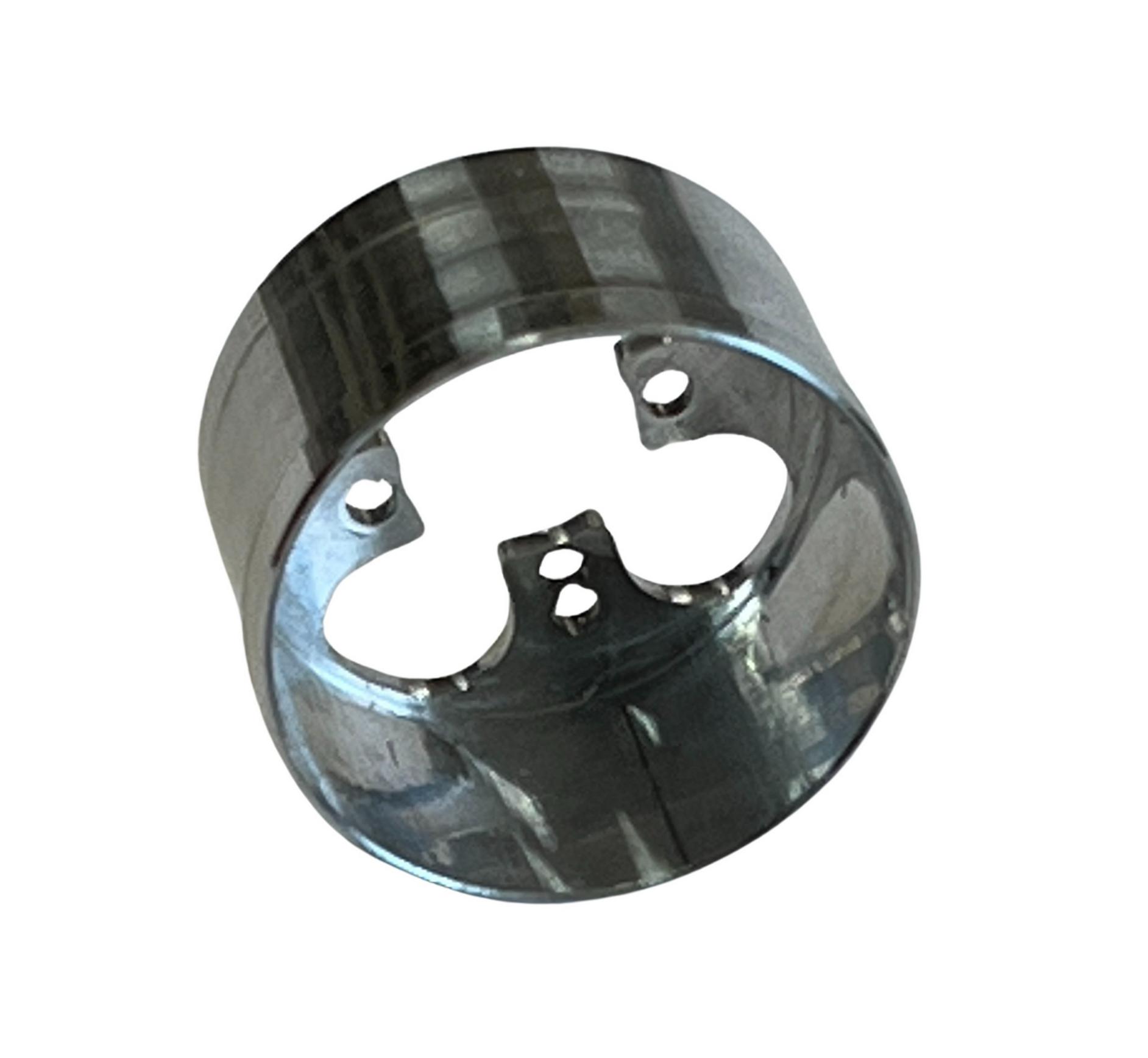

The PNC Innovations 25 mm Electric DLG Motor Mount for CN 25mm Spinners is a beautifully CNC machined motor mount for securely attaching 1805 and 1806 sized drone outrunner motors to discus launched glider and F5K fuselages.

The mount is recessed to allow the outrunner motor to be fitted within the firewall, and the front aligns closely with CN 25mm spinners.

The mount has 4 M2 holes on a 12 mm diameter circle plus 2 on a 16 mm diameter.

Electric DLG CNC Motor Mount for CN Spinners
Fuselage outside diameter	25.0 mm
Fuselage internal diameter	24.5 mm
Mount Internal diameter	23.9 mm
Depth from front to front of rear face	11.5 mm
Predrilled holes A	4 holes on a 12 mm circle
Predrilled holes B	2 holes on a 16 mm circle
Motor mounting hole diameter	2 mm
Weight	1.5 g

These mounts are:

• Easy to install.
• Very strong.
• Superb machining.
• They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.
