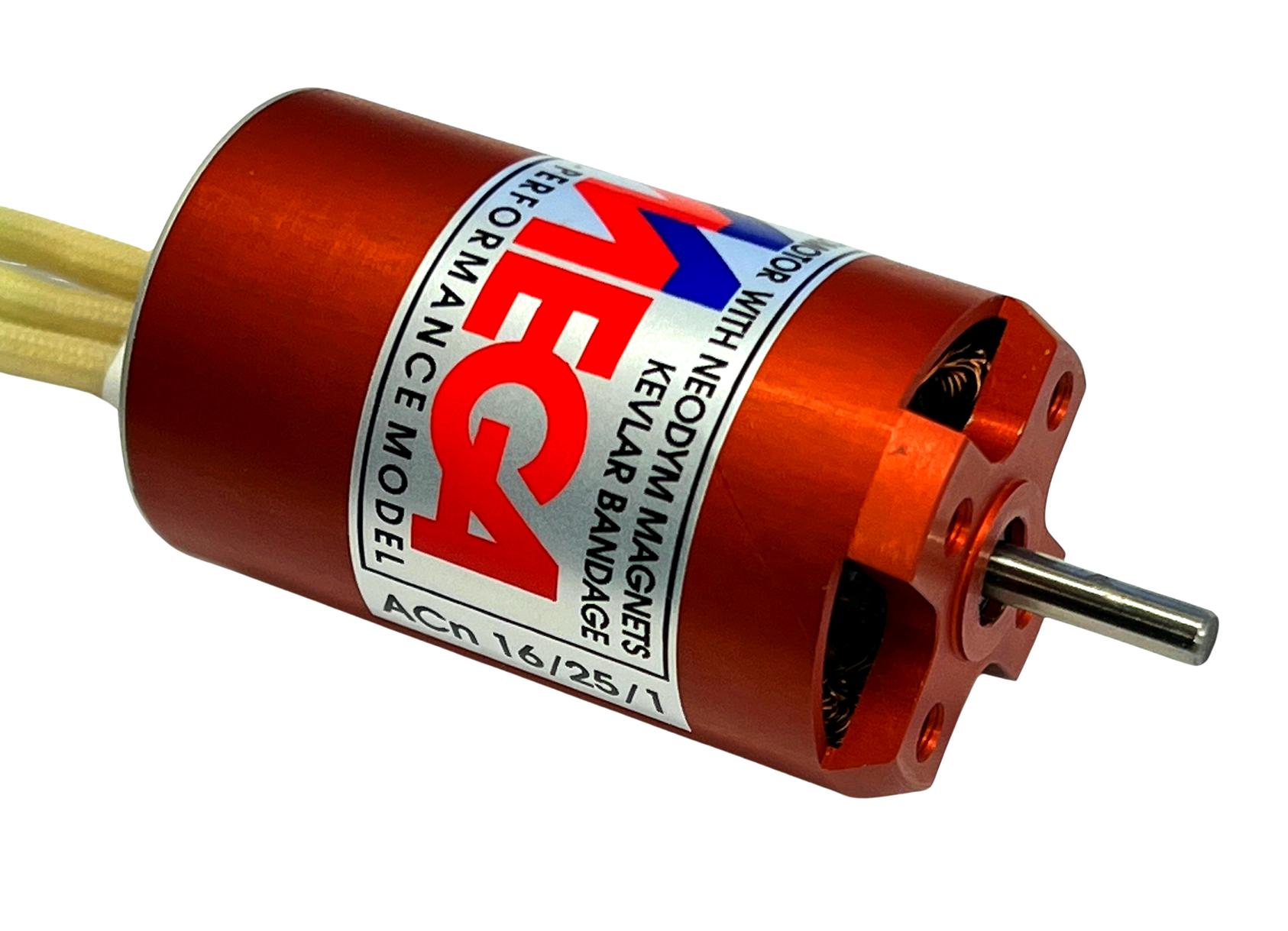

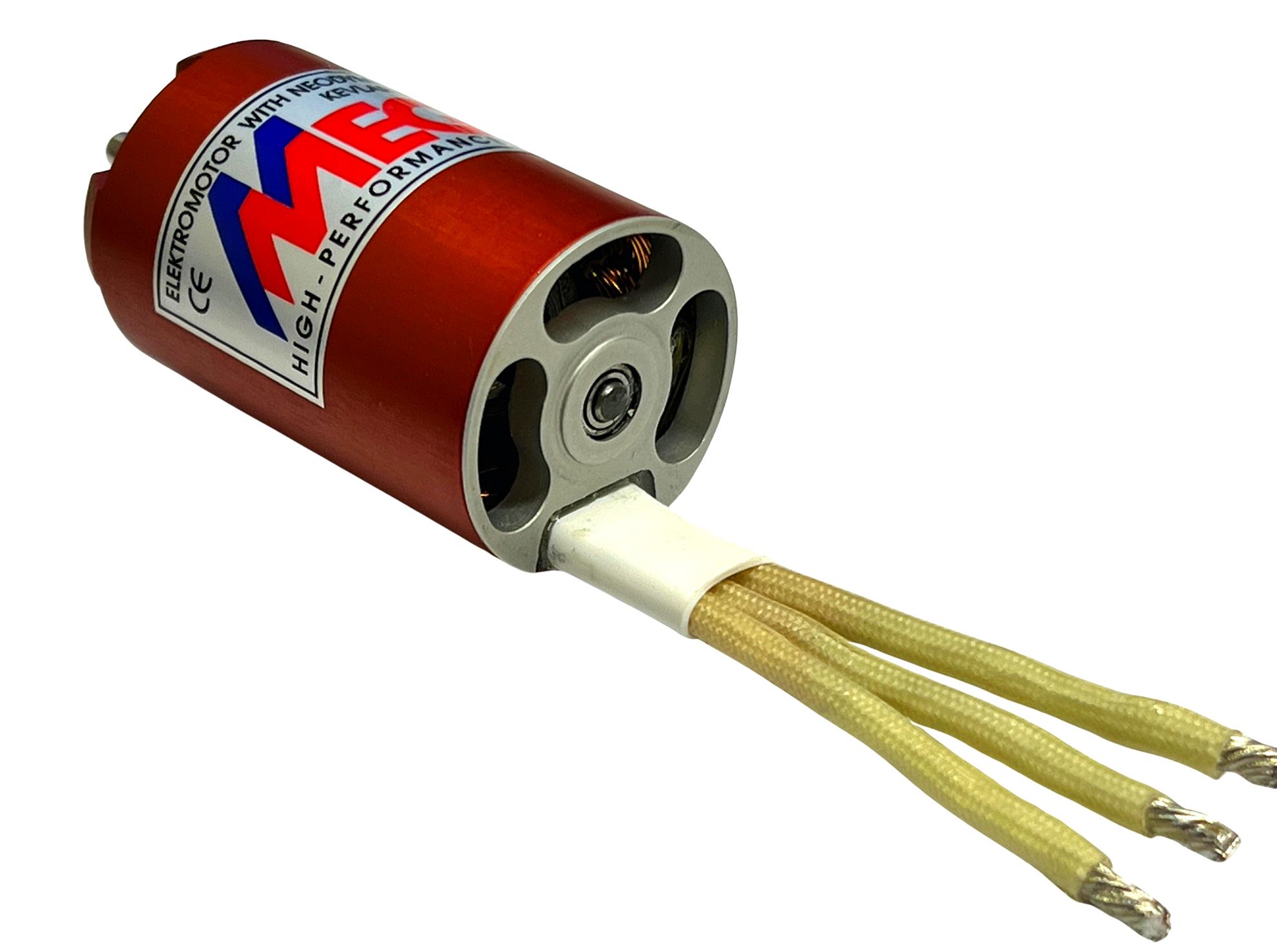

Mega 16/25/1 Raceline 5100 RPM/V 113g Inrunner

The Mega 16/25/1 Raceline Brushless Motor is a longer Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.

Mega Raceline motors are designed for high rpm applications with a new single piece lightened case, better cooling and ventilation and new special low-loss material. This results in lower iron losses, better efficiency, and less heating than the standard motors so they can be overloaded for longer time.

• Hardened steel shaft, diameter 3.2 mm.
• Two precise ball bearings
• Dynamically balanced
• Neodymium magnet rotor
• Handmade stator, lightweight rotor allows high revolution.
• Kevlar bandage rotor
• Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
• Efficiency up to 91%

Mega 16/25/1 Specifications
Motor name	Mega 16/25/1	inrunner
Motor weight	113.0 g	3.99 oz
Motor diameter	28.0 mm	1.10 in
Motor length	46.0 mm	1.81 in
Lead length	5.0 cm	1.97 in
Shaft diameter	3.2 mm	0.12 in
Mounting info	2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm	4 mR
Estimated Kv	5100 RPM/V
Estimated Io	4.80 A @ 10 V
Max efficiency (10 V)	91 % @ 110 A
Motor Km	29.6 Nm/W^.5 X1000
Motor Km/Kg	262 Nm/(W^.5 Kg)
Recommended battery	2S - 3S LiPo
Rec max LiPo capacity	2 Ah
