KST X20 Brushless Servo Combo - X20-2208 + X20-1035 Set

Indoductory Offer - save 10%

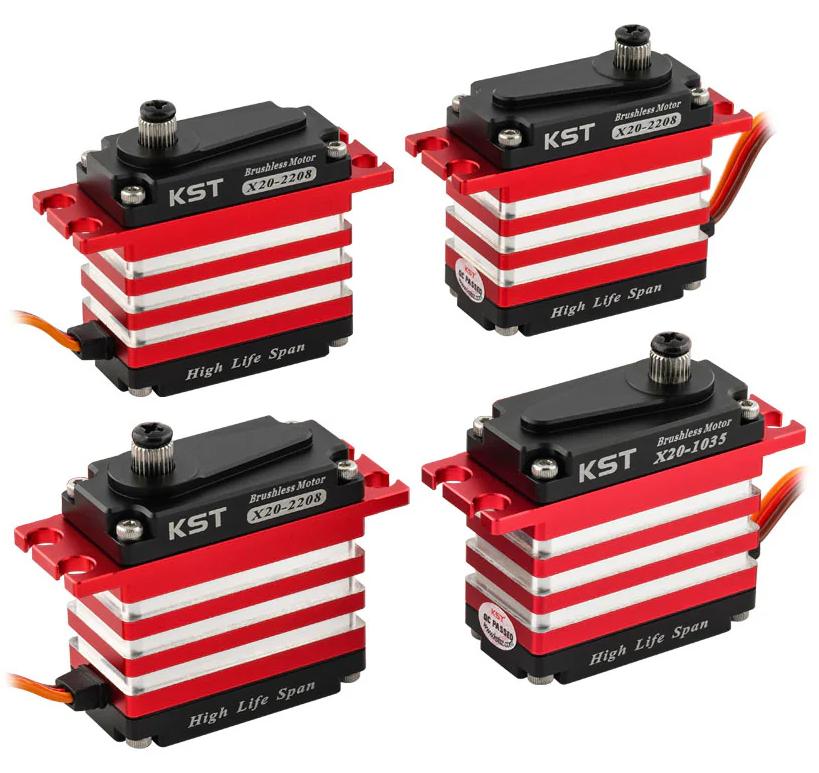

The KST X20 Brushless Servo Combo set consists of three X20-2208 V8.0 Cyclic servos and one X20-1035 V3.0 Tail servo. The X20 Servos feature brushless motors, full CNC aluminum cases, and a complete set of hardened steel High Life Span (HLS) gears throughout each servo. These HV servos are engineered to give you ultimate control power, speed and precision.

Each gearbox is equipped with 6 ball bearings to maintain a slop-free gear train. The cyclic servos boast an incredible 25 Kg.cm (2.5N.m) of torque at 8.4V, and a crisp 0.07 second speed. The tail servo offers 1.2N.m (12 Kg.cm) of torque at a blistering fast 0.03 second speed at 8.4V.

Features

• Brushless DC motor
• Extreme torque and Excellent speed
• Hardened steel gears
• 6 Ball bearings

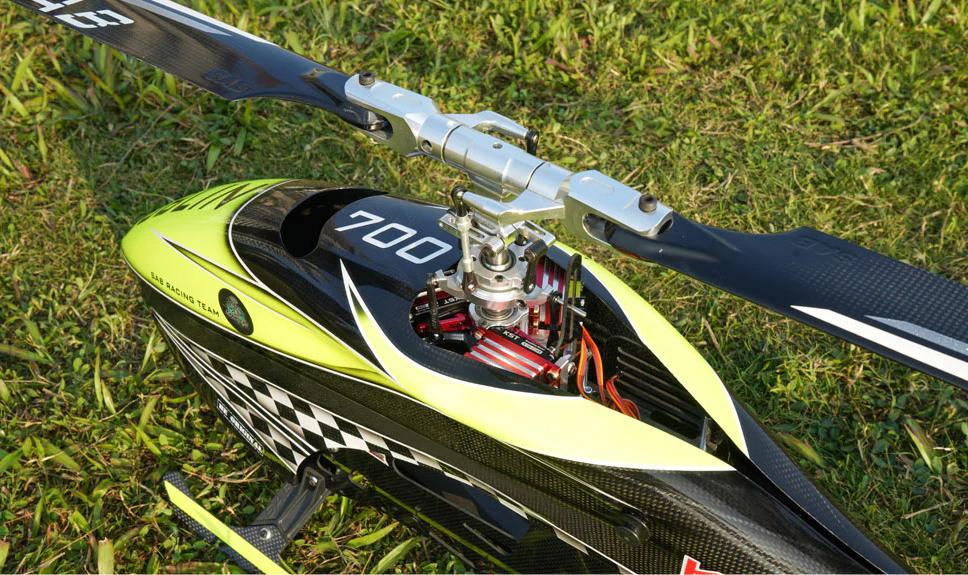

• Ideal for 500, 600, 700 and 800 Class EP/GP Helicopters

KST X20-2208 Specification
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 18 Kg.cm@6.0V, 22 Kg.cm@7.4V, 25 Kg.cm@8.4V
Torque: 1.8N.m@6.0V, 2.2N.m@7.4V, 2.5N.m@8.4V
Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50°=100°Total
Temperature Range: -10°C to 65°C
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel (HLS)
Position Sensor: Potentiometer
Case Dimensions: 40mm*20mm*40mm±0.2mm
Weight: 72g±10%
Ball Bearing: 6 BB

KST X20-1035 Specification
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 9 Kg.cm@6.0V, 11 Kg.cm@7.4V, 12 Kg.cm@8.4V
Torque: 0.9N.m@6.0V, 1.1N.m@7.4V, 1.2N.m@8.4V
Speed: 0.040sec/60°@6.0V, 0.035sec/60°@7.4V, 0.030sec/60°@8.4V
Working Frequency: 760us/560Hz
Temperature Range: -10°C to 65°C
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel (HLS)
Position Sensor: Potentiometer
Case Dimensions: 40mm*20mm*40mm±0.2mm
Weight: 72g±10%

Package Includes
3 * X20-2208 V8.0
1 * X20-1035 V3.0
4 * CNC Servo Horn
20 * Plastic Servo Horn
16 * Grommets
