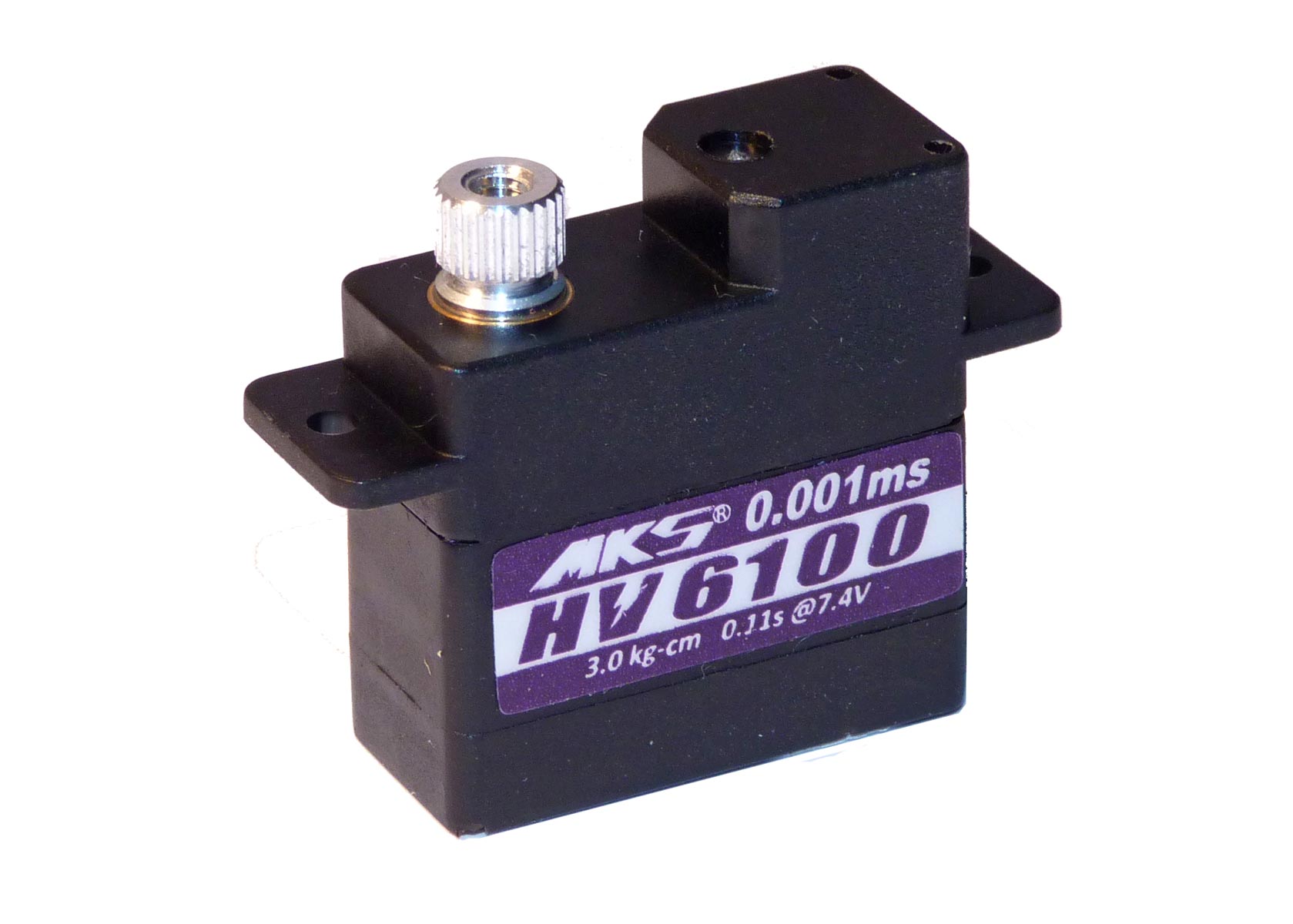

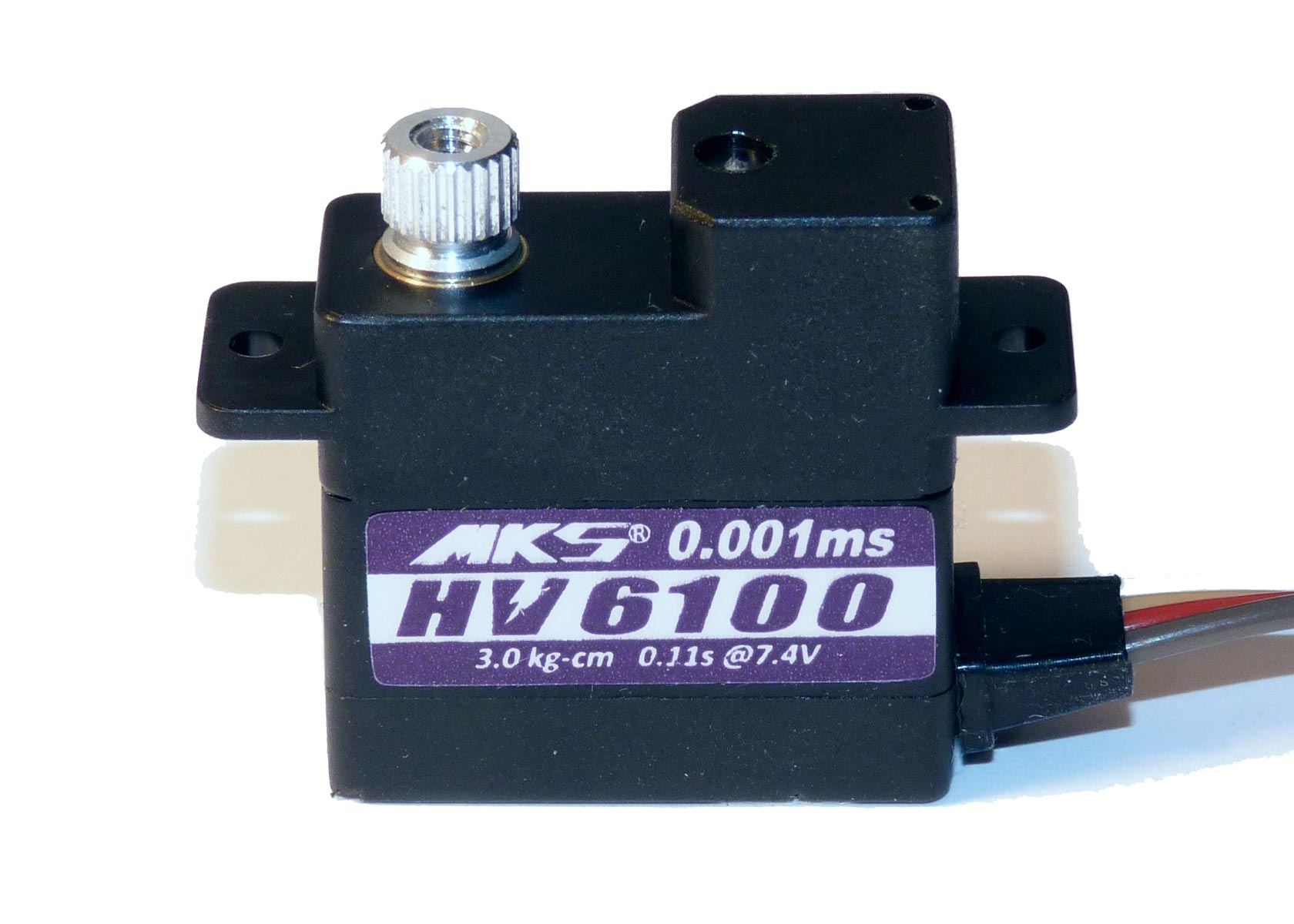

MKS HV6100 Servo - 3.4Kg.cm 0.10s 9.8g 10mm

Product Code: MKS-HV6100
 (30 reviews)

Price: $47.11

More than 10 in stock
Add to basket to see shipping cost
Quantity

Description

The MKS HV6100 is a high voltage version of the acclaimed DS6100. It is specially optimised for glider fliers, with excellent torque, precision and a very low deadband. On a 2S LiPo battery it has higher torque and speed than the DS6100. It is a very high torque thin 10g servo suitable for many wing and fuselage applications. It has more torque and a better geartrain than all other high voltage servos of this size and price range.

At only 10mm thick this superb wing-servo can easily fit in thin wings, but with a low height of 23.5mm it can also fit in DLG and other small fuselages. With good 3.4 kg.cm torque and a blistering 0.10s/60° speed it is excellent for flaps, ailerons, elevator and rudder on many high performance gliders, DLGs, electric gliders, and faster sport slopers.



MKS HV6100 Servo Specifications

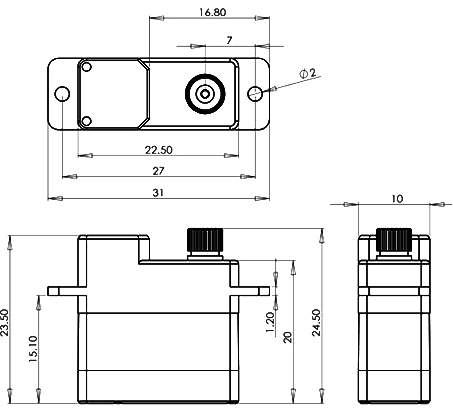

Body dimensions 22.5 mm wide x 10.0 mm thick x 23.5 mm high 0.89" wide x 0.39" thick x 0.93" high
Max dimensions 31.0 mm wide x 10.0 mm thick x 24.5 mm high 1.22" wide x 0.39" thick x 0.96" high
Stall torque (6V) 2.6 Kg.cm 36 oz.in
Stall torque (7.4V) 3 Kg.cm 42 oz.in
Stall torque (8.2V) 3.4 Kg.cm 47 oz.in
Weight 9.8 g 0.35 oz
Lead length 18 cm 7.1 in
Operating speed (6V) 0.14 sec/60°
Operating speed (7.4V) 0.11 sec/60°
Operating speed (8.2V) 0.1 sec/60°
Operating voltage 6V to 8.2V
Operating temperature -10 to 50 °C
Bearings 2 jewel bearings + 1 bronze bush
Gear material Aluminium-magnesium alloy
Case material Nylon
Motor type Coreless DC motor
Working frequency 333 Hz
Dead band/resolution 1 µs
Pulse width for ± 60º µs
Digital Yes
Programmable No
Position feedback Direct drive potentiometer

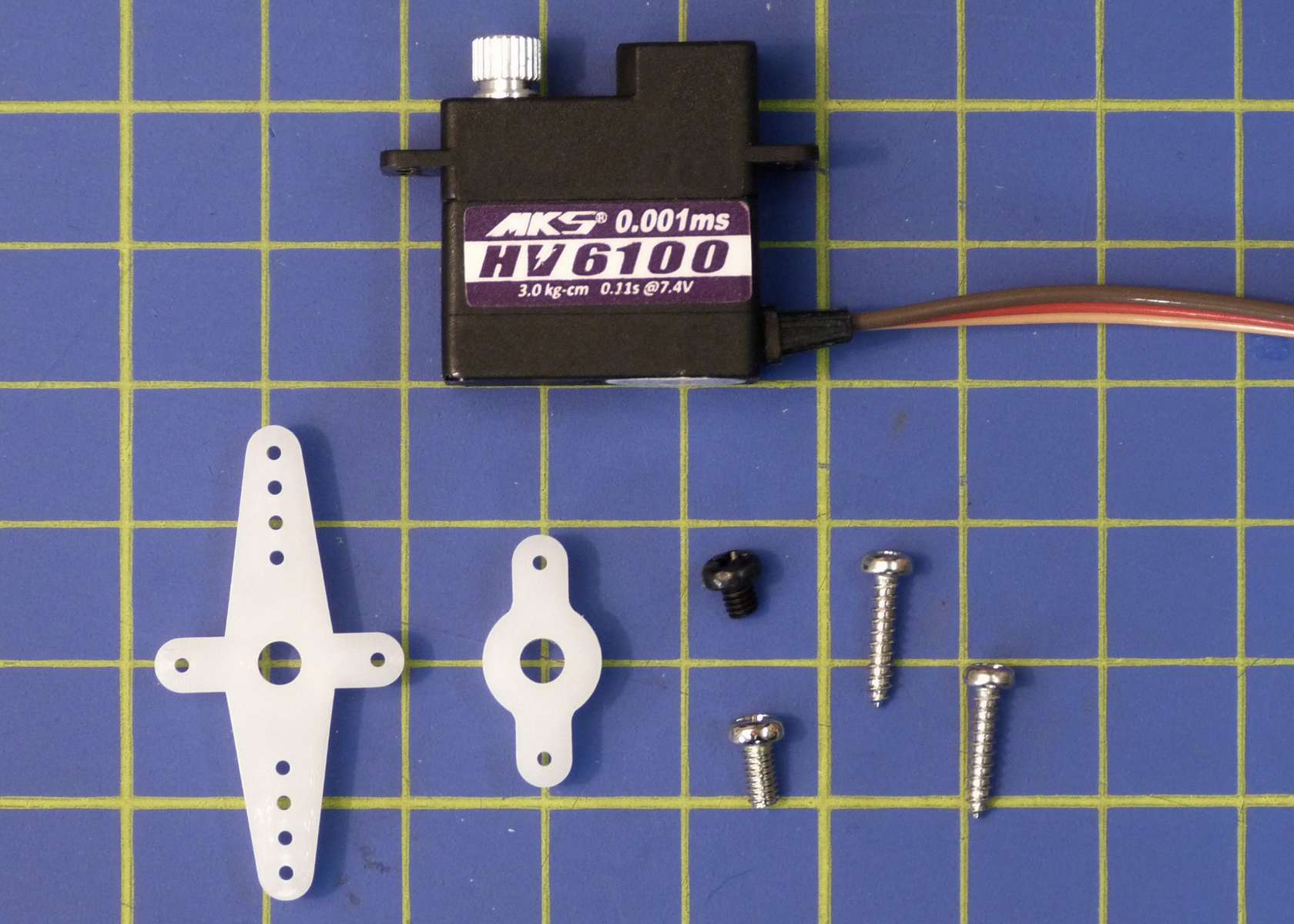

Supplied accessories 2 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories Ply frame for MKS DS6100, Frame with bearing for the MKS DS6100, Integrated Drive System/Mono for MKS DS6100, MKS Plastic Servo Output Arms, MKS Heavy Duty Plastic, MKS Short Metal Servo Output, MKS Long Metal Servo Output Arms, Replacement Gear Set for M

Reviews 30


 Review by:

I ordered the low voltage version by mistake. Neil was kind to allow me to return them for a full refund. Ordered the HV version which are great servos.


 Review by:

These servos are quite simply the best you can buy for this size, and their available in 5volt and 8.4volt, I would not trust anything else.


 Review by:

MKS HV6100

Really quick delivery, as always. Great service!


 Review by:

Hv6100 servo

HV6100 servo great servo, and excellent service as usual from Hyperflight


 Review by:

MKS HV6100 Servo

Great servo. Fast delivery.
Always an easy transaction at Hyperflight.


 Review by:

MKS are the best!

Great servos, great service as expected.


 Review by:

Excellent servos

One of my favourite servos. Small yet powerful with no backlash.


 Review by:

Precise.

I am quite the fan. My preferred servo due to size, precision and resolution.


 Review by:

HV 6100

I am using them in all my F5J gliders. In servo frames in the wing and mounting trays in the fuse. They have been reliable as to centering and longevity. I use them on flaps but if you drag a flap on landing they will fail. HV6130 is a better choice according to MKS but more expensive. I look at it like a race car and tires. If a problem pull it out and put in a new one. They are not that expensive.


 Review by:

MKS HV6100 Servo

Prompt shipping as always.
Servos working on both 4 cell NiMh and 2S Li-Ion.
Plug and play for non HV.


 Review by:

A thank you to Neil for tolerating the fact I ordered the wrong servos, sorting out the credit for the returned servos and sending on the correct servos......all in under a week.


 Review by:

Great servos for F5J sailplanes.
Great service from Neil.
Highly recommend both.


 Review by:

Best servo for light glider and fast service from Neil. Thank you


 Review by:

Best servo for light glider and fast service from Neil. Thank you


 Review by:

Perfect servo

Perfect servo for F5J gliders, fast and powerful enough at 5.5 V. Is a standard for ail, elevator and rudder.


 Review by:

very good servos

Great for tight space, precise and good quality.
Great service and communication from Neil.
Highly recommends servos and service!


 Review by:

Purtroppo non li ho ancora ricevuti


 Review by:

Servos for F5J ship

Great servos for light & up to balasted F5J sailplanes.
Great service from Neil.
Highly recommend both.


 Review by:

Excellent service as always and am amazed with the power from these little servoes, just a shame the raised block on the top can get in the way of control horns on some installations.


 Review by:

F5J

Purchased four of these for my Xplorer F5J, for the ailerons, rudder and elevator and they have performed beyond expectations. Only issue is noise :-) These are noisy servos, probably the noisiest I have ever heard, but they centre perfectly and are an excellent choice for high performance gilders.

I would highly recommend these.


 Review by:

Top servo

Very nice, slop free, powerful servo!


 Review by:

high quality, worth it

I've been a 6100 fan for a yr now, (tried the KST substitute first for a while, not happy). These are light, tough, and nicely all boxed in (i'm not a fan of micro servos that have wires exposed). Only minor complaint is that for me, the HV version of the 6100 gives off ,periodically, a static noise, never experienced that with the standard 6100, I'm using these with a LiFe battery for the receiver.


 Review by:

Very robuust and powerfull servo.
Use it on flaps for f5j


 Review by:

good servo's

Very nice and precise servo's
Quicker than the non hv ds6100 servo's
No slop at all! Very happy!


 Review by:

The service was excellent and the shipping quite fast. The only negative item was, that your e- mails were nearly unreadable.

Best regards- Franz Bullmann


 Review by:

MKS HV6100 & Vladimir's Supra Expert LDS mount set

This combination should fit into just about any tight F3X fuselage. It's an overkill for what I'm doing, converting an old F3J model to F5J for a practice hack, however the LDS mount set is the only way I can see to make it happen in the fuselage space available.


 Review by:

MKS HV6100 Servo - 10mm 10g 3.4Kg.cm

Bought to replace a faulty unit, but a nice, quick, strong servo.


 Review by:

Excellent little servo. Fast, powerful and accurate. Only slight criticism is that the raised casing behind the output arm interferes with the pushrods when trying to install two diagonally in a narrow F5J fuz. I had to install them in tandem with some complicated mounting arrangements.


 Review by:

These really are a great little servo - tuck in virtually anywhere.
and if your running a Rx that can handle higher volt supply and you are running these with long cables there just the job


 Review by:

MKS HV6100

Even faster than the normal DS6100, very precise, zero slop. My choice for F3X gliders with narrow fuse, on v-tail where absolute precision is needed for minimal throw and trim adjustments!
