Mini-Graphite-e Hotliner
|
 4 reviews / write a review
Write a product review and get £5
|
| Code: |
MINI-GRAPHITE-E |
| Description: |
The Vladimir's Models Mini Graphite-e is a 1.9m super fast, fully moulded hotliner for sport and competition flying. The design gives excellent performance as a fast electric glider and as an all weather thermal soarer. The Mini Graphite is very happy at high speed aerobatics, yet also slows down well and thermals like a much larger model. Its well-balanced flight performance and excellent thermal soaring capability make it and outstanding model.
The fuselage and removable nose cone are constructed from a specially woven carbon/kevlar cloth producing an extremely strong yet light fuselage. The MH32 section hollow moulded wings have carbon spars and curved wing tips, which improve the flight performance and add to the sleek appearance of the model. The model is easily transported with its two-piece wings and removable V tail.
The underwing fuse opening is 34mm > 27mm x 85mm (big enough for a 3S 2.2ah LiPo). By removing the nosecone a suitable 4S 2.2ah or 3S 3.3ah LiPo battery can be fitted.
See this RCGroups Mini Graphite-e build thead for building tips and flight reports.
Download our Mini Graphite Assembly Guide (4mb) to see how easily and quickly the Mini Graphite goes together.
Specifications
Wing span: 1.9m (75 in)
Wing area: 41.5dm2 (643 sq in)
Length: 1.160m (46 in)
Typical flying weight: 1278g (45 oz)
Wing loading: 30.8g/dm2 (10.3 oz/sq ft)
Wing airfoil: MH32
Tail airfoil: NACA 63A 007
Spinner size: 38mm
Firewall to wing LE distance: 225mm (max folding prop approx 19")
Controls: Elevator, rudder, flaps, ailerons
Centre of Gravity: 98-102mm from wing leading edge
Recommended Control Throws & Mixes
Ailerons: 20mm up / 8mm down
Aileron-crow brakes: 12mm up
Ailerons thermal: 2mm down
Ailerons speed: 1.5mm up
Flap Crow brakes: 70-80 degrees down
Flap thermal: 3 mm down
Flap speed 2 mm up
Rudder 10mm up / 10mm down
Elevator 9mm up / 9mm down
Elevator crow brake mix: 3-4mm down
Elavator thermal mix: 1mm up
Elevator speed mix: 1.5mm down
Recommended R/C
Tail servos: Ripmax SD100 or Ripmax SD150/Dymond D60
Flap servos: HS85 MG, HS82 MG or Futaba S3150
Aileron servos: HS81, Ripmax SD150, Dymond D60
Receiver: Schulze 835
Typical Weights
Fuselage: 147g
Wing: 524g
V tail: 57g
Accessories: 40g
Total structure: 768g (27.1oz)
Lightweight hotliner setup:
R/C: 100g
Motor & gearbox: 140g
Prop 35g
Speed Controller: 35g
Battery (3S 2ah LiPo): 150g
Cables & leads: 50g
Est AUW: 1278g (45oz) |
| More Details: |

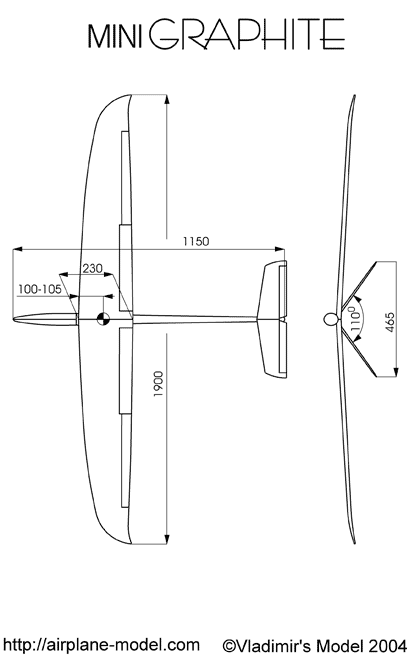

graphitemini-plan [14kb]
|
| Price: |
£335.00
|
| Quantity: |
|
 |
2 in stock |
|
|
|
| |
|
 |
