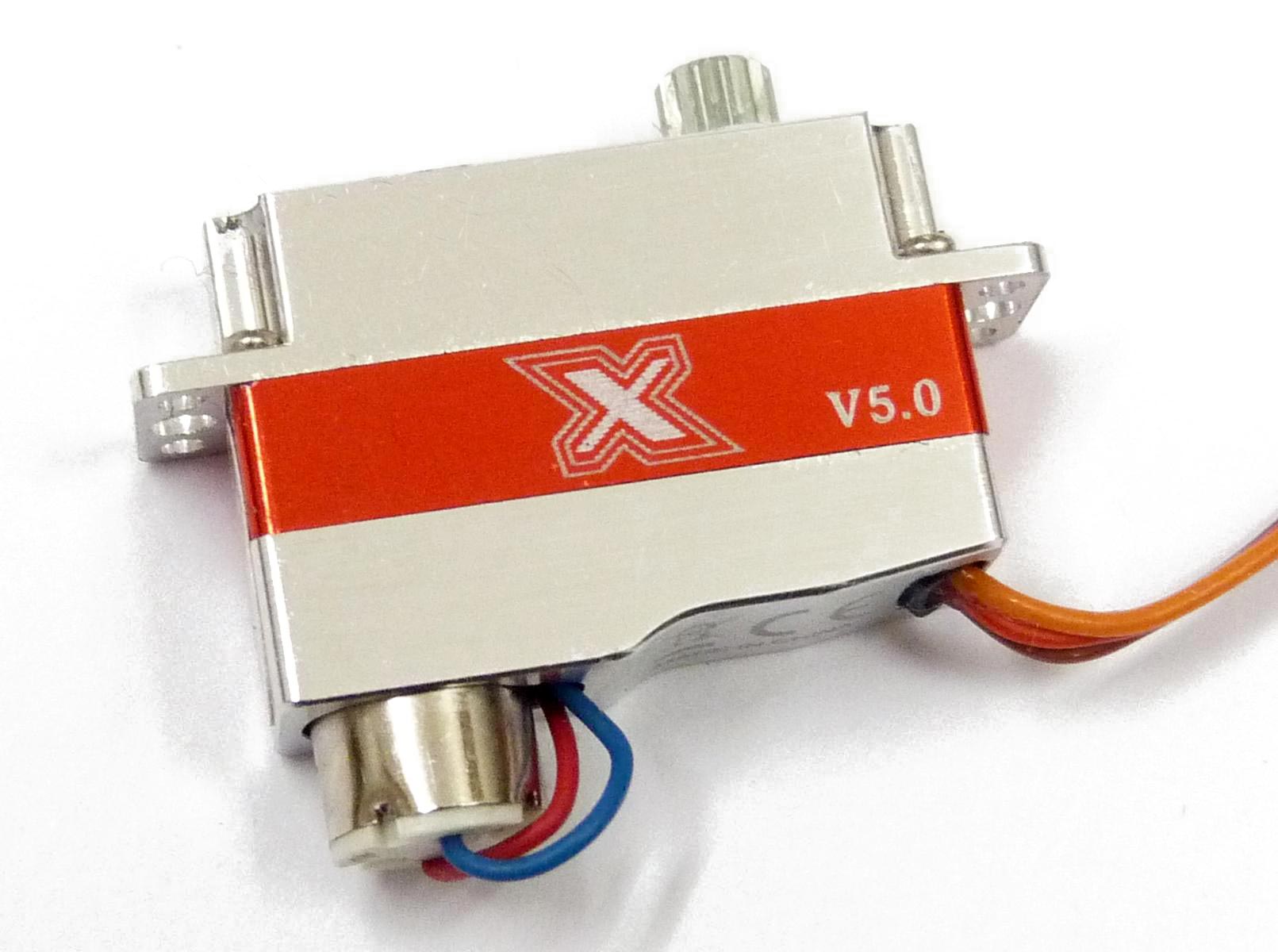

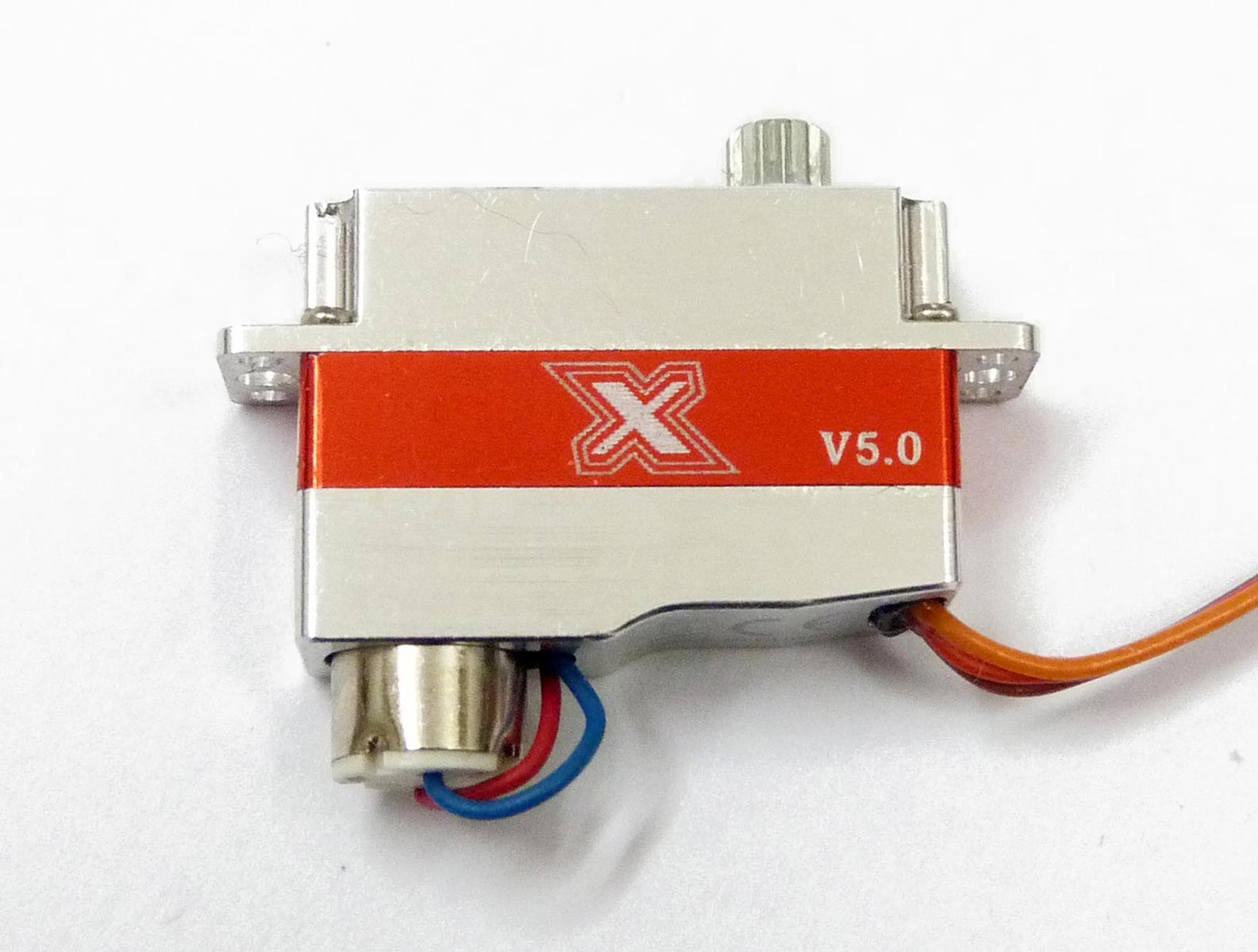

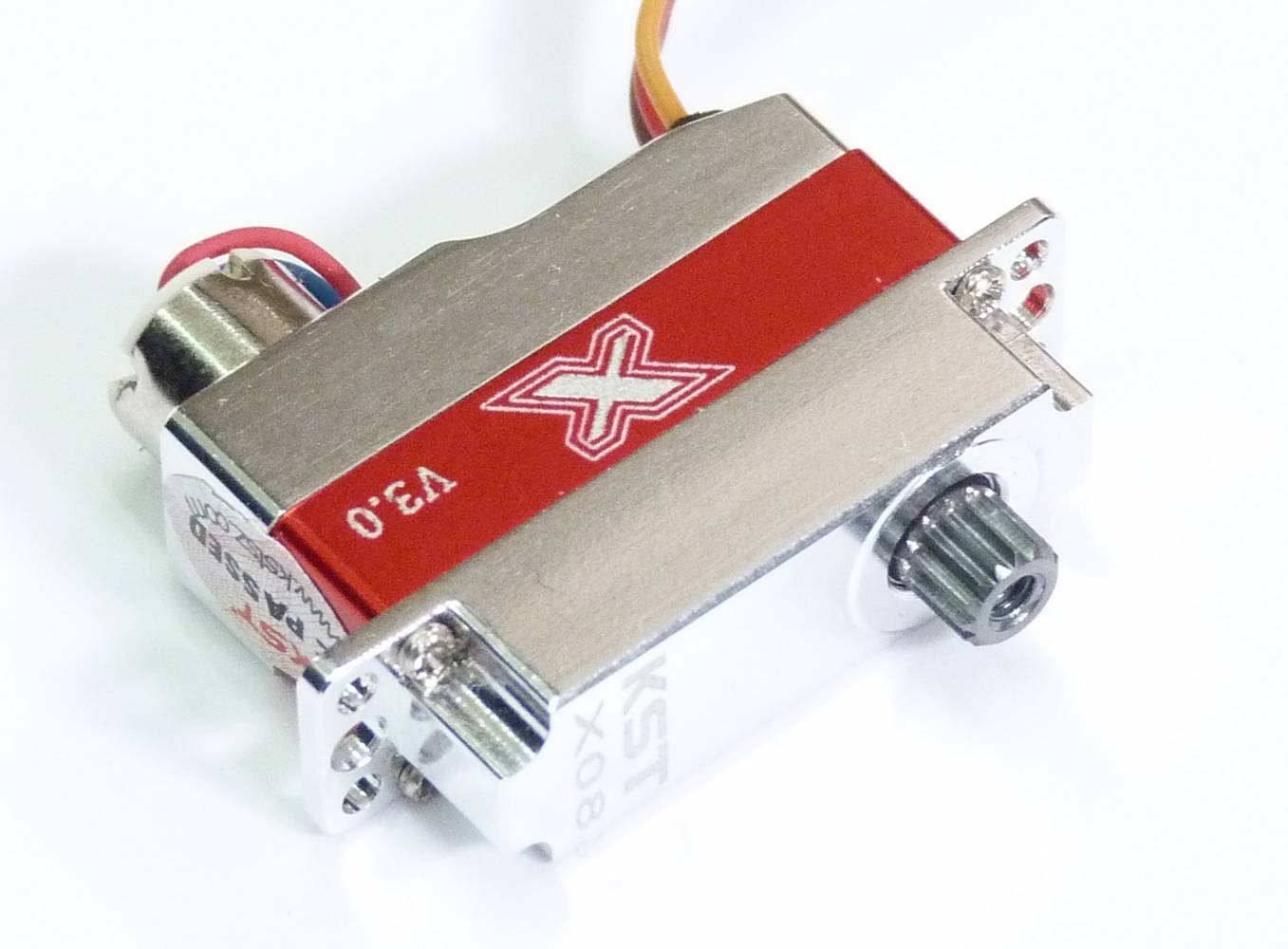

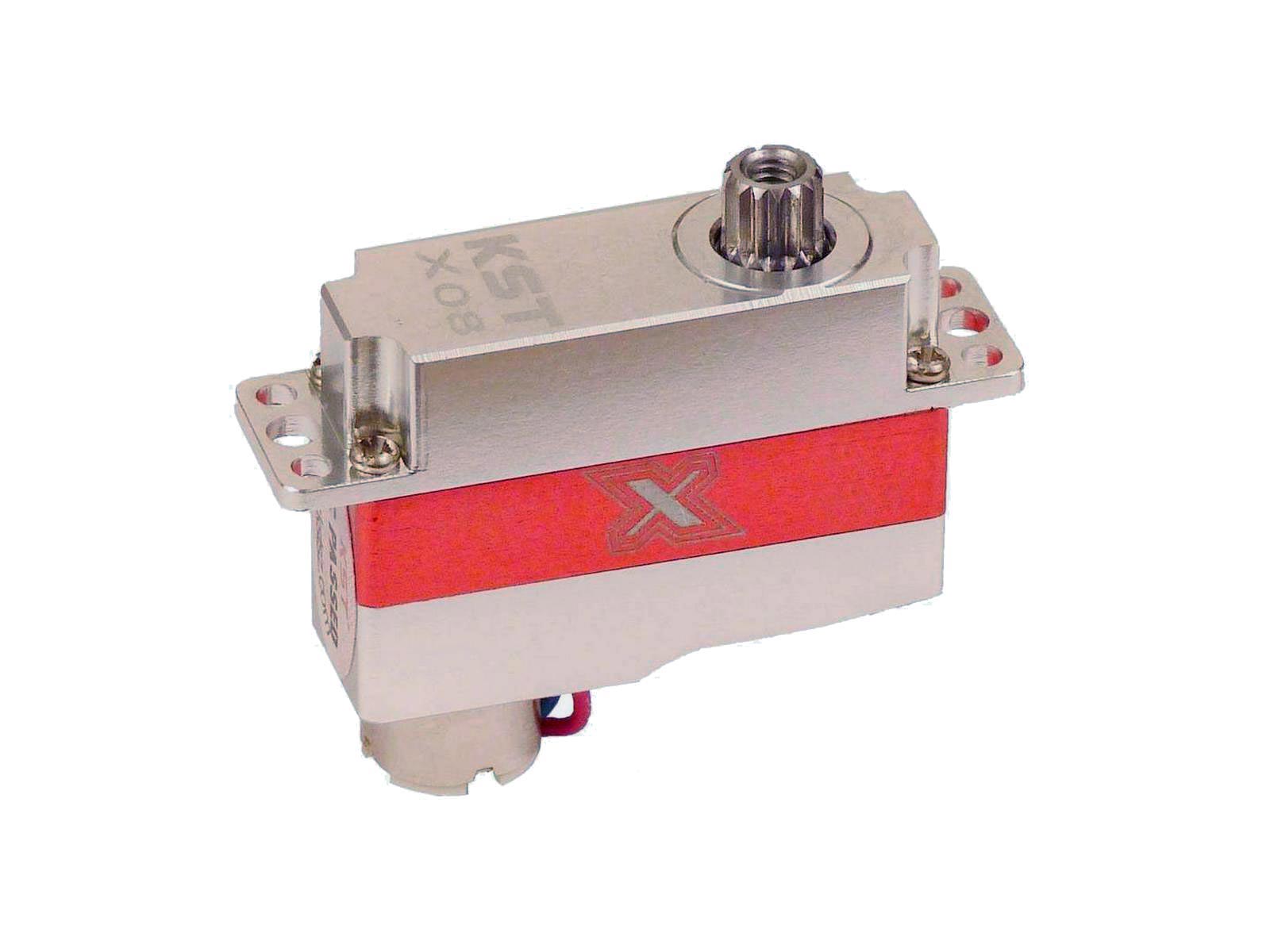

KST X08 V5 HV Servo - 2.8Kg.cm 0.09s 8.4g 8mm

Product Code: KST-X08
Description

KST X08 V5 HV Servo - 2.8Kg.cm 0.09s 8.4g 8mm

The KST X08 is a very light (8 g) low/medium/high voltage metal cased servo. It is especially good for ailerons on discus launched gliders, electric racers, and all models with thin flying surfaces. Despite being only 8 mm thick the powerful coreless DC motor and gearing provide good torque and high speed. The X08 can be operated from a voltage as low as 3.8V (1S LiPo) or as high as 8.4V (2S LiPo). KST servos have excellent geartrain machining tolerances, and this servo is completely slop free, and equal to products costing twice as much. Despite not having an -MG moniker this servo has metal gears, and is very tough.

The KST X08's high torque, good speed, and 8mm thinness make it suitable for many high performance glider, pylon racers and EDF applications. With up to 2.8kg.cm torque the KST X08 is appropriate for F3K, F5D, F5J, many types of high performance models.

Feb 2017: We are now only selling the new V5 version (there wasn't a V4). It has improved firmware and electronics, giving even more precise centering and a greater throw.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

KST X08 V5 Specifications
Body dimensions 23.5 mm wide x 8.0 mm thick x 16.8 mm high 0.93" wide x 0.31" thick x 0.66" high
Max dimensions 29.5 mm wide x 8.0 mm thick x 25.0 mm high 1.16" wide x 0.31" thick x 0.98" high
Stall torque (3.8V) 1.40 kg.cm 19 oz.in
Stall torque (6V) 2.20 kg.cm 31 oz.in
Stall torque (8.4V) 2.80 kg.cm 39 oz.in
Weight 8.4 g 0.30 oz
Lead length 10 cm 4.0 in
Operating speed (3.8V) 0.18 sec/60°
Operating speed (6V) 0.15 sec/60°
Operating speed (8.4V) 0.09 sec/60°
Operating voltage 3.8V to 8.4V
Bearings 2 ball bearings
Gear material Aluminium alloy / copper-bronze alloy
Case material Aluminium alloy
Motor type Coreless DC motor
Working frequency 333 Hz
Driver type FET
Digital Yes
Programmable No

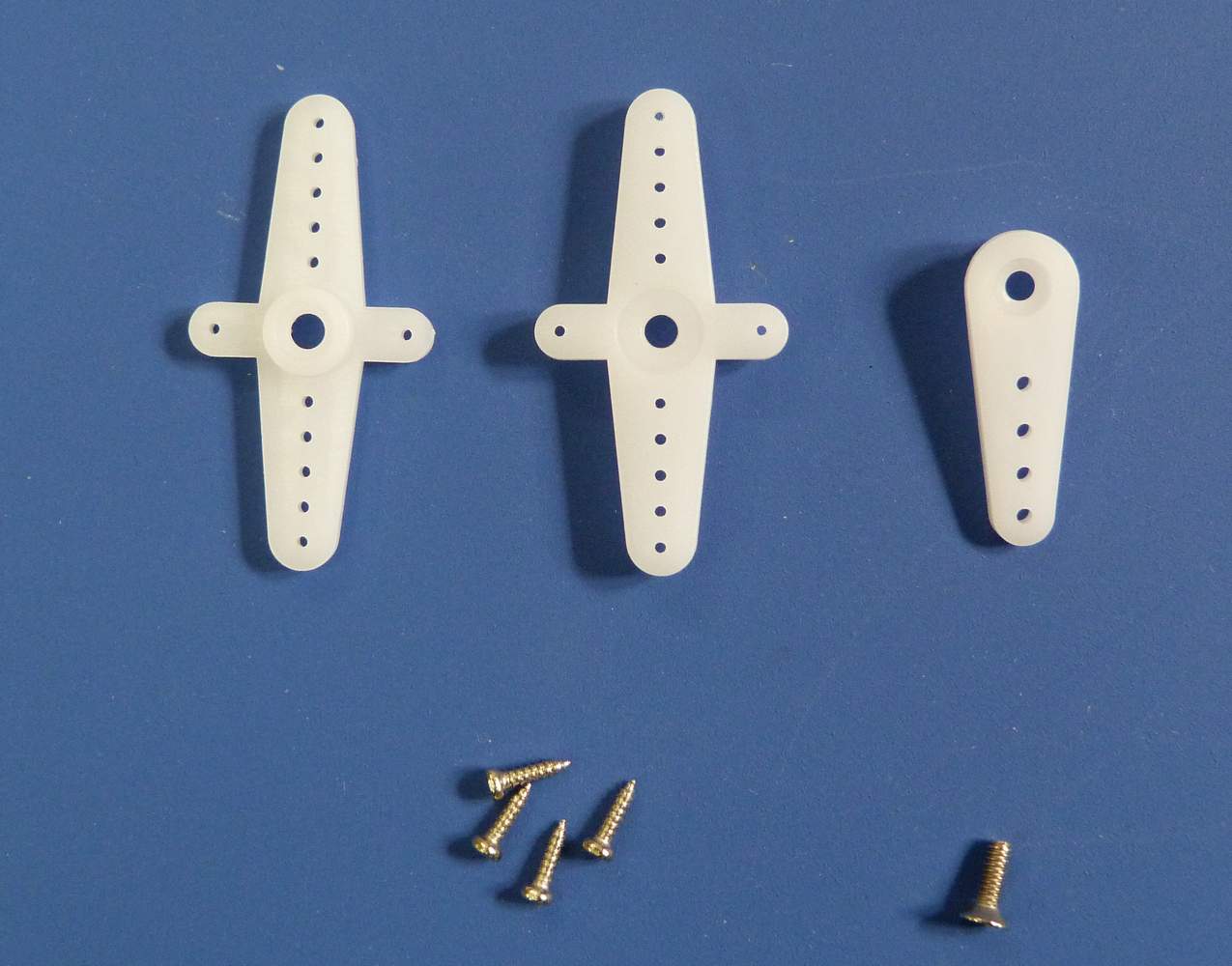

Supplied accessories 3 plastic output arms, 1 arm retaining screw, 4 mounting screws
Optional accessories Frame for KST X08, KST X08 Servo Arm Set, Frame with bearing for the KST X08
